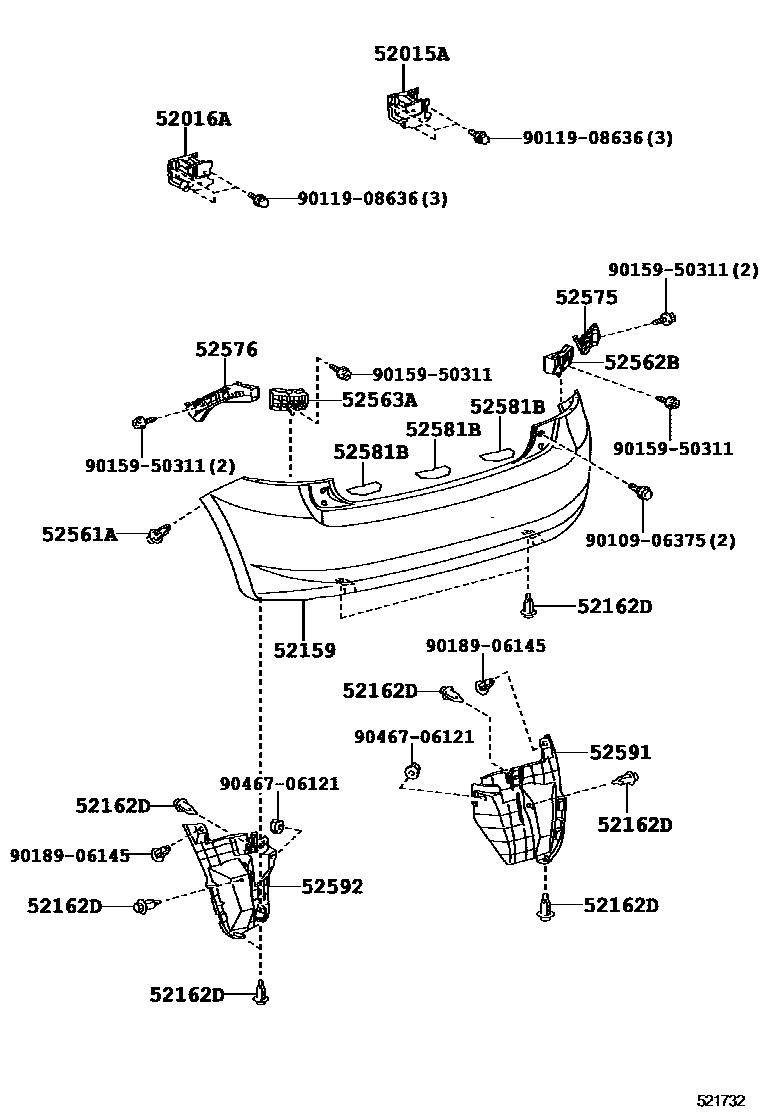

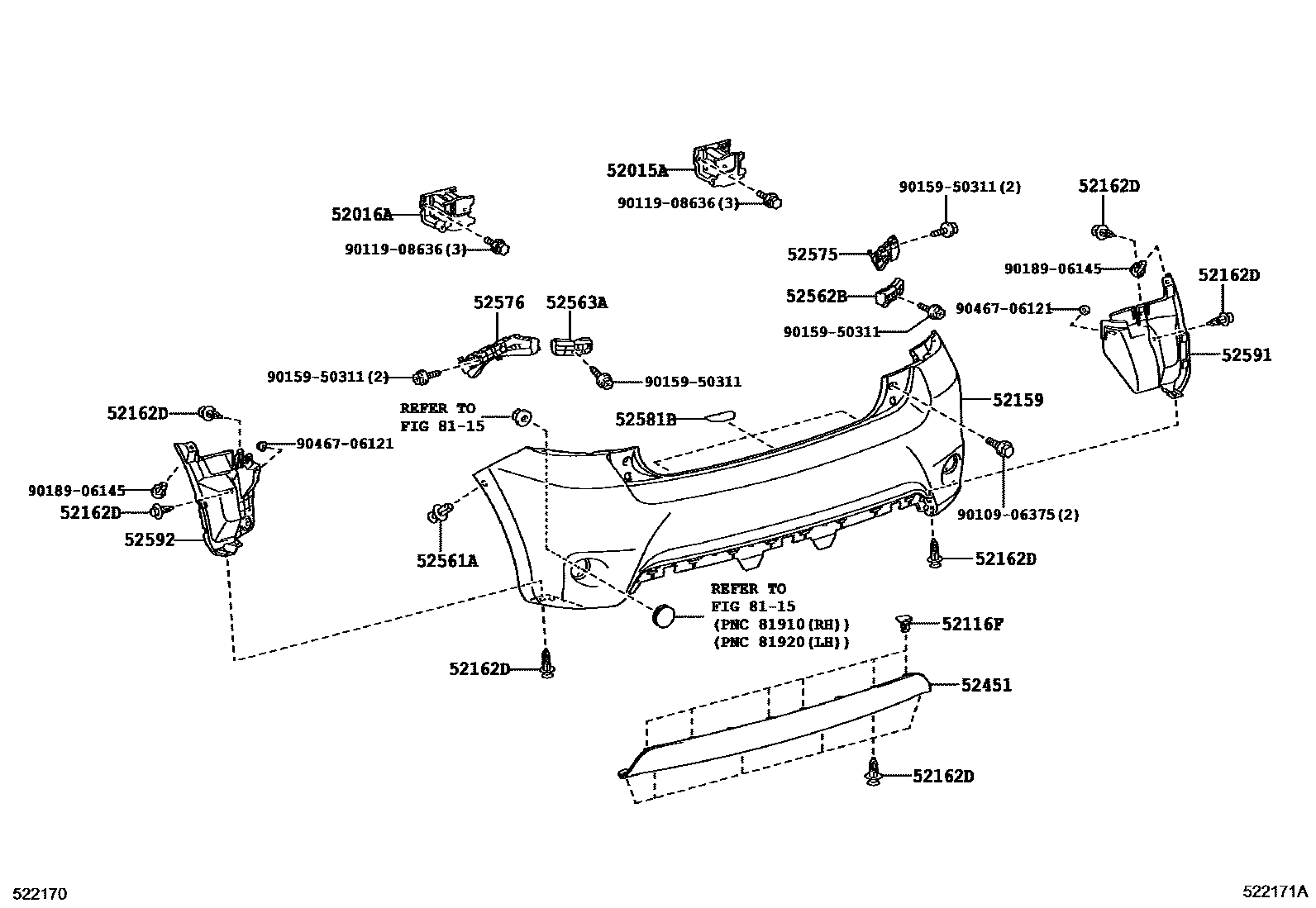

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12330 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12300 |
| 52116F | Rear bumper fixings | 75392-35220 |
| 52159 | rear bumper cover | 52159-12933 · 52159-12939 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52451 | Rear bumper anti-impact parts | 52453-12020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-12110 |
| 52563A | Rear bumper upper left fixing bracket | 52563-12030 |
| 52575 | Rear bumper right side fixing bracket | 52575-12150 |
| 52576 | Rear bumper left side fixing bracket | 52576-12150 |
| 52581B | rear bumper protector | 52581-12140 · 52581-13030 |
| 52591 | Rear bumper right seal | 52591-12180 · 52591-12250 |
| 52592 | Rear bumper left seal | 52592-12100 · 52592-12170 |
