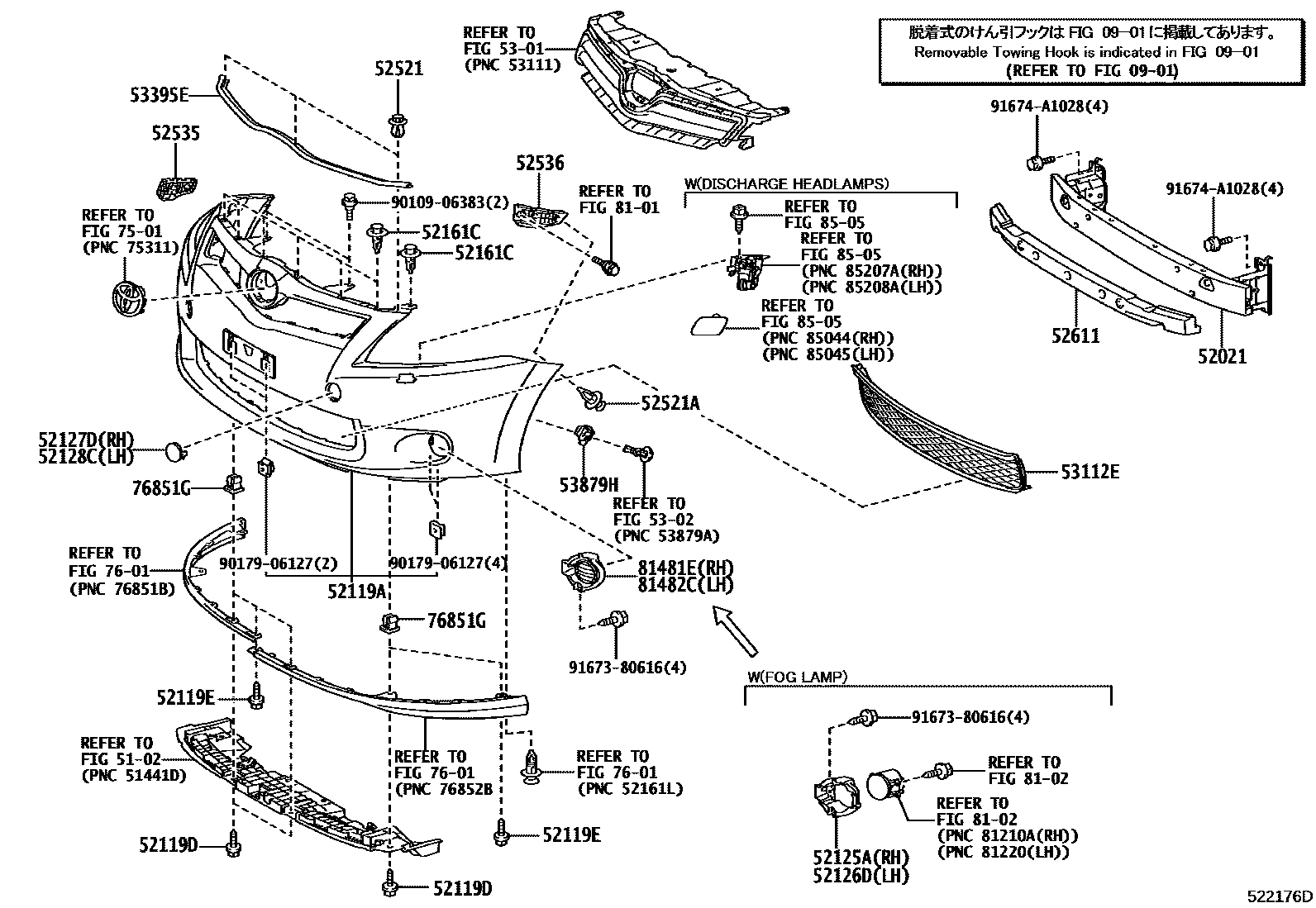

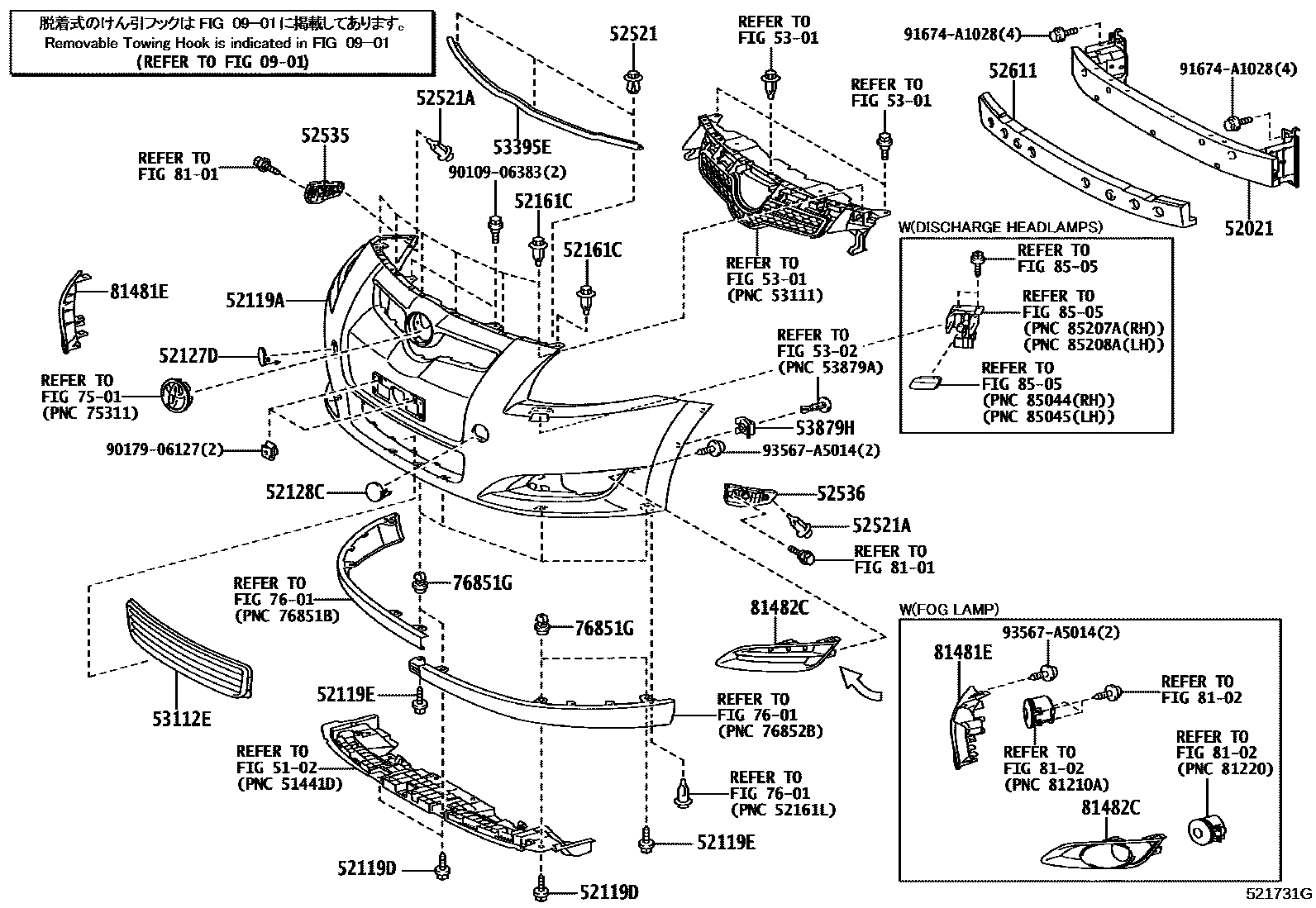

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12230 |
| 52119A | front bumper cover | 52119-12939 · 52119-12940 · 52119-12953 · 52119-12954 · 52119-12957 · 52119-12958 · 52119-12972 · 52119-12973 |
| 52119D | Screw No. 1 | 90159-60488 |
| 52119E | No. 2 screw | 90159-60488 |
| 52125A | Right fog light mounting bracket | 52125-12040 |
| 52126D | Left fog light mounting bracket | 52126-12030 |
| 52127D | Front bumper right hole cover | 52127-12901 · 52127-12907 |
| 52128C | Front bumper left hole cover | 52128-12901 · 52128-12906 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-12100 |
| 52536 | Front bumper left fixed bracket | 52536-12080 |
| 52611 | front bumper energy absorber | 52611-12180 · 52611-12260 |
| 53112E | No. 1 radiator lower grille | 53112-12120 · 53112-12220 |
| 53395E | Engine cover to front end plate seal | 53395-12040 · 53395-12080 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
| 76851G | No. 1 screw seal | 90189-05144 · 90189-06234 |
| 81481E | Right fog light cover | 81481-12060 · 81481-12070 · 81481-12150 |
| 81482C | Left fog light cover | 81482-12040 · 81482-12050 · 81482-12110 |
