Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

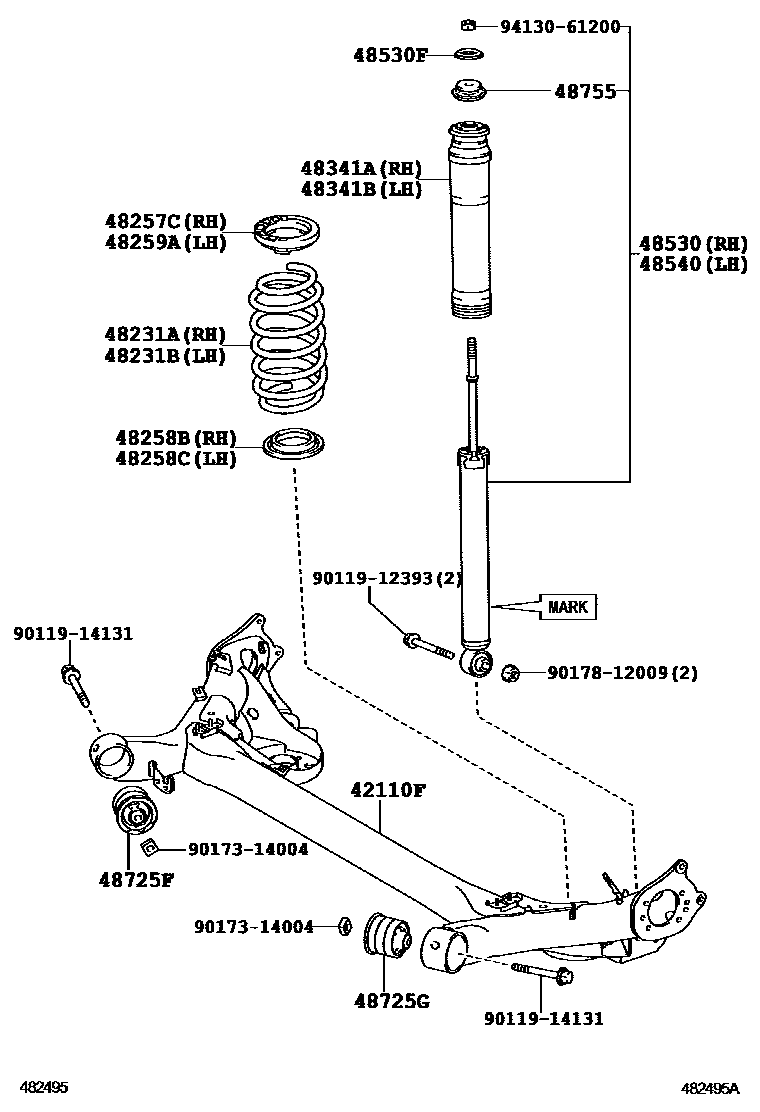

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-12171 |
| 48231A | Right rear coil spring | 48231-12A90 |
| 48231B | Left rear coil spring | 48231-12A90 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-52030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-52030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48341A | No. 1 right rear spring buffer block | 48341-12210 · 48341-12220 |
| 48341B | No. 1 left rear spring buffer block | 48341-12210 · 48341-12220 |
| 48530 | Right rear shock absorber assembly | 48530-80379 · 48530-80444 · 48530-80499 |
| 48530F | Rear shock absorber buffer pad | 90948-02159 |
| 48540 | Left rear shock absorber assembly | 48530-80379 · 48530-80444 · 48530-80499 |
| 48725F | Right rear axle bracket bushing | 48725-12590 |
| 48725G | Left rear axle bracket bushing | 48725-12590 |
| 48755 | rear suspension mount | 48755-12100 · 48755-12110 |
