Toyota COROLLA Brake Pedal & Bracket — Figure 4701

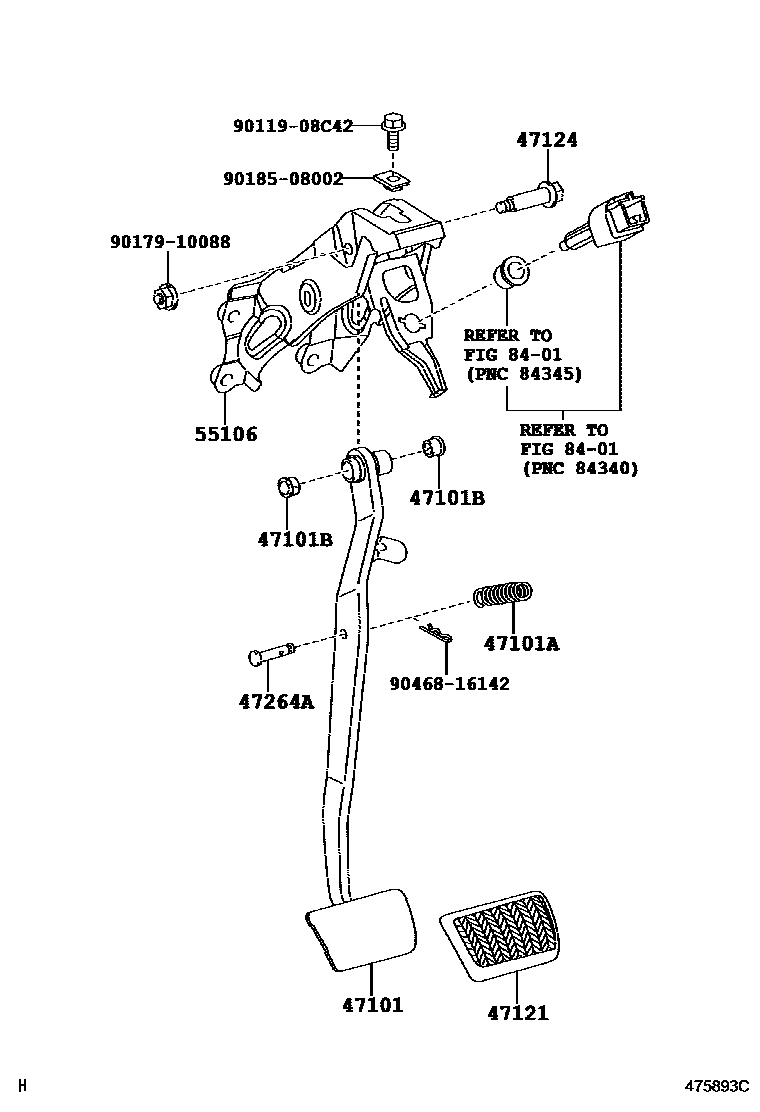

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-12630 · 47101-12631 · 47101-12640 · 47101-12641 |
| 47101A | Spring (for brake pedal return) | 90507-15005 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-42010 · 47121-42010 |
| 47124 | brake pedal shaft | 90109-10174 |
| 47264A | Pin (for push rod) | 90249-08256 |
| 55106 | Brake pedal bracket sub-assembly | 55106-12680 |
