Toyota COROLLA Steering Column & Shaft — Figure 4501

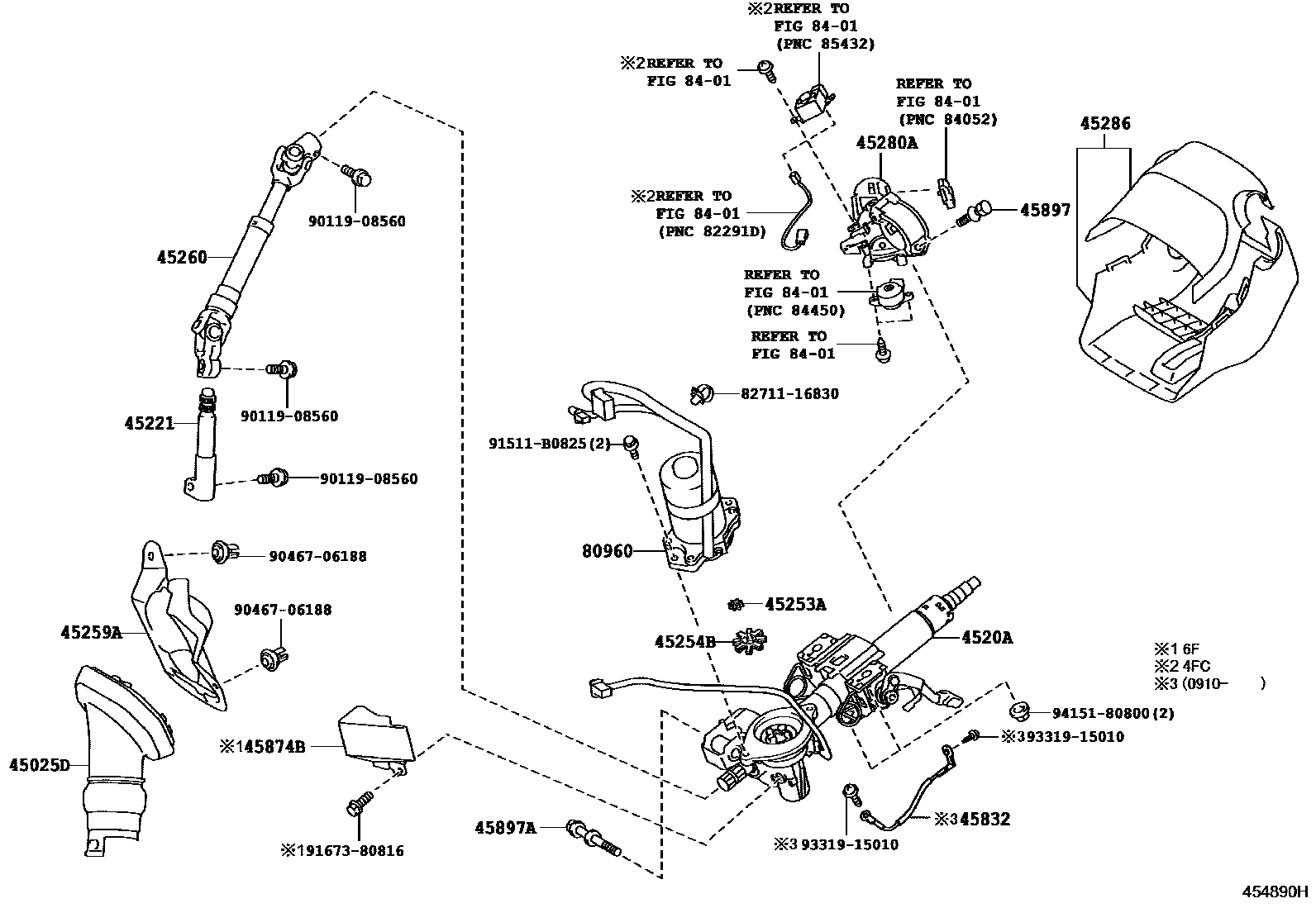

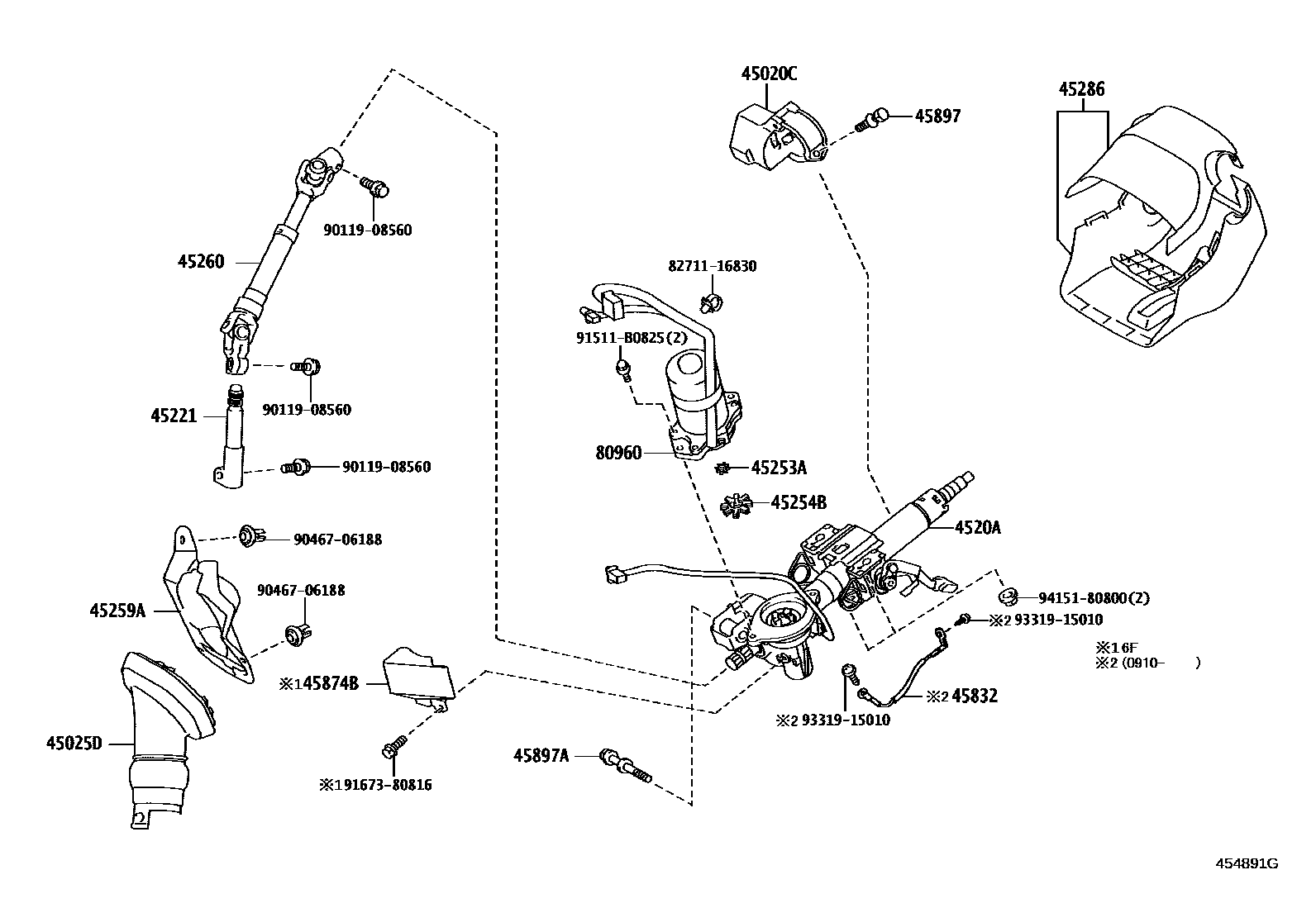

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-42150 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12280 |
| 4520A | Electric steering column sub-assembly | 4520A-12010 · 4520A-12020 |
| 45221 | steering intermediate shaft | 45221-12330 |
| 45253A | Electric steering motor shaft spacer | 45253-28130 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-12050 · 45259-12120 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12520 · 45260-12730 · 45260-47070 |
| 45280A | Steering column upper bracket assembly | 45280-42130 · 45280-42140 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-21010 |
| 45874B | No. 1 steering column guard | 45874-12090 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 |
| 80960 | Power steering motor assembly | 80960-12150 |
