Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 27 PNC and OE references.

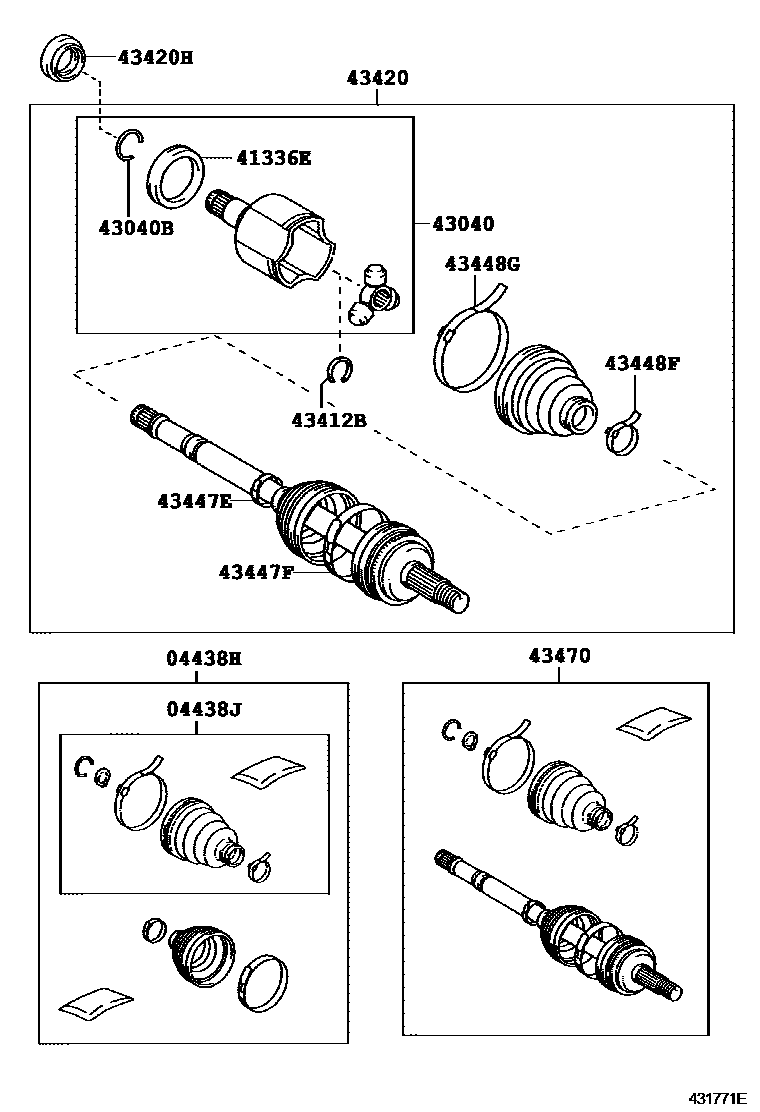

Toyota COROLLA Front Drive Shaft EPC diagram — 431771E
Front Drive Shaft — 431771E (200703 – 999999)
Toyota COROLLA Front Drive Shaft EPC diagram — 431999A
Front Drive Shaft — 431999A (200703 – 999999)

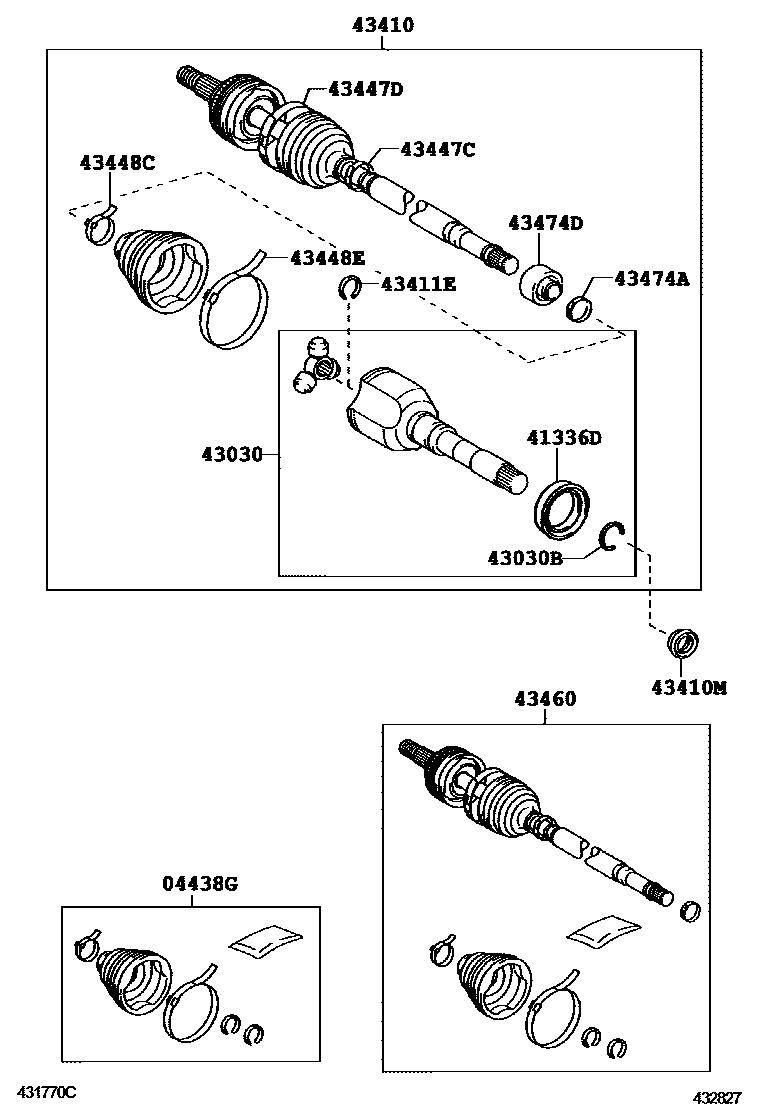

Toyota COROLLA Front Drive Shaft EPC diagram — 432827
Front Drive Shaft — 432827 (200703 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438GRight front drive shaft inner universal joint dust boot assembly04437-02280
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-02410
04438JLeft front drive shaft inner universal joint dust boot assembly04437-02280
41336DRight front driveshaft dust cover41336-05140
41336ELeft front driveshaft dust cover41336-05140
43030Right front drive shaft inner universal joint assembly43040-05110
43030BHole snap ring (for right front drive shaft inboard universal joint)90080-52055
43040Left front drive shaft inner universal joint assembly43040-05110
43040BHole snap ring (for left front drive shaft inboard universal joint)90080-52055
43410Right front driveshaft assembly43410-02580 · 43410-02581
43410MFront drive shaft right oil seal90311-35055 · 90311-35057 · 90311-35062 · 90311-35065
43411EInner shaft snap ring (for right front axle inner drive shaft)90080-52093
43412BInner shaft snap ring (for left front axle inner drive shaft)90080-52093
43420Left front drive shaft assembly43420-02620 · 43420-02621
43420HFront drive shaft left oil seal90311-35054 · 90311-35058 · 90311-35061 · 90311-35066 · 90311-35068
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-05140
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-02220
43447EClamp (for left front axle outer universal joint dust cover)42345-05140
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-02220
43448CClamp (for the universal joint dust cover inside the right front axle)42345-02240
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-05030
43448FClamp (for left front axle inner universal joint dust cover)42345-02240
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-05030
43460Right front outer drive universal joint shaft assembly43460-09R30 · 43460-09R31
43470Left front outer drive universal joint shaft assembly43470-09S50 · 43470-09S51
43474AClamp (for securing driveshaft damper)42345-02230
43474DRight front driveshaft shock absorber43474-02150
