Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

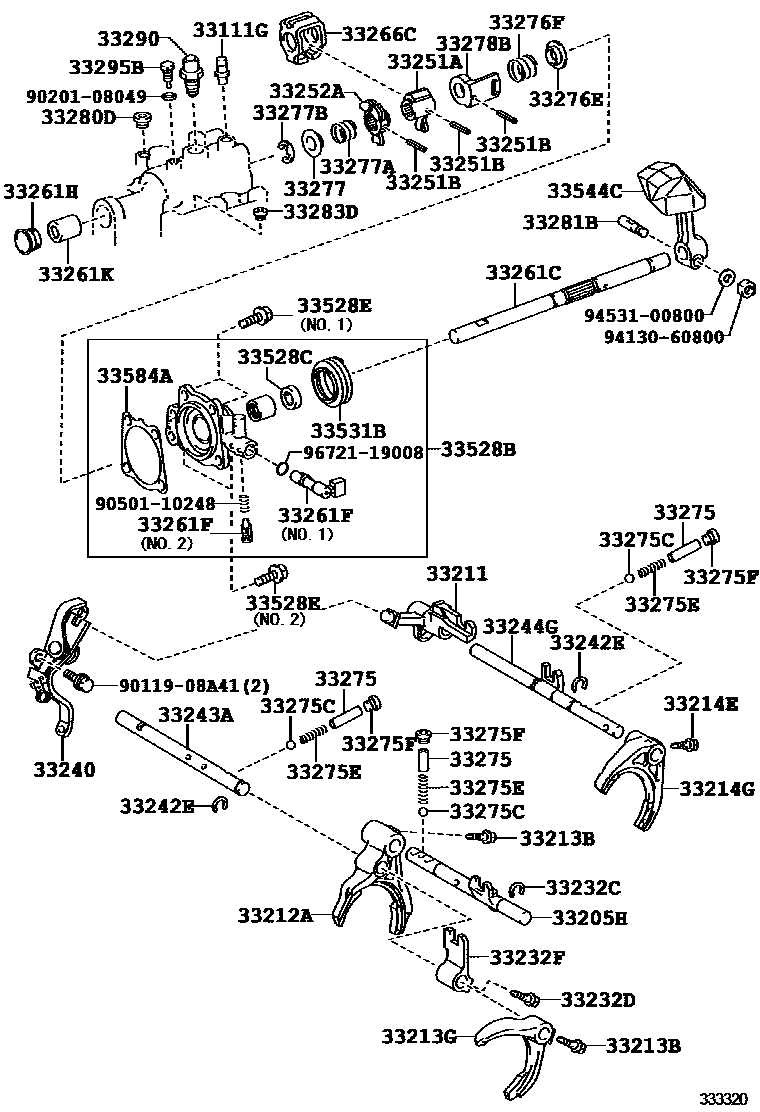

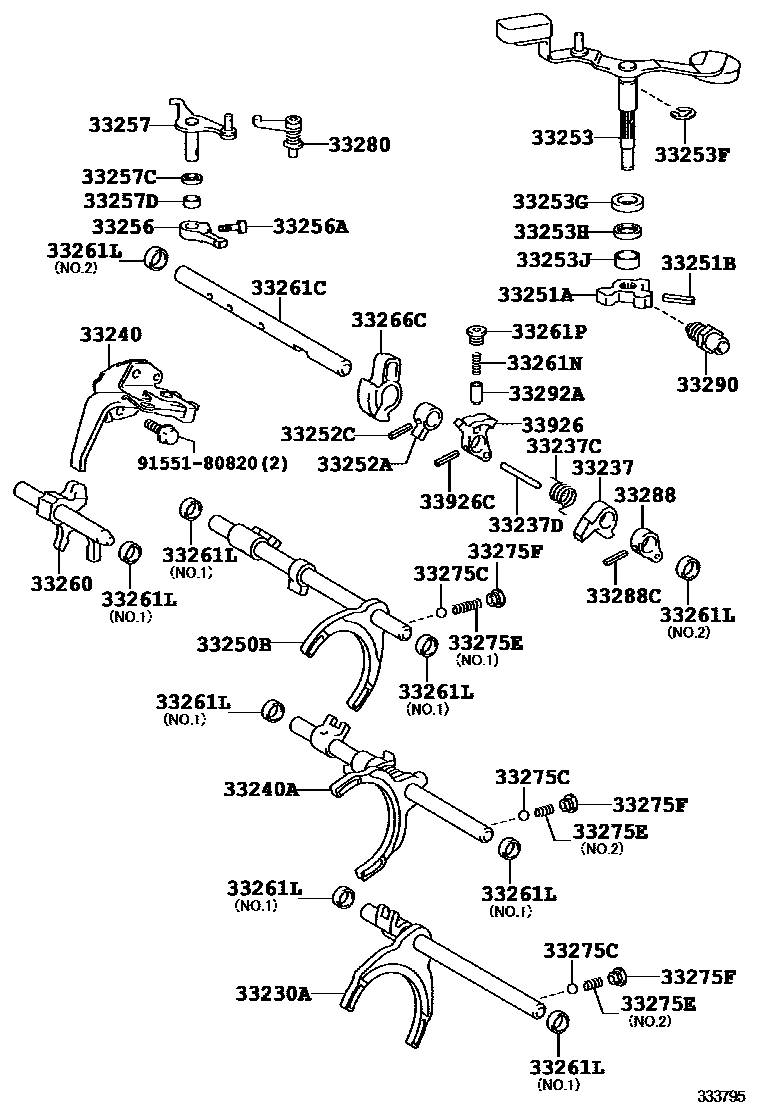

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03133 |
| 33205H | No. 1 shift fork shaft sub-assembly | 33205-12070 |
| 33211 | Reverse Shift Fork | 33211-12050 |
| 33212A | No. 1 shift fork | 33212-10013 |
| 33213B | Bolt (for securing shift fork) | 90105-06115 |
| 33213G | No. 2 shift fork | 33213-20050 |
| 33214E | Bolt (for shift fork lock) | 90105-06115 |
| 33214G | No. 3 shift fork | 33230-20010 |
| 33230A | No. 1 shift fork shaft assembly | 33230-20050 · 33230-20051 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-06115 |
| 33232F | No. 1 transmission guide block | 33232-12040 |
| 33237 | Separate guide block | 33237-20030 |
| 33237C | Torsion spring (for separating guide block) | 90508-27001 |
| 33237D | Direct sales (for detaching guide blocks) | 90250-06042 |
| 33240 | Reverse shift arm bracket assembly | 33240-20030 · 33240-20040 · 33240-20041 |
| 33240A | No. 2 shift fork shaft assembly | 33240-20070 · 33240-20071 · 33240-20072 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-20070 |
| 33244G | No. 3 shift fork shaft | 33244-20051 |
| 33250B | No. 3 shift fork shaft assembly | 33250-20130 |
| 33251A | Internal shift lever No. 1 | 33251-12100 · 33251-20120 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 · 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-12030 · 33252-20060 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-20070 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253G | Spacer (for outer shift lever) | 90560-18017 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-18018 |
| 33256 | Internal gear selector | 33256-20030 |
| 33256A | Fixing bolt (for interior gear selector) | 90110-08041 |
| 33257 | External gear selector | 33257-20040 · 33257-20041 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33257D | Bimetallic bushing (for external selector lever) | 90384-15002 |
| 33260 | Reverse shift fork shaft assembly (MTM) | 33260-20010 |
| 33261C | shift lever shaft | 33261-12180 · 33261-20120 |
| 33261F | Direct sales (for shift lever shaft) | 33267-12030 · 33267-20030 |
| 33261H | Oil seal (for shift lever shaft) | 90310-15004 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-15001 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-14008 · 90384-16005 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11108 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33266C | shift interlock plate | 33266-12050 · 33266-20060 · 33266-20061 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-11110 · 90501-12187 · 90501-12207 · 90501-13088 · 90501-13089 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-12040 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-15048 |
| 33277 | No. 2 gear selector spring seat | 33277-12020 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-16192 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33278B | Shift lever shaft bracket | 33278-12030 |
| 33280 | Reverse gear positioning pin assembly | 33280-20050 |
| 33280D | Headed straight thread plug (for reverse gear locating pin) | 90341-14008 |
| 33281B | Shift lever lock pin (for outer shift lever) | 33281-16020 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33288 | Gear selector stop | 33288-20020 |
| 33288C | Slotted spring pin (for gear selector stop) | 90254-05001 |
| 33290 | No. 1 locking steel ball assembly | 33290-52040 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33295B | Shift positioning plate pin | 33295-52010 |
| 33528B | control shaft cover | 33506-12170 |
| 33528C | Oil seal (for control shaft cover) | 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 91612-61025 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12030 |
| 33544C | Gear shifter damper | 33544-12050 |
| 33584A | Shift lever stopper gasket | 33584-12060 |
| 33926 | Front inner shift lever | 33926-20010 · 33926-20011 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
