Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 2 PNC and OE references.

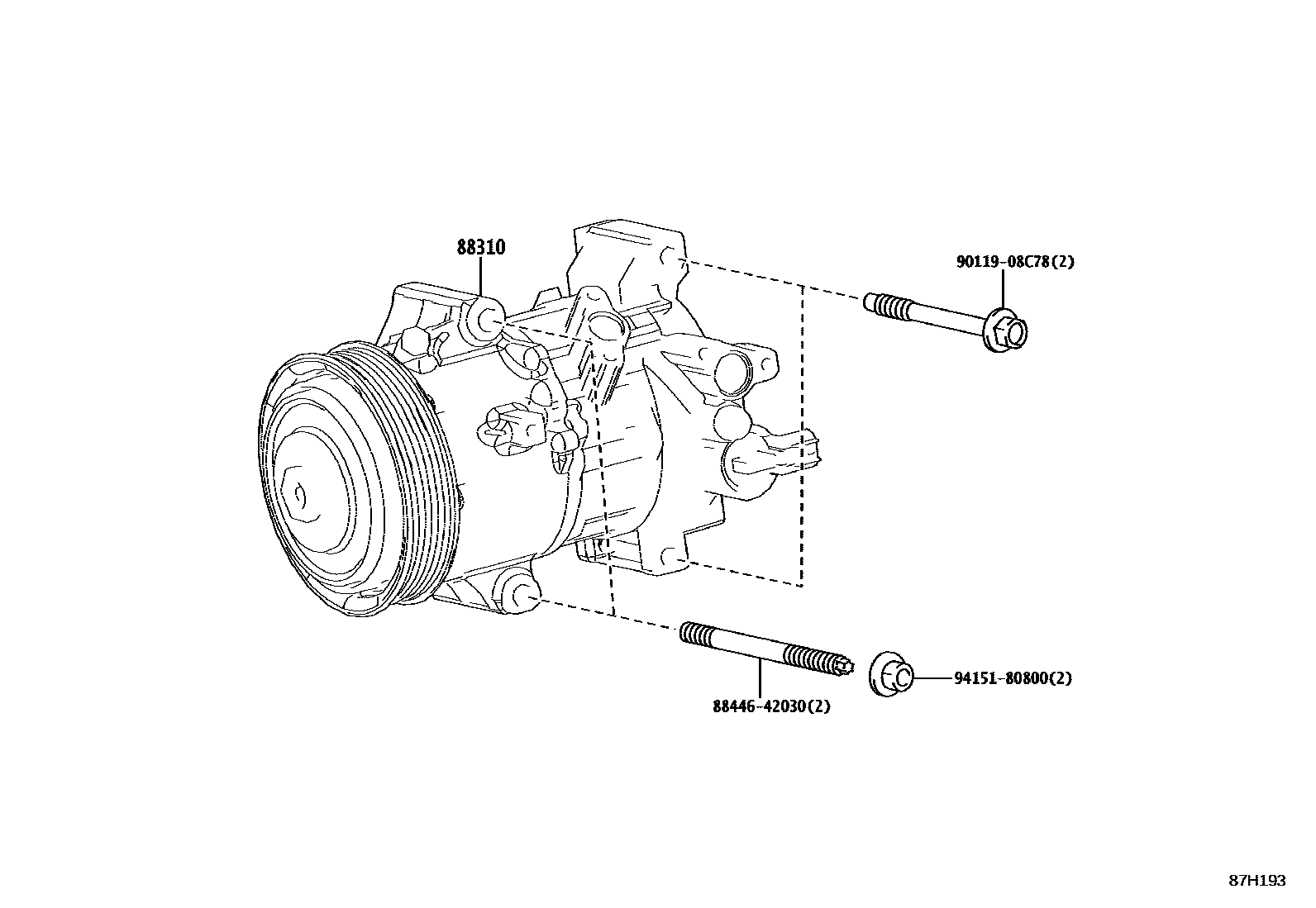

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87H193 — Heating & Air Conditioning - Compressor — 87H193 (201806 – 999999)

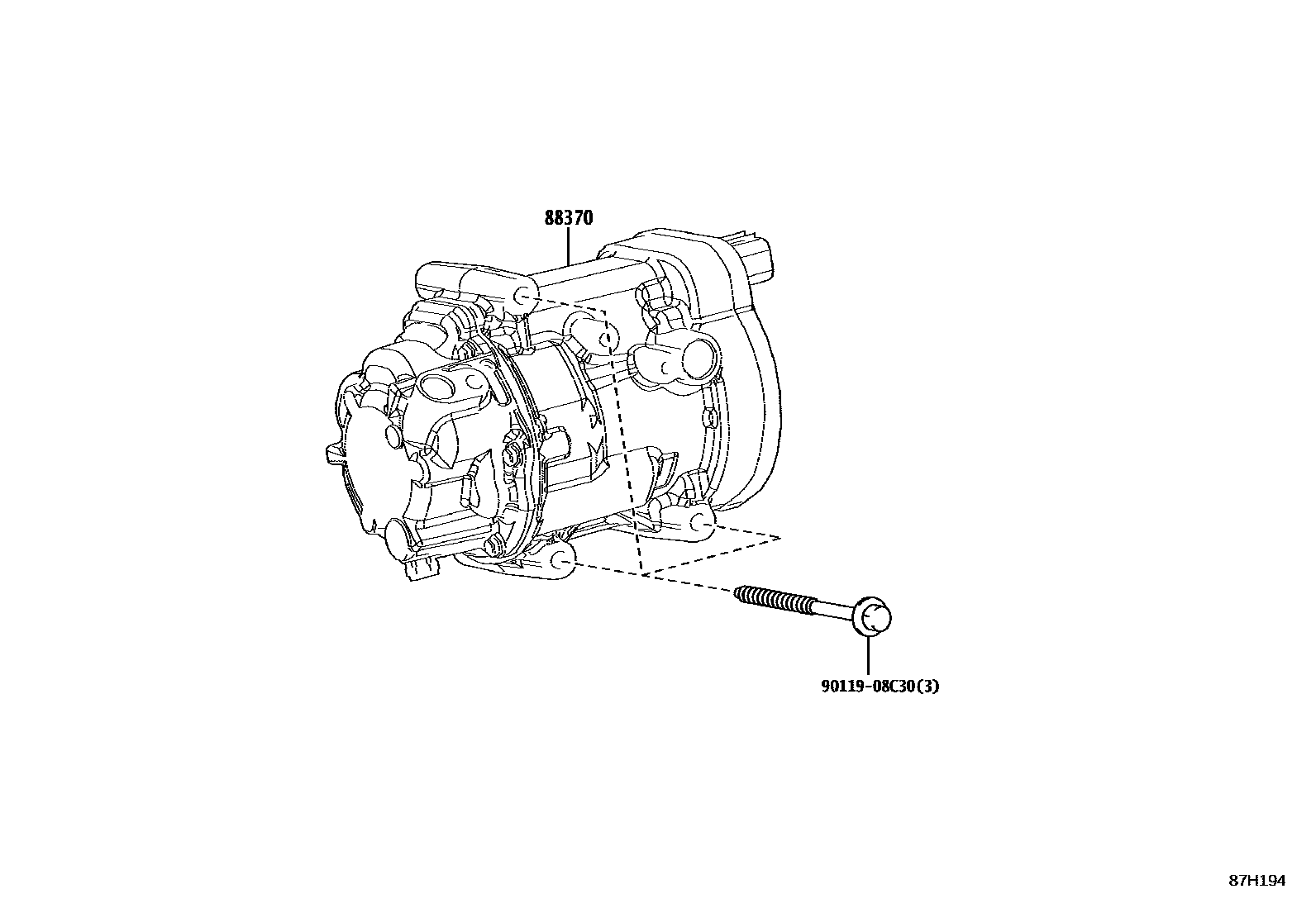

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87H194 — Heating & Air Conditioning - Compressor — 87H194 (201806 – 999999)

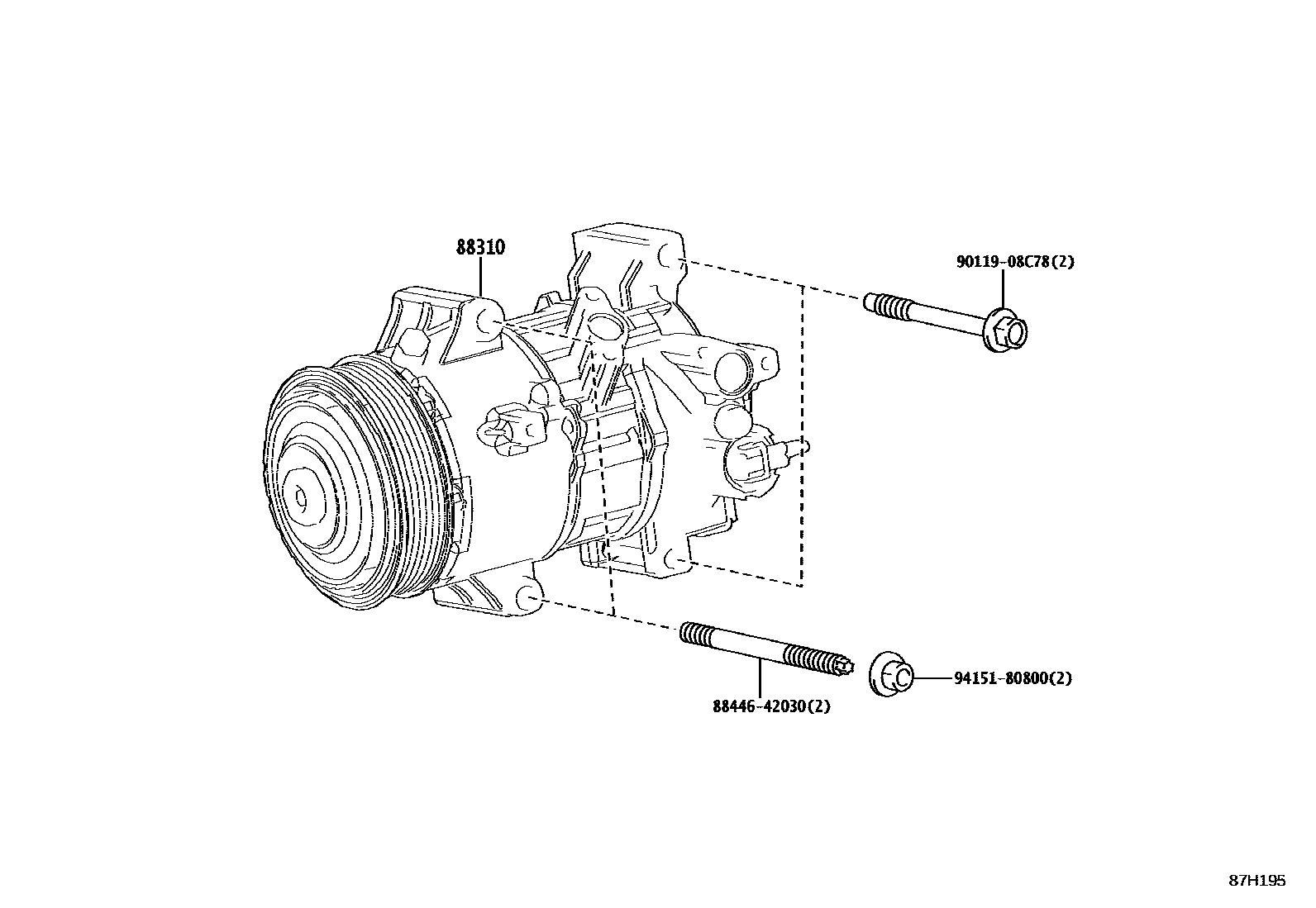

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87H195 — Heating & Air Conditioning - Compressor — 87H195 (201806 – 999999)

PNC and OE references

PNC	Part name	OE numbers
88310	Compressor assembly with pulley	88310-10630 · 88310-12B10 · 88310-12B20
88370	Compressor assembly with motor	88370-47092
