Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

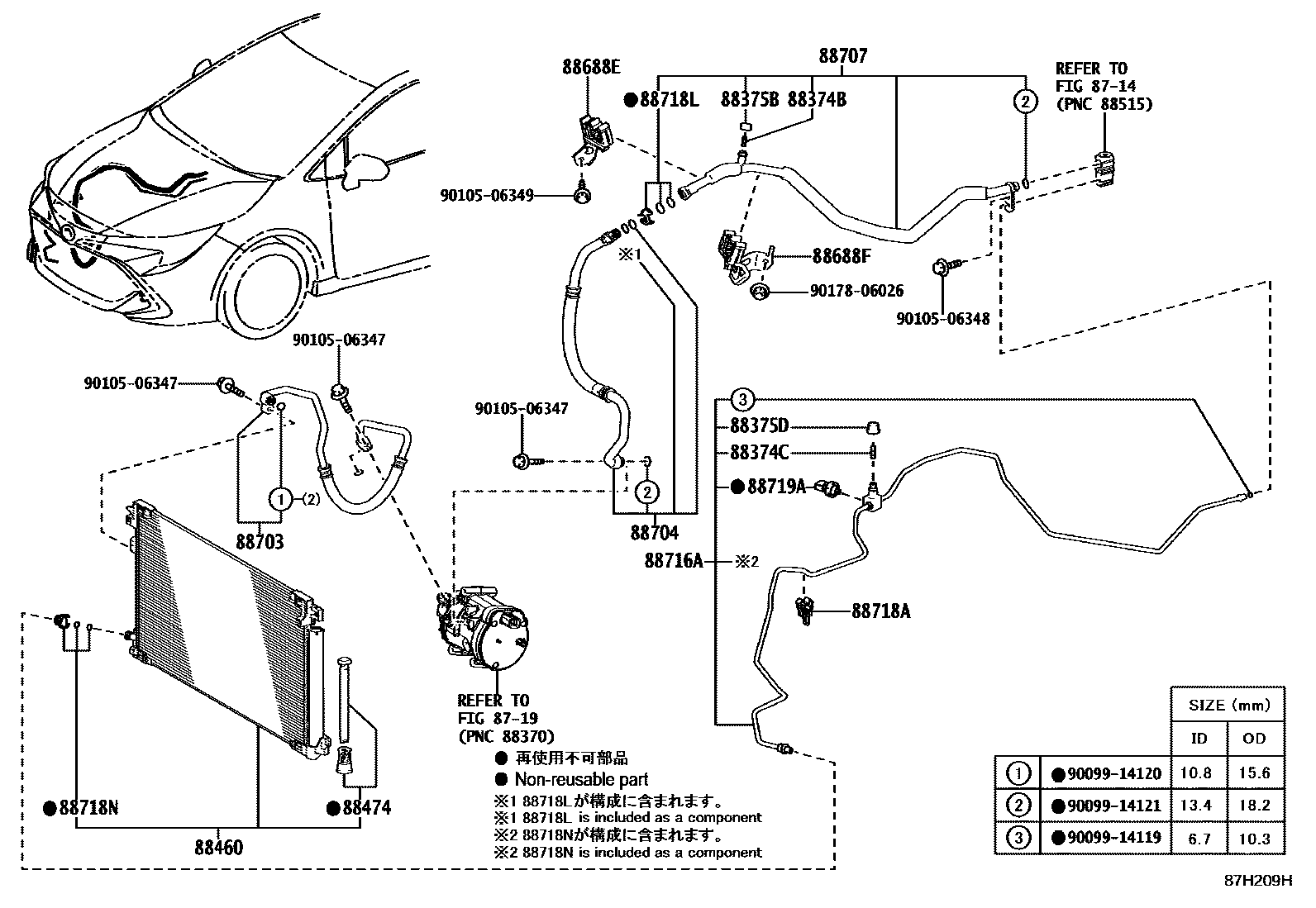

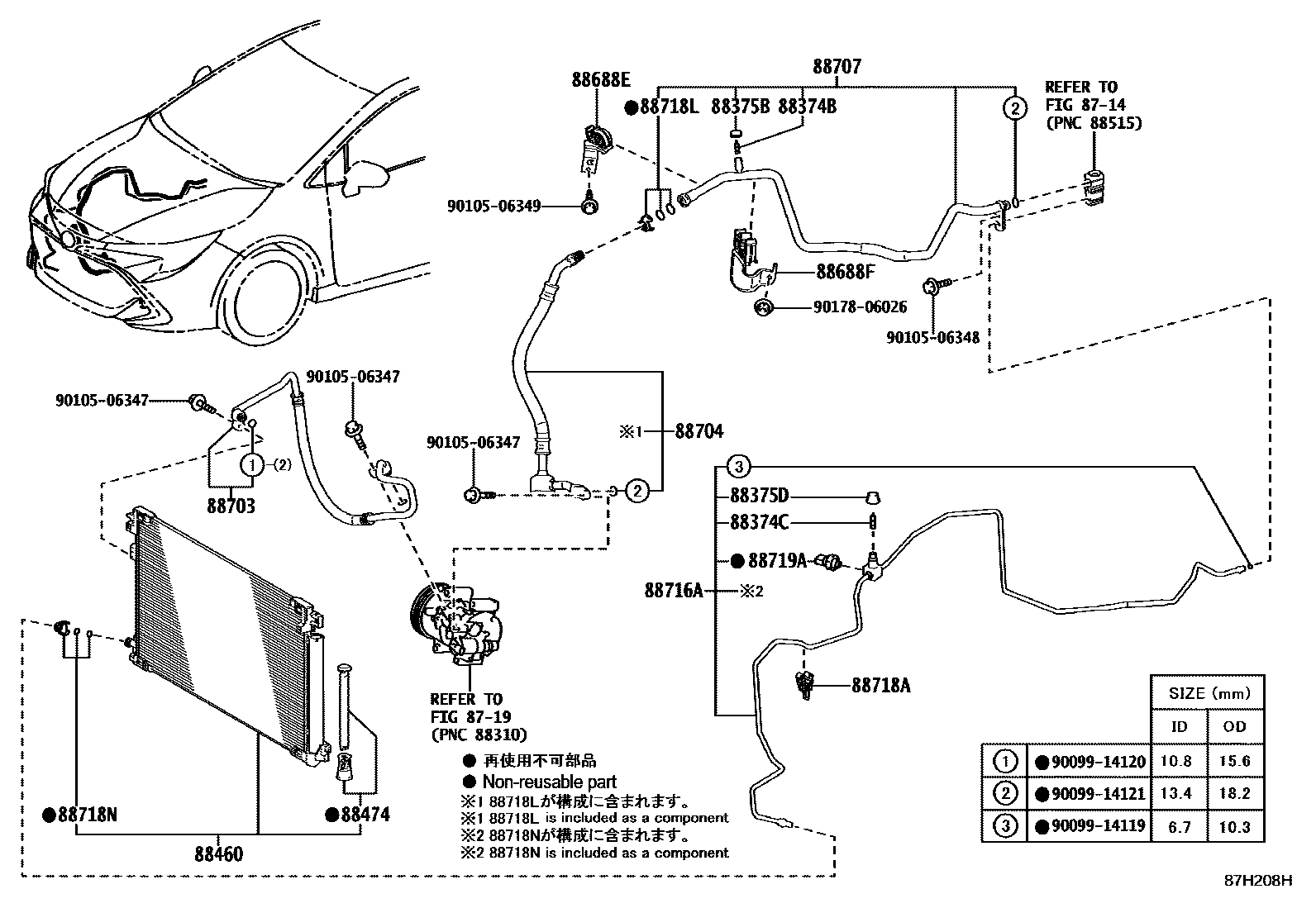

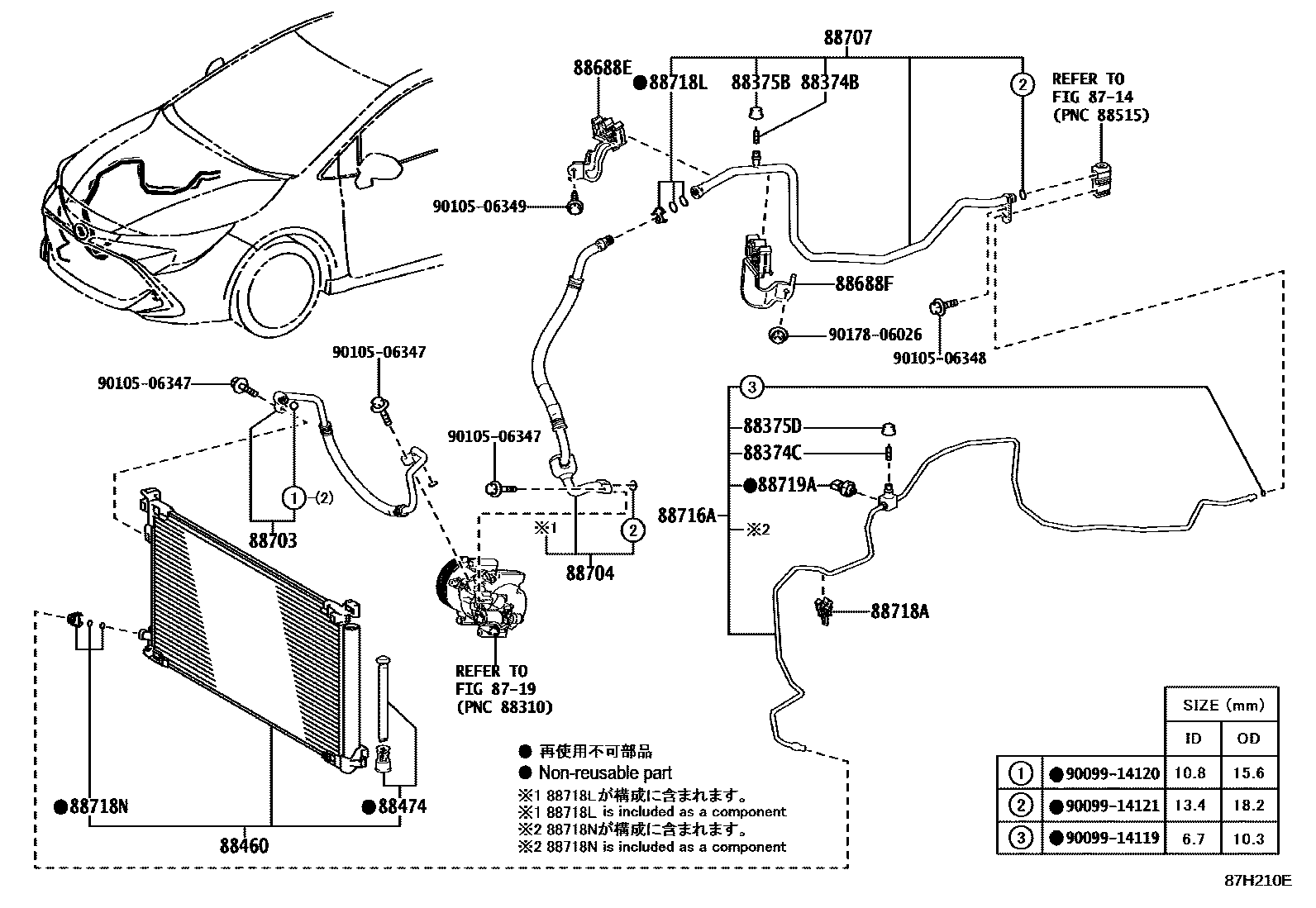

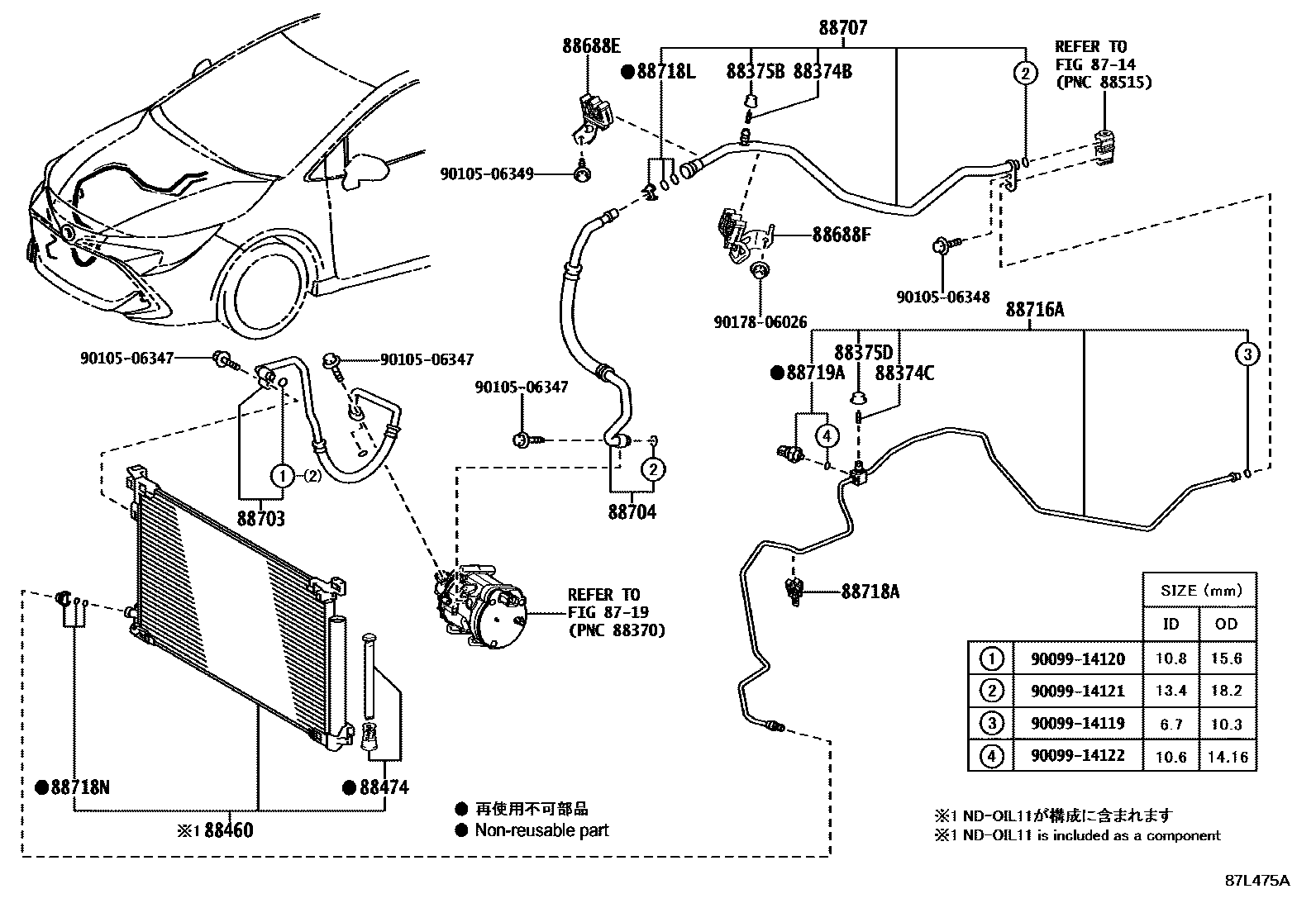

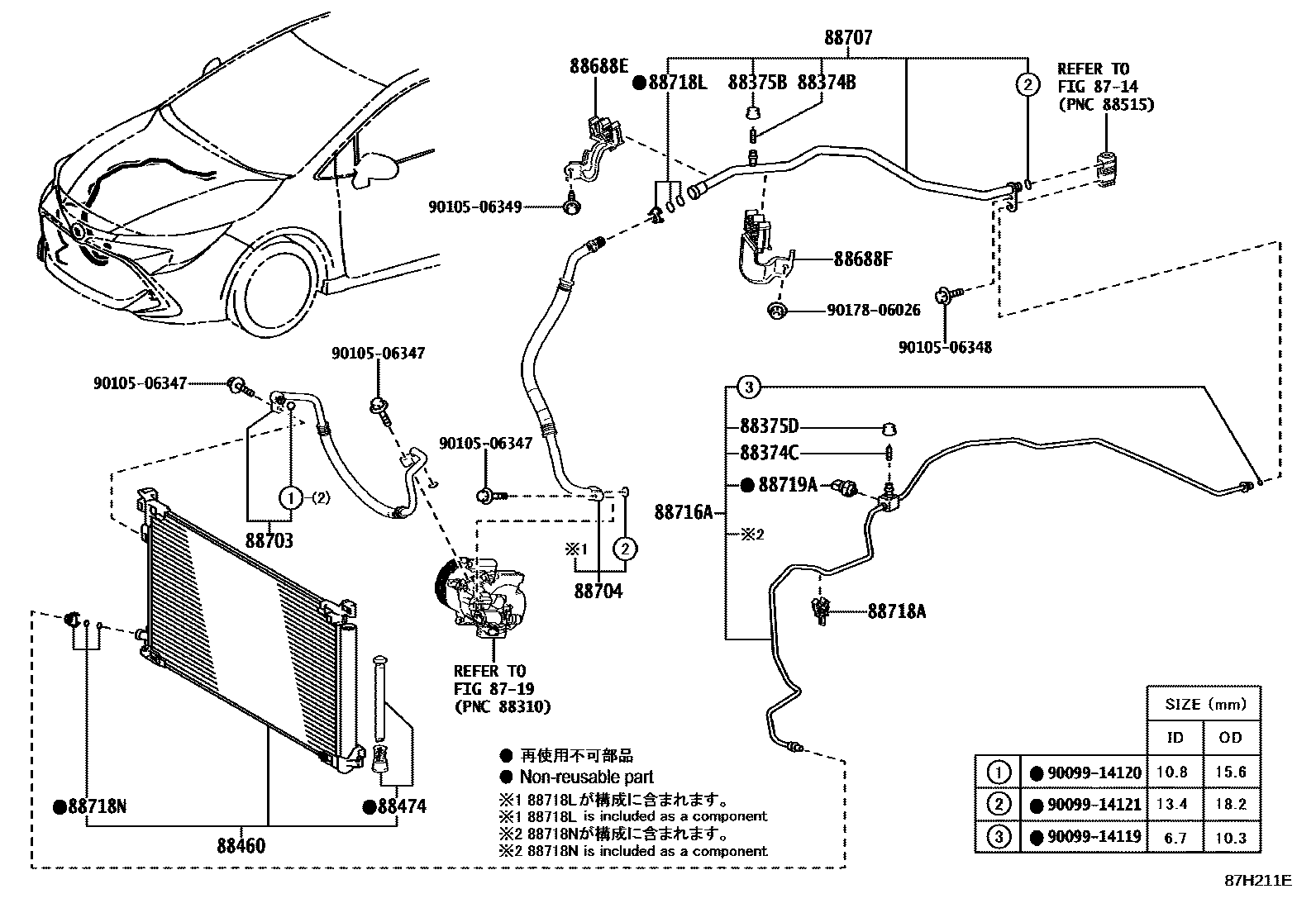

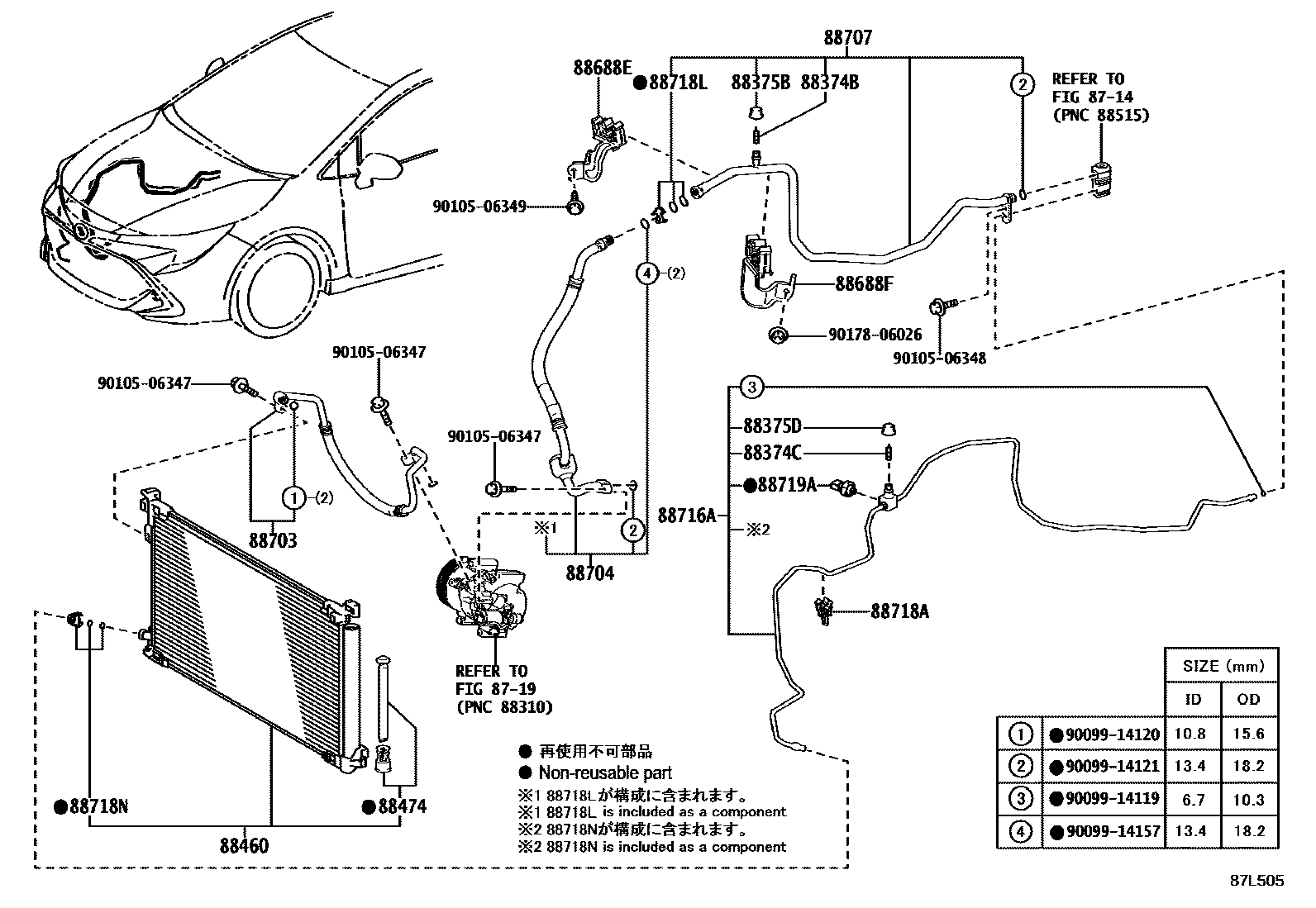

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88460 | Air conditioning condenser assembly | 88460-10310 · 88460-10320 · 884A0-12020 · 884A0-12100 · 884A0-12110 · 884A0-12120 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-10540 · 88688-12A20 · 88688-47700 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-10560 · 88688-47710 |
| 88703 | Discharge hose sub-assembly | 88703-10100 · 88703-12A20 · 88703-16340 · 88703-47080 |
| 88704 | Oil suction hose sub-assembly | 88704-10260 · 88704-12A90 · 88704-12B30 · 88704-12B90 · 88704-16500 · 88704-47100 |
| 88707 | Suction pipe sub-assembly | 88707-12370 · 88707-12410 · 88707-12430 · 88707-12450 · 88707-47090 · 88707-47100 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12B10 · 88710-12B20 · 88710-12B40 · 88710-12C20 · 88710-12C30 · 88710-12C60 · 88710-12D50 · 88710-12D60 · 88710-47160 · 88710-47161 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 · 88719-47010 |
