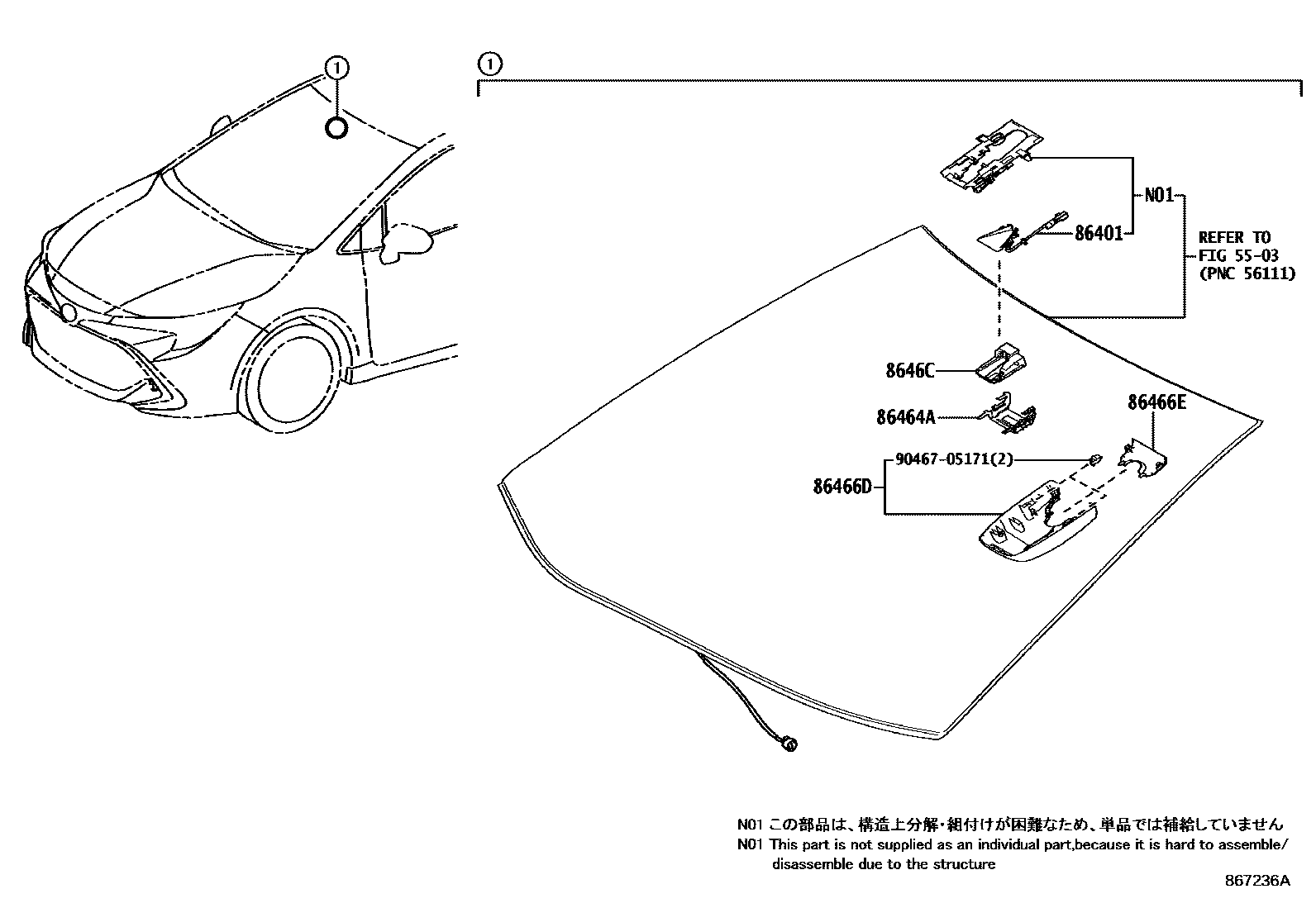

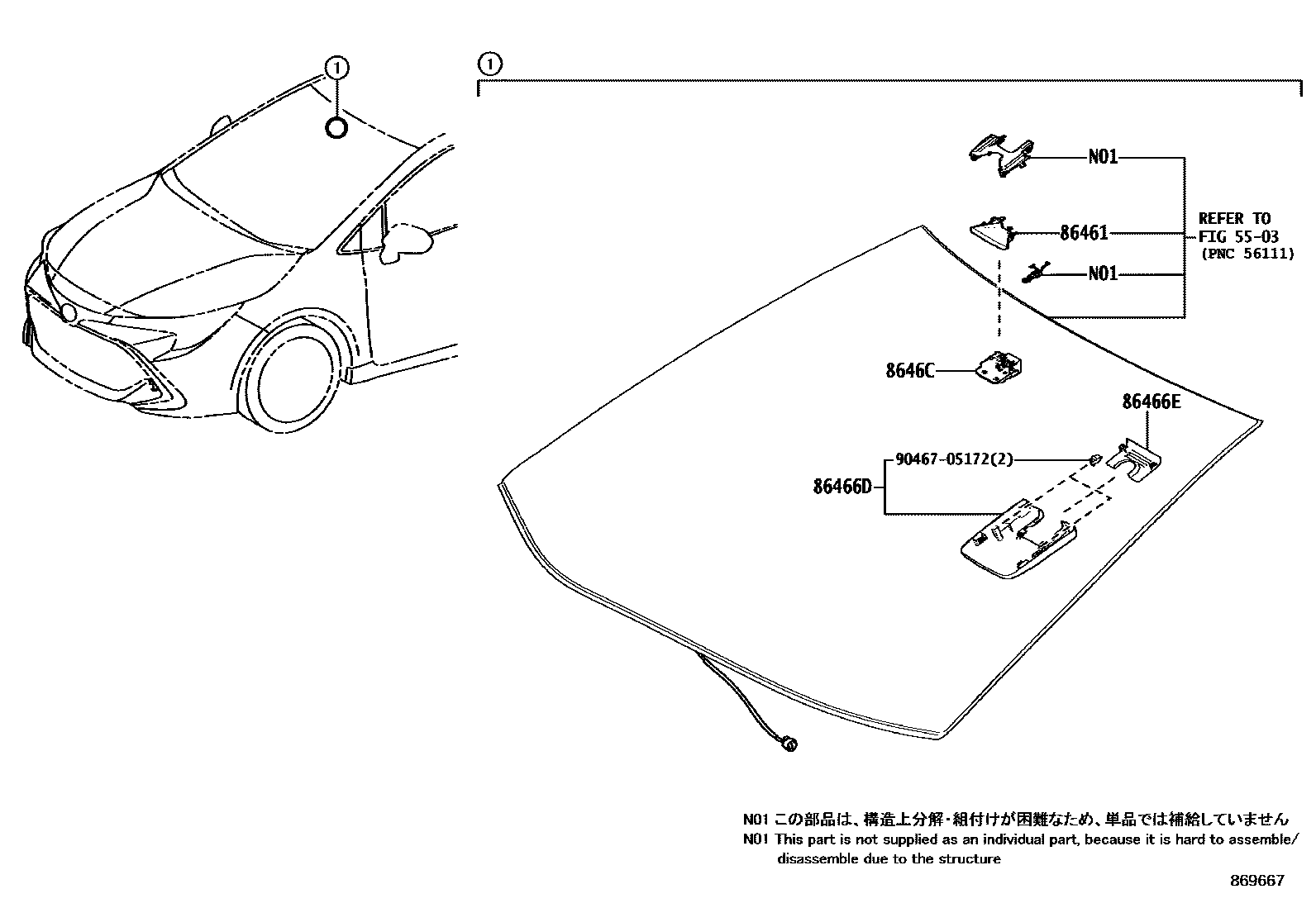

Toyota COROLLA 预碰撞安全系统 — Figure 8617
Toyota COROLLA EPC diagram 8617, 预碰撞安全系统, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-12010 · 86401-12011 |
| 86461 | front identification cover | 86461-12040 |
| 86464A | Front identification lock | 86464-26010 |
| 86466D | Front identification cover No. 1 | 86466-12030 · 86466-12050 |
| 86466E | Front identification cover No. 2 | 86466-12040 · 86467-12010 |
| 8646C | front recognition camera | 8646C-12010 · 8646C-12030 · 8646C-12031 · 8646C-12110 · 8646C-12111 · 8646C-12180 |
