Toyota COROLLA 导航和前监视器显示屏 — Figure 8603

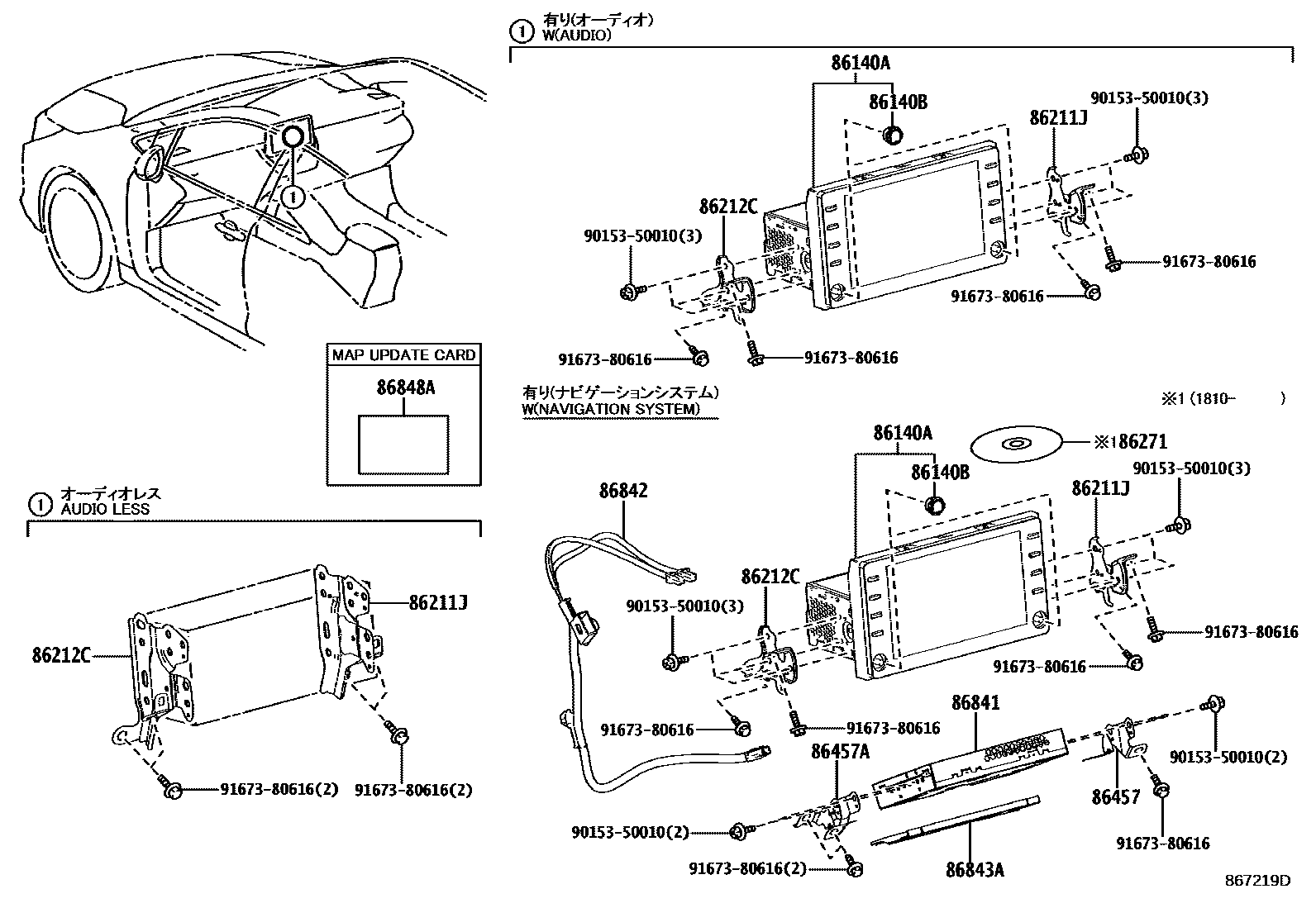

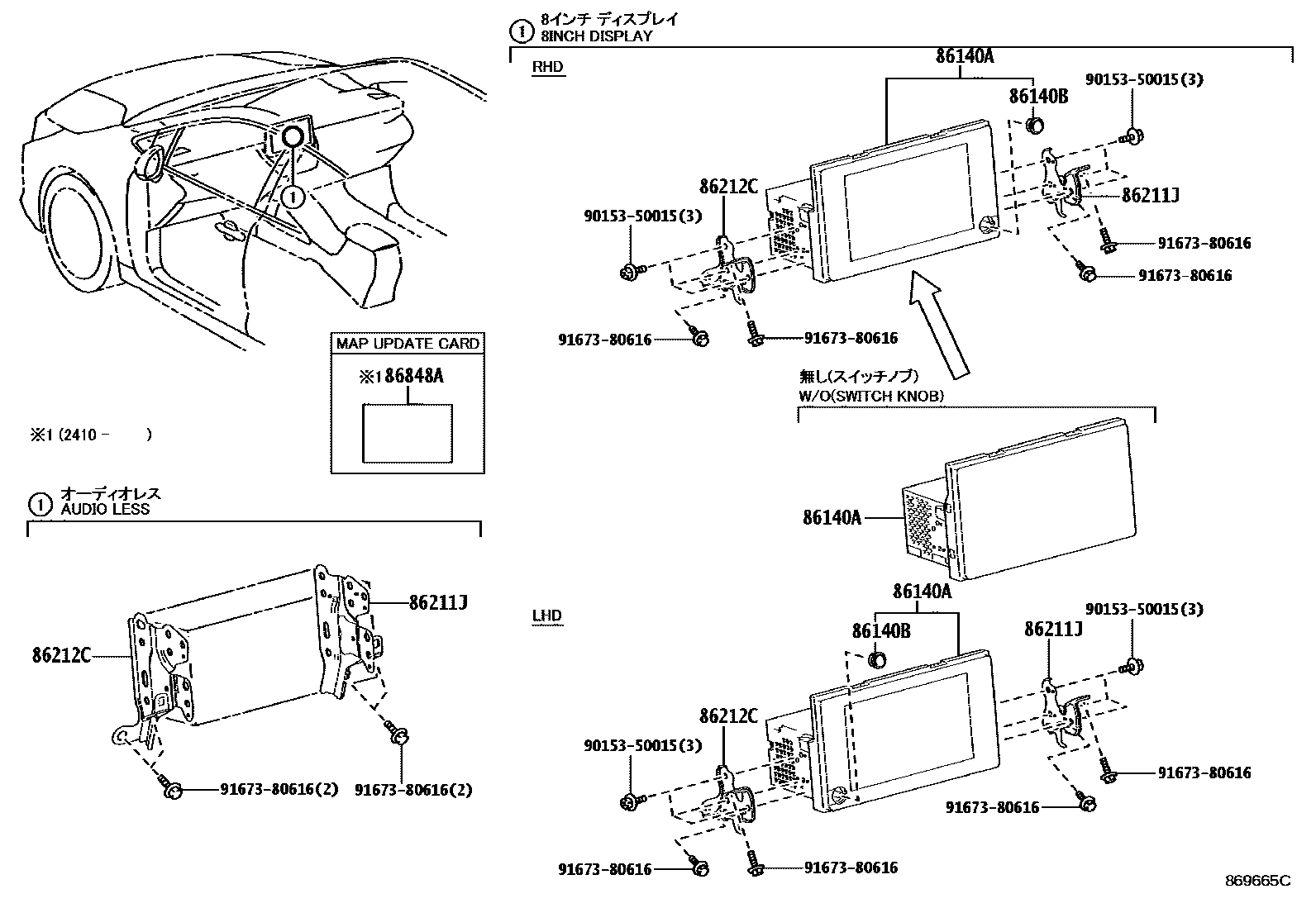

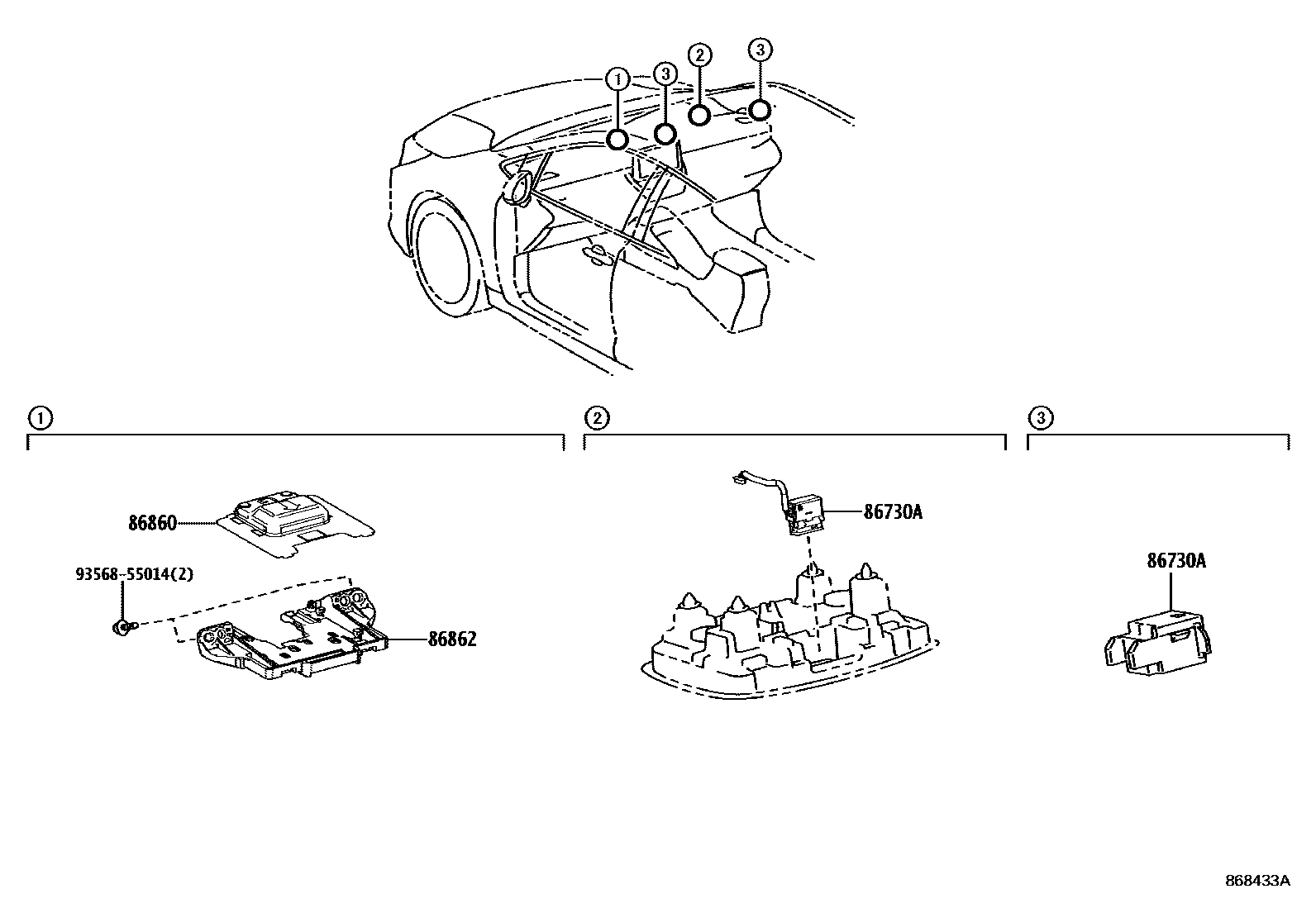

Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-12B61 · 86100-12B71 · 86100-12B80 · 86140-12180 · 86140-12190 · 86140-12200 · 86140-12310 · 86140-12760 · 86140-12770 · 86140-12780 · 86140-12790 · 86140-12D00 · 86140-12D20 · 86140-12D21 · 86140-12D40 |
| 86140B | Radio and display receiver switch button | 90010-22129 · 90010-23057 · 90010-23068 · 90010-24202 |
| 86211J | No. 1 radio bracket | 86211-12470 · 86211-12490 |
| 86212C | No. 2 radio bracket | 86212-12460 · 86212-12480 |
| 86271 | CD | 86807-11041 · 86807-11042 · 86807-11043 · 86807-11044 |
| 86457 | Multimedia module bracket No. 1 | 86457-12010 |
| 86457A | Multimedia module bracket No. 2 | 86457-12020 |
| 86730A | Telephone amplifier assembly | 86730-12081 · 86730-16010 · 86730-47030 · 86730-47040 |
| 86841 | Navigation ECU | 86840-12020 · 86840-12021 · 86840-12022 · 86840-K0050 · 86840-K0051 · 86840-K0052 |
| 86842 | Navigation harness No. 1 | 86842-12020 |
| 86843A | Navigation ECU cover | 86843-12010 |
| 86848A | Map serial number update card | 86848-33040 · 86848-78030 · 86848-78090 |
| 86860 | Navigation antenna assembly | 86860-78010 · 86880-42010 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-58020 |
