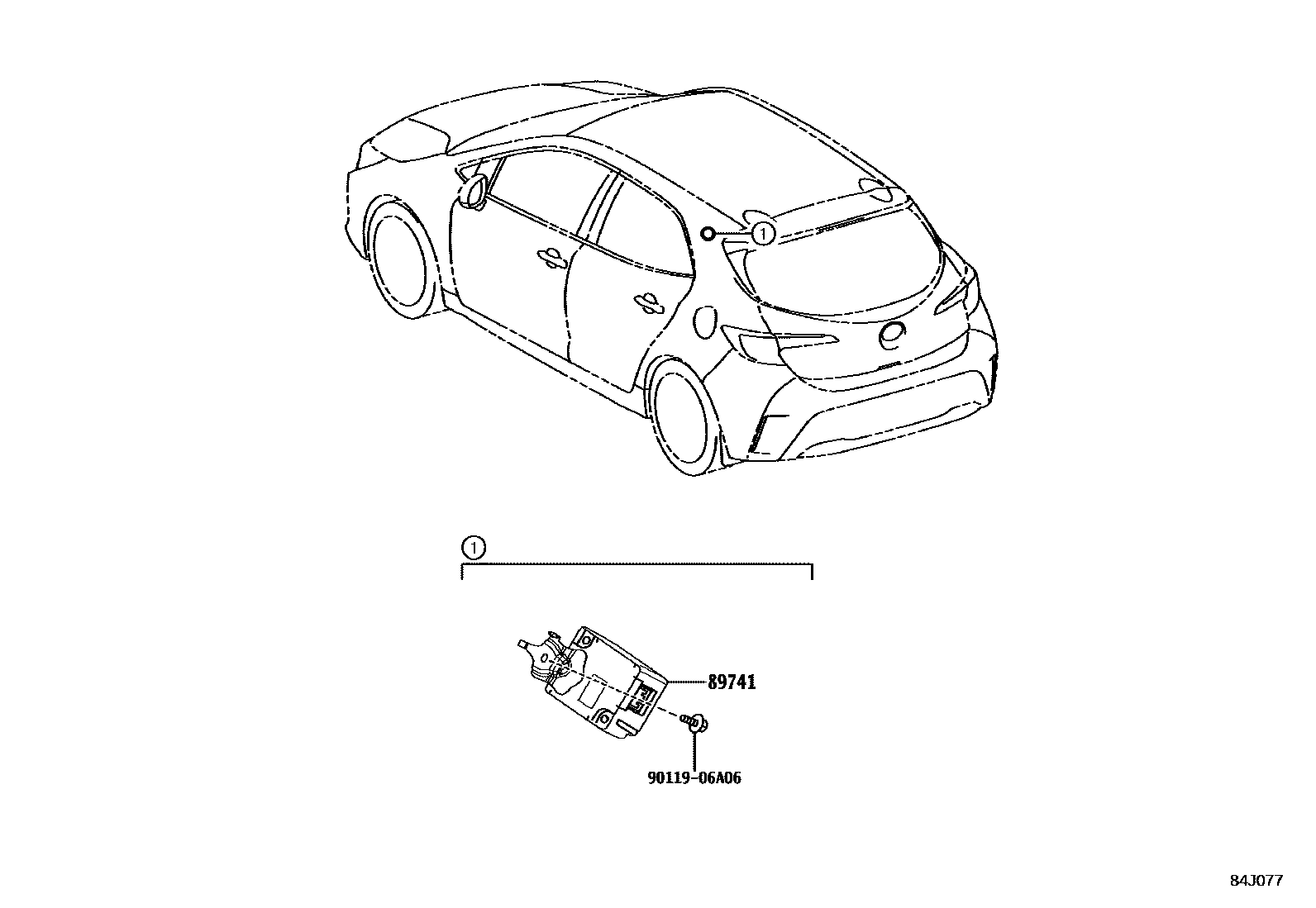

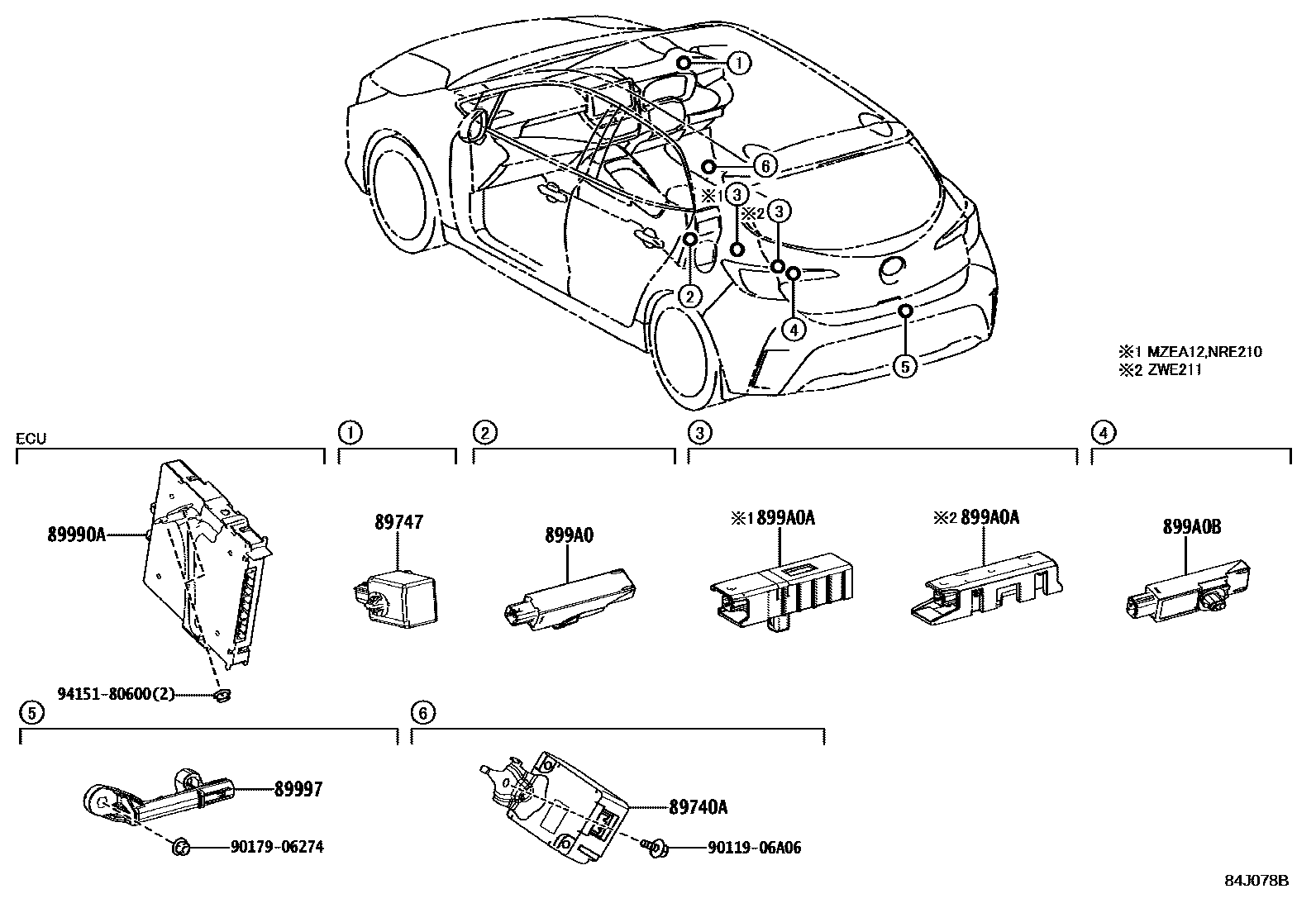

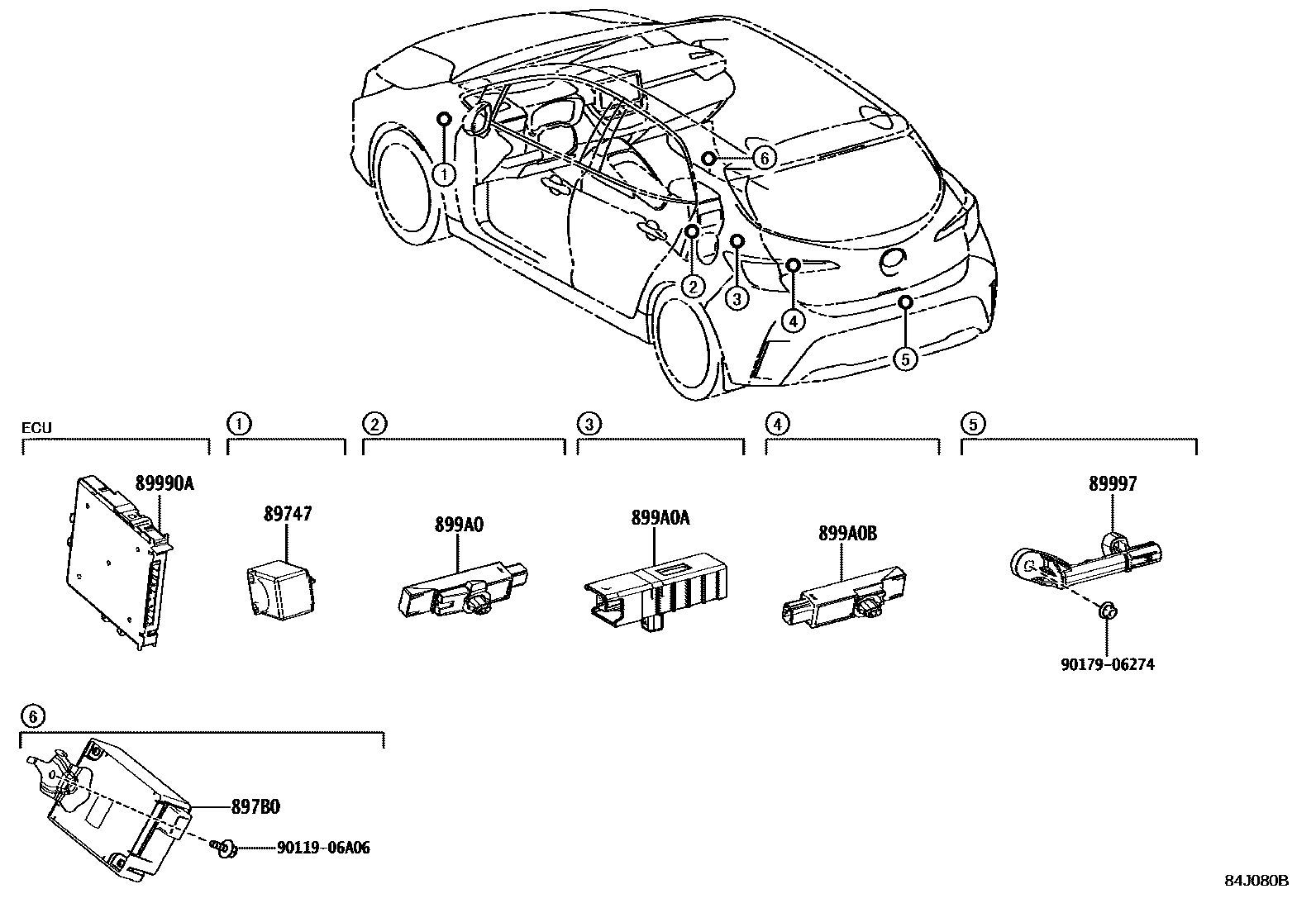

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-12410 · 89740-12430 |
| 89741 | door control receiver | 89741-12750 · 89741-12760 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 897B0 | Electronic key and tire pressure detection system receiver assembly | 897B0-12100 · 897B0-12200 |
| 89990A | Smart key ECU assembly | 899H0-12050 · 899H0-12051 · 899H0-12060 · 899H0-12061 · 899H0-12070 · 899H0-12071 · 899H0-12200 · 899H0-12201 · 899H0-12210 · 899H0-12211 · 899H0-12220 · 899H0-12221 · 899H0-12222 · 899H0-12590 · 899H0-12600 · 899H0-12601 · 899H0-12602 · 899H0-12603 · 899H0-12610 · 899H0-12611 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12090 · 899A0-12110 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12130 |
