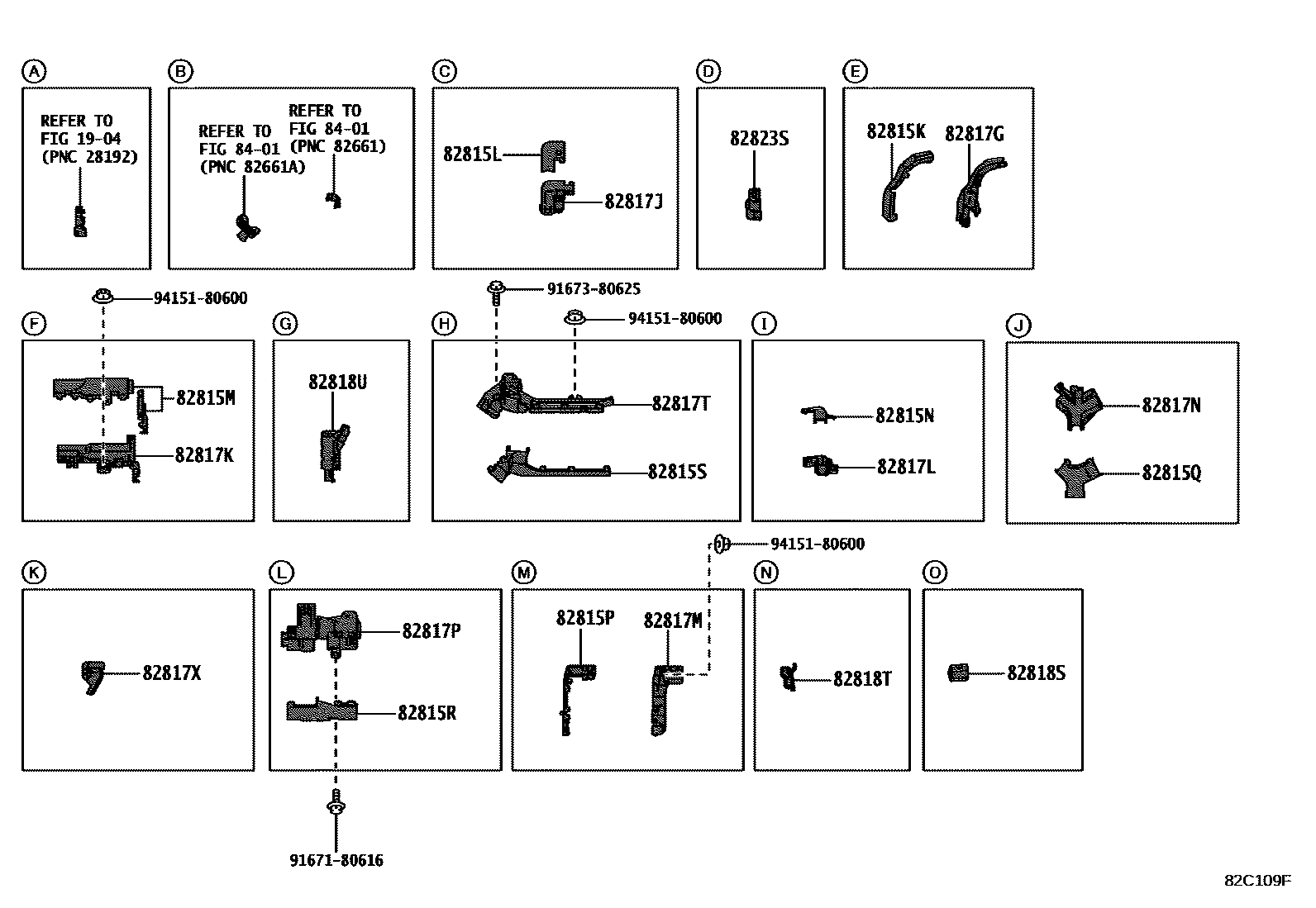

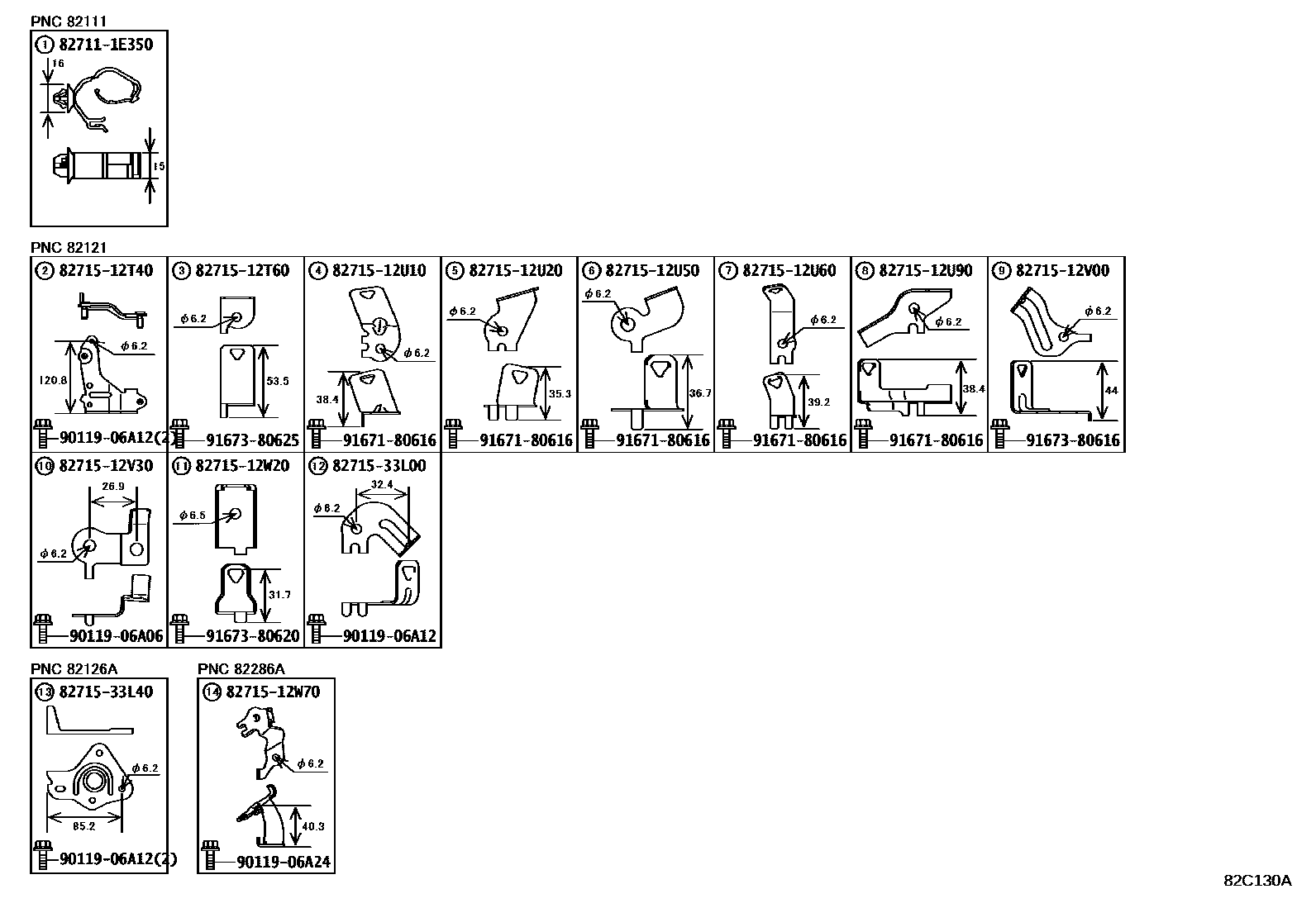

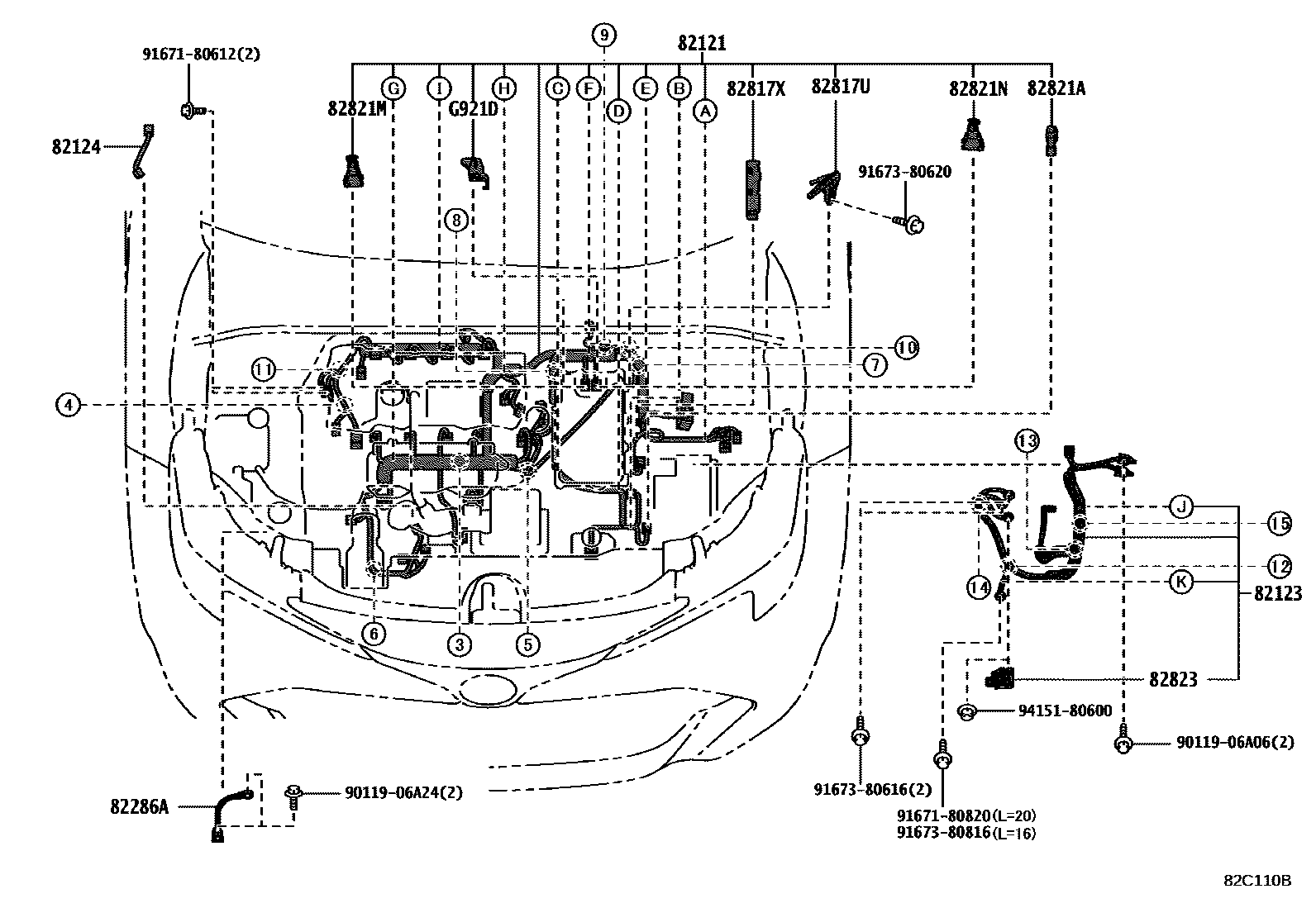

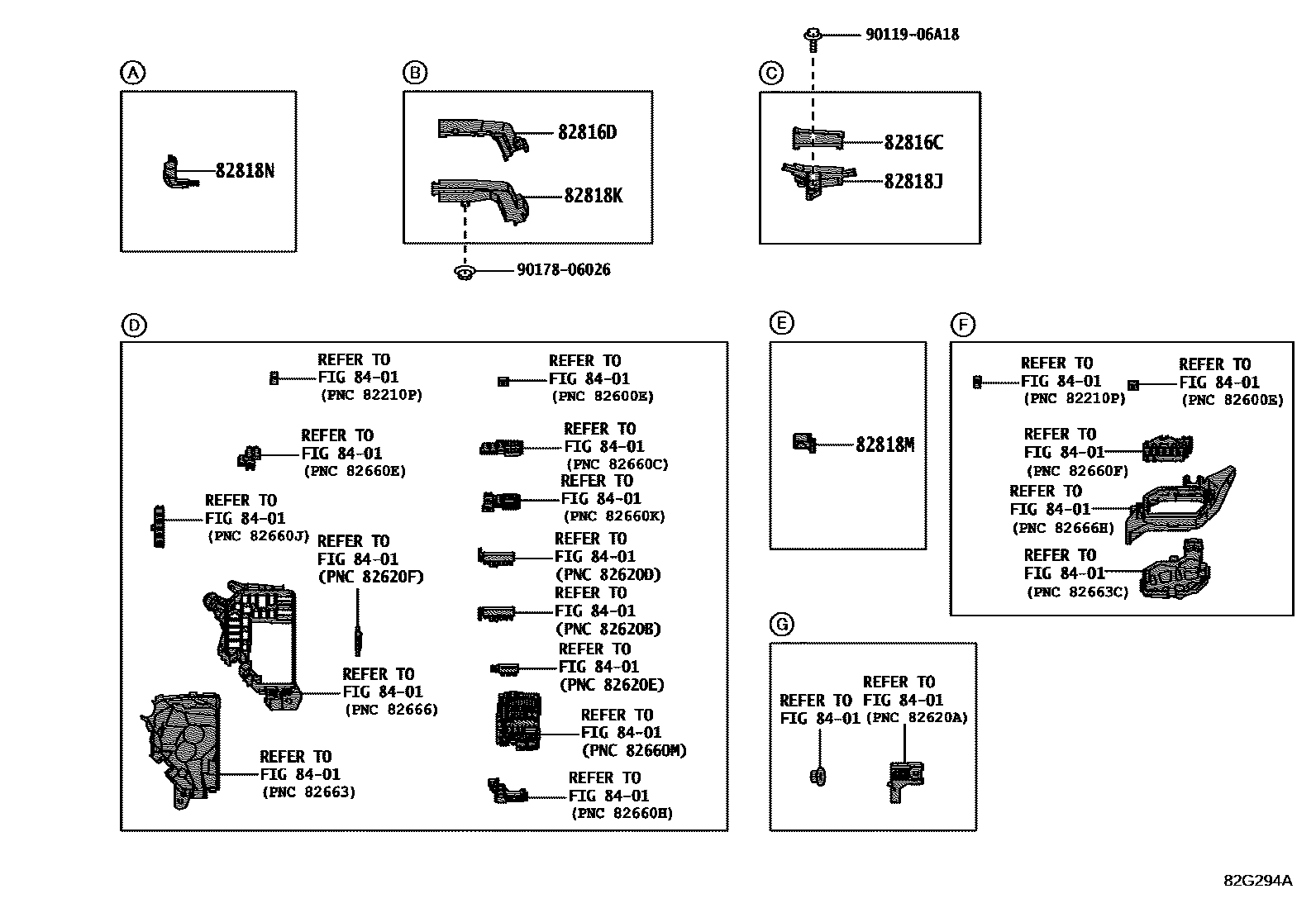

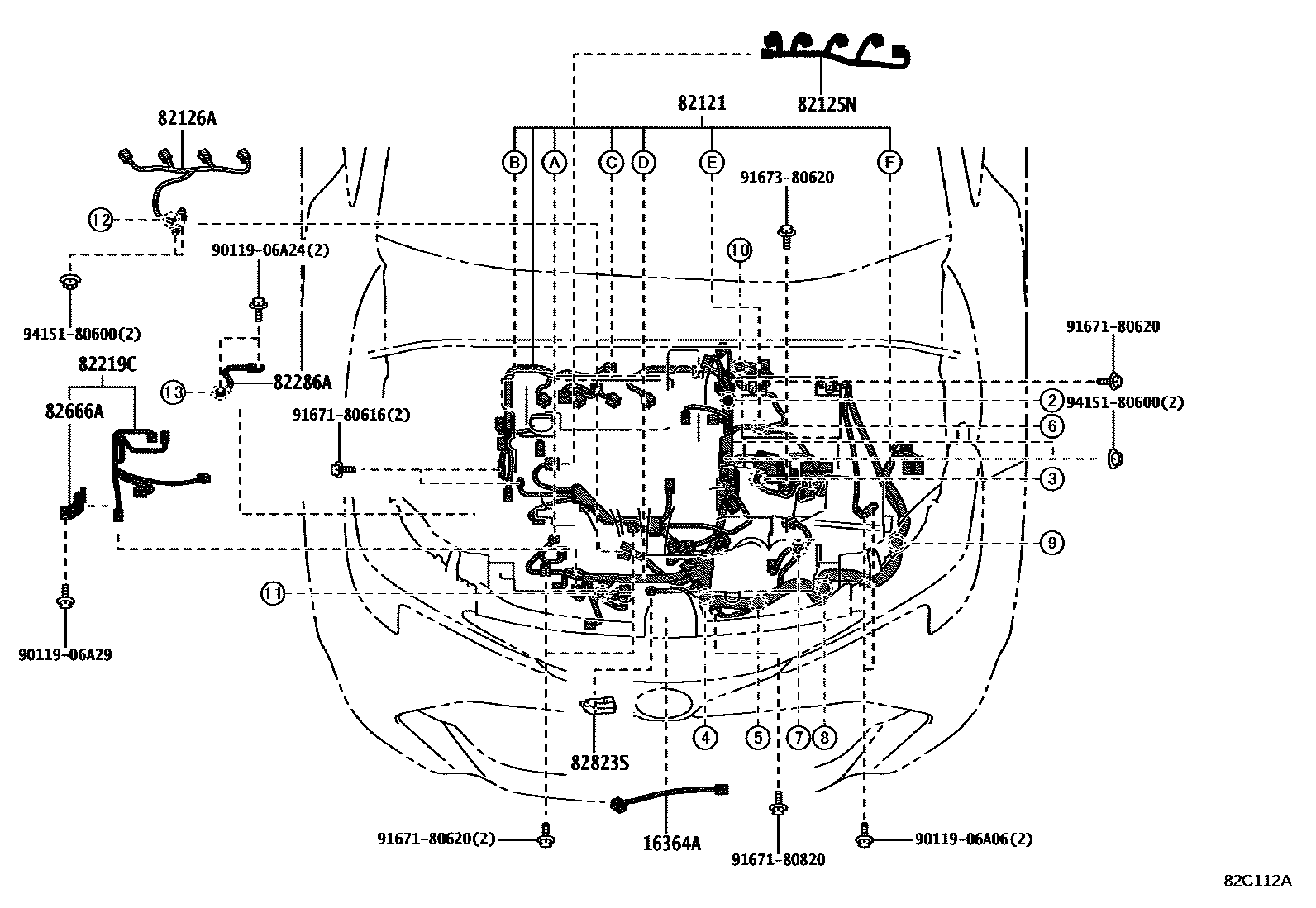

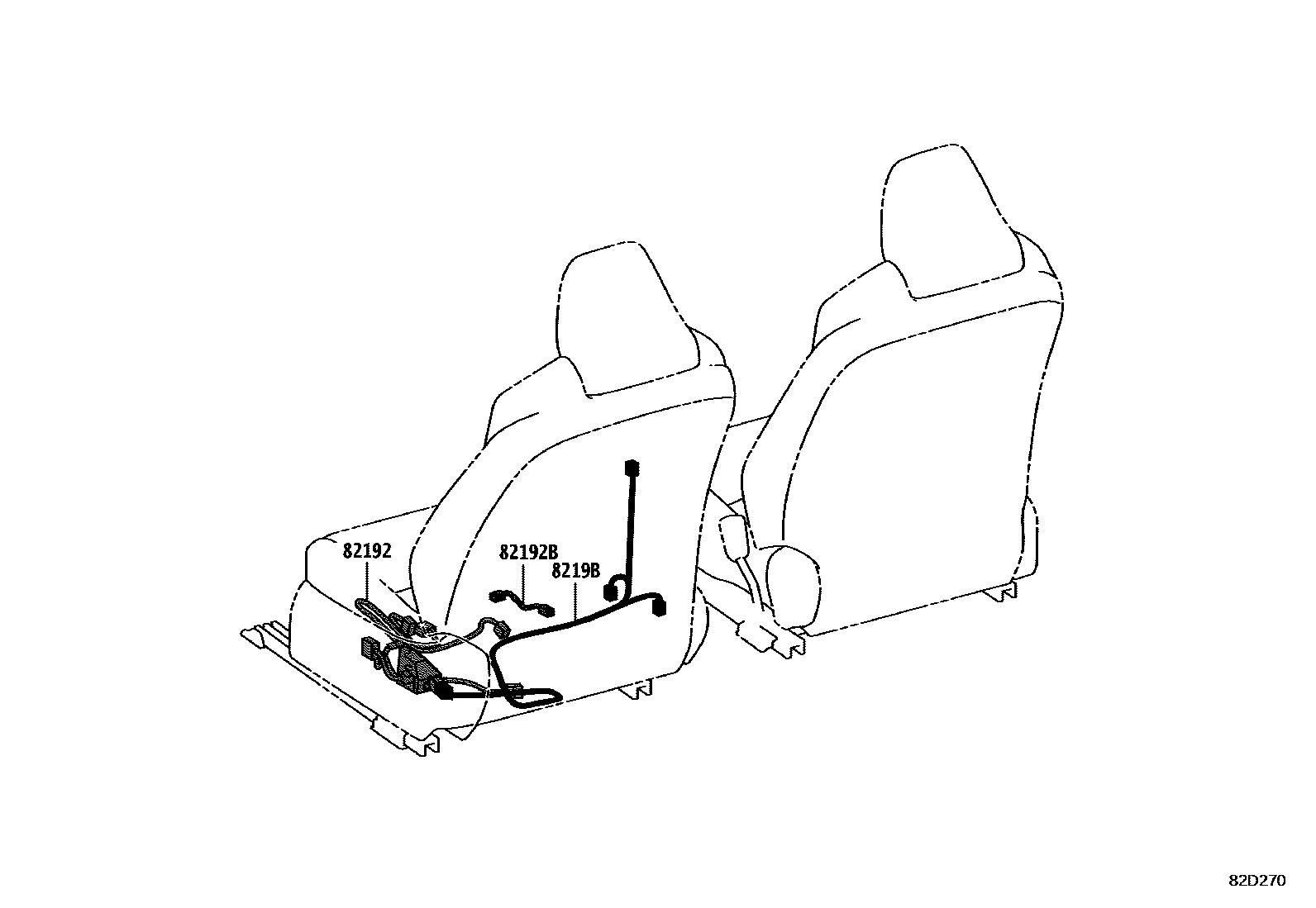

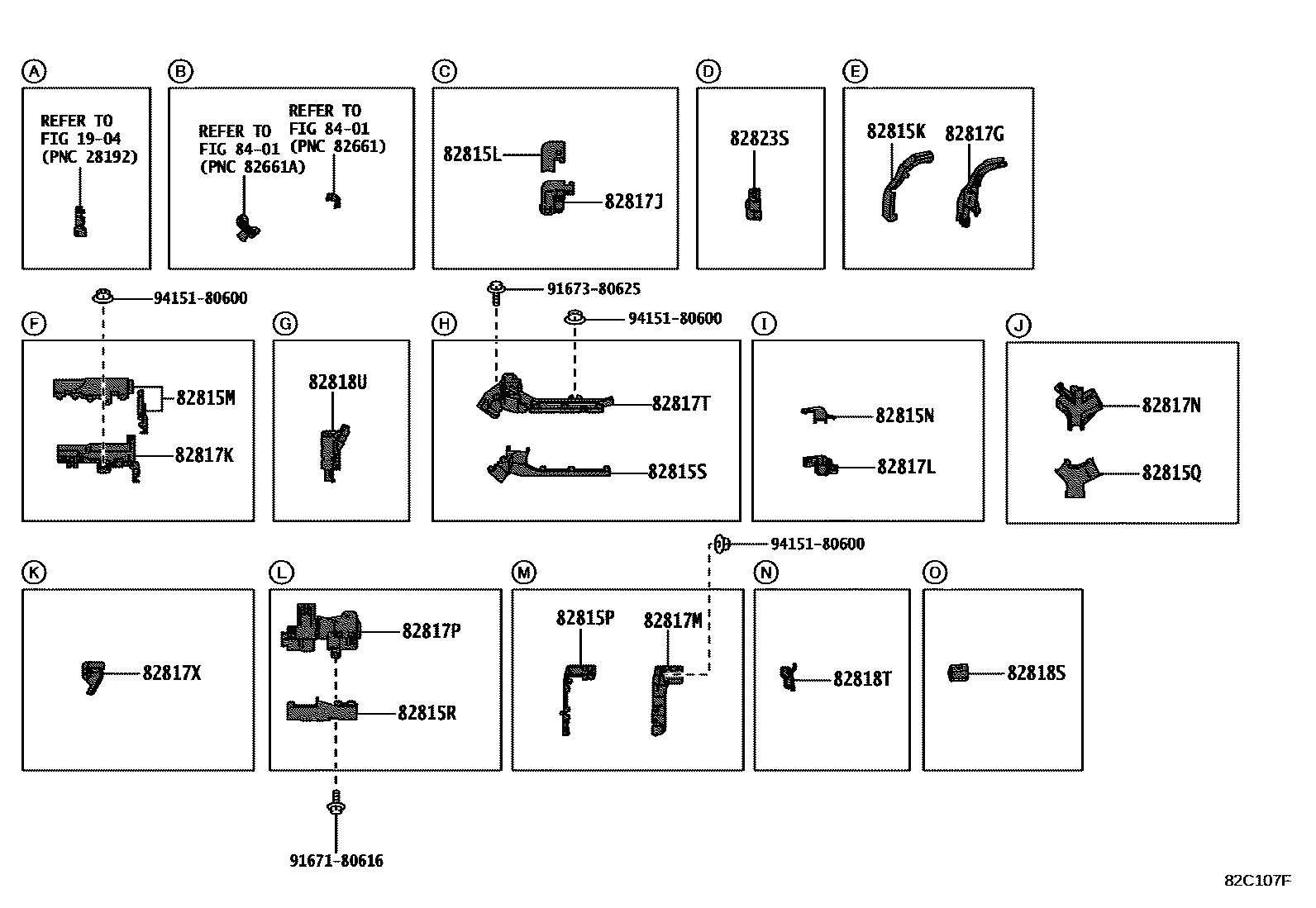

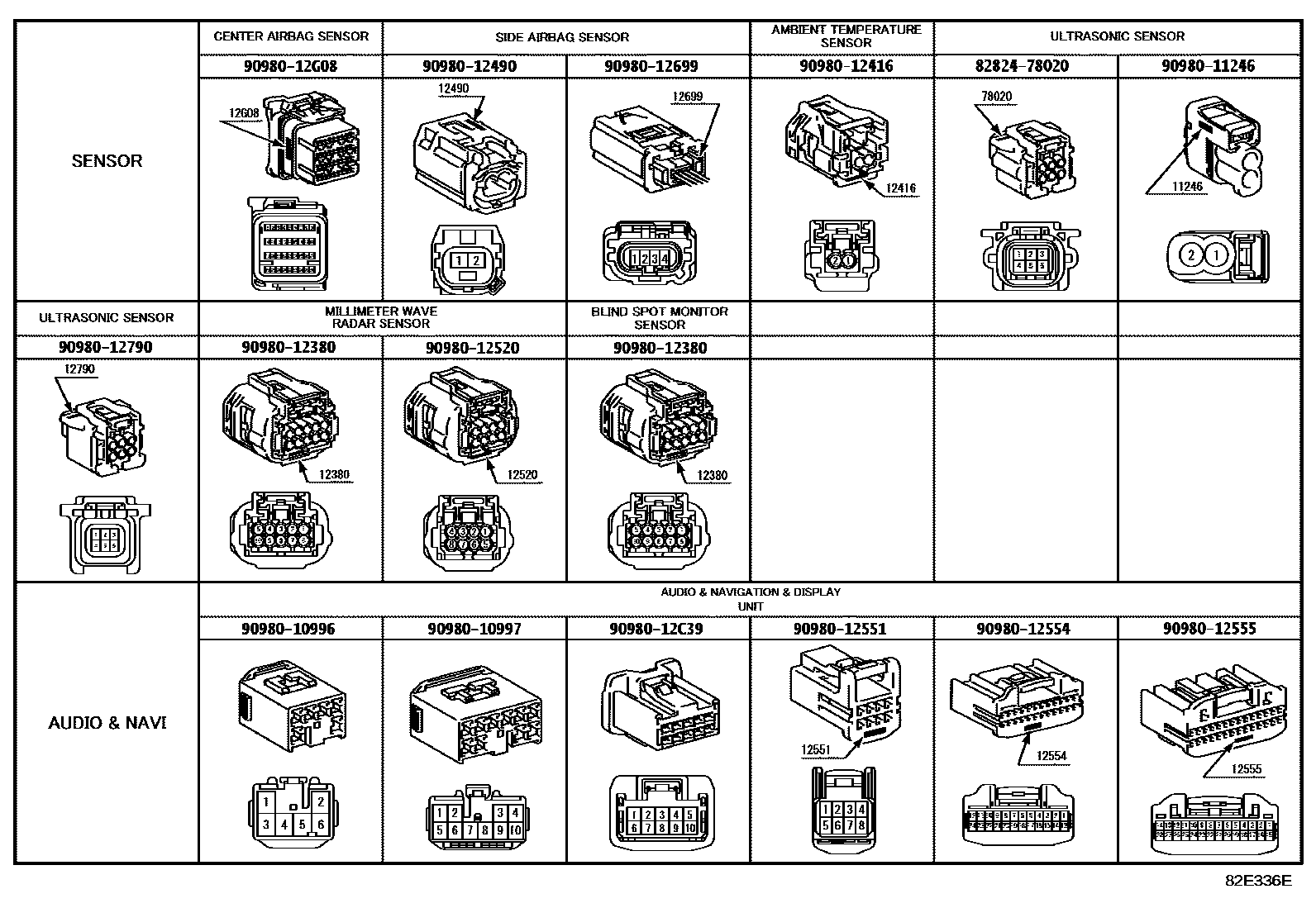

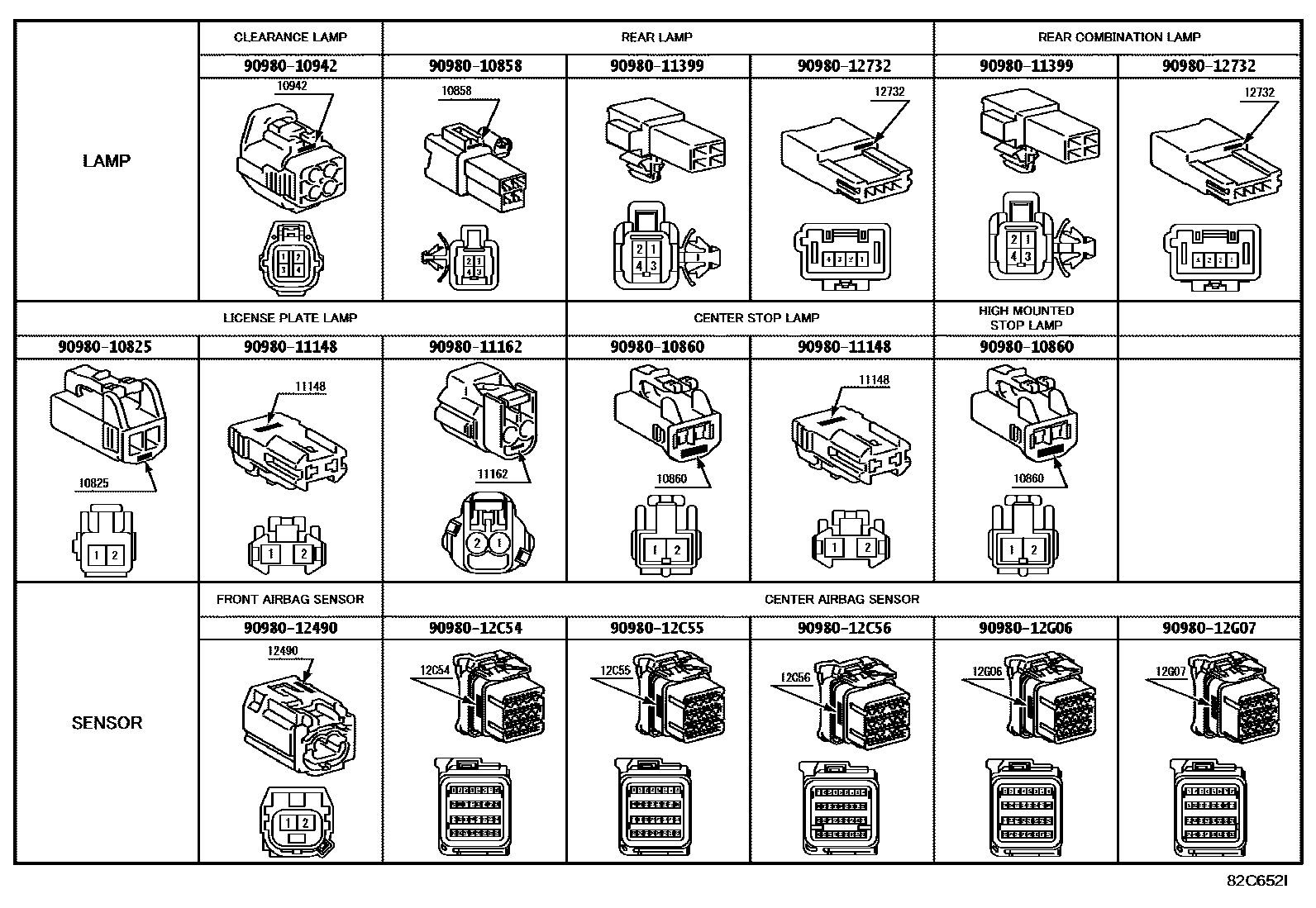

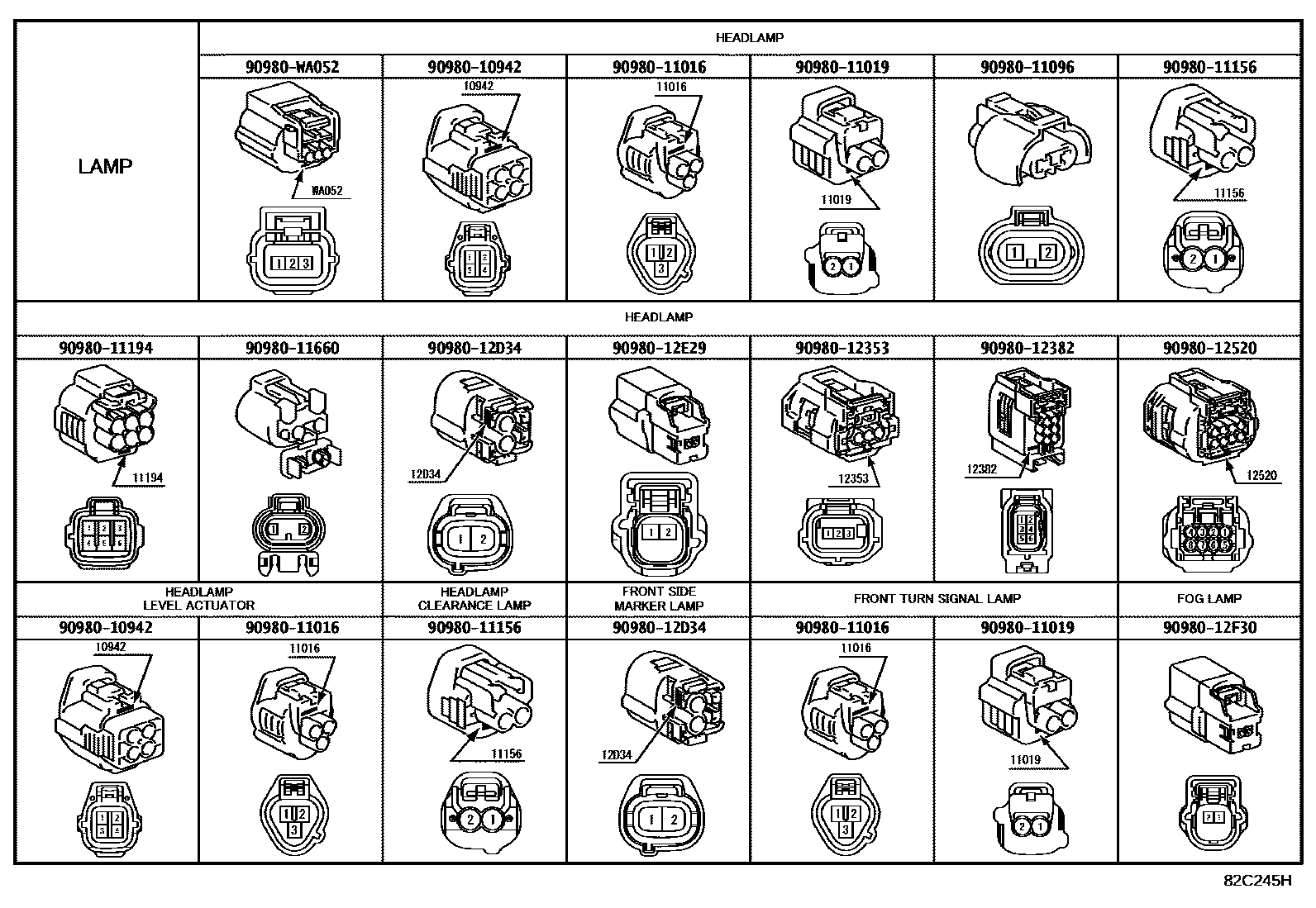

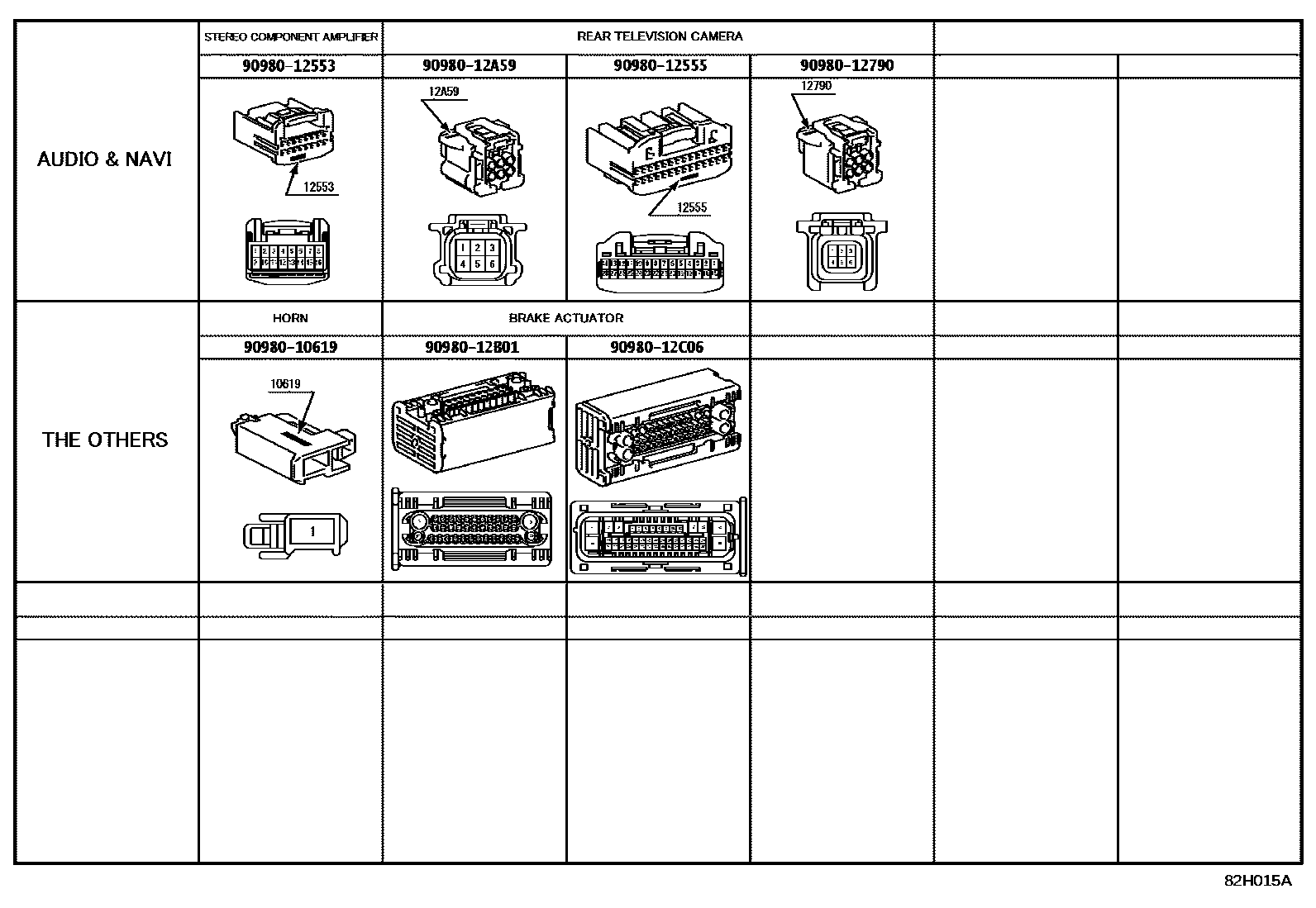

Toyota COROLLA 线束和卡夹 — Figure 8202

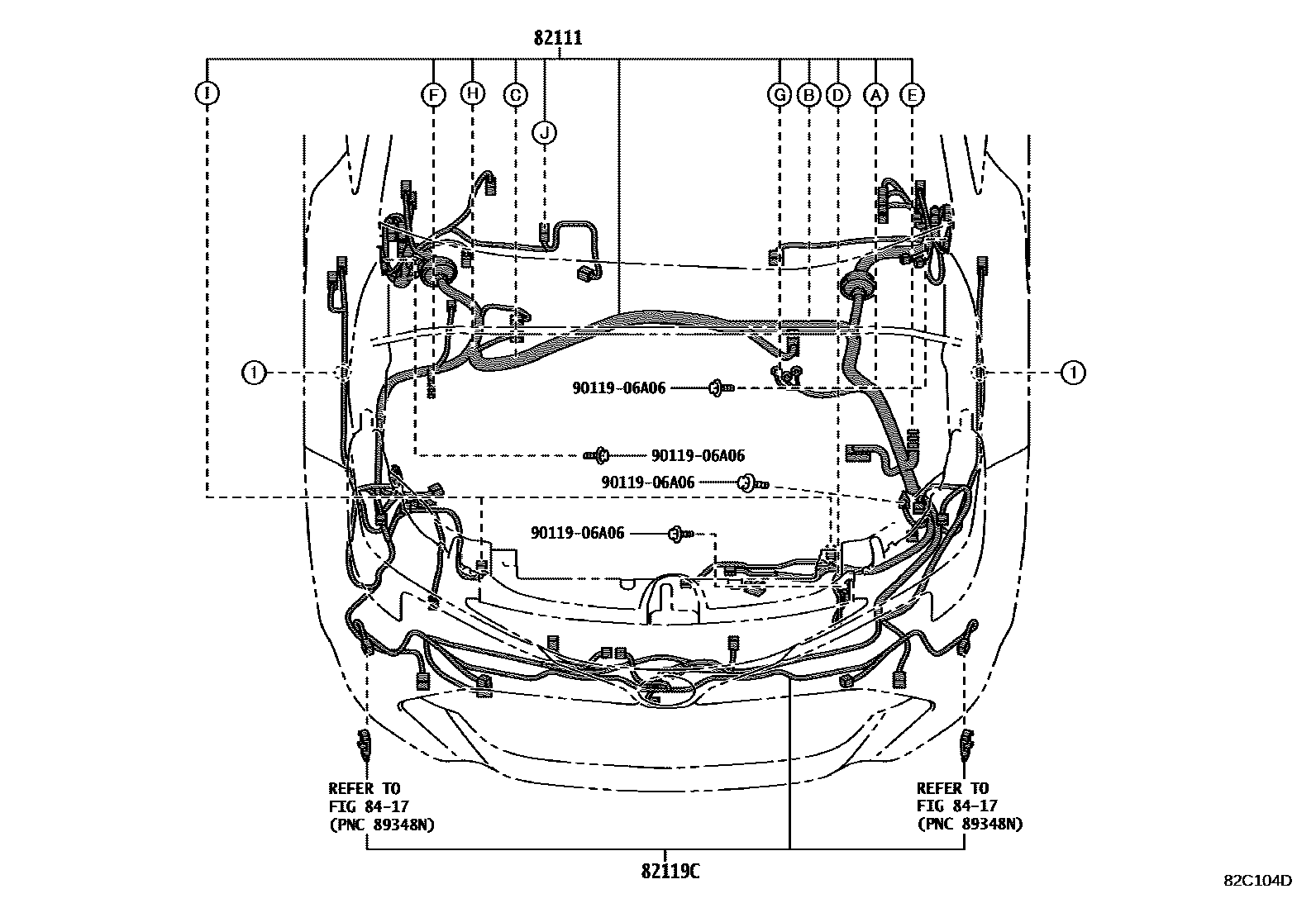

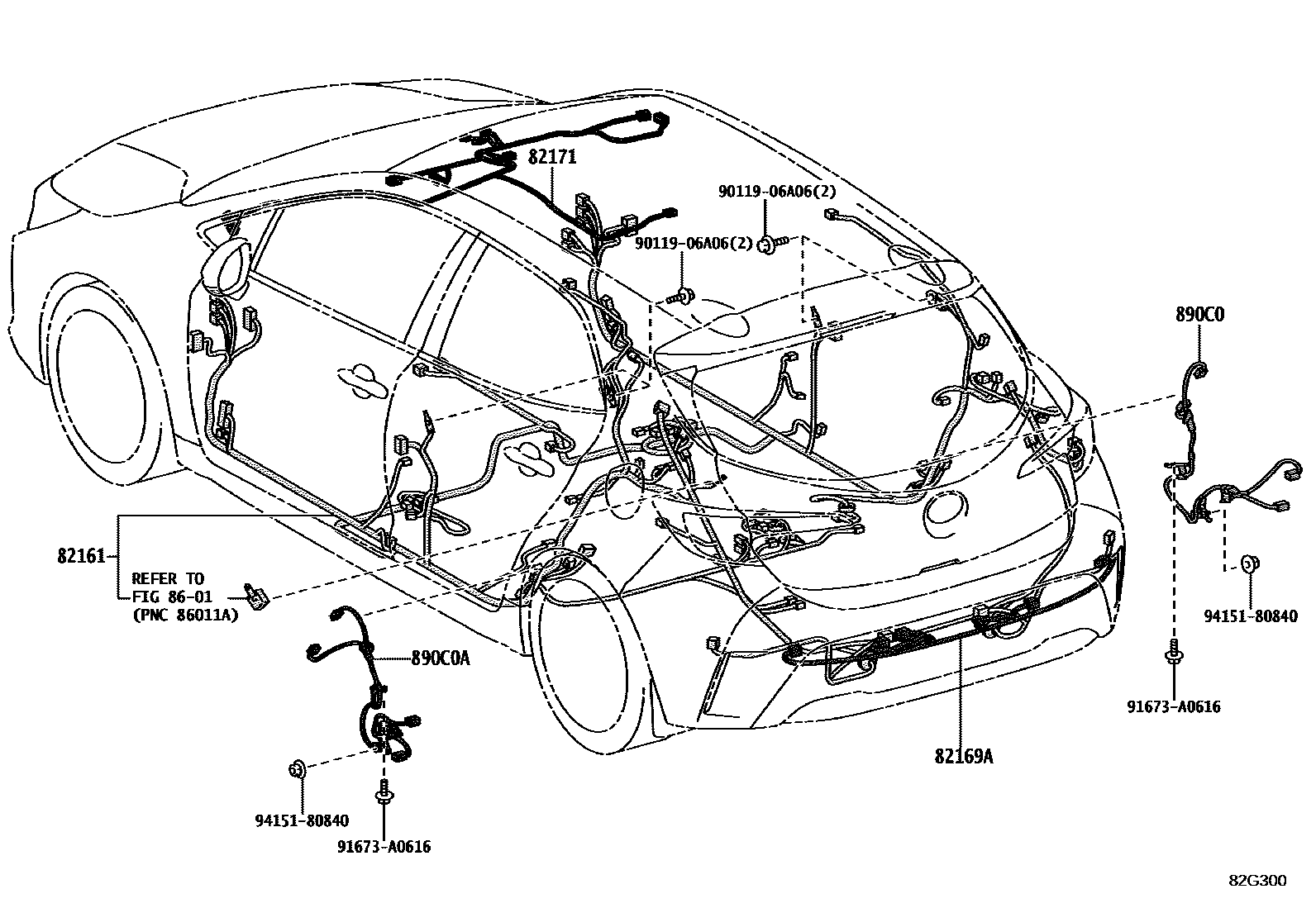

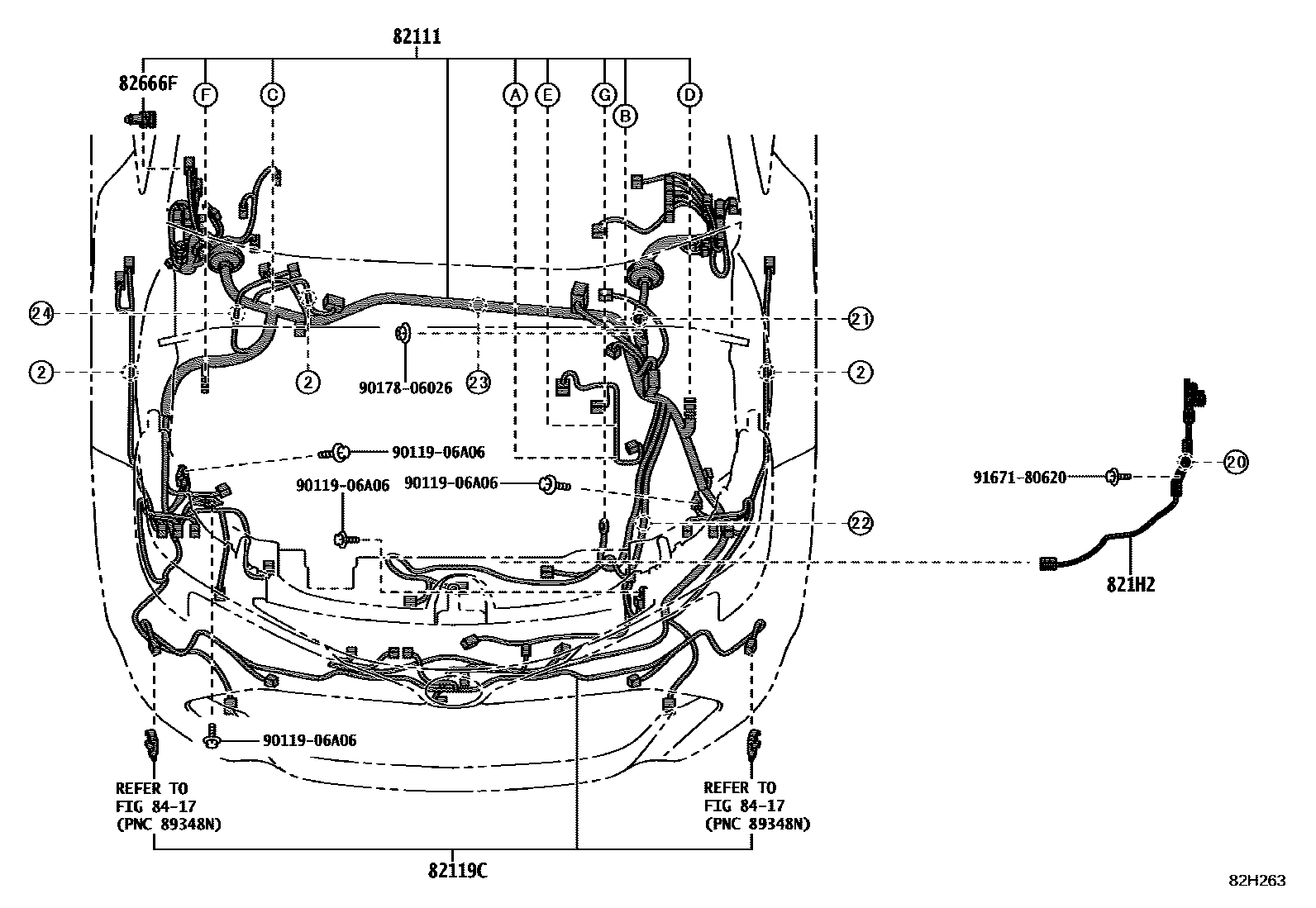

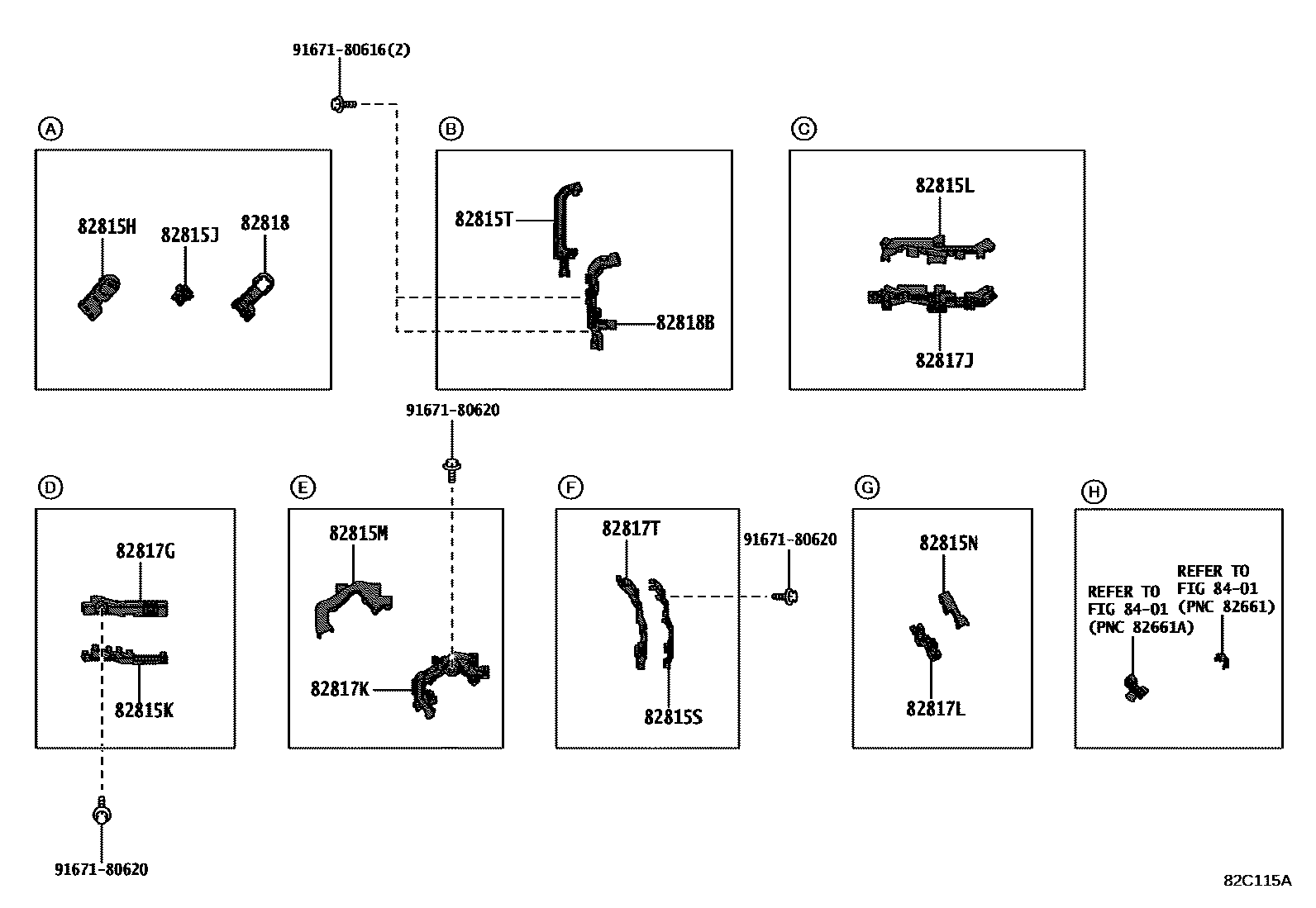

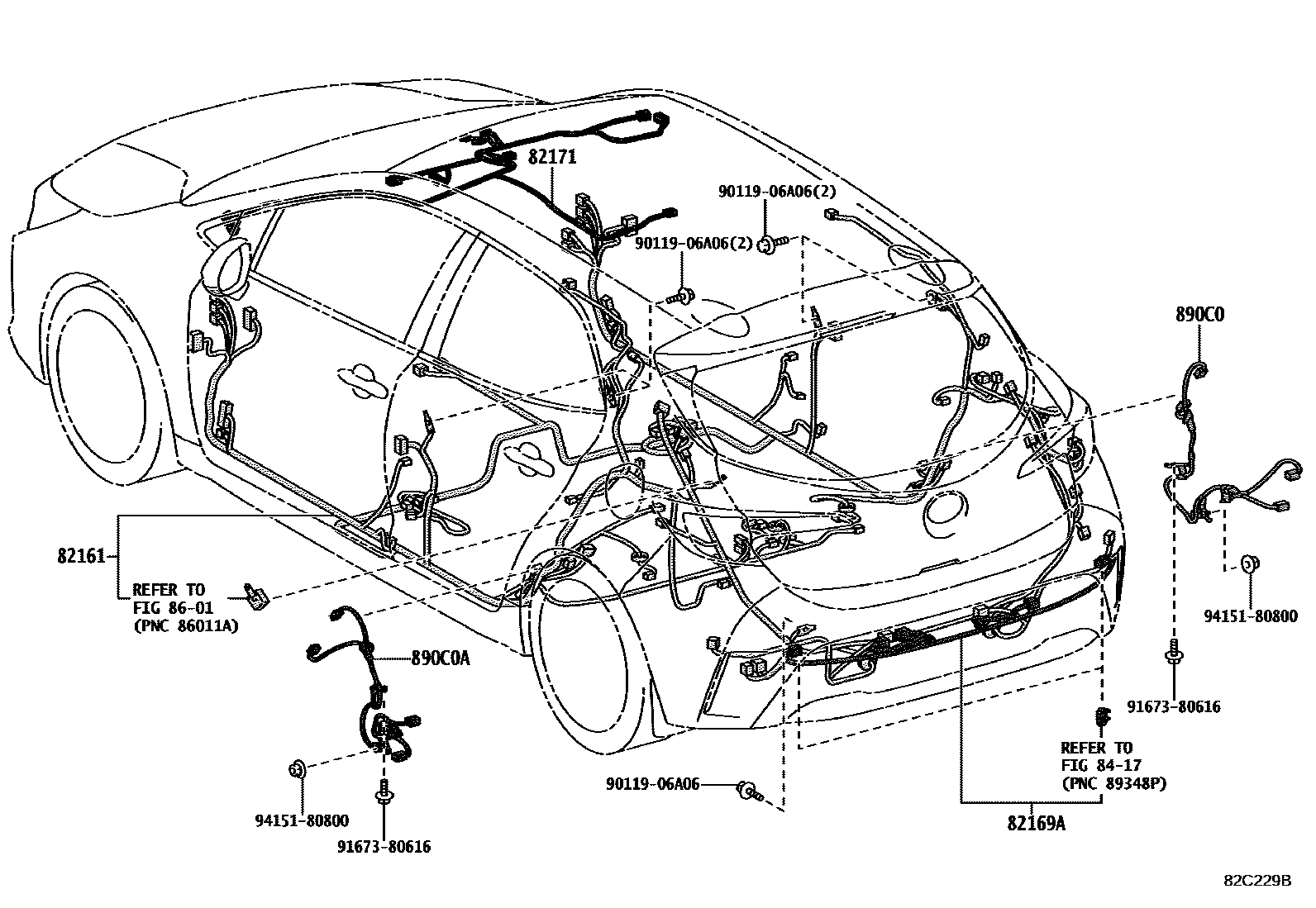

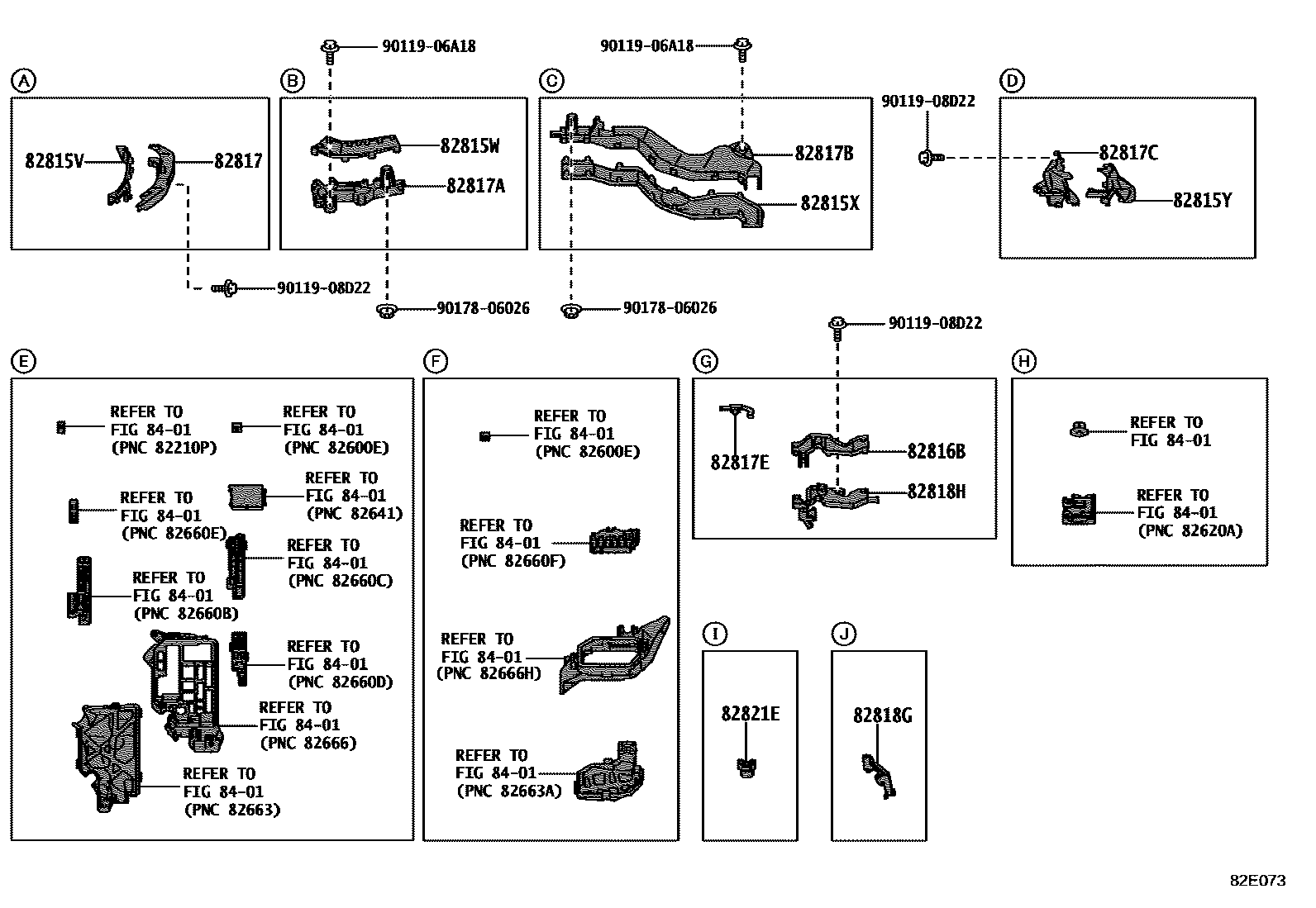

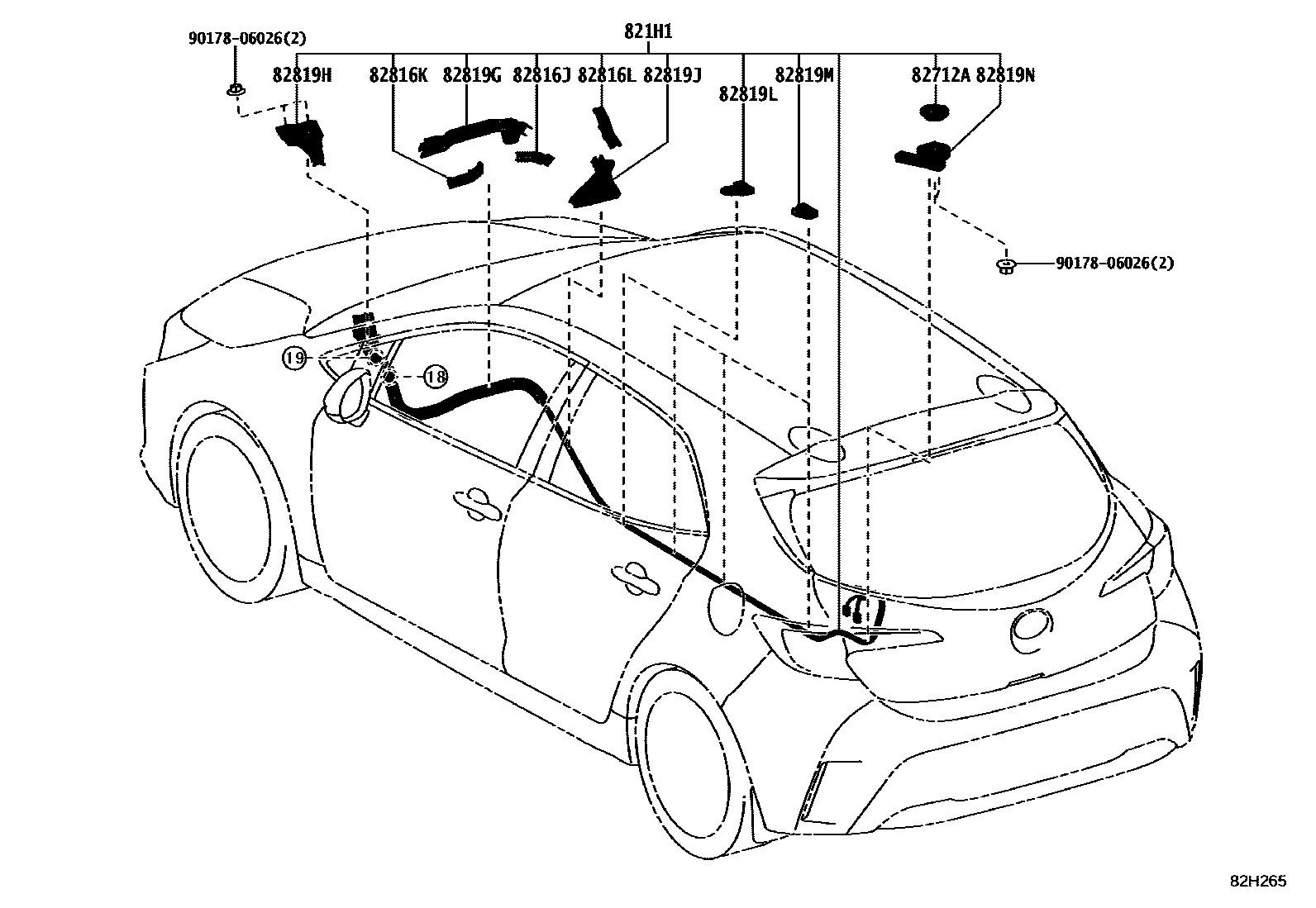

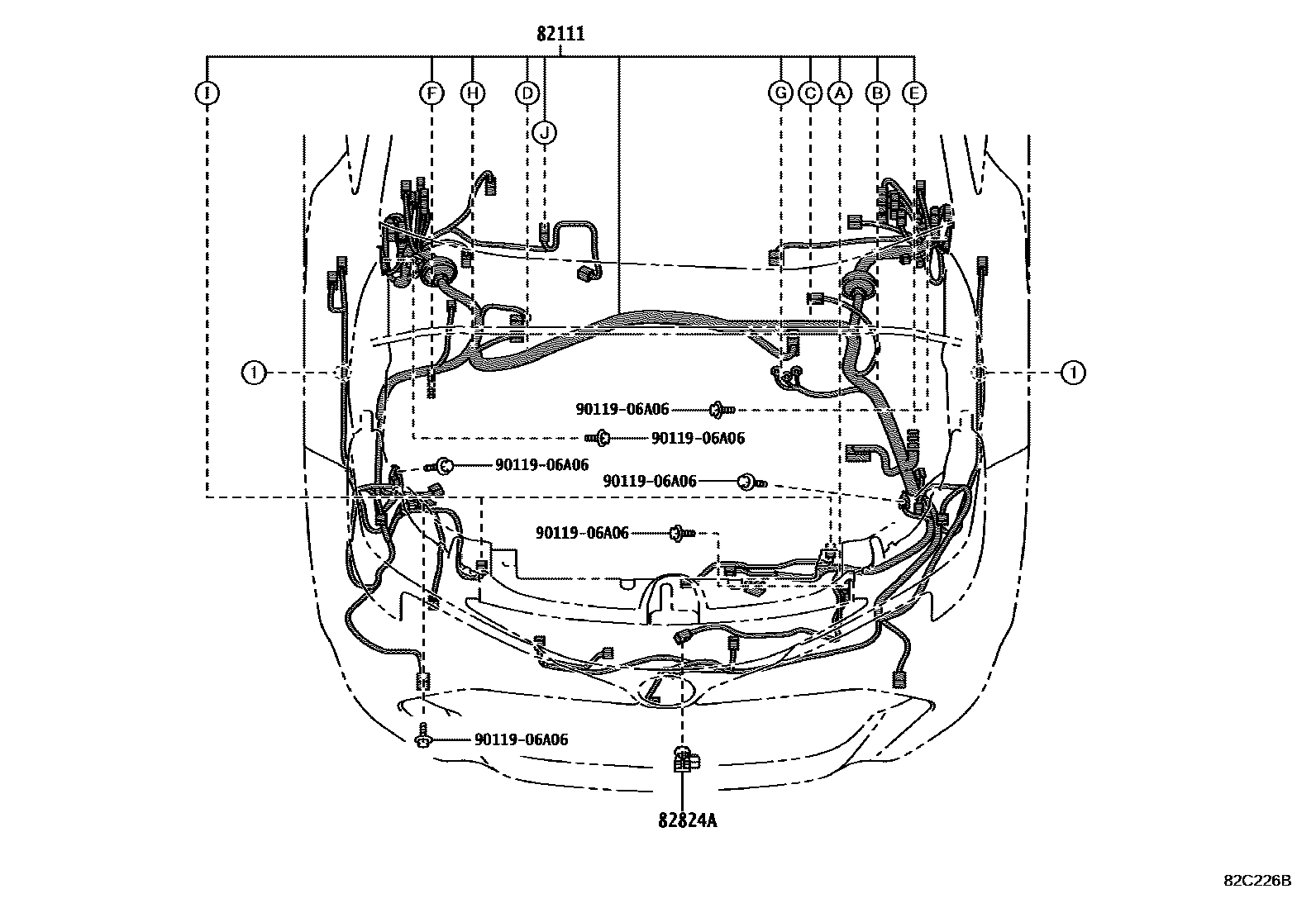

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 49 images and 127 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16364A | Cooling fan harness | 16364-47010 |

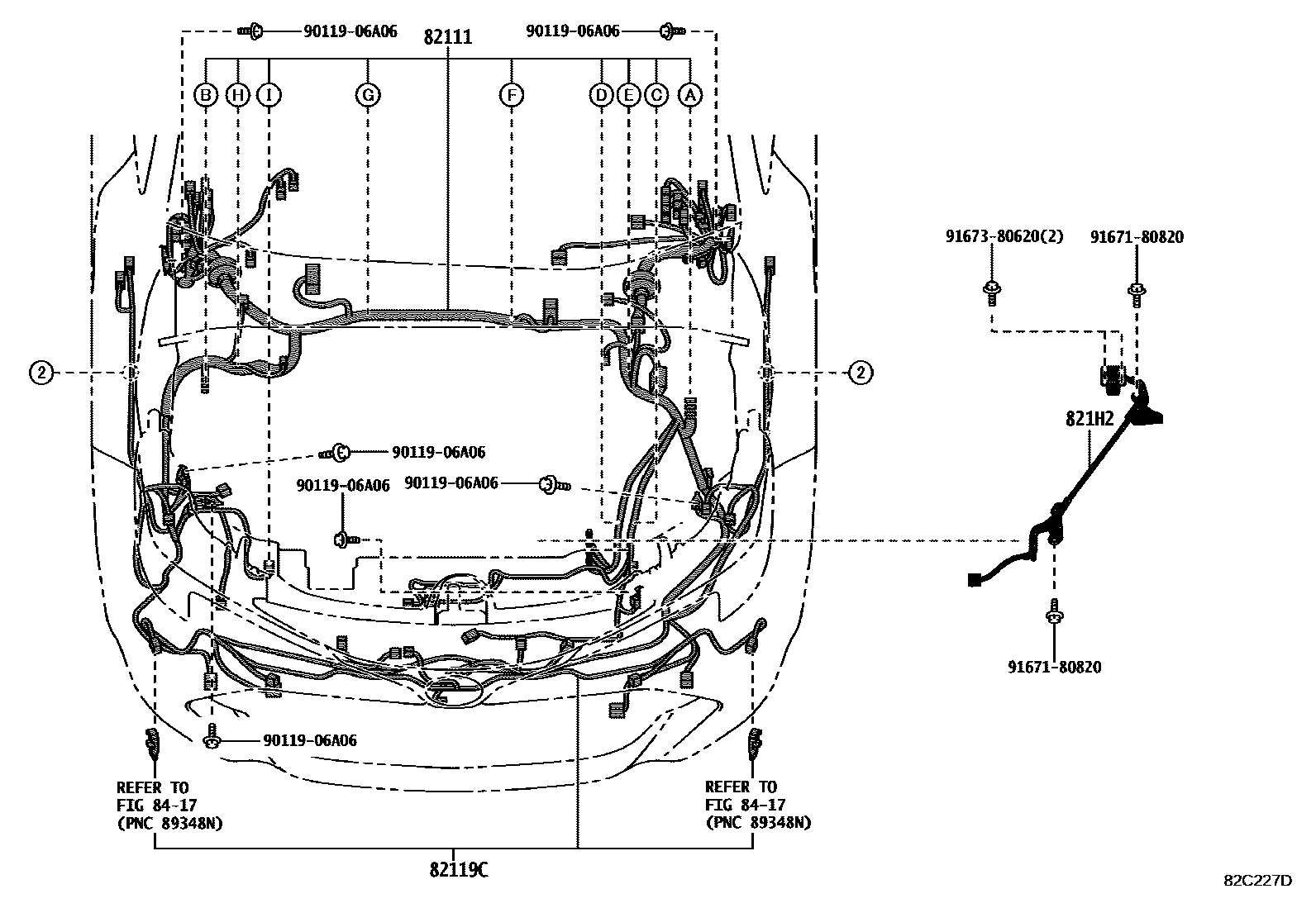

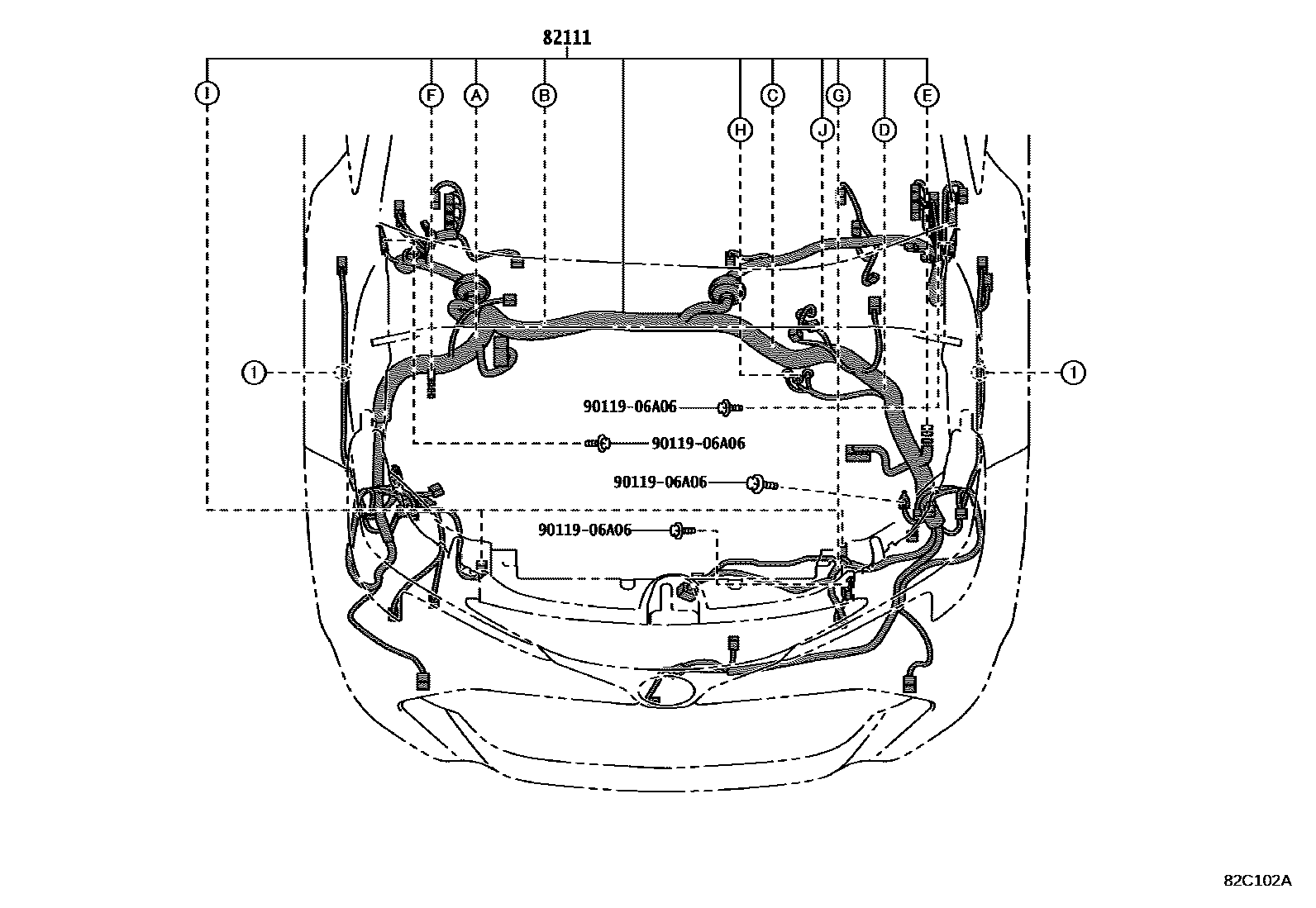

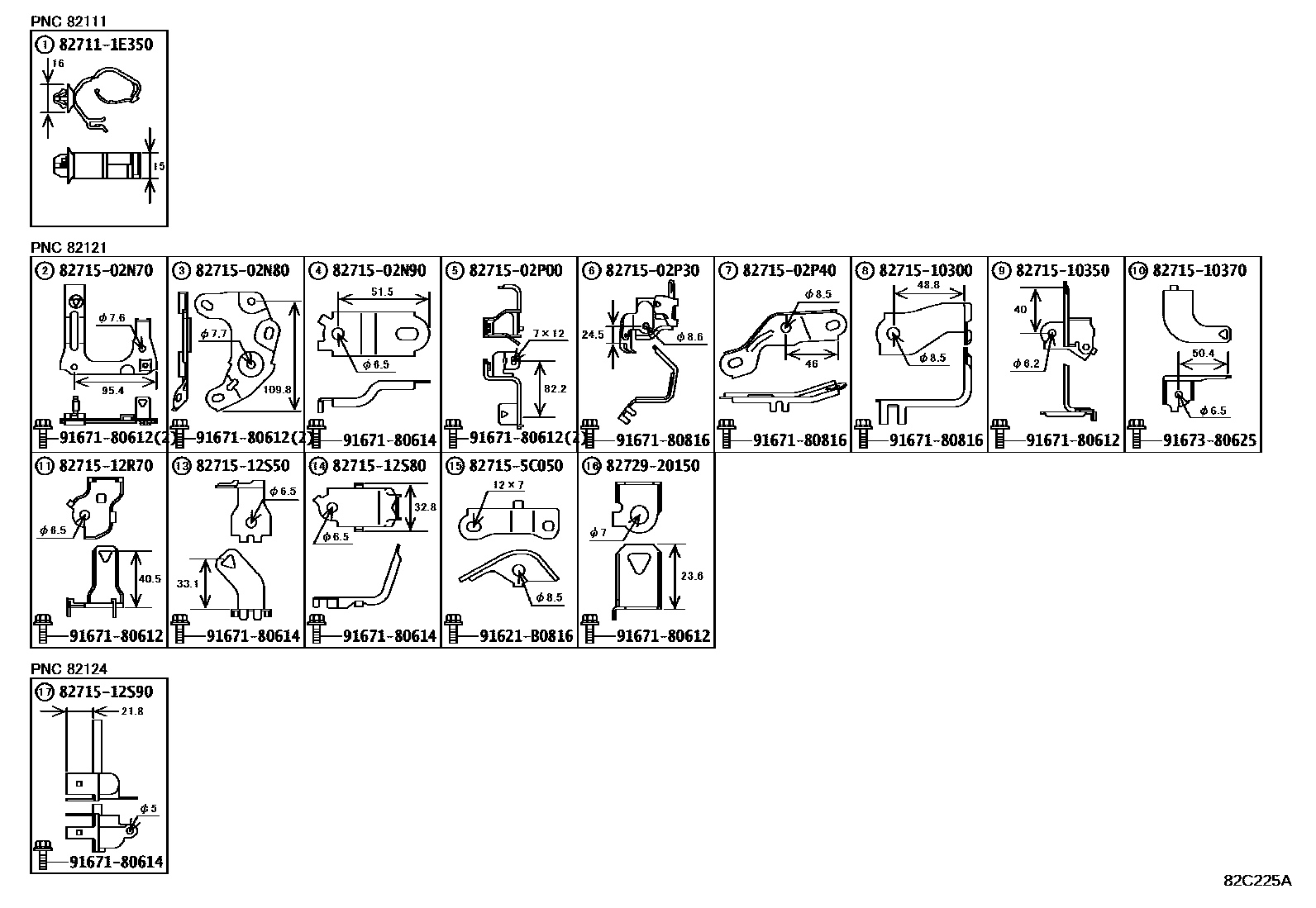

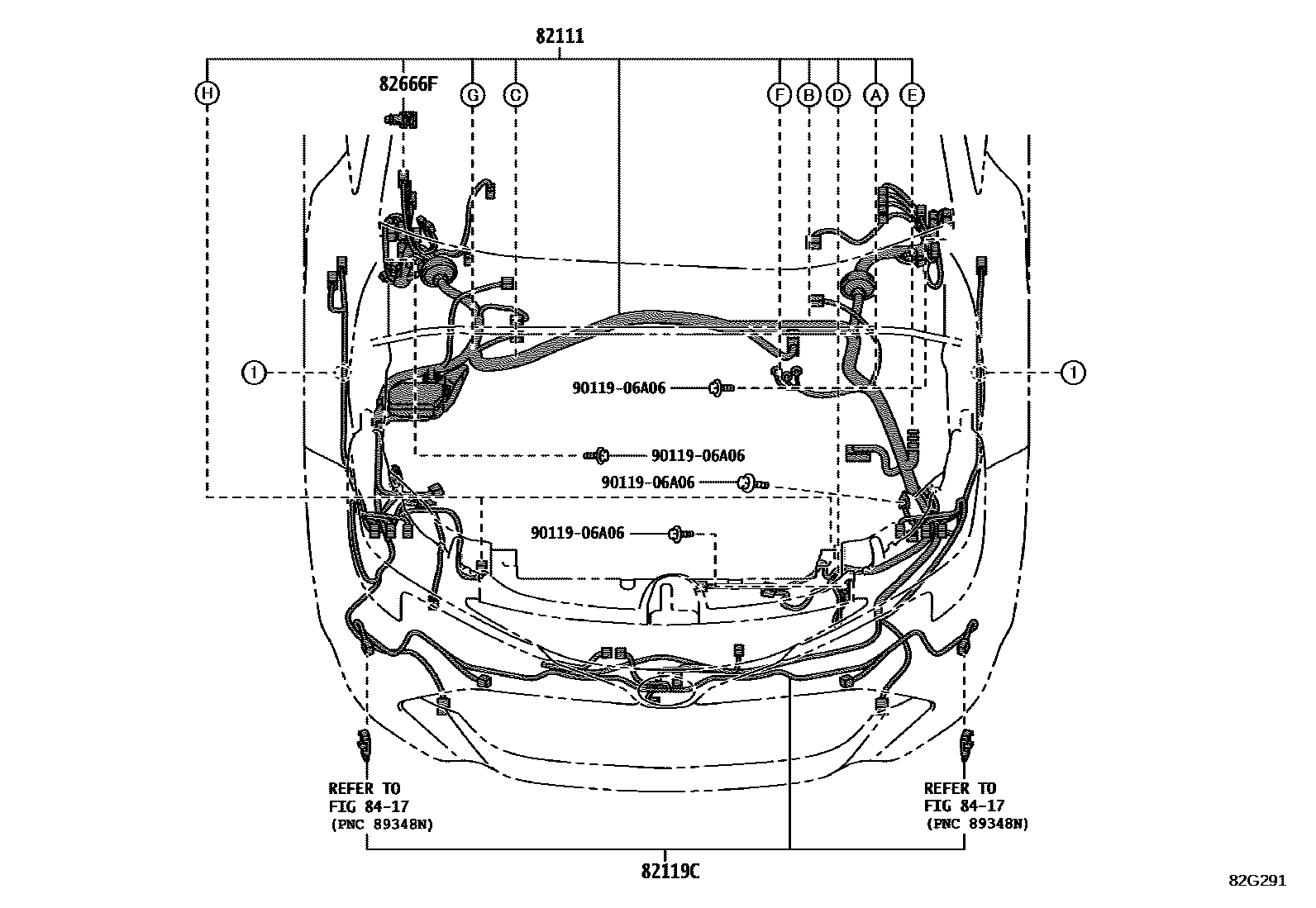

| 82111 | Engine room main wiring harness | 82111-1HQ40 · 82111-1KB70 · 82111-1KB72 · 82111-1KB80 · 82111-1KB82 · 82111-1KB90 · 82111-1KB92 · 82111-1KC10 · 82111-1KC12 · 82111-1KC20 · 82111-1KC22 · 82111-1KG10 · 82111-1KG12 · 82111-1KJ80 · 82111-1KJ82 · 82111-1KJ90 · 82111-1KJ92 · 82111-1KM80 · 82111-1KM82 · 82111-1KM90 · 82111-1KM92 · 82111-1KN00 · 82111-1KN02 · 82111-1KQ50 · 82111-1KQ51 · 82111-1KQ70 · 82111-1KX80 · 82111-1KX90 · 82111-1KY00 · 82111-1KY20 · 82111-1KY30 · 82111-1KZ10 · 82111-1KZ50 · 82111-1KZ60 · 82111-1L280 · 82111-1L290 · 82111-1L300 · 82111-1L410 · 82111-1L411 · 82111-1L412 · 82111-1L450 · 82111-1L451 · 82111-1L452 · 82111-1L470 · 82111-1L471 · 82111-1L472 · 82111-1L510 · 82111-1L511 · 82111-1L512 · 82111-1L660 · 82111-1L661 · 82111-1L680 · 82111-1L681 |
| 82119C | Engine room wiring harness No. 5 | 82119-12030 · 82119-12080 |

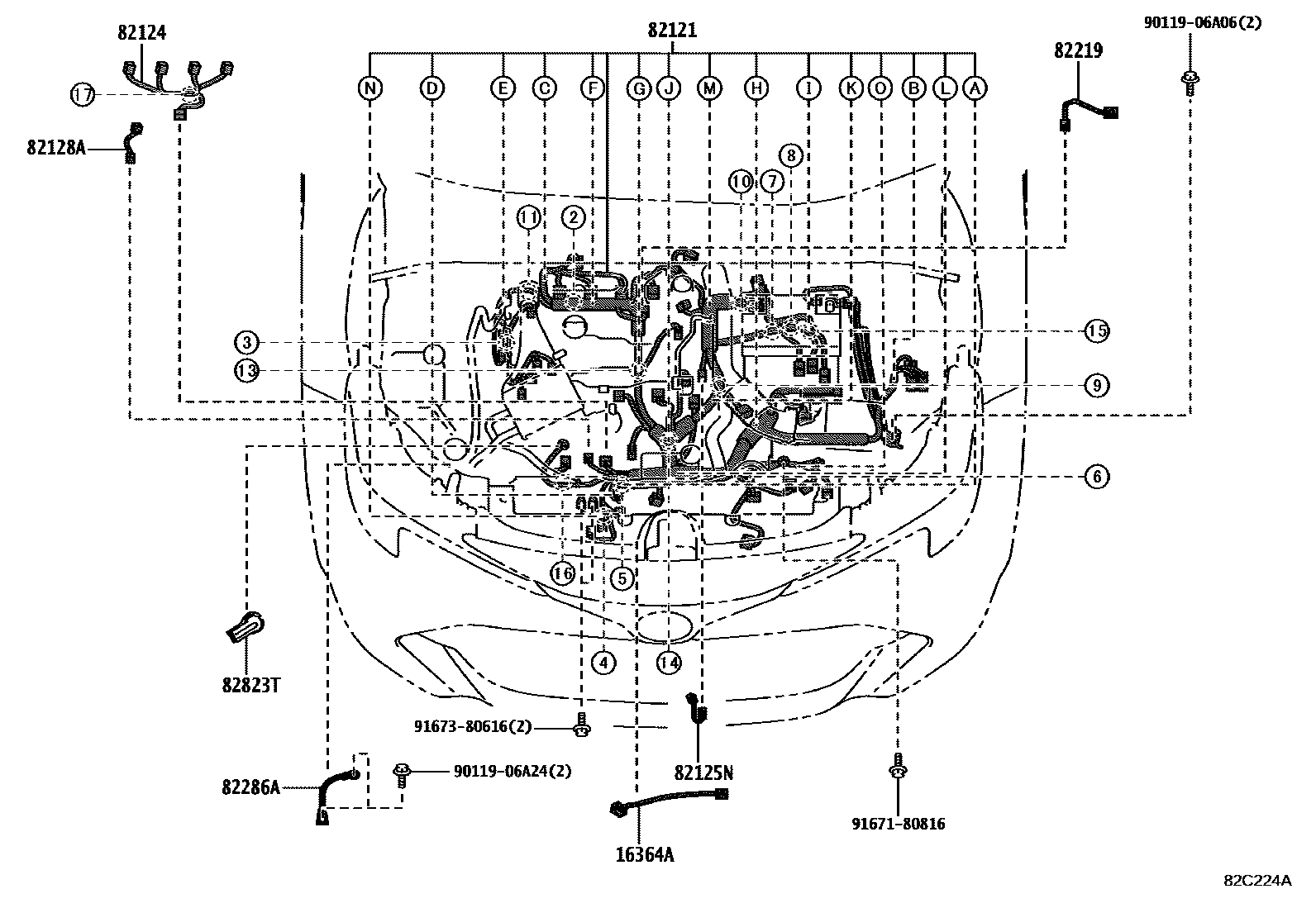

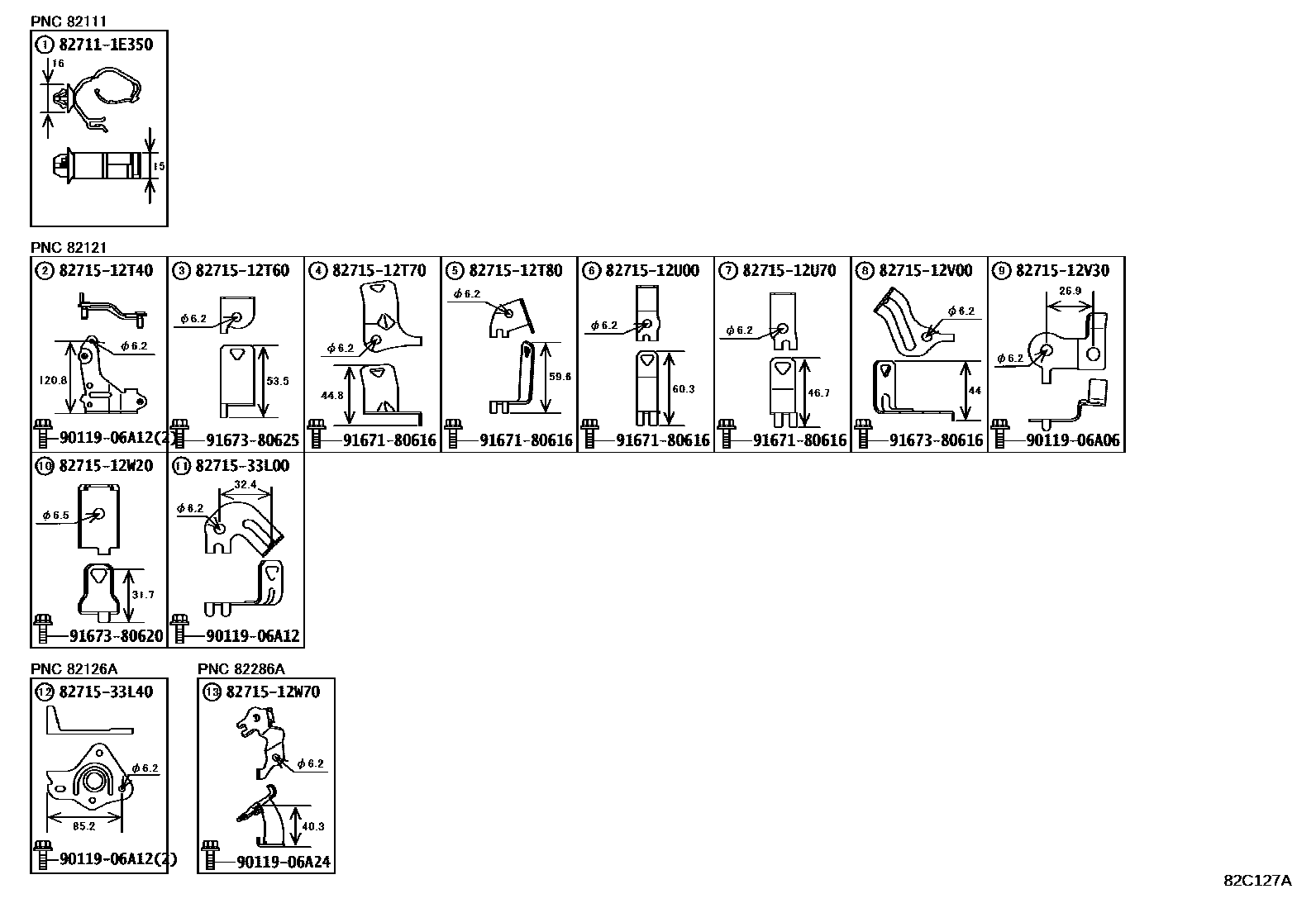

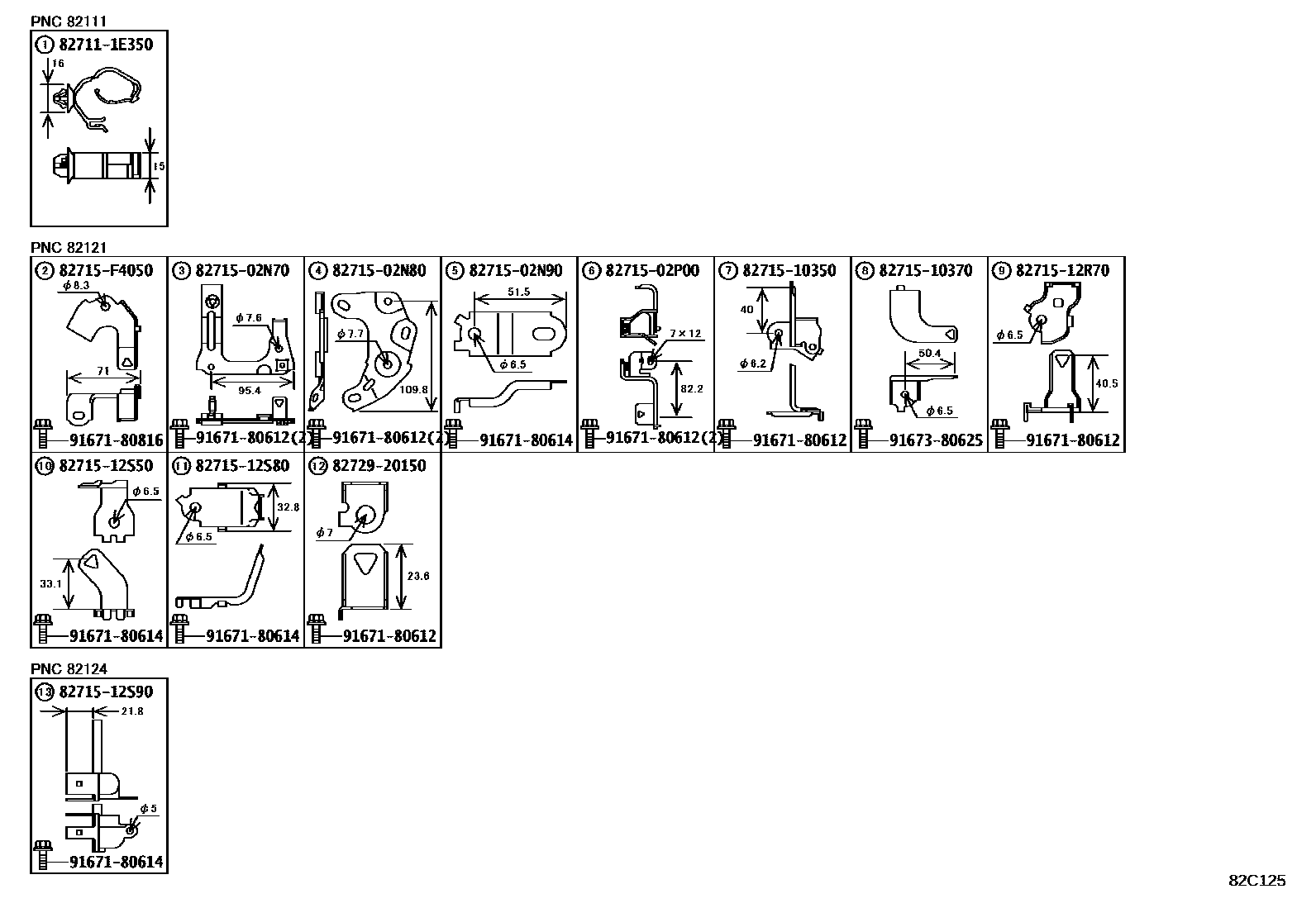

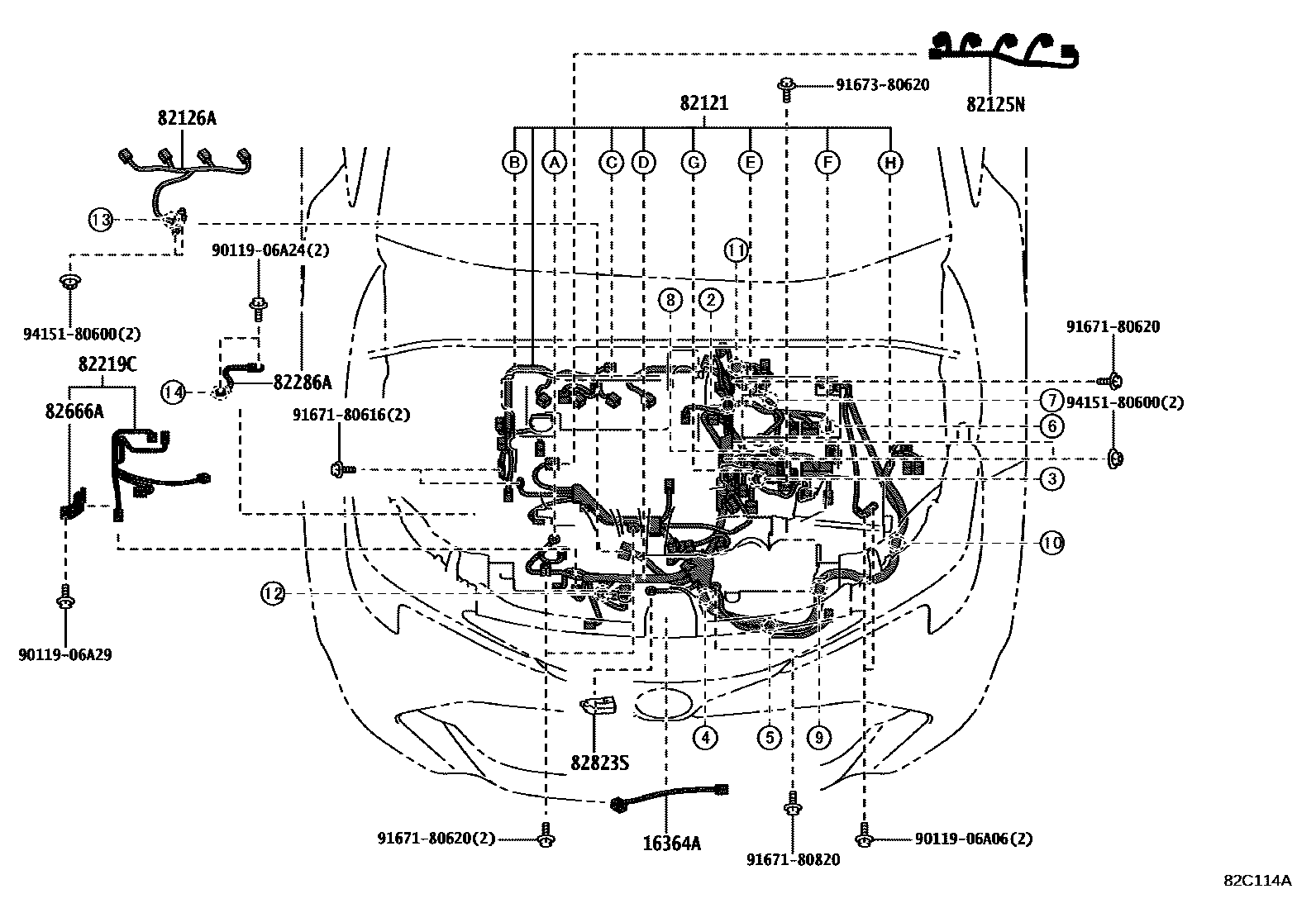

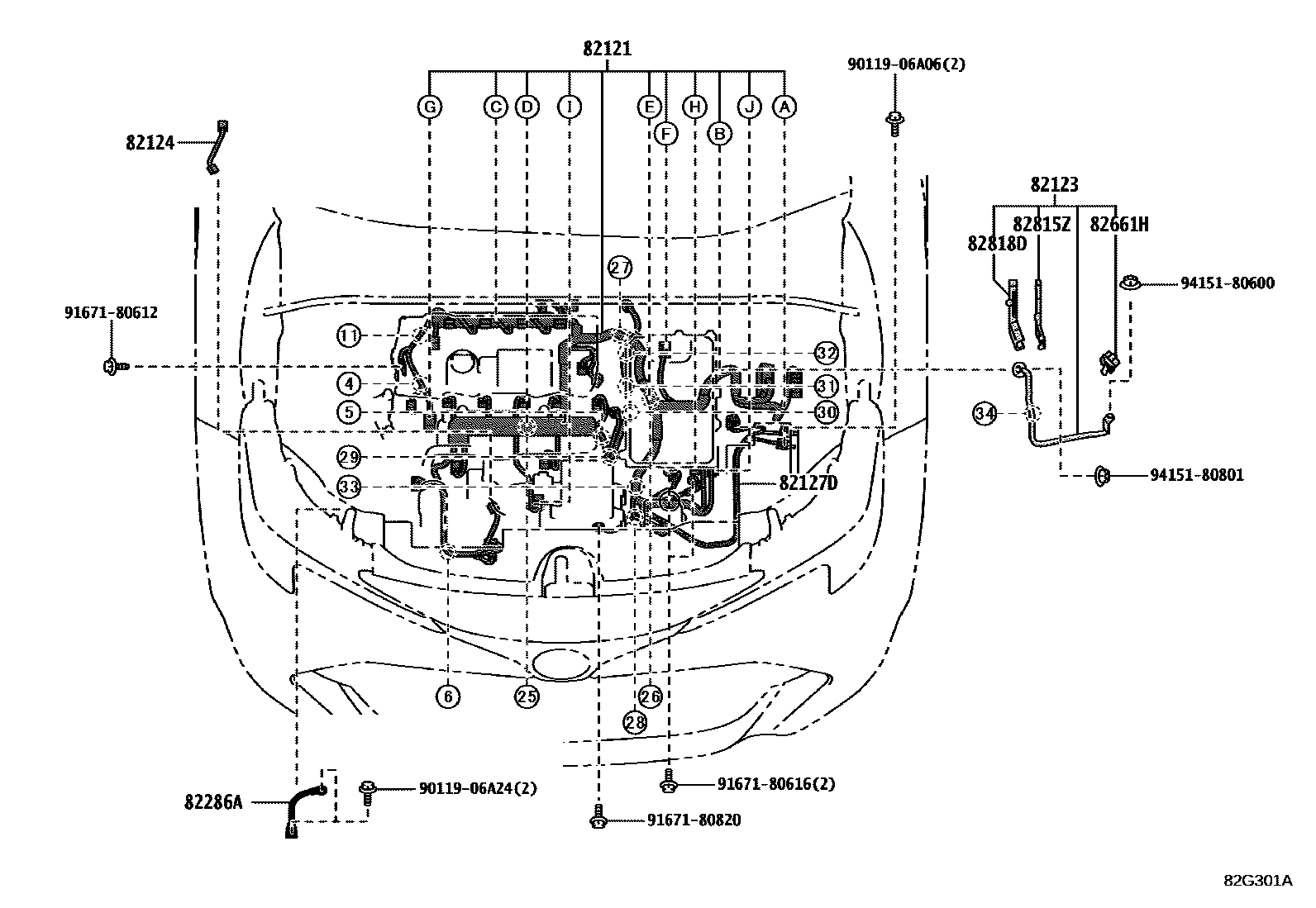

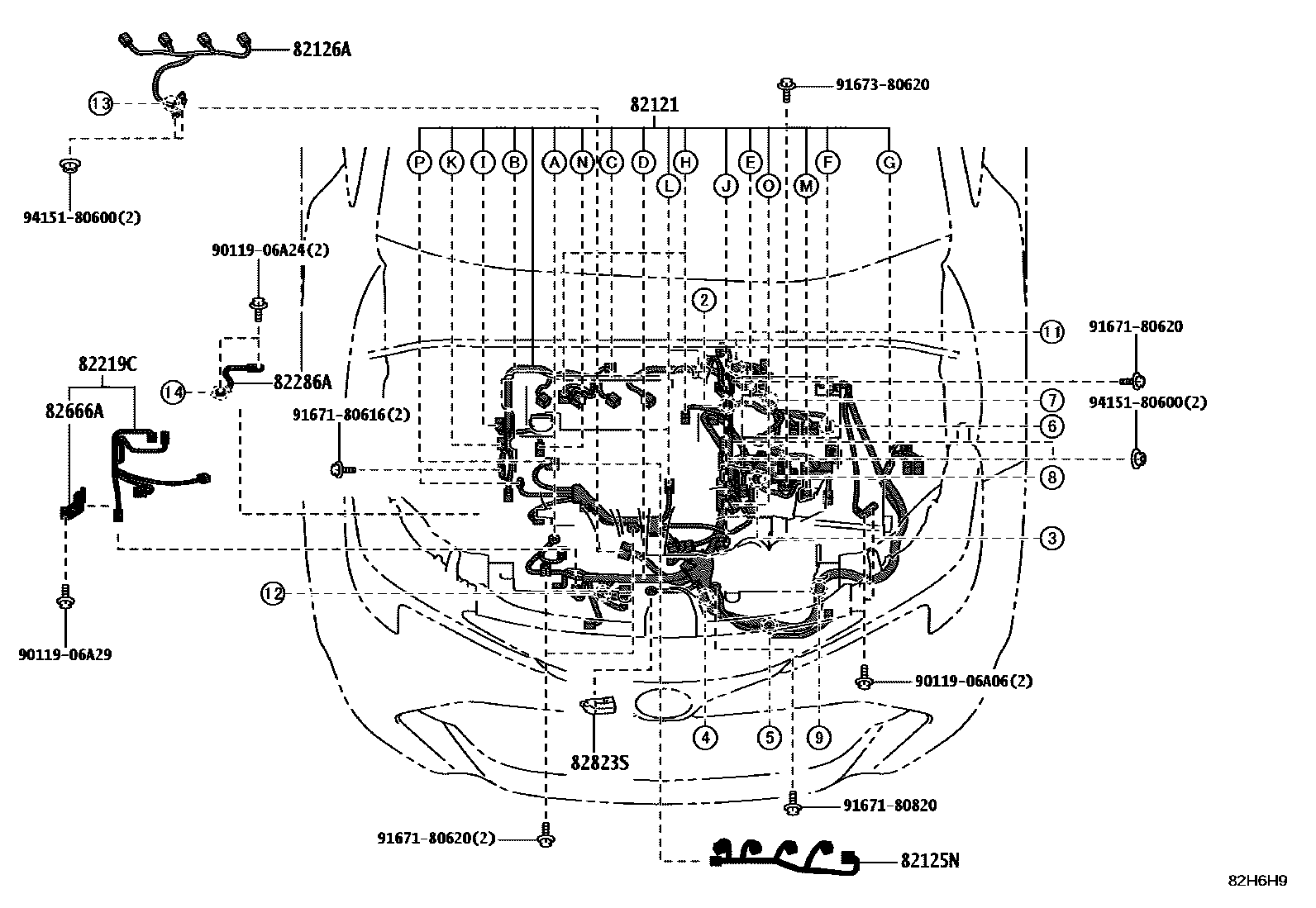

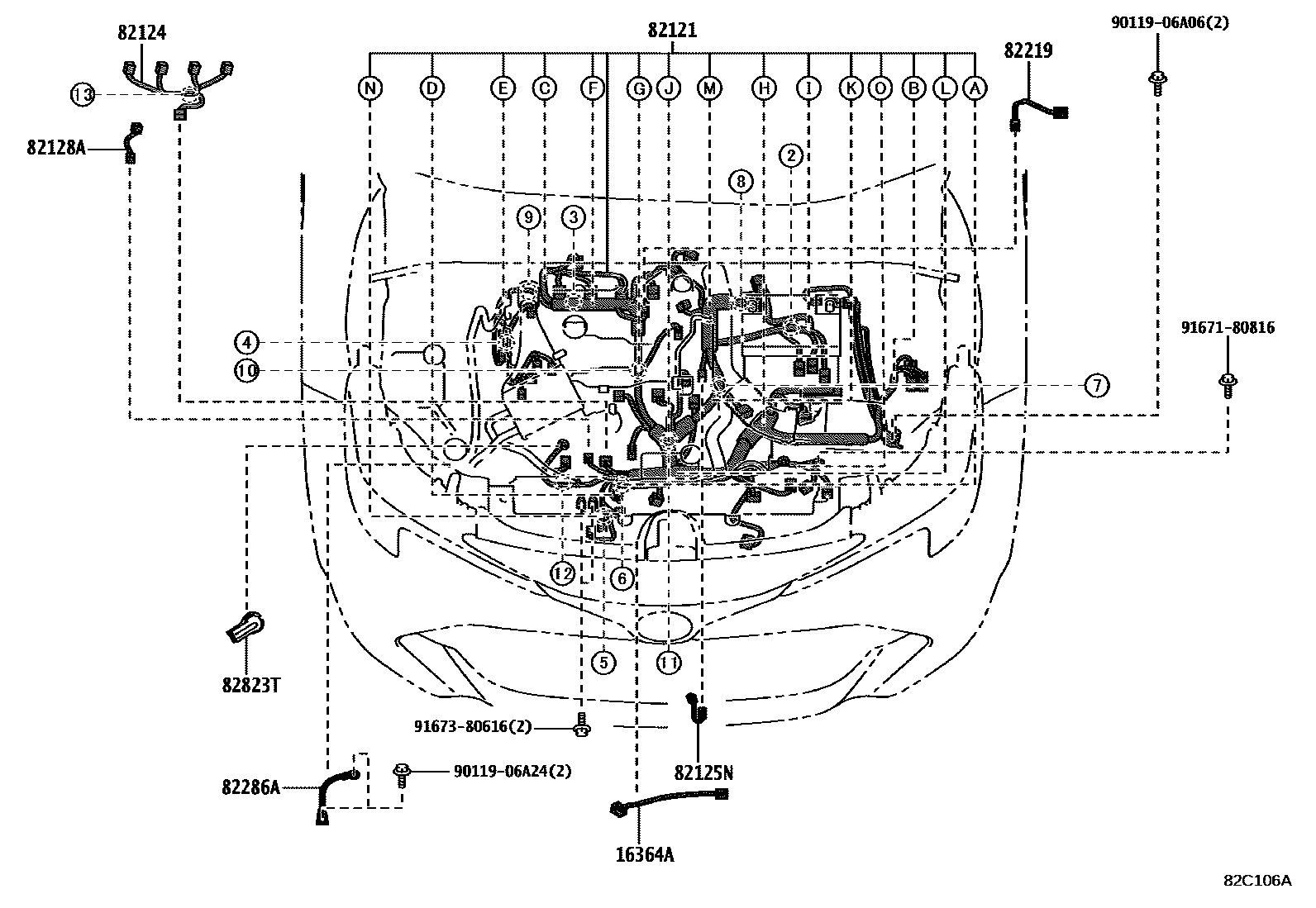

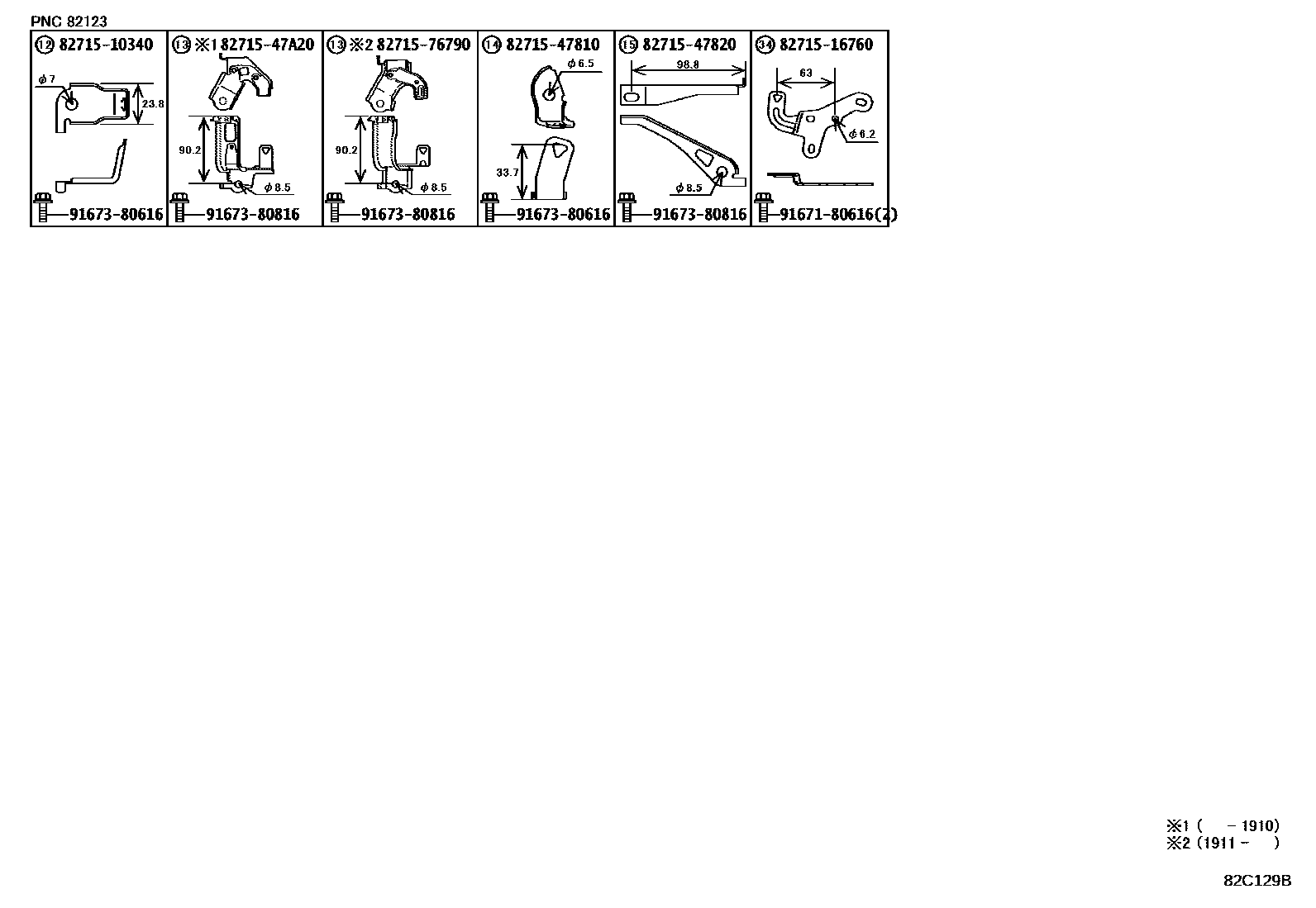

| 82121 | Engine wiring harness | 82121-12S20 · 82121-12S21 · 82121-12S30 · 82121-12S31 · 82121-12S50 · 82121-12S70 · 82121-12T20 · 82121-12V20 · 82121-12V30 · 82121-12V31 |
| 82123 | Engine No. 3 wiring harness | 82123-10170 · 82123-16210 |
| 82124 | Engine No. 4 wiring harness | 82124-12160 · 82124-12170 |
| 82125N | Engine No. 5 wiring harness | 82125-12610 · 82125-12660 |
| 82126A | No. 6 engine wiring harness | 82126-12010 |
| 82127D | Engine No. 7 wiring harness | 82127-16010 |
| 82128A | Engine wiring harness No. 8 | 82128-12010 |

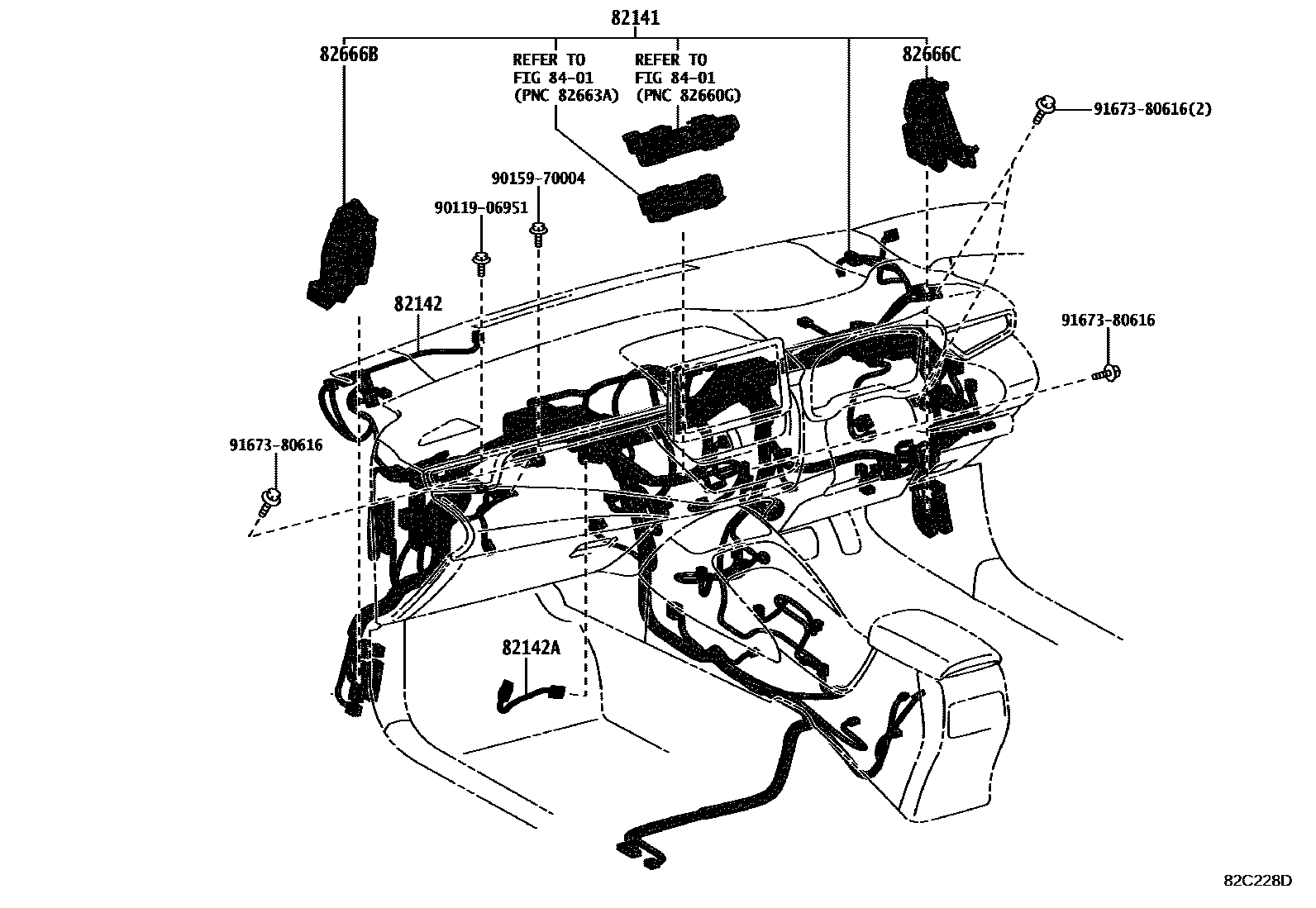

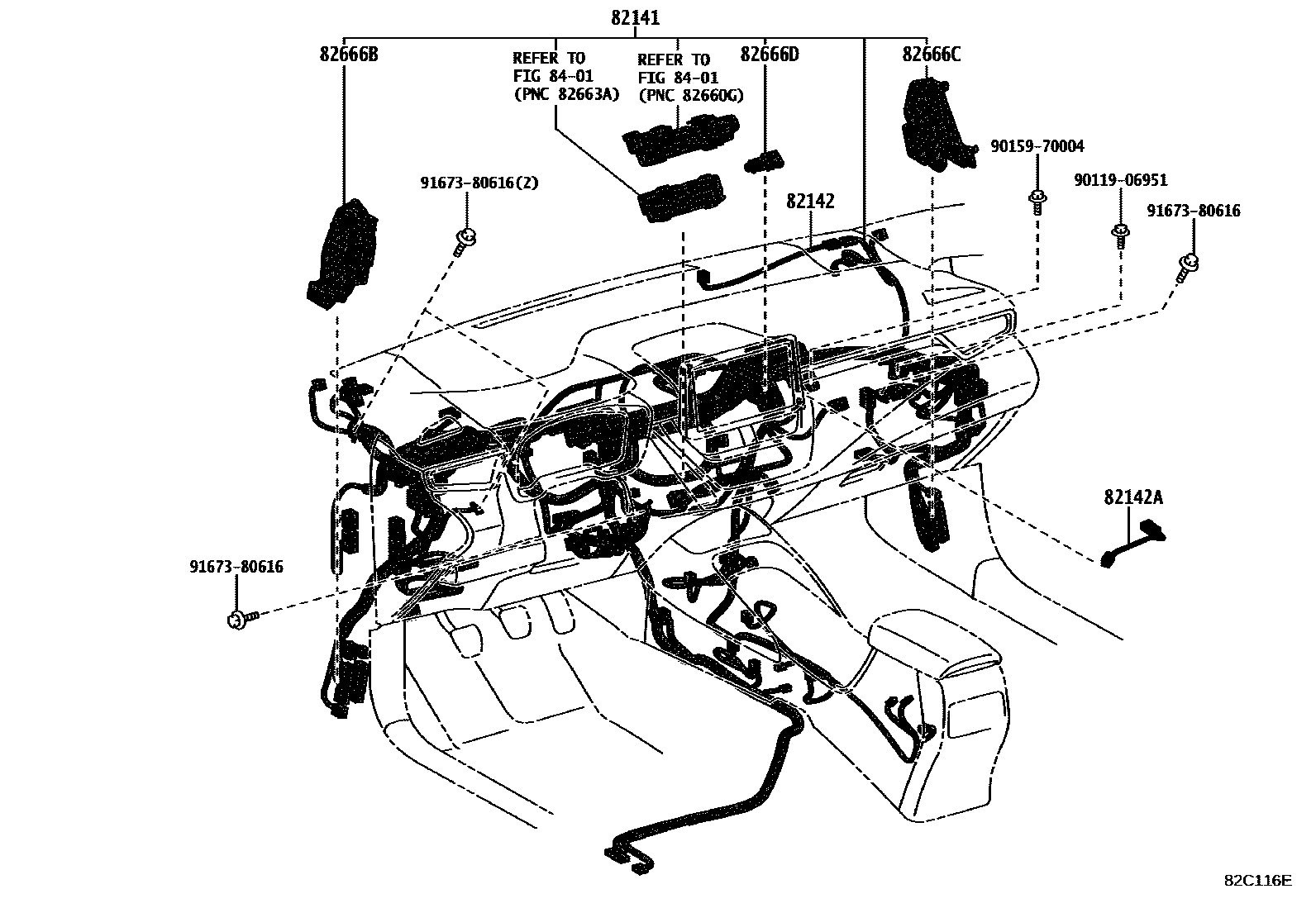

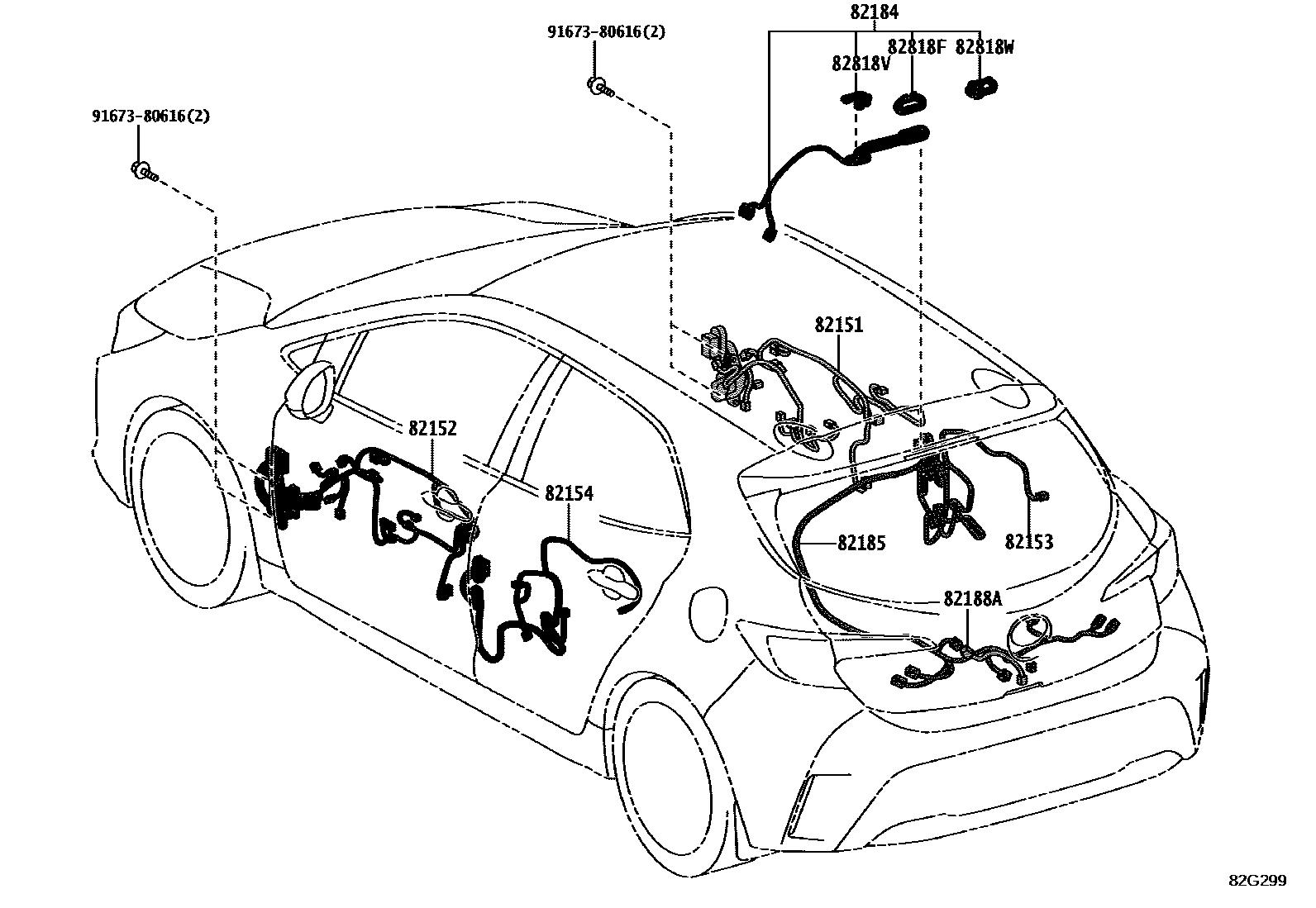

| 82141 | Dashboard wiring harness | 82141-1XB30 · 82141-1XB31 · 82141-1XB32 · 82141-1XB50 · 82141-1XB51 · 82141-1XB52 · 82141-1XC00 · 82141-1XC01 · 82141-1XC02 · 82141-1XC30 · 82141-1XC31 · 82141-1XC32 · 82141-1XE00 · 82141-1XE01 · 82141-1XE02 · 82141-1XG50 · 82141-1XG51 · 82141-1XG52 · 82141-1XG70 · 82141-1XG71 · 82141-1XG72 · 82141-1XG90 · 82141-1XG91 · 82141-1XG92 · 82141-1XG93 · 82141-1XV10 · 82141-1XV20 · 82141-1XW30 · 82141-1XW40 · 82141-1XW50 · 82141-1XW80 · 82141-1XX10 · 82141-1XX20 · 82141-1XX30 · 82141-1XX40 · 82141-1XX50 · 82141-1XY60 · 82141-1XY70 · 82141-1XY80 · 82141-1XY90 · 82141-1XZ00 · 82141-1XZ01 · 82141-1XZ10 · 82141-1XZ11 · 82141-1XZ20 · 82141-1XZ21 · 82141-1XZ30 · 82141-1XZ31 · 82141-1XZ40 · 82141-1XZ41 · 82141-1XZ50 · 82141-1XZ51 · 82145-12A60 · 82145-12A70 · 82145-12A80 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12670 · 82142-12680 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-12B80 |
| 82151 | Right front door wiring harness | 82151-12Q10 · 82151-12Q11 · 82151-12Z80 · 82151-12Z81 · 82151-12Z90 · 82151-1AA00 · 82151-1AA01 · 82151-1AA10 · 82151-1AA11 · 82151-1AA20 · 82151-1AA21 · 82151-1AA30 · 82151-1AA80 · 82151-1AA81 · 82151-1AA90 · 82151-1AA91 · 82151-1AB20 · 82151-1AB21 · 82151-1AB30 · 82151-1AB40 · 82151-1AB41 · 82151-1AB50 · 82151-1AB60 · 82151-1AB61 · 82151-1AB70 · 82151-1AB71 · 82151-1AC10 · 82151-1AC20 · 82151-1AC30 · 82151-1AC31 · 82151-1AC40 · 82151-1AC41 · 82151-1AF70 · 82151-1AF80 · 82151-1AG40 · 82151-1AG50 · 82151-1AG60 · 82151-1AG70 · 82151-1AJ10 · 82151-1AJ20 · 82151-1AJ50 |
| 82152 | Left front door wiring harness | 82152-12Y30 · 82152-12Y31 · 82152-12Y32 · 82152-12Z00 · 82152-12Z01 · 82152-12Z10 · 82152-12Z20 · 82152-12Z21 · 82152-12Z30 · 82152-12Z31 · 82152-12Z40 · 82152-12Z41 · 82152-12Z50 · 82152-1AA00 · 82152-1AA01 · 82152-1AA10 · 82152-1AA11 · 82152-1AA20 · 82152-1AA21 · 82152-1AA30 · 82152-1AA40 · 82152-1AA41 · 82152-1AA50 · 82152-1AA60 · 82152-1AA61 · 82152-1AA70 · 82152-1AA71 · 82152-1AB10 · 82152-1AB20 · 82152-1AB30 · 82152-1AB31 · 82152-1AB40 · 82152-1AB41 · 82152-1AE20 · 82152-1AE30 · 82152-1AF20 · 82152-1AF30 · 82152-1AF40 · 82152-1AF60 · 82152-1AF70 · 82152-1AF80 · 82152-1AG20 · 82152-1AG21 |
| 82153 | Rear door wiring harness No. 1 | 82153-12790 · 82153-12791 · 82153-12810 · 82153-12811 · 82153-12C00 · 82153-12C01 · 82153-12D30 · 82153-12D40 · 82153-12D50 |
| 82154 | Rear door wiring harness No. 2 | 82154-12740 · 82154-12741 · 82154-12760 · 82154-12761 · 82154-12B50 · 82154-12B51 · 82154-12C80 · 82154-12C90 · 82154-12D00 |

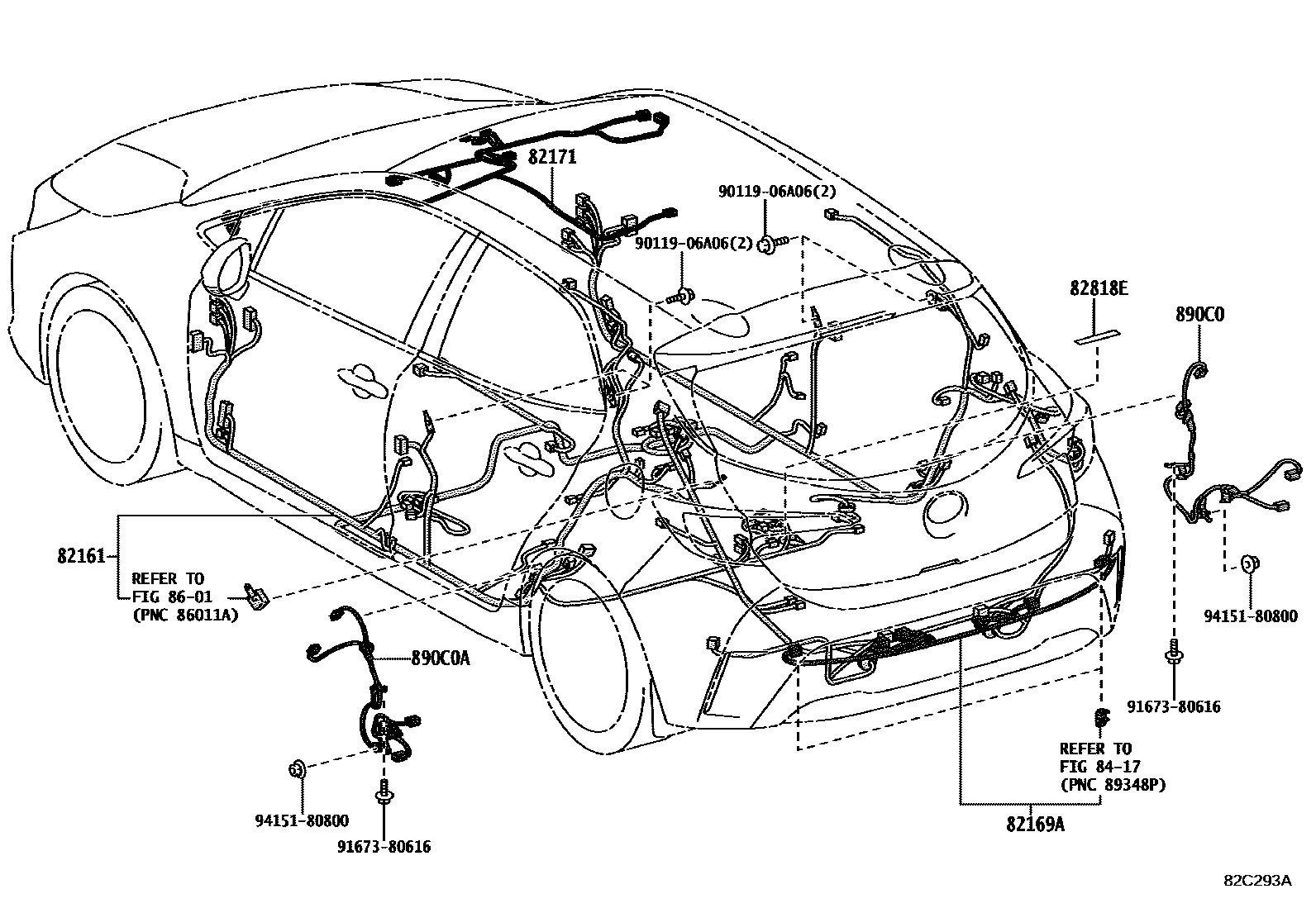

| 82161 | floor wiring harness | 82161-1AF20 · 82161-1AF21 · 82161-1AF23 · 82161-1AF24 · 82161-1AF30 · 82161-1AF31 · 82161-1AF33 · 82161-1AF34 · 82161-1AF35 · 82161-1AF36 · 82161-1AS00 · 82161-1AS01 · 82161-1AS02 · 82161-1AS10 · 82161-1AS11 · 82161-1AS20 · 82161-1AS21 · 82161-1AS22 · 82161-1AS30 · 82161-1AS31 · 82161-1AW70 · 82161-1AW71 · 82161-1AX30 · 82161-1AX31 · 82161-1AX33 · 82161-1AX34 · 82161-1AX35 · 82161-1AX40 · 82161-1AX41 · 82161-1AX43 · 82161-1AX44 · 82161-1AX50 · 82161-1AX51 · 82161-1AX53 · 82161-1AX54 · 82161-1AX55 · 82161-1AX60 · 82161-1AX61 · 82161-1AX63 · 82161-1AX64 · 82161-1AX65 · 82161-1AX70 · 82161-1AX71 · 82161-1AX73 · 82161-1AX74 · 82161-1AX75 · 82161-1AY00 · 82161-1AY01 · 82161-1AY03 · 82161-1AY04 · 82161-1AZ80 · 82161-1AZ81 · 82161-1AZ83 · 82161-1AZ84 · 82161-1EA80 · 82161-1EA81 · 82161-1EA83 · 82161-1EA84 · 82161-1EA85 · 82161-1EA90 · 82161-1EA91 · 82161-1EA93 · 82161-1EA94 · 82161-1EA95 · 82161-1EK70 · 82161-1EK80 · 82161-1EK90 · 82161-1ES80 · 82161-1ES90 · 82161-1ET50 · 82161-1ET70 · 82161-1ET90 · 82161-1EU90 · 82161-1EU91 · 82161-1EV60 · 82161-1EV80 · 82161-1EX10 · 82161-1EX20 · 82161-1EX30 · 82161-1EX40 · 82161-1HJ10 · 82161-1HJ11 |
| 82169A | No. 6 floor wiring harness | 82169-12040 · 82169-12050 · 82183-12100 |
| 82171 | Roof No. 1 wiring harness | 82171-12U00 · 82171-12U01 · 82171-12U10 · 82171-12U11 · 82171-12U20 · 82171-12U21 · 82171-12W10 · 82171-12W11 · 82171-12W20 · 82171-12W21 · 82171-12Z50 · 82171-12Z60 · 82171-12Z80 · 82171-1A630 · 82171-1A640 · 82171-1A650 |
| 82184 | Rear door No. 1 wiring harness | 82184-12A30 · 82184-12A31 · 82184-12A50 · 82184-12A51 · 82184-12A52 · 82184-12B90 · 82184-12C10 |
| 82185 | Rear door wiring harness No. 2 | 82185-12840 · 82185-12841 · 82185-12850 · 82185-12A40 |
| 82188A | Rear door No. 3 wiring harness | 82184-12A90 · 82184-12B00 |

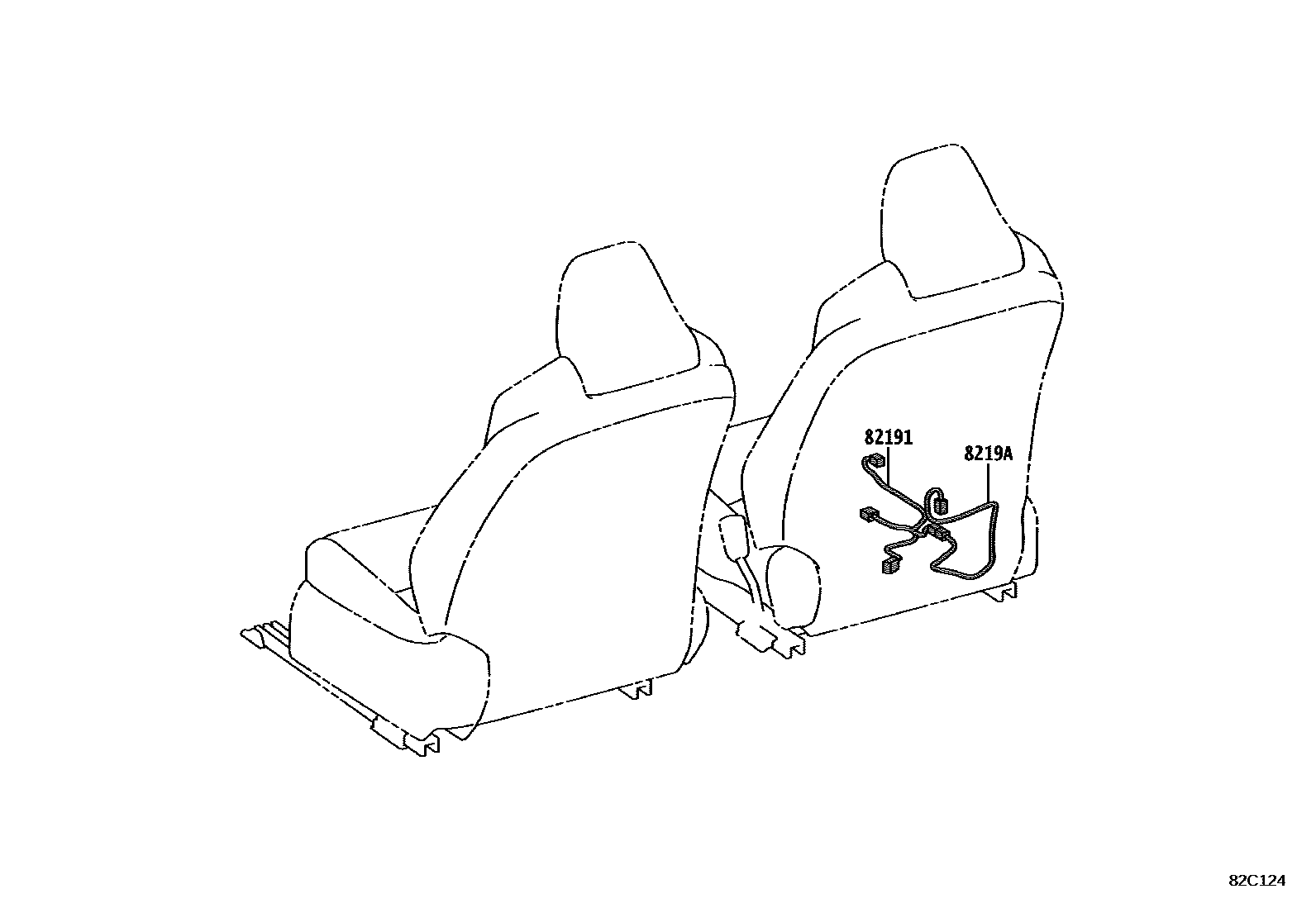

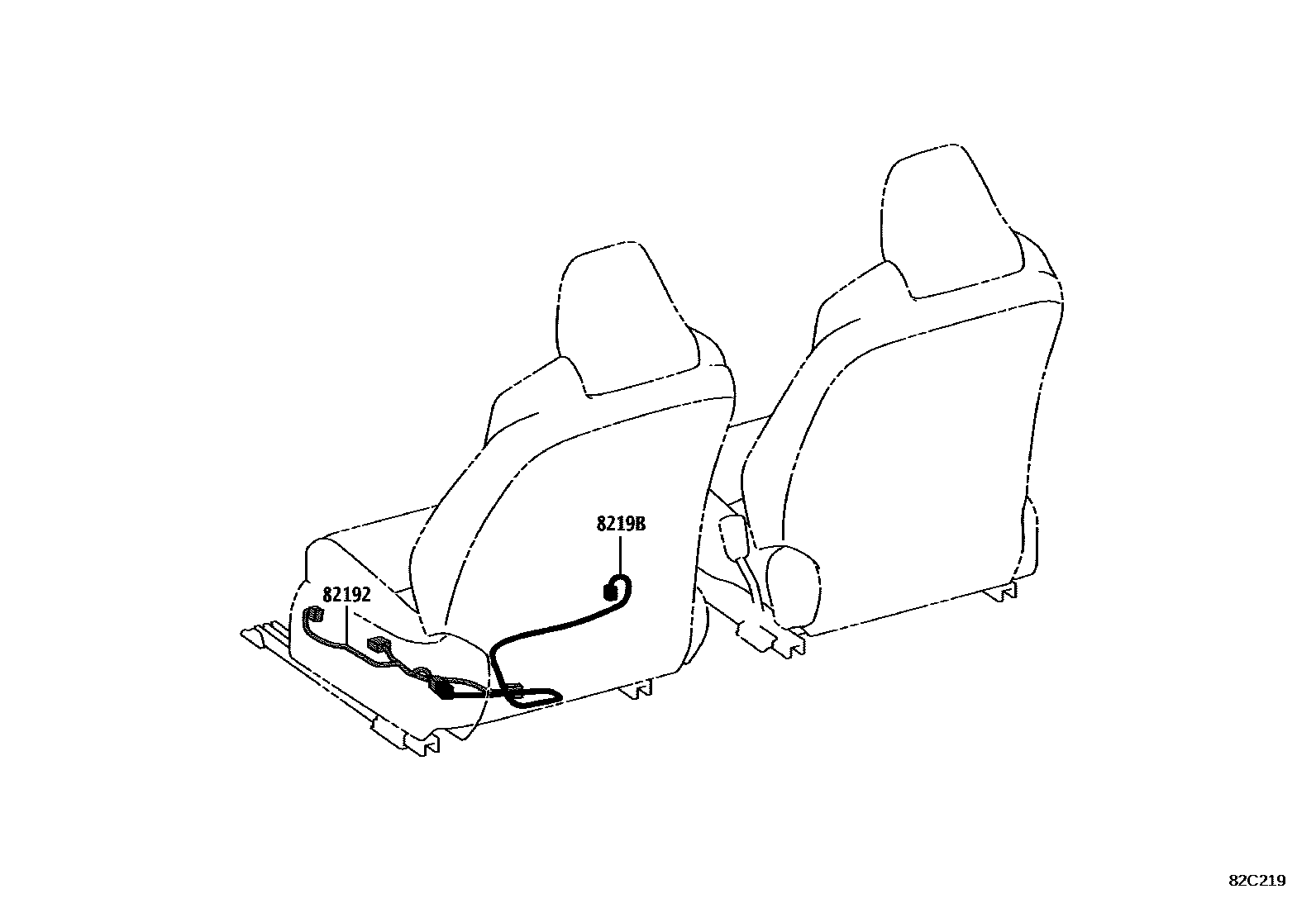

| 82191 | Front right seat wiring harness | 82191-12120 · 82191-47120 |
| 82192 | Front left seat wiring harness | 82192-12030 · 82192-47100 |
| 82192B | Wire harness No. 2, left side of front seat | 82192-11080 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-12020 · 8219A-33160 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-12020 · 8219B-33150 |

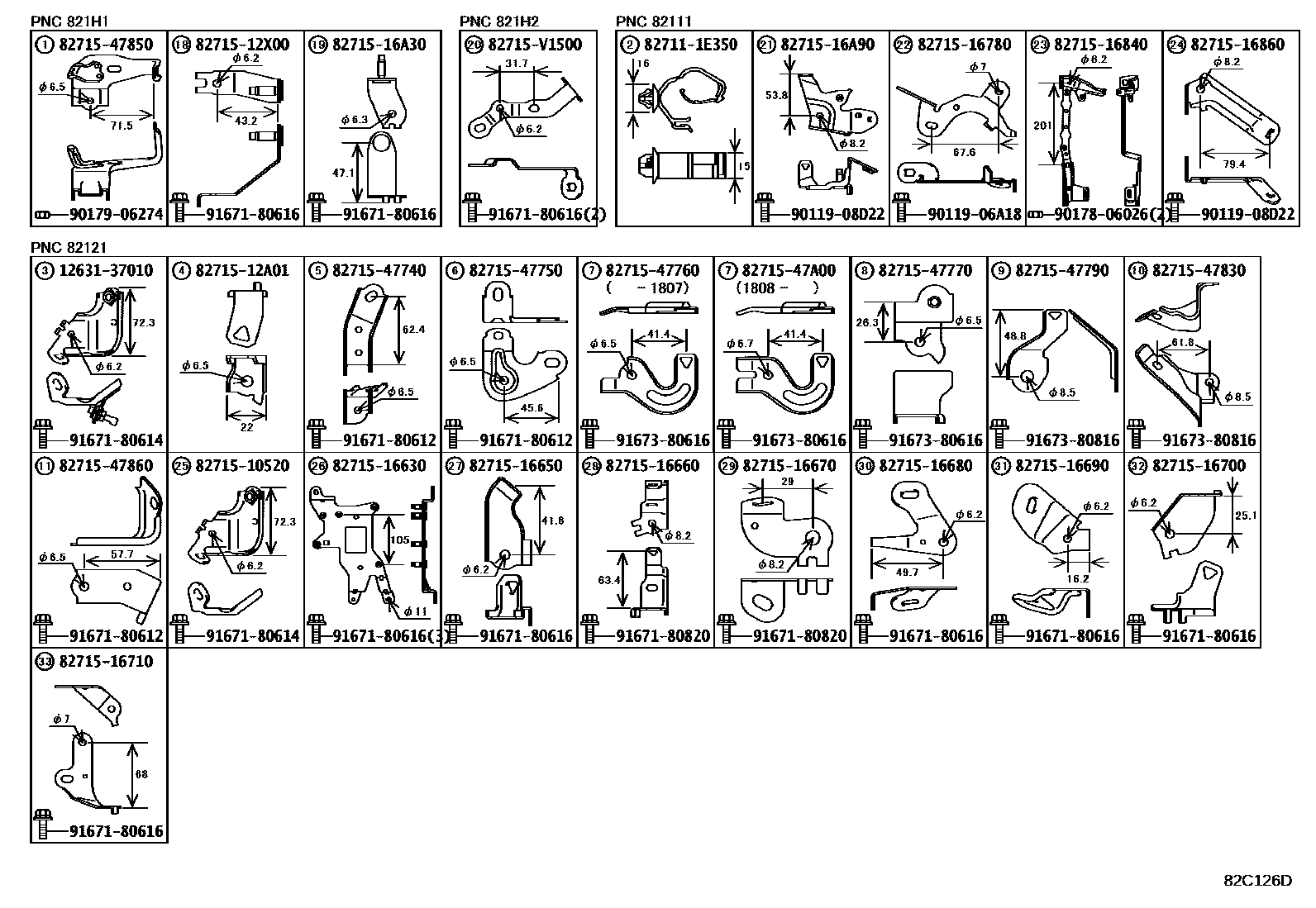

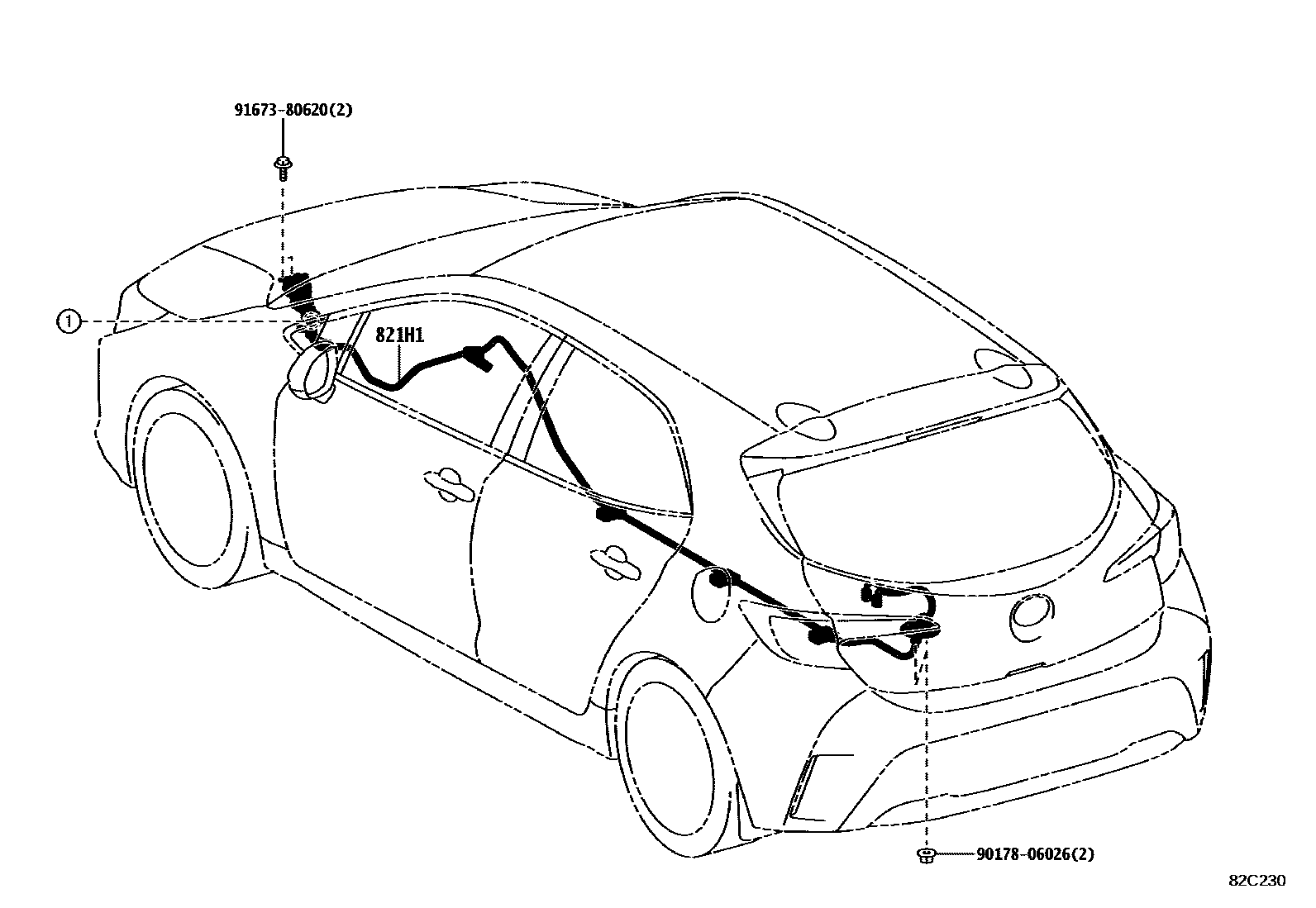

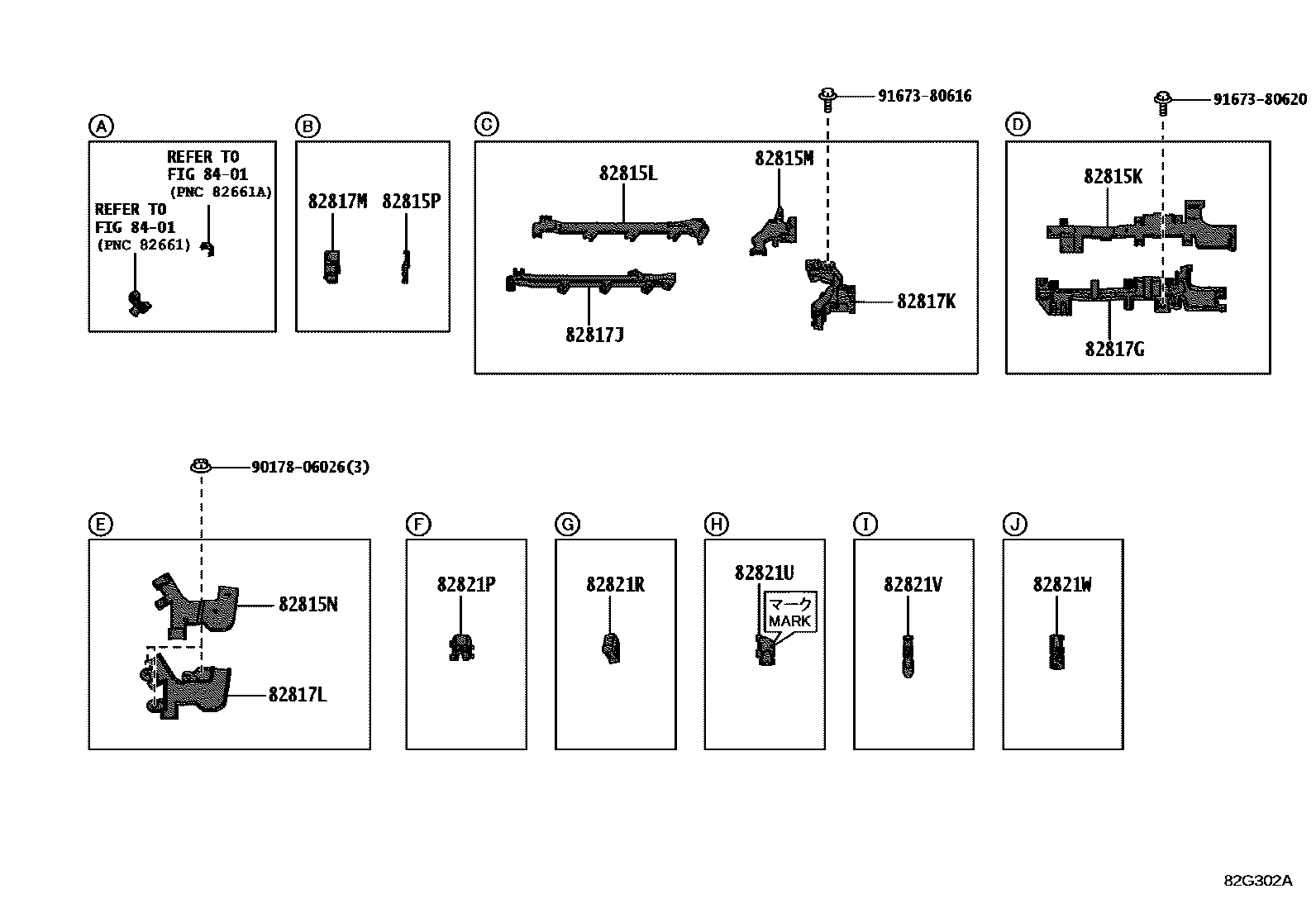

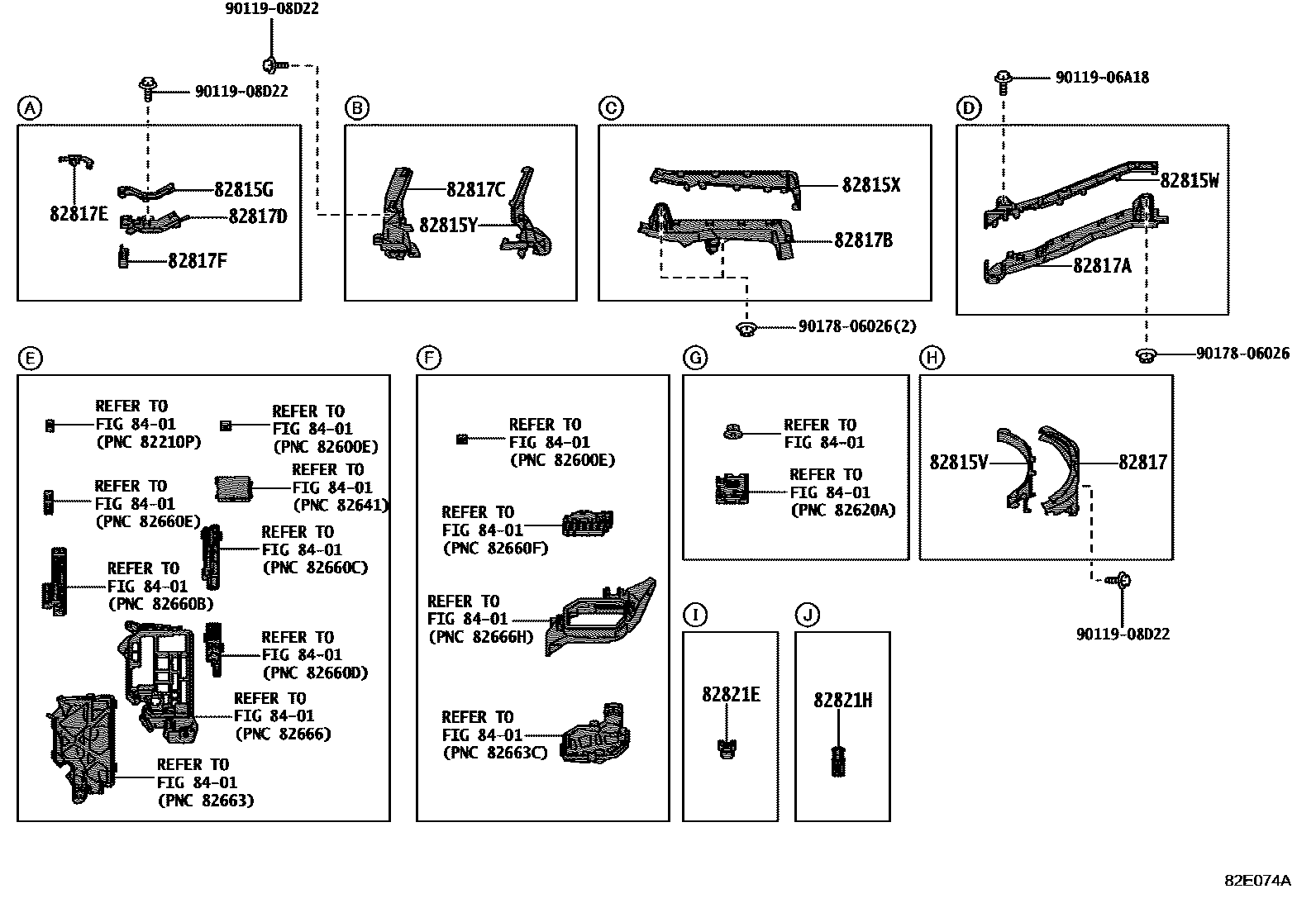

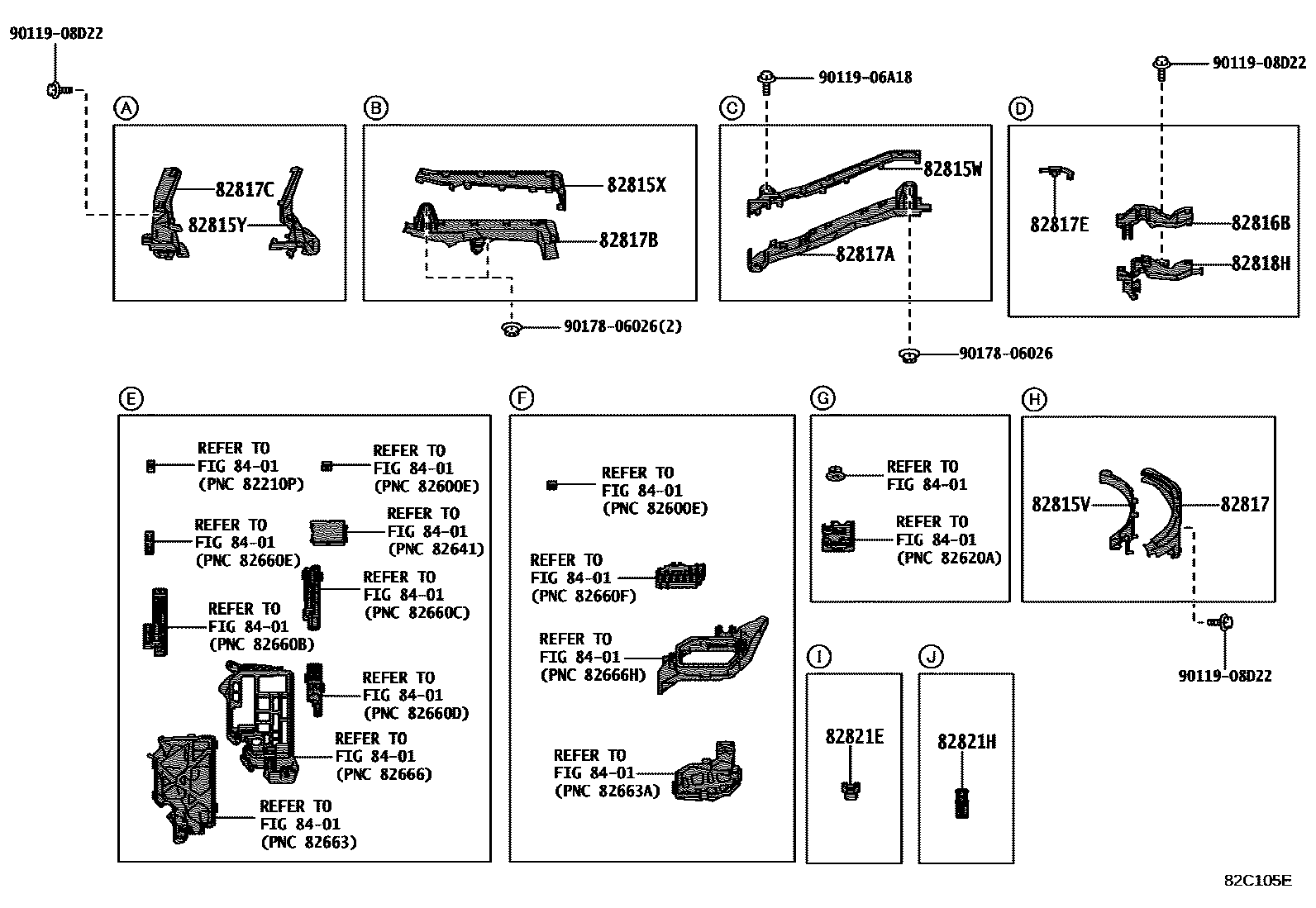

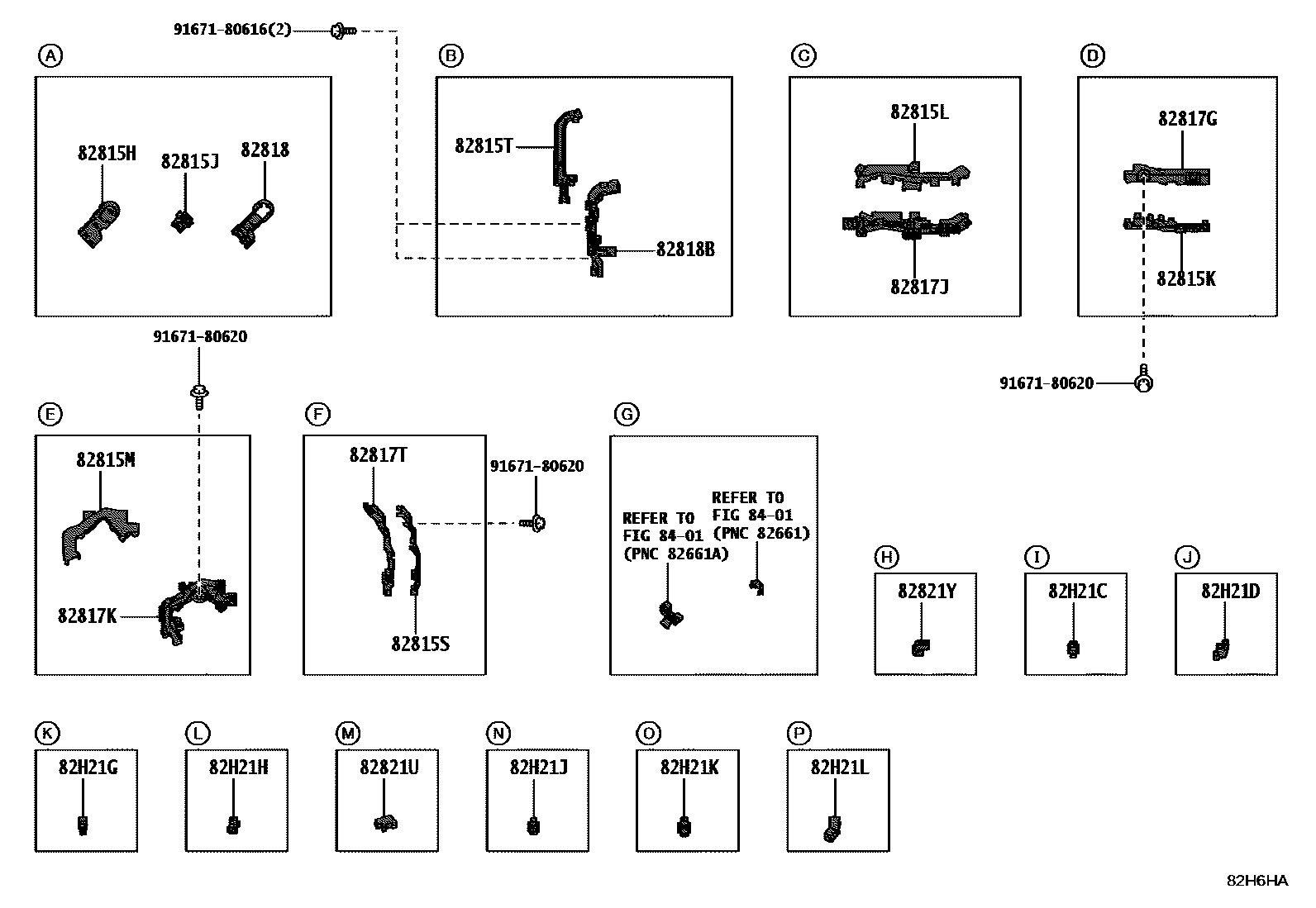

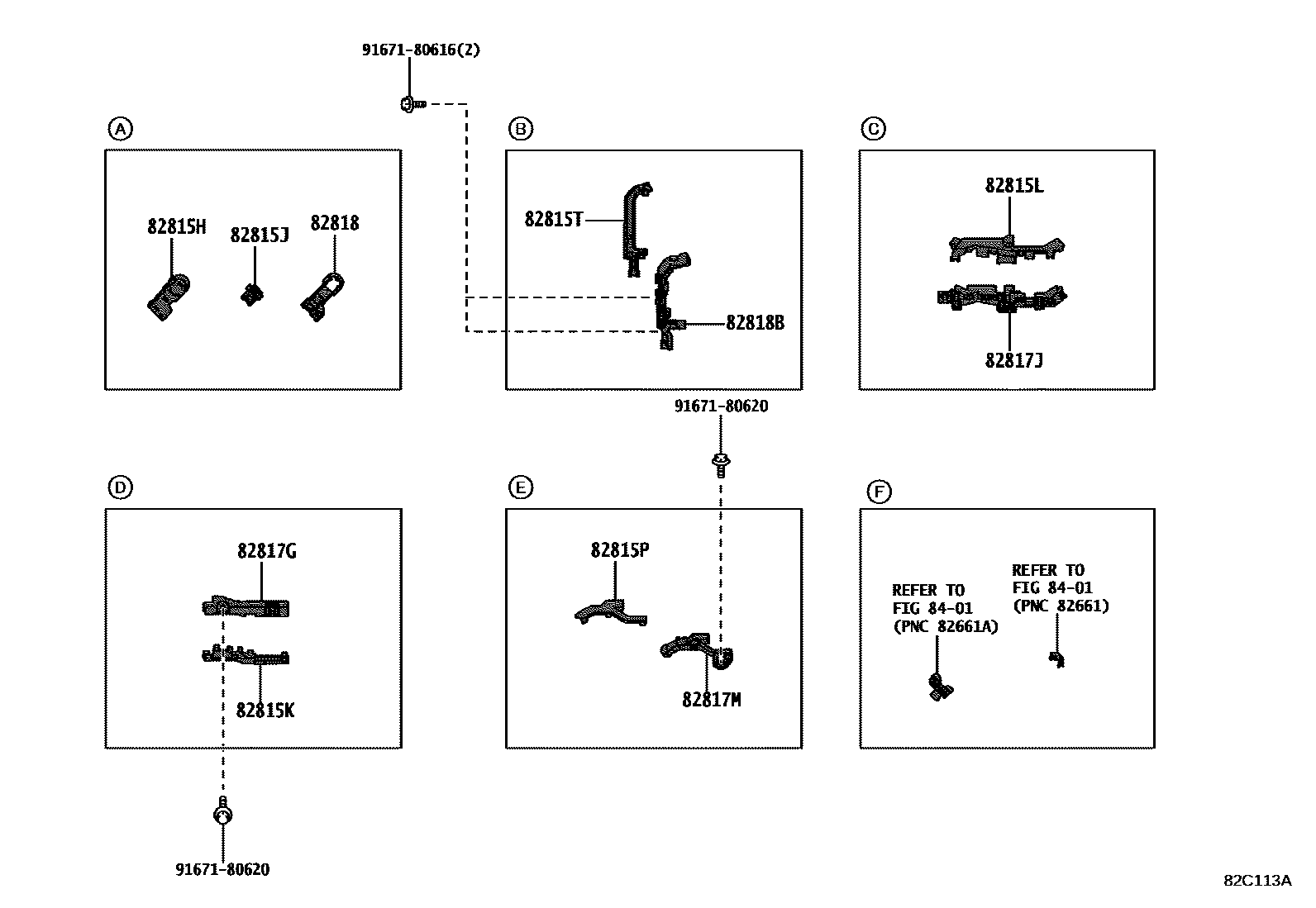

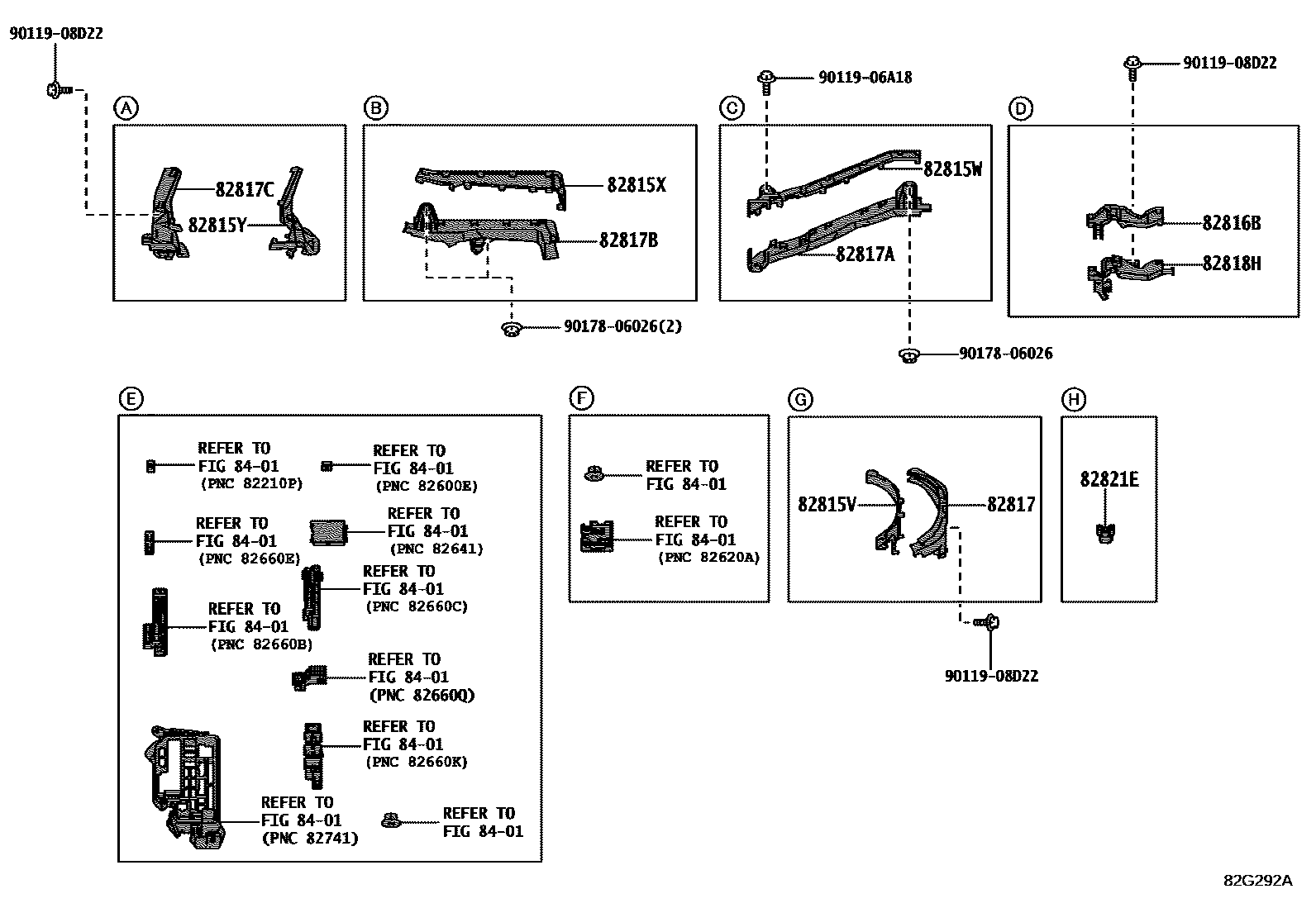

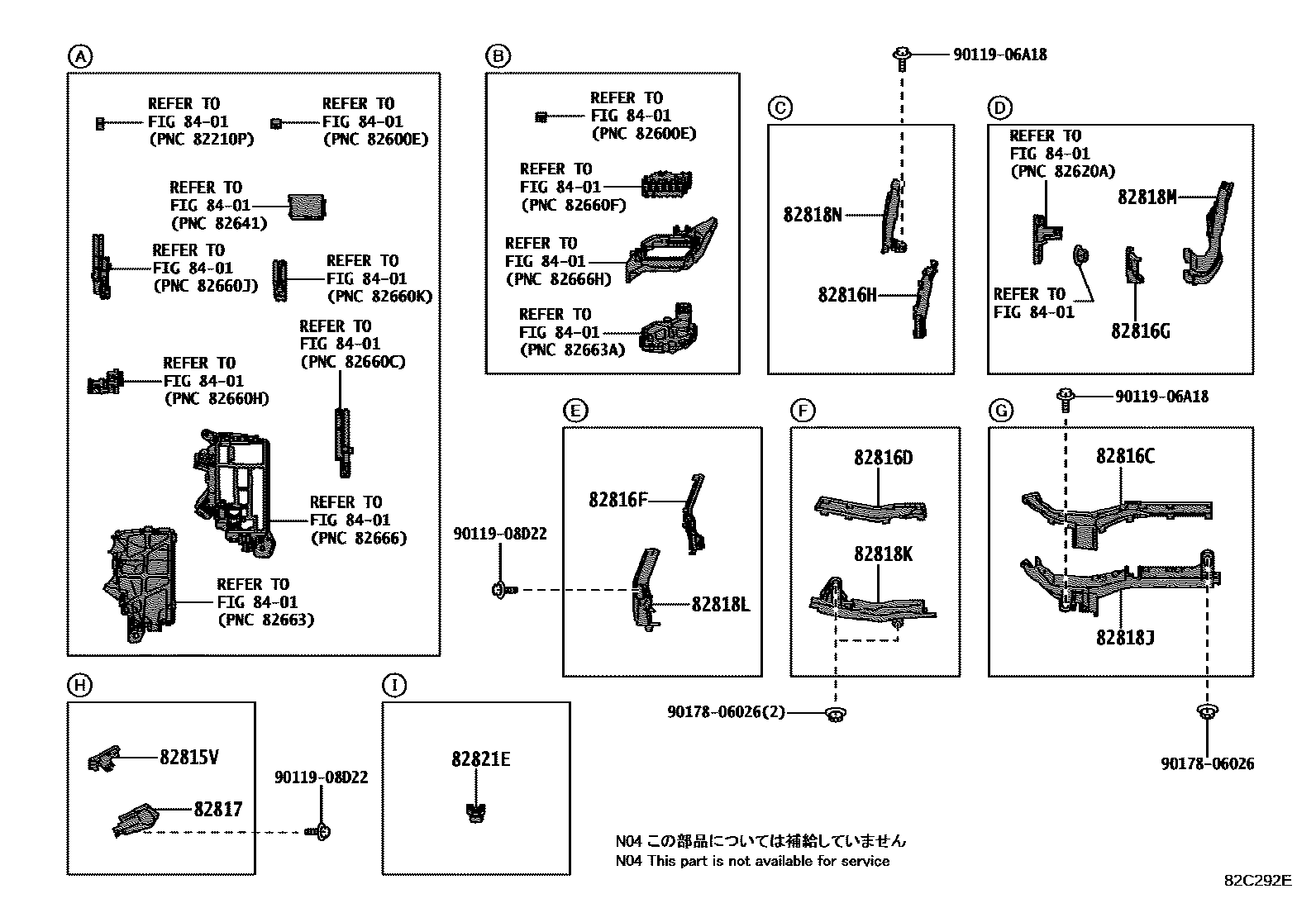

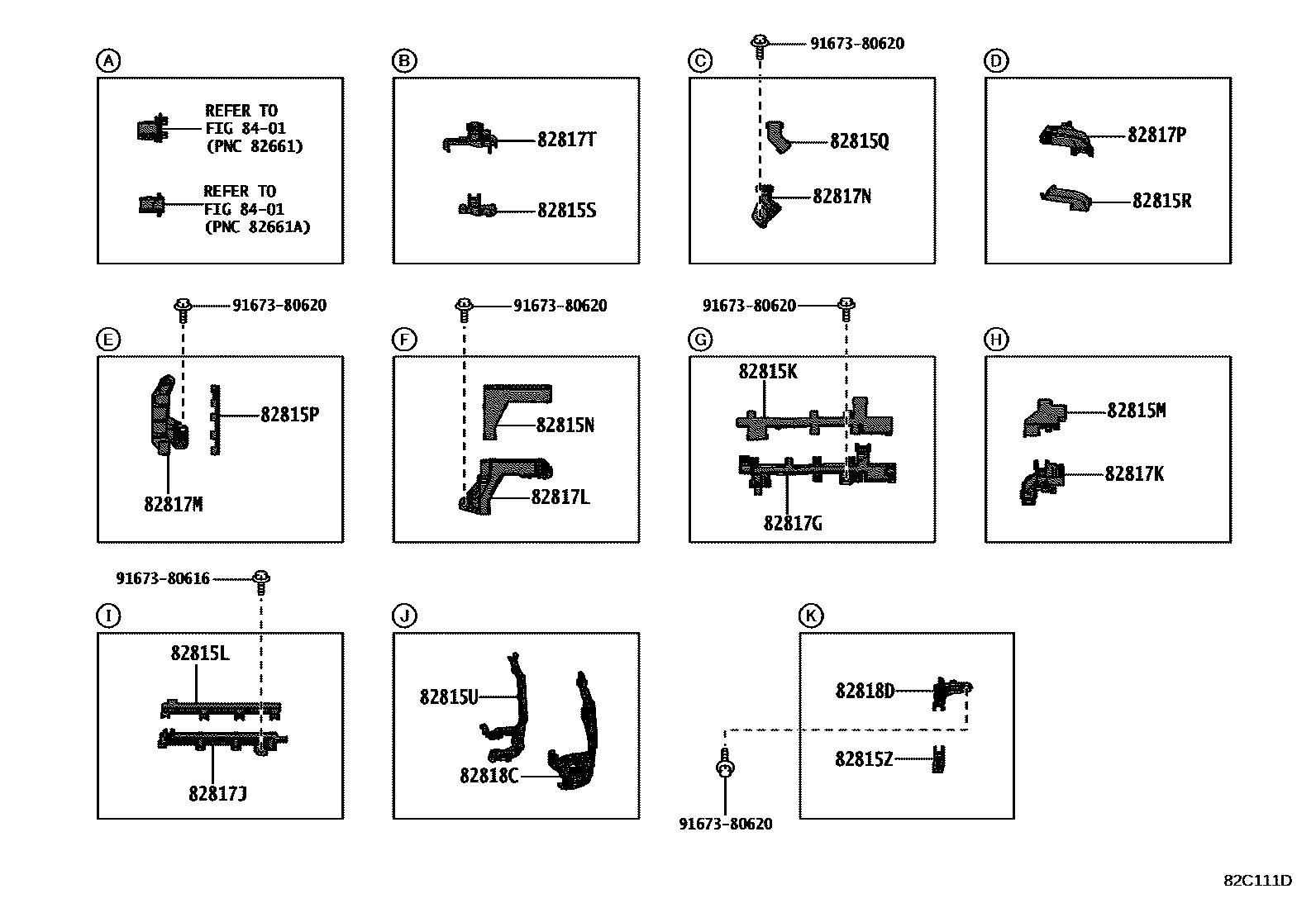

| 821H1 | Underfloor wiring harness | 821H1-12030 · 821H1-12190 |
| 821H2 | HV air conditioner wiring harness | 821H2-47010 · 821H2-V1010 |
| 82219 | Temperature sensor harness | 82219-12130 |
| 82219C | sensor harness | 82219-12140 · 82219-76020 |
| 82286A | Line 2 | 82286-12010 · 82286-12030 · 82286-47010 |
| 82661H | Relay box cover | 82661-16250 |
| 82666A | Connector holder No. 2 | 82666-12490 |
| 82666B | No. 3 connector holder | 82666-12670 |
| 82666C | No. 4 connector holder | 82666-12680 |
| 82666D | No. 5 connector holder | 82666-26180 |
| 82666F | No. 7 connector holder | 82666-26180 |
| 82666G | No. 8 connector holder | 82666-12590 |
| 82666L | No. 9 connector holder | 82666-60220 |
| 82712A | Wire harness bracket | 82712-16040 |
| 82815G | No. 5 wire harness protector cover | 82815-12L40 |
| 82815H | No. 6 wire harness protector cover | 82815-33J10 |
| 82815J | No. 7 wire harness protector cover | 82815-33L00 |
| 82815K | No. 8 wire harness protector cover | 82815-02700 · 82815-12E00 · 82815-47E20 · 82815-V1610 |
| 82815L | No. 9 wire harness protector cover | 82815-12D60 · 82815-12G90 · 82815-47E40 · 82815-V1600 |
| 82815M | No. 10 wire harness protector cover | 82815-02720 · 82815-12E40 · 82815-47E30 · 82815-V1430 |
| 82815N | No. 11 wire harness protector cover | 82815-12E60 · 82815-16100 · 82815-47E10 · 82815-F4090 |
| 82815P | No. 12 wire harness protector cover | 82815-12F20 · 82815-16090 · 82815-47E00 · 82815-F4120 |
| 82815Q | No. 13 wire harness protector cover | 82815-12M10 · 82815-F4100 |
| 82815R | No. 14 wire harness protector cover | 82815-47D80 · 82815-F4110 |
| 82815S | No. 15 wire harness protector cover | 82815-12E50 · 82815-12M00 · 82815-F4010 |
| 82815T | No. 16 wire harness protector cover | 82815-12B00 |
| 82815U | No. 17 wire harness protector cover | 82815-47E50 |
| 82815V | No. 1 wire harness protector cover | 82815-12J00 · 82815-12L00 · 82815-47D40 |
| 82815W | No. 2 wire harness protector cover | 82815-12L10 · 82815-12L90 |
| 82815X | No. 3 wire harness protector cover | 82815-12L20 · 82815-12L80 |
| 82815Y | No. 4 wire harness protector cover | 82815-12L30 · 82815-12L70 |
| 82815Z | No. 18 wire harness protector cover | 82815-10080 · 82815-V1340 |
| 82816B | No. 1 wire harness protector cover | 82815-12D10 |
| 82816C | No. 2 wire harness protector cover | 82815-16230 · 82815-47D30 |
| 82816D | No. 3 wire harness protector cover | 82815-16200 · 82815-47D00 |
| 82816F | No. 4 wire harness protector cover | 82815-47C90 |
| 82816G | No. 5 wire harness protector cover | 82815-47C20 |
| 82816H | No. 6 wire harness protector cover | 82815-47880 |
| 82816J | No. 7 wire harness protector cover | 82815-12690 |
| 82816K | No. 8 wire harness protector cover | 82815-16140 |
| 82816L | No. 9 wire harness protector cover | 82815-16150 |
| 82817 | No. 1 wire harness protection device | 82817-12W50 · 82817-12Y70 · 82817-47P10 |
| 82817A | No. 2 wire harness protection device | 82817-12Y80 · 82817-12Z80 |
| 82817B | No. 3 wire harness protection device | 82817-12Y90 · 82817-12Z70 |
| 82817C | No. 4 wire harness protection device | 82817-12Z00 · 82817-12Z60 |
| 82817D | No. 5 wire harness protection device | 82817-12Z20 |
| 82817E | No. 6 wire harness protection device | 82817-12Z10 |
| 82817F | No. 7 wire harness protection device | 82817-12Z50 |
| 82817G | No. 8 wire harness protection device | 82817-02L30 · 82817-12S00 · 82817-47P90 · 82817-V1840 |
| 82817J | No. 9 wire harness protection device | 82817-12R60 · 82817-12W40 · 82817-47Q10 · 82817-V1820 |
| 82817K | No. 10 wire harness protection device | 82817-02L50 · 82817-12S40 · 82817-47Q00 · 82817-V1600 |
| 82817L | No. 11 wire harness protection device | 82817-12S60 · 82817-16840 · 82817-47L20 · 82817-F4100 |
| 82817M | No. 12 wire harness protection device | 82817-12T20 · 82817-16830 · 82817-47P70 · 82817-F4140 |
| 82817N | No. 13 wire harness protection device | 82817-1A890 · 82817-F4110 |
| 82817P | No. 14 wire harness protection device | 82817-47P50 · 82817-F4130 |
| 82817T | No. 15 wire harness protection device | 82817-12S50 · 82817-1A880 · 82817-F4010 |
| 82817U | No. 16 wire harness protection device | 82817-47S30 |
| 82817X | No. 17 wire harness protection device | 82817-47S40 · 82817-F4120 |
| 82818 | No. 2 wire harness protection device | 82817-33S70 |
| 82818B | No. 3 wire harness protection device | 82817-12V00 |
| 82818C | No. 4 wire harness protection device | 82817-47Q20 |
| 82818D | No. 5 wire harness protection device | 82817-10360 · 82817-V1510 |
| 82818E | No. 6 wire harness protection device | 82817-52A60 |
| 82818F | No. 7 wire harness protection device | 82817-1AA90 |
| 82818G | No. 8 wire harness protection device | 82817-12W30 |
| 82818H | No. 9 wire harness protection device | 82817-12V50 |
| 82818J | No. 10 wire harness protection device | 82817-16820 · 82817-47P00 |
| 82818K | No. 11 wire harness protection device | 82817-16790 · 82817-47N70 |
| 82818L | No. 12 wire harness protection device | 82817-47N60 |
| 82818M | No. 13 wire harness protection device | 82817-16770 · 82817-47N40 |
| 82818N | No. 14 wire harness protection device | 82817-16780 · 82817-47N30 |
| 82818S | No. 15 wire harness protection device | 82817-F4540 |
| 82818T | No. 16 wire harness protection device | 82817-F4500 |
| 82818U | No. 17 wire harness protection device | 82817-02L60 |
| 82818V | No. 18 wire harness protection device | 82817-47L50 |
| 82818W | No. 19 wire harness protection device | 82817-12Q00 |
| 82819G | No. 23 wire harness protection device | 82817-12P10 |
| 82819H | No. 24 wire harness protection device | 82817-16700 |
| 82819J | No. 25 wire harness protection device | 82817-16720 |
| 82819L | No. 27 wire harness protection device | 82817-16730 |
| 82819M | No. 28 wire harness protection device | 82817-16740 |
| 82819N | No. 29 wire harness protective cover | 82817-16750 |
| 82821A | Connector cover | 82821-47330 |
| 82821E | Connector cover | 82821-30650 |
| 82821H | Connector cover | 82821-50500 |
| 82821M | Connector cover | 82821-47420 |
| 82821N | Connector cover | 82821-47430 |
| 82821P | Connector cover | 82821-28420 |
| 82821R | Connector cover | 82821-30600 |
| 82821U | Connector cover | 82821-33690 |
| 82821V | Connector cover | 82821-60100 |
| 82821W | Connector cover | 82821-V1030 |
| 82823 | No. 1 terminal cover | 82823-47050 |
| 82823S | starter terminal cover | 28192-24030 · 28192-47030 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824A | Harness connector | 82824-12710 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-12010 · 890C0-12030 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-12020 · 890C0-12040 |
| G921D | Inverter Connector Cover Protector | G921D-47020 |
