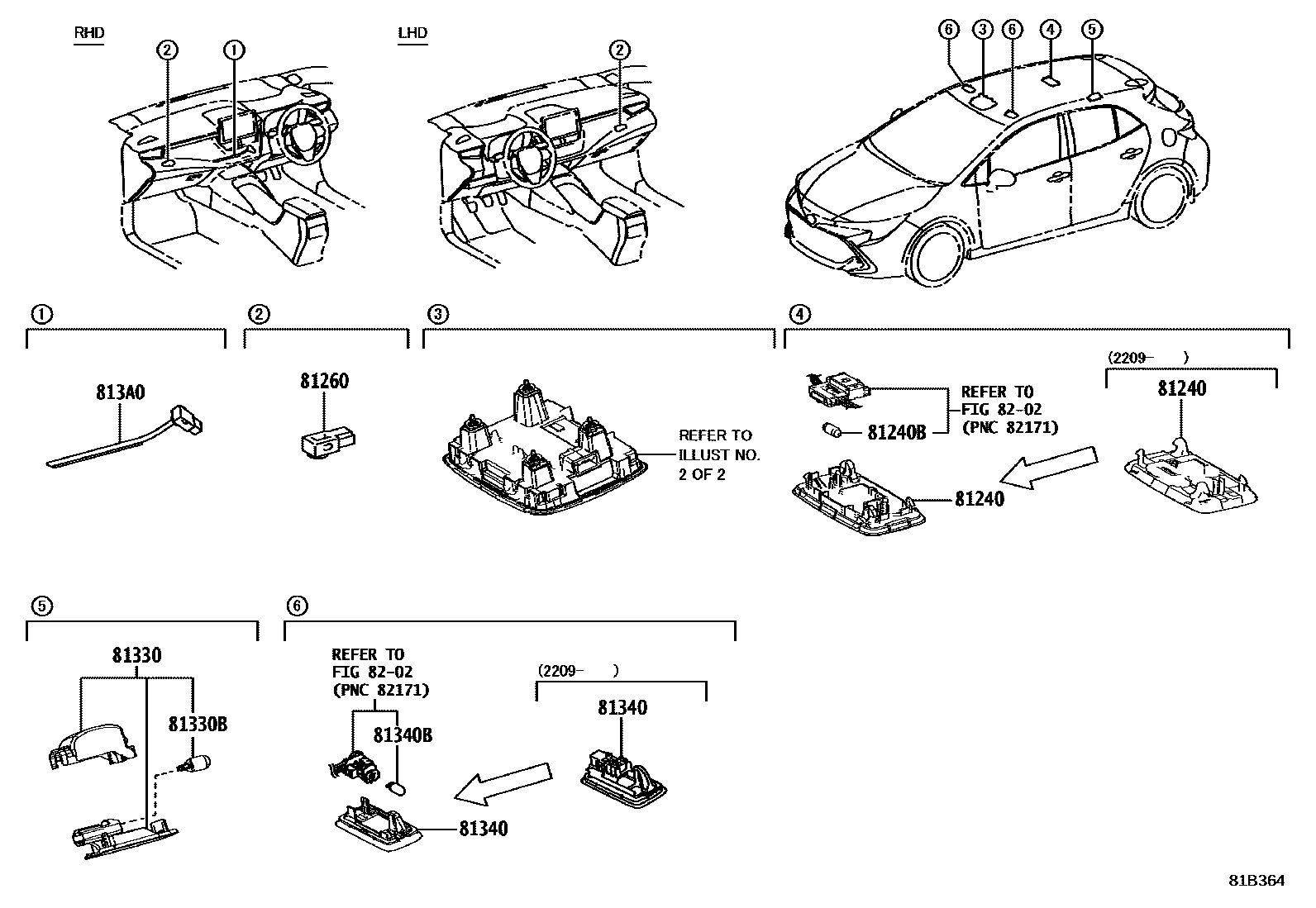

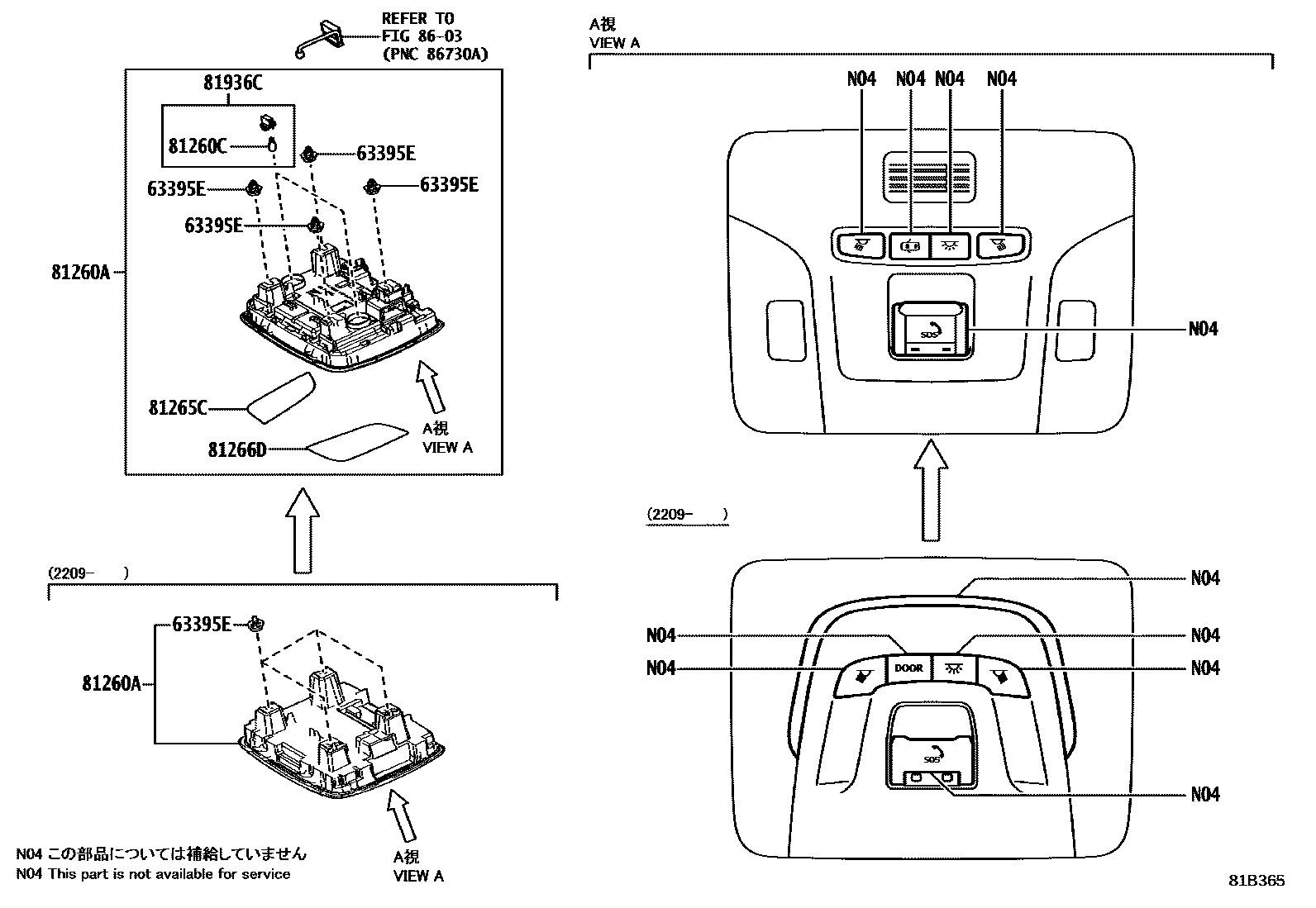

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-09240 · 90467-09245 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81260 | Glove box light assembly | 81080-33290 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81265C | No. 1 reading lamp shade | 81265-12370 |
| 81266D | Reading lamp shade No. 2 | 81266-12370 |
| 81330 | No. 1 trunk light assembly | 81250-30210 |
| 81330B | trunk light bulb | 99132-12050 |
| 81340 | Vanity light assembly | 81340-30110 · 81340-33170 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 813A0 | Dashboard light assembly | 813A0-12020 · 813A0-12040 |
| 81936C | Bulb assembly | 81936-12160 |
