Toyota COROLLA 燃油箱和燃油管 — Figure 7701

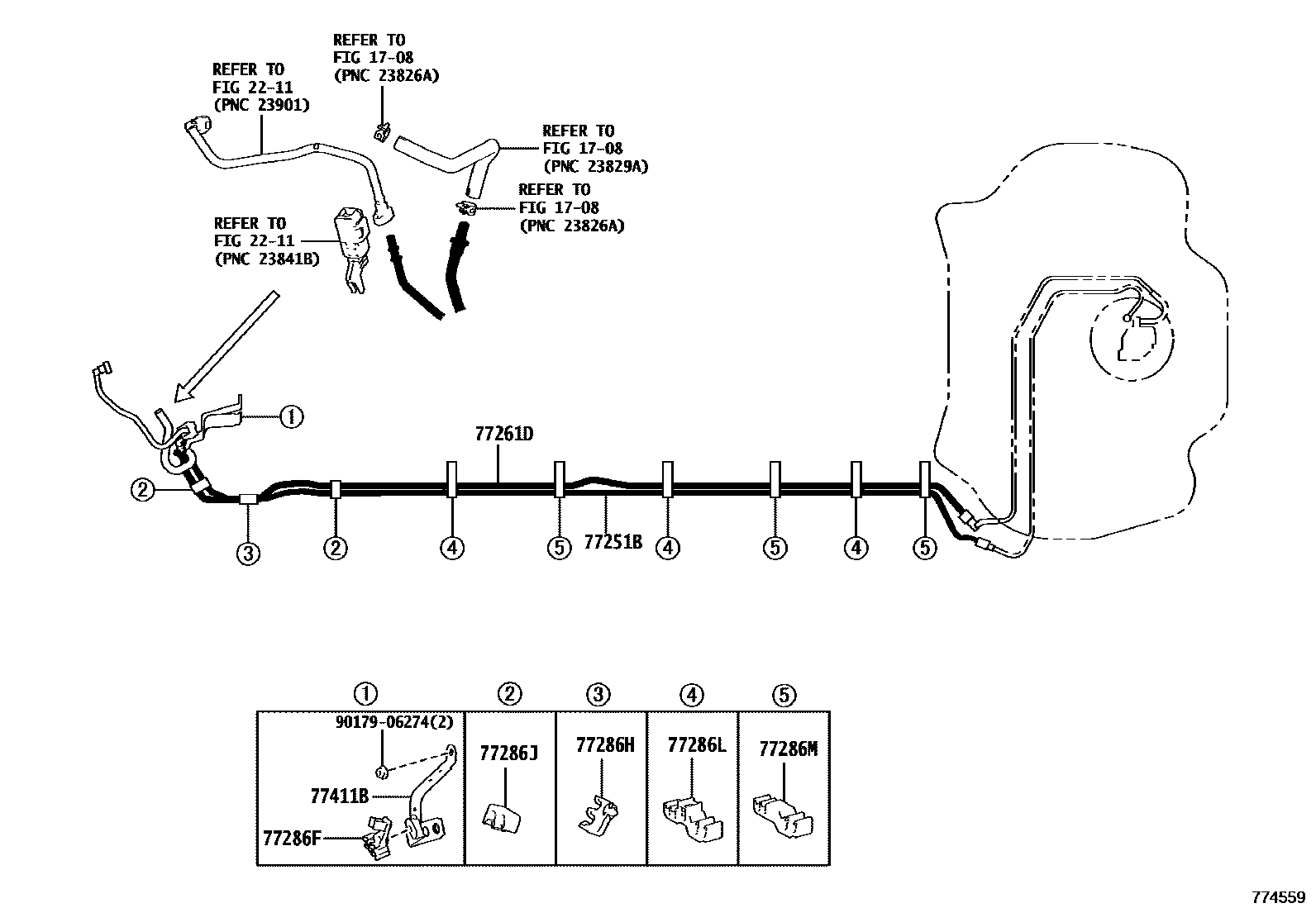

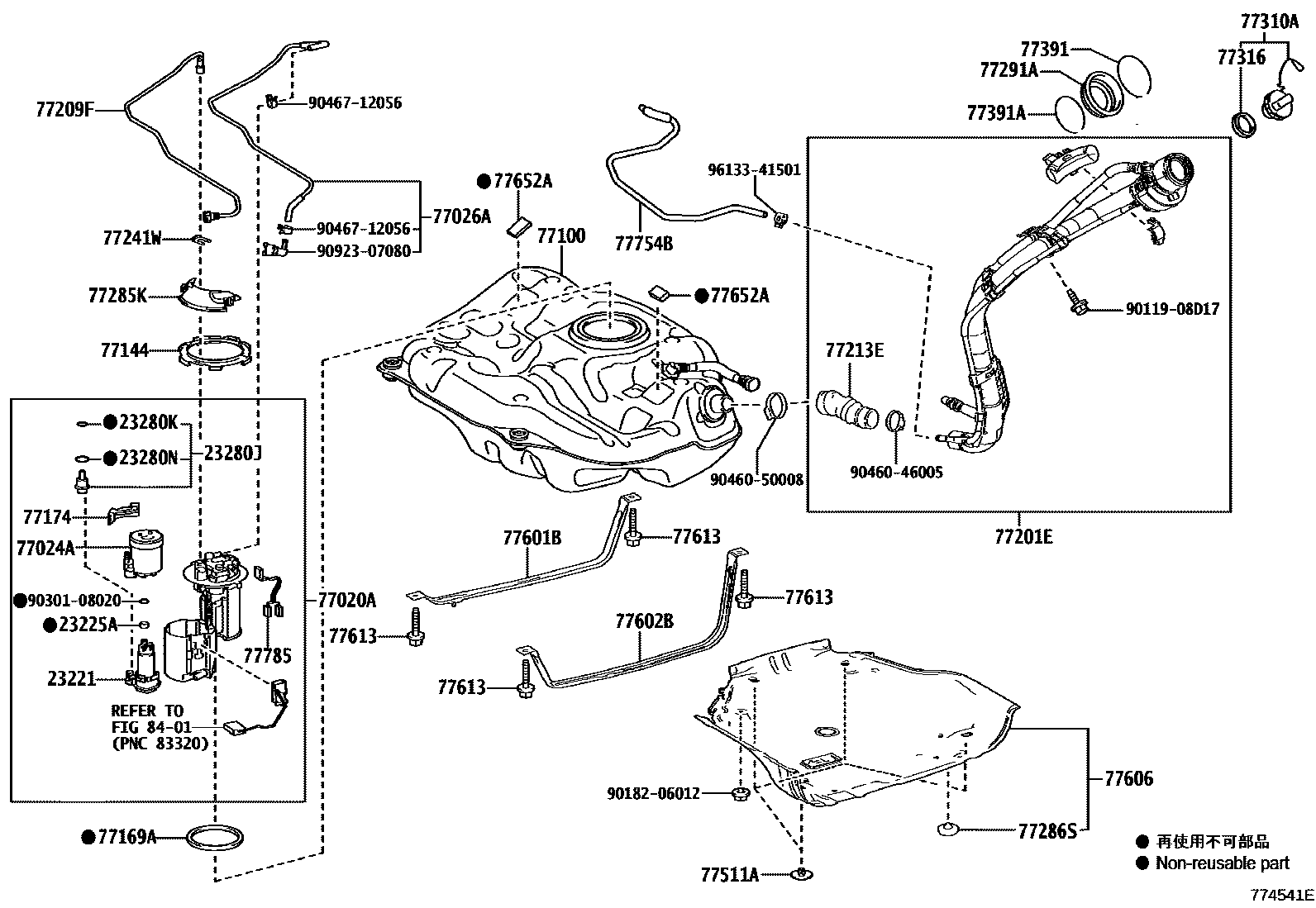

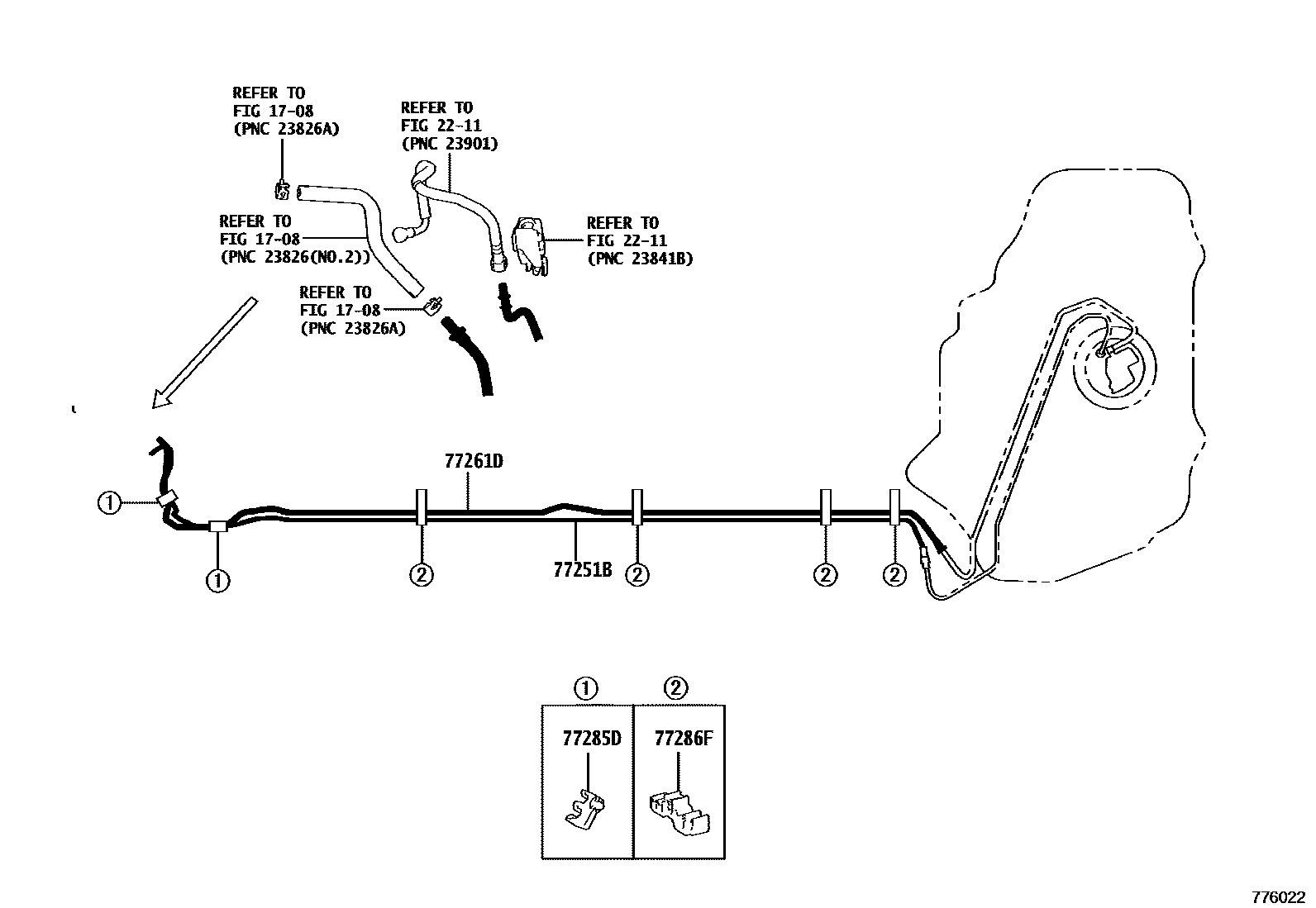

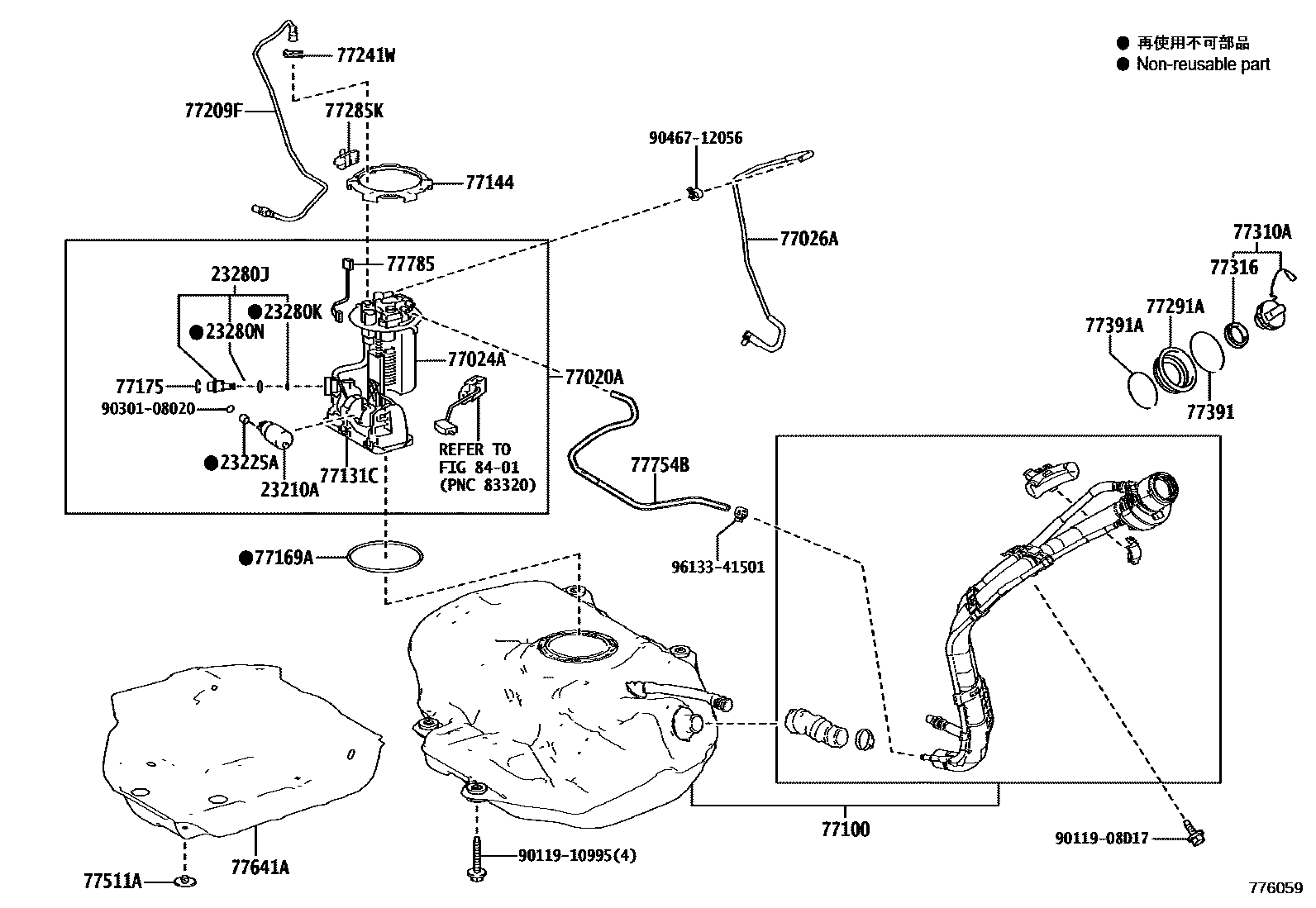

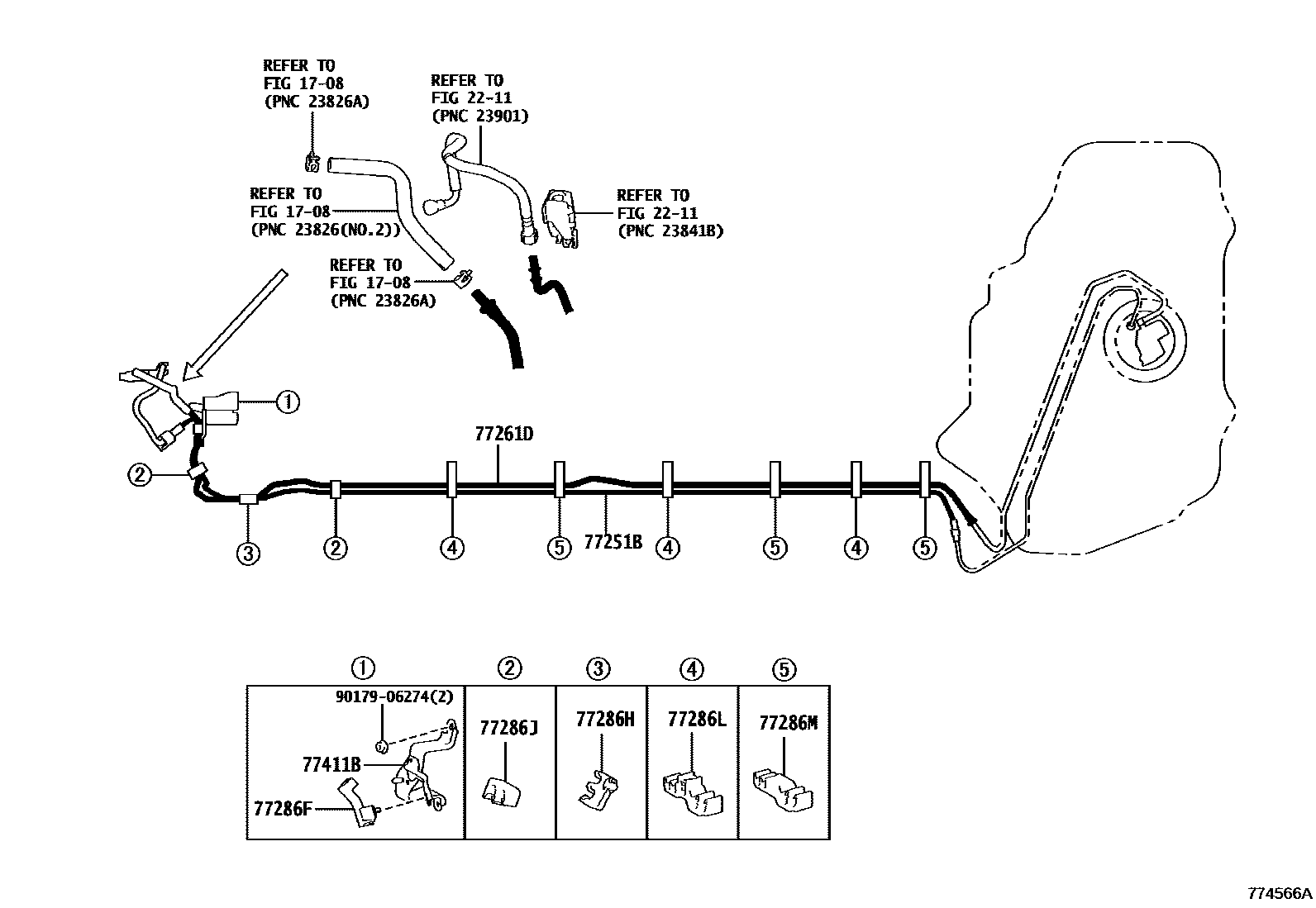

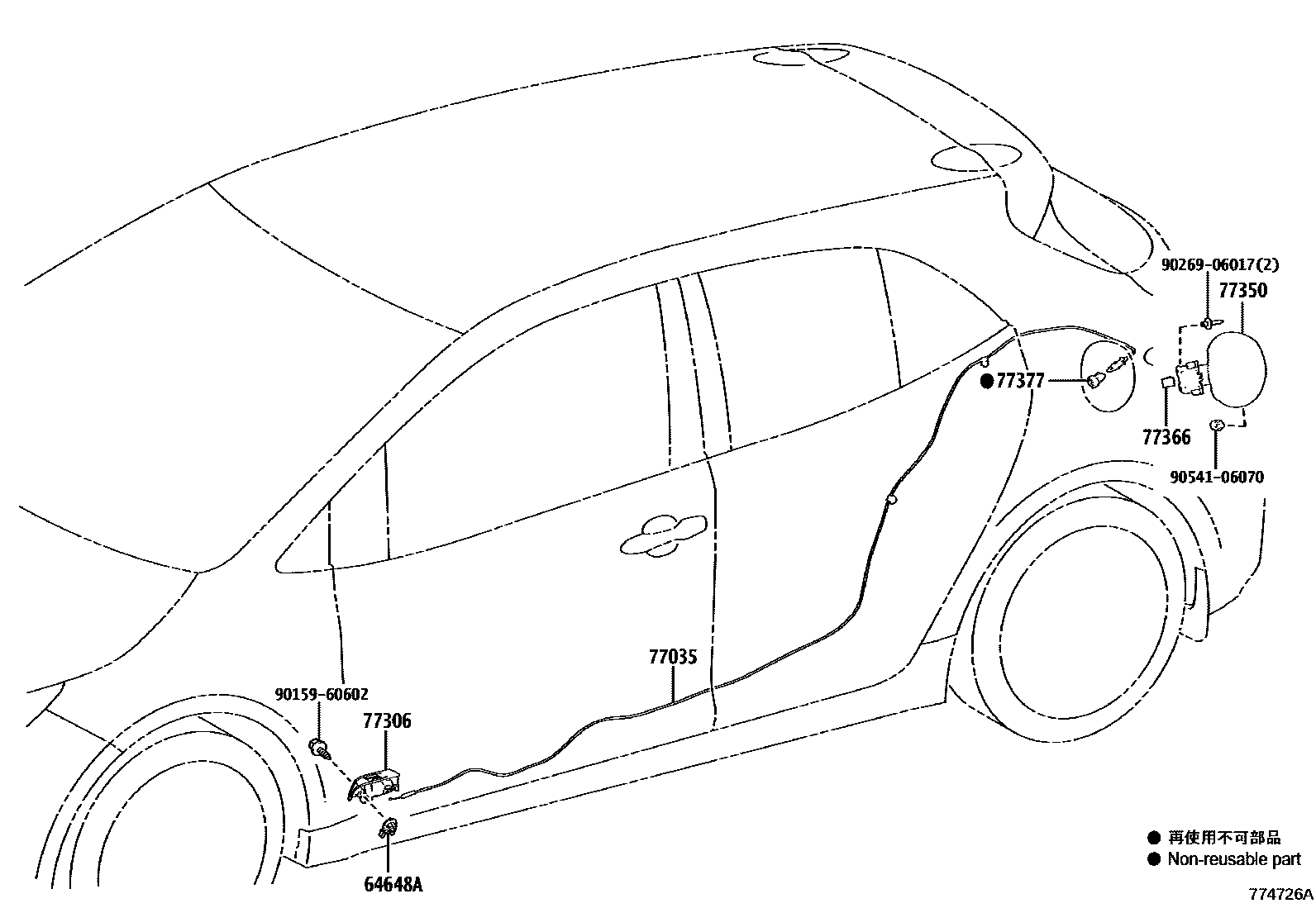

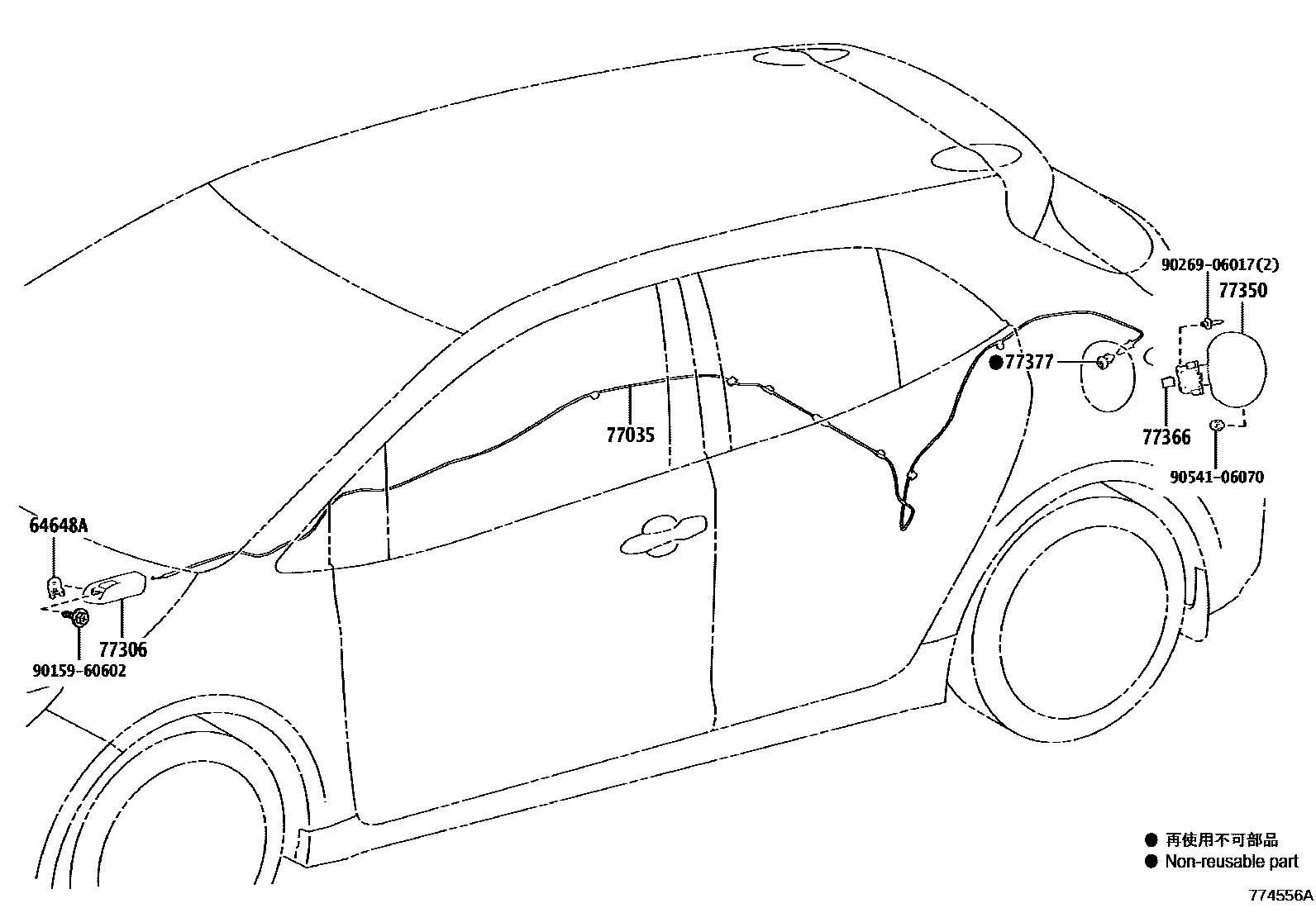

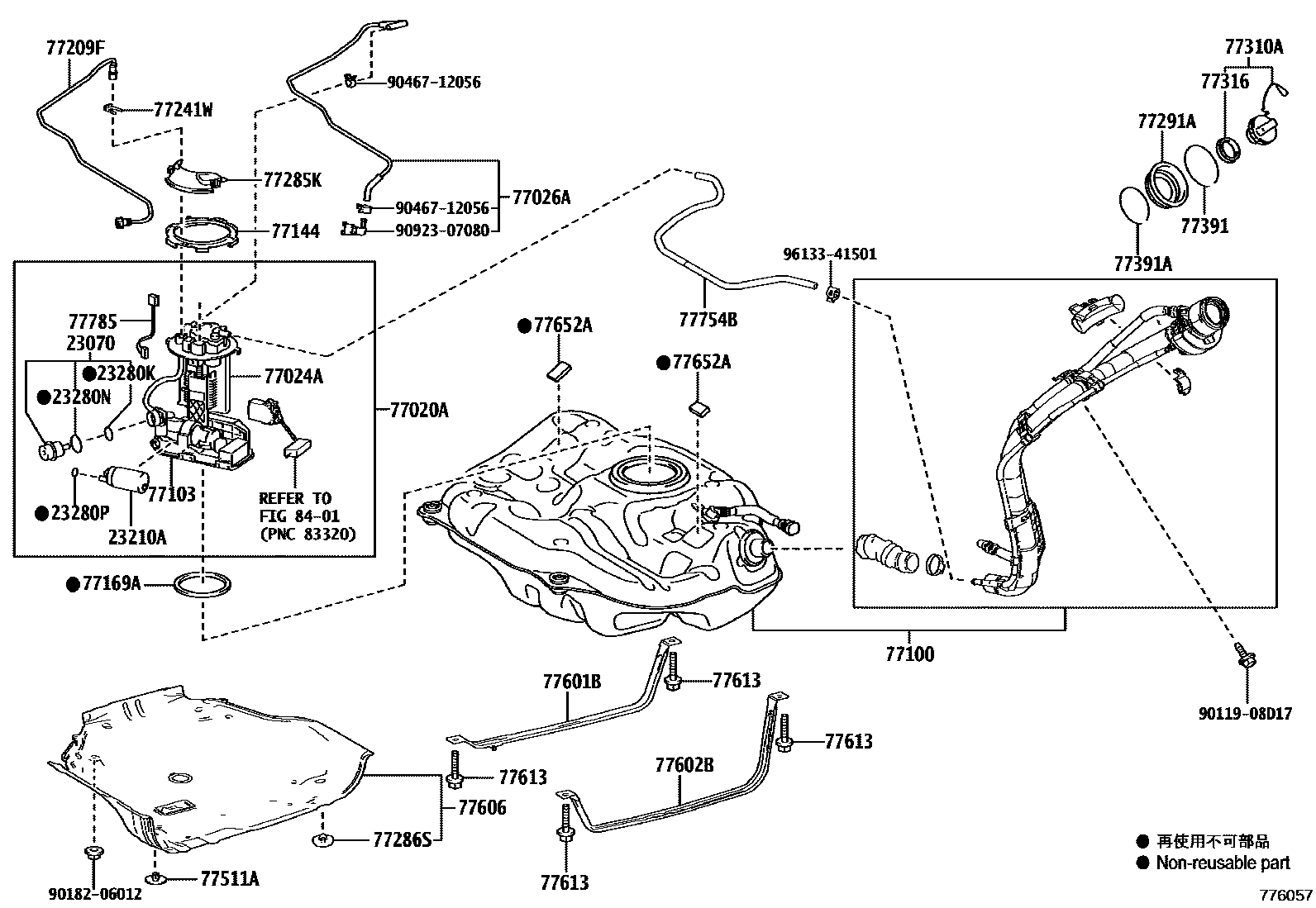

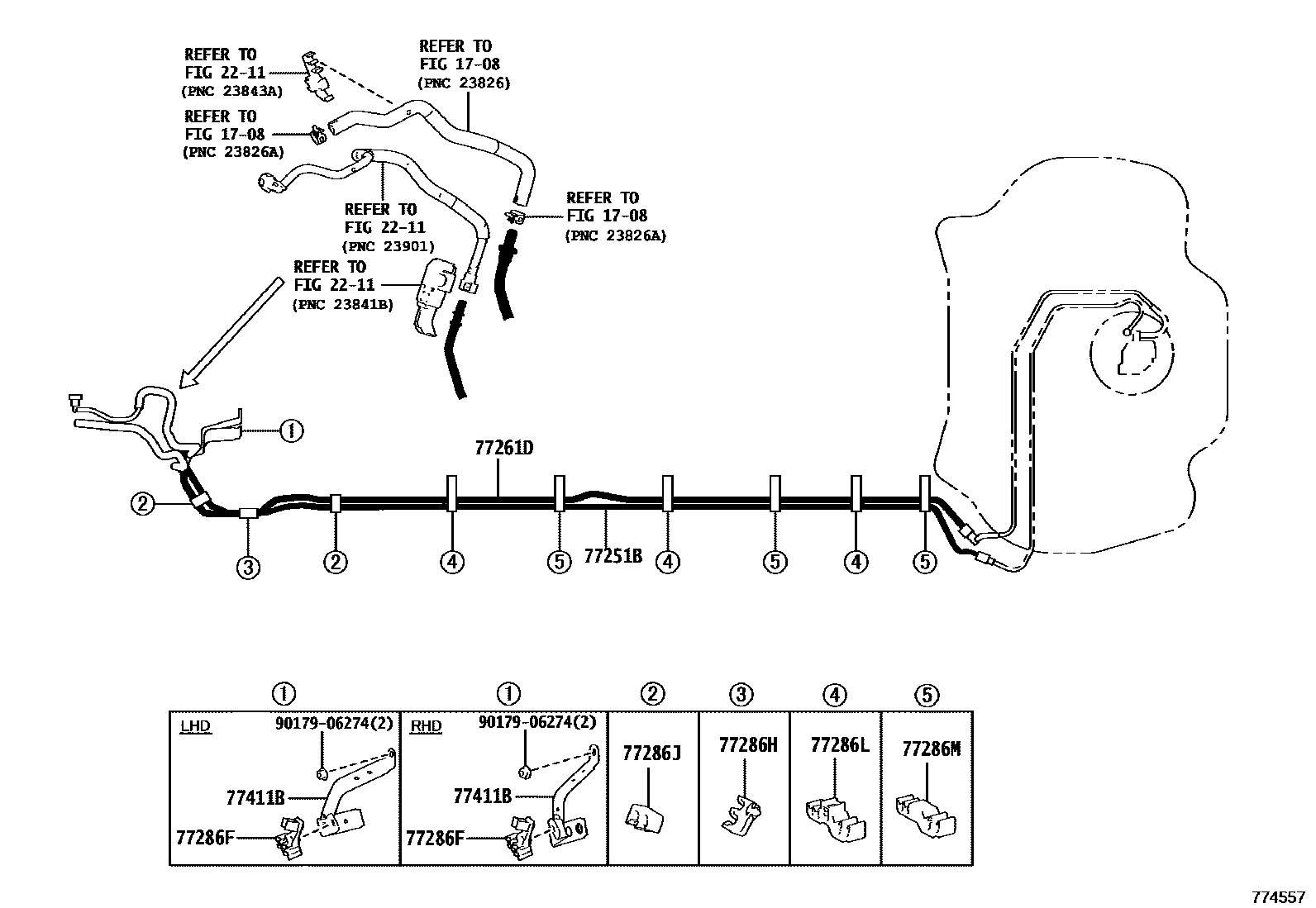

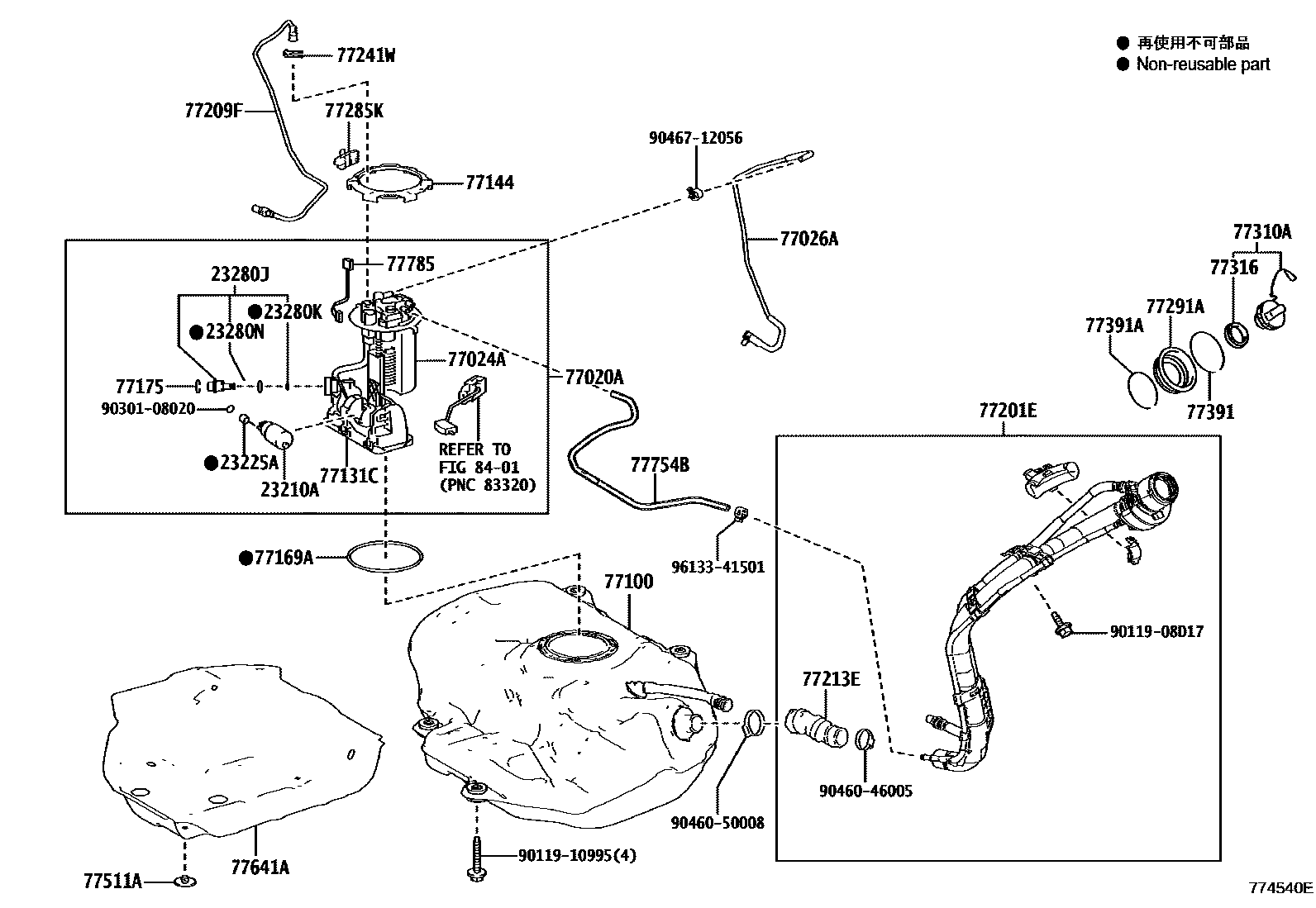

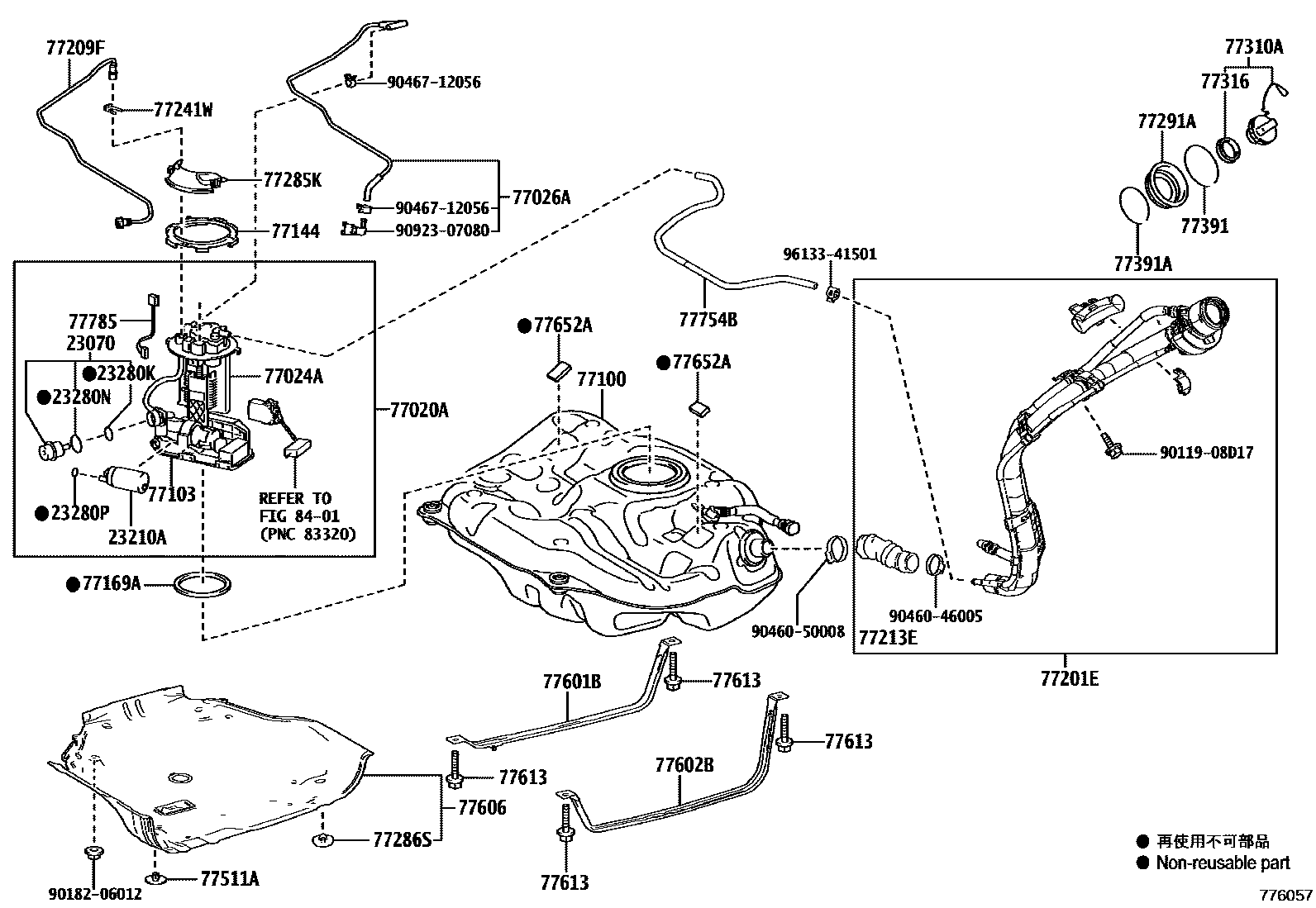

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 11 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 |
| 23210A | Water pump assembly with motor and bracket | 23210-24010 · 23210-37020 |
| 23221 | fuel pump | 23220-47070 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-36020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15024 |
| 23280P | No. 3 O-ring (for fuel pressure regulator) | 90301-07046 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-10110 · 77020-12A10 · 77020-12A60 |
| 77024A | Fuel absorber sub-assembly | 77024-10020 · 77024-10030 · 77024-12380 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-10040 · 77026-47040 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12660 · 77035-12670 |
| 77100 | fuel tank assembly | 77001-10380 · 77001-12E70 · 77001-12F10 · 77001-12F30 · 77001-47220 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-12170 |
| 77131C | No. 1 auxiliary fuel tank | 77103-12130 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47030 · 77169-47040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-75010 |
| 77175 | No. 2 oil suction pipe bracket | 77175-78010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77210-12620 · 77210-12621 · 77210-12890 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-10130 · 77209-12360 · 77209-47100 |
| 77213E | Fuel tank to filler pipe hose | 77213-12360 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77251B | main fuel pipe | 77251-12890 · 77251-12A40 · 77251-12A50 · 77251-16310 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12720 · 77261-12730 · 77261-16240 |
| 77285D | No. 1 fuel pipe clamp | 77286-78040 |
| 77285K | No. 1 fuel pipe clamp | 77285-10060 · 77285-30350 |
| 77286F | No. 2 fuel pipe clamp | 77286-12250 · 77286-12260 · 77298-10050 |
| 77286H | No. 3 fuel pipe clamp | 77286-12220 · 77286-12240 |
| 77286J | No. 4 fuel pipe clamp | 77289-12070 · 77289-12080 |
| 77286L | No. 5 fuel pipe clamp | 77298-12160 · 77298-12180 |
| 77286M | No. 6 fuel pipe clamp | 77298-12170 · 77298-12190 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-12260 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-12010 · 77306-12020 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-12580 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-12100 |
| 77391 | fuel inlet ring | 77391-33060 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-10020 · 77411-12020 · 77411-47020 |
| 77511A | fuel tank bracket | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-10080 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-10030 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-10060 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 |
| 77641A | No. 1 fuel tank protective shell | 77641-47070 |
| 77652A | No. 2 fuel tank liner | 77652-10070 |
| 77754B | Carbon canister outlet hose | 77754-10020 · 77754-16120 · 77754-47090 |
| 77785 | fuel pump wiring harness | 77785-12010 · 77785-76010 |
