Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 23 PNC and OE references.

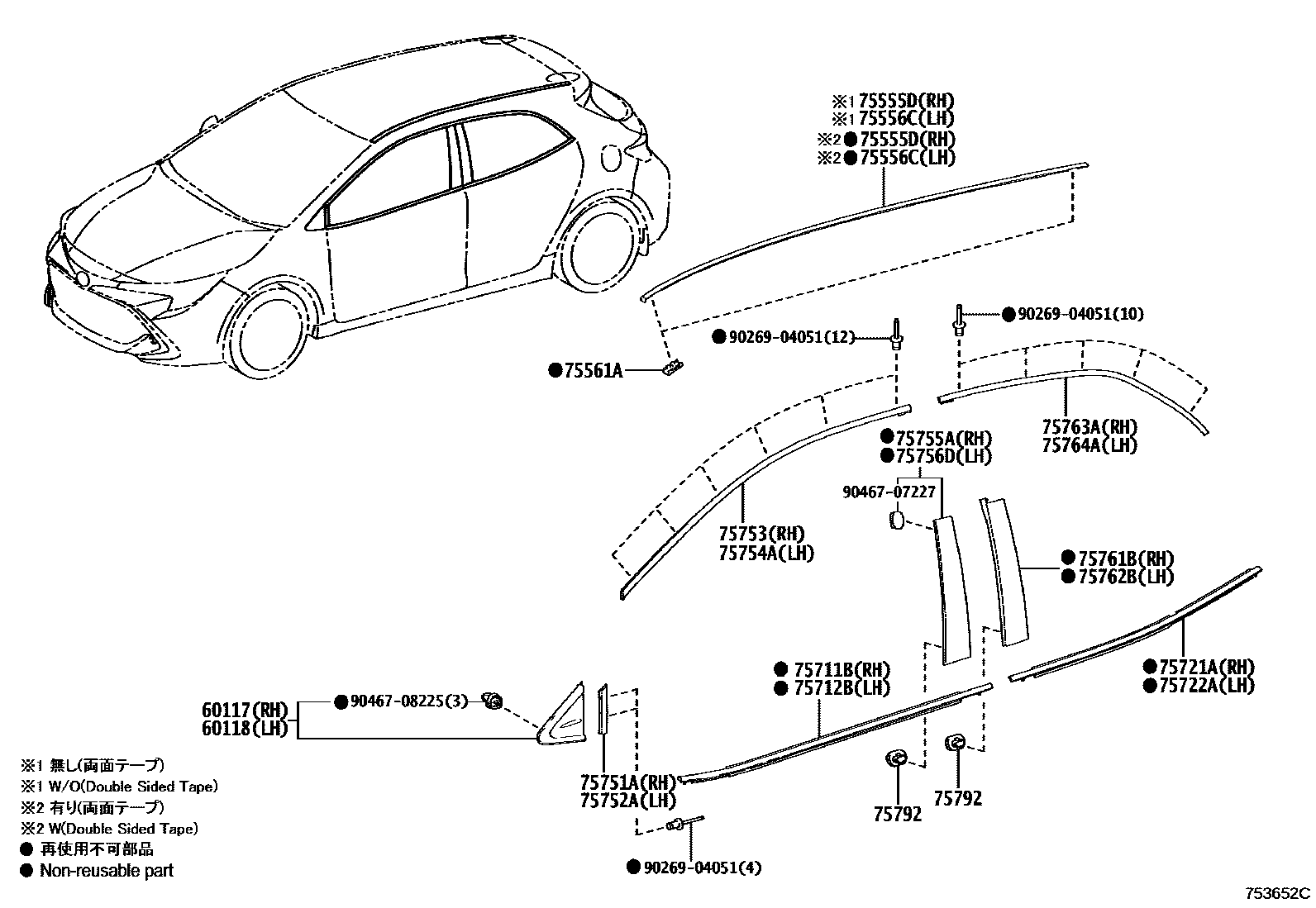

Toyota COROLLA 侧防护条 EPC diagram — 753652C
侧防护条 — 753652C (201806 – 999999)
Toyota COROLLA 侧防护条 EPC diagram — 753917B
侧防护条 — 753917B (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-12070 · 60117-12090
60118Left front pillar upper cover sub-assembly60118-12070 · 60118-12090
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-12210
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-12220
75561ARoof drain channel side decorative strip clip75561-33030
75711BRight front door waistline protection strip75710-12850 · 75710-12890
75712BLeft front door waistline protection strip75720-12850 · 75720-12A30
75721ARight rear door waistline protection strip75730-12440 · 75730-12441
75722ALeft rear door waistline protection strip75740-12530 · 75740-12531
75751AFront door window frame protection strip (right front pillar)75751-12250
75752AFront door window frame protection strip (left front pillar)75752-12250
75753Protective strip on right front door window frame75753-12100 · 75753-12110
75754AProtective strip on left front door window frame75754-12080 · 75754-12090
75755AFront door window frame protection strip (right center pillar)75755-12140 · 75755-12160
75756DFront door window frame protection strip (left center pillar)75756-12160 · 75756-12180
75761BRear door window frame protection strip (right center pillar)75761-12090 · 75761-12100
75762BRear door window frame protection strip (left center pillar)75762-12090 · 75762-12100
75763AProtective strip on right rear door window frame75763-12110 · 75763-12120
75764AProtective strip on left rear door window frame75764-12120 · 75764-12130
75792Car door window frame protective strip clip75792-47010
75851Right side door sill panel protective strip75851-12903
75852Left side door sill panel protective strip75852-12903
75867ADoor sill panel protective strip clip75867-52020
