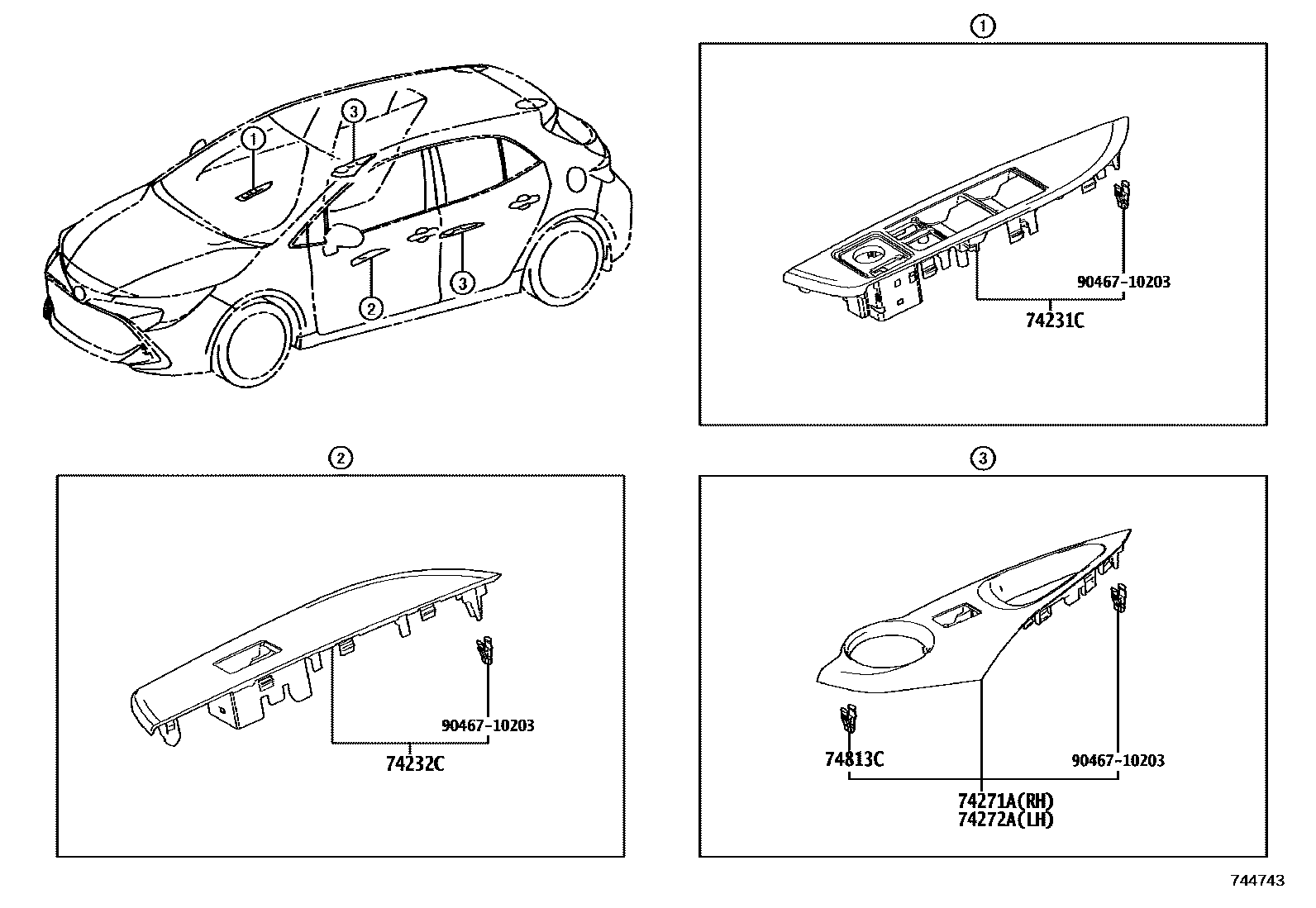

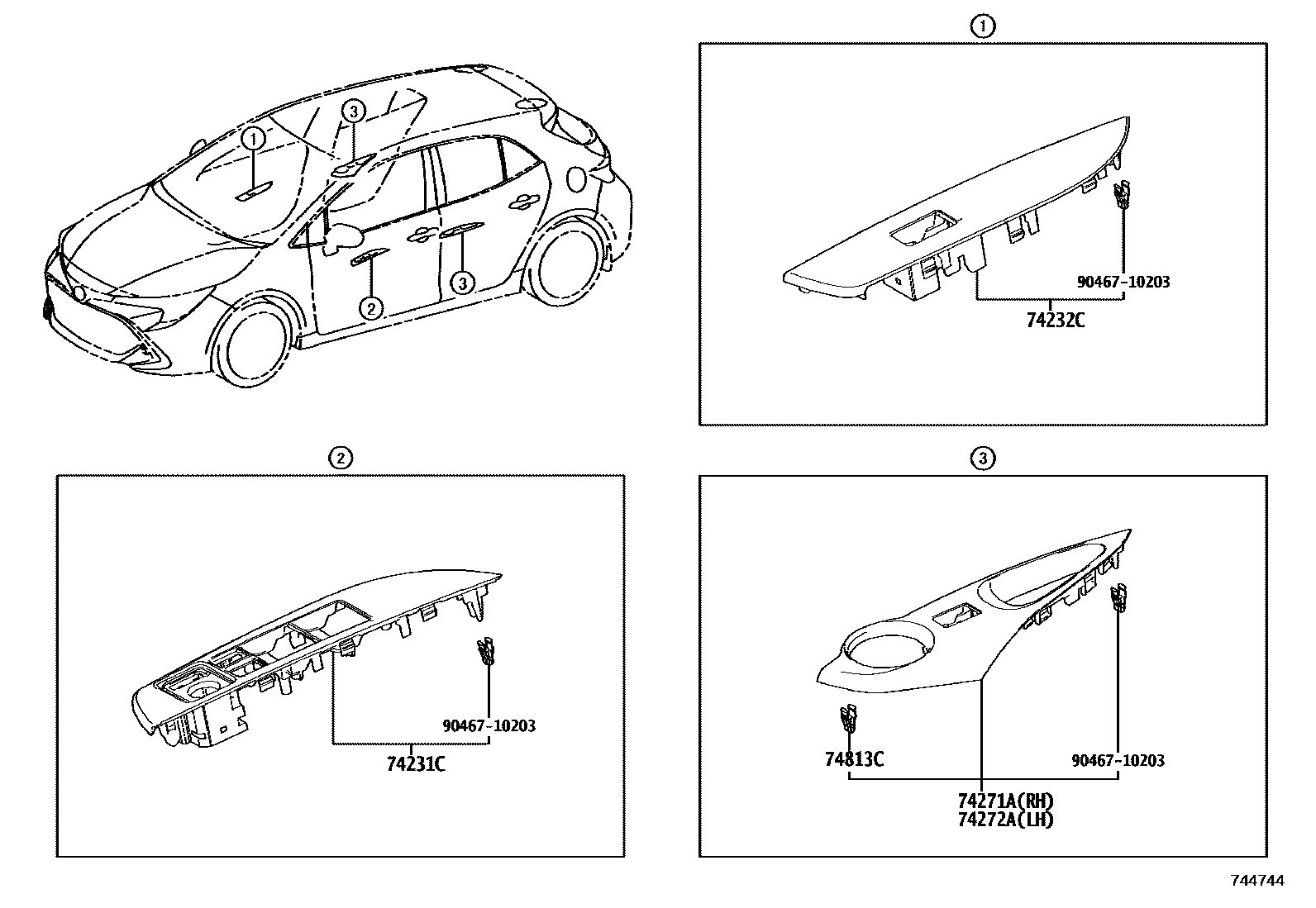

Toyota COROLLA 扶手和遮阳板 — Figure 7401
Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231C | Driver's side front door armrest upper panel | 74231-12D10 · 74231-12E30 · 74232-12B90 |
| 74232C | Passenger side front door armrest upper panel | 74231-12E20 · 74232-12B00 |
| 74271A | Right rear door armrest upper panel | 74271-12550 · 74271-12560 |
| 74272A | Left rear door armrest upper panel | 74272-12490 · 74272-12530 |
| 74614C | Auxiliary handle locking plate | 74614-12020 |
| 74813C | clip | 90467-12080 |
