Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

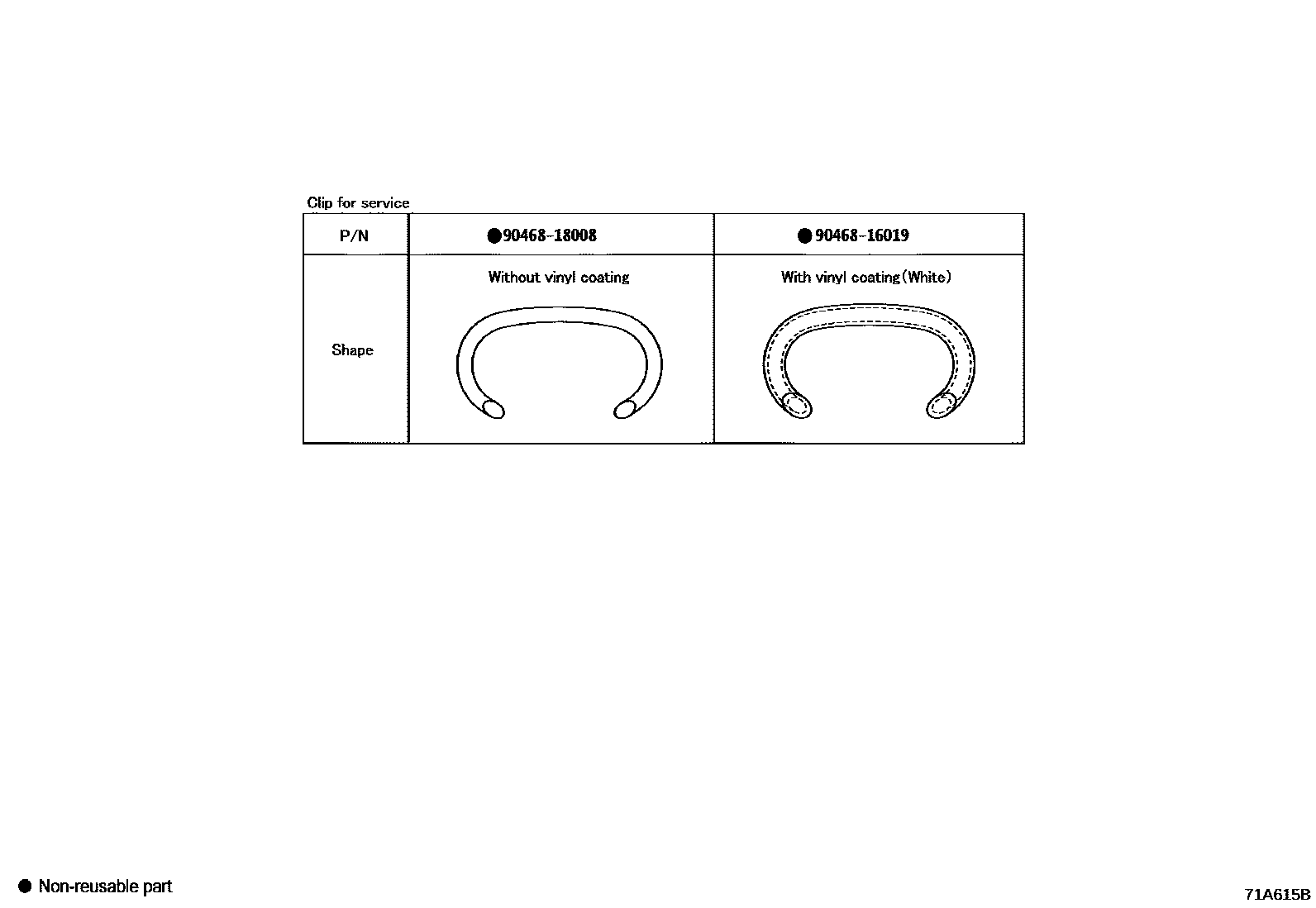

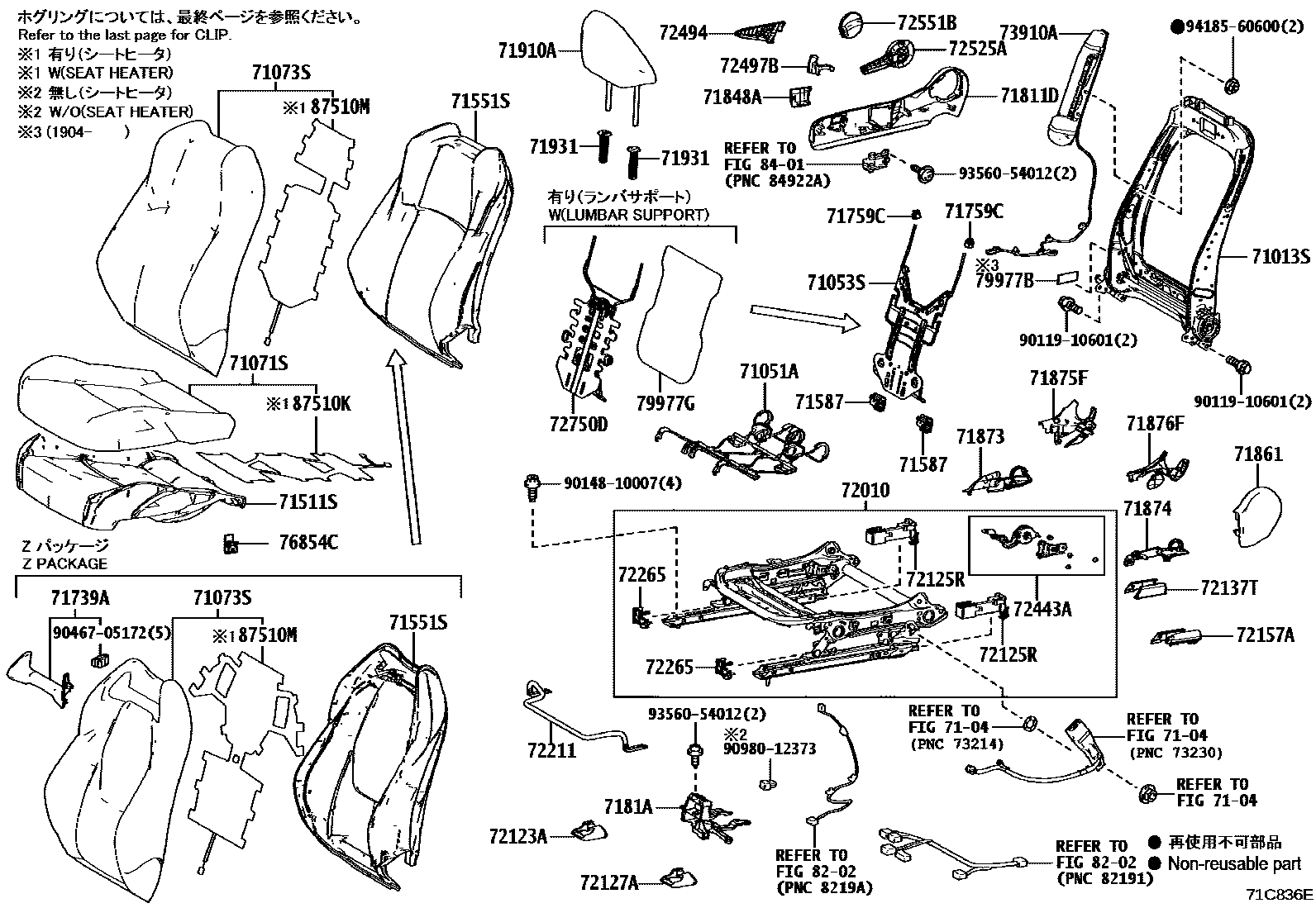

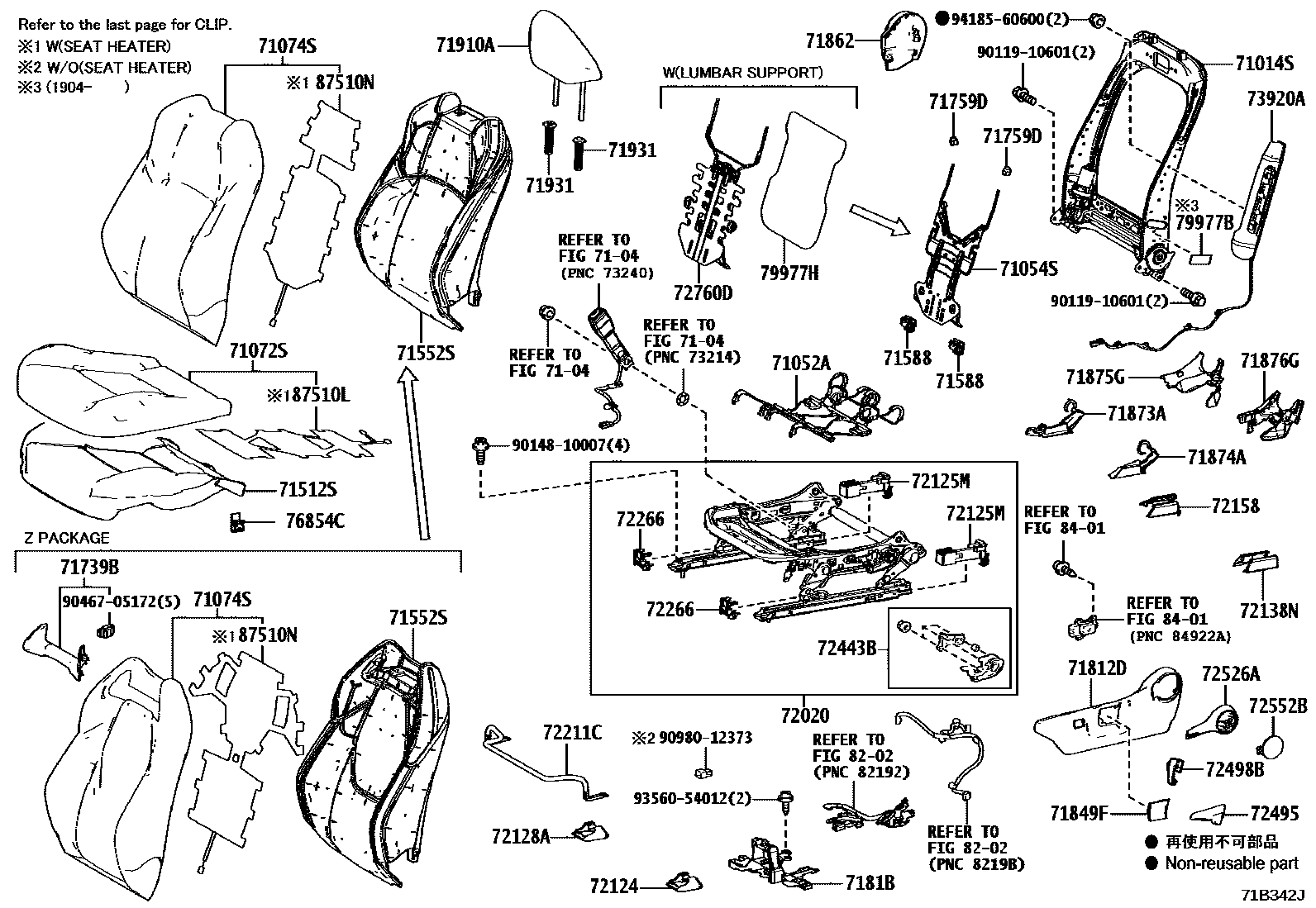

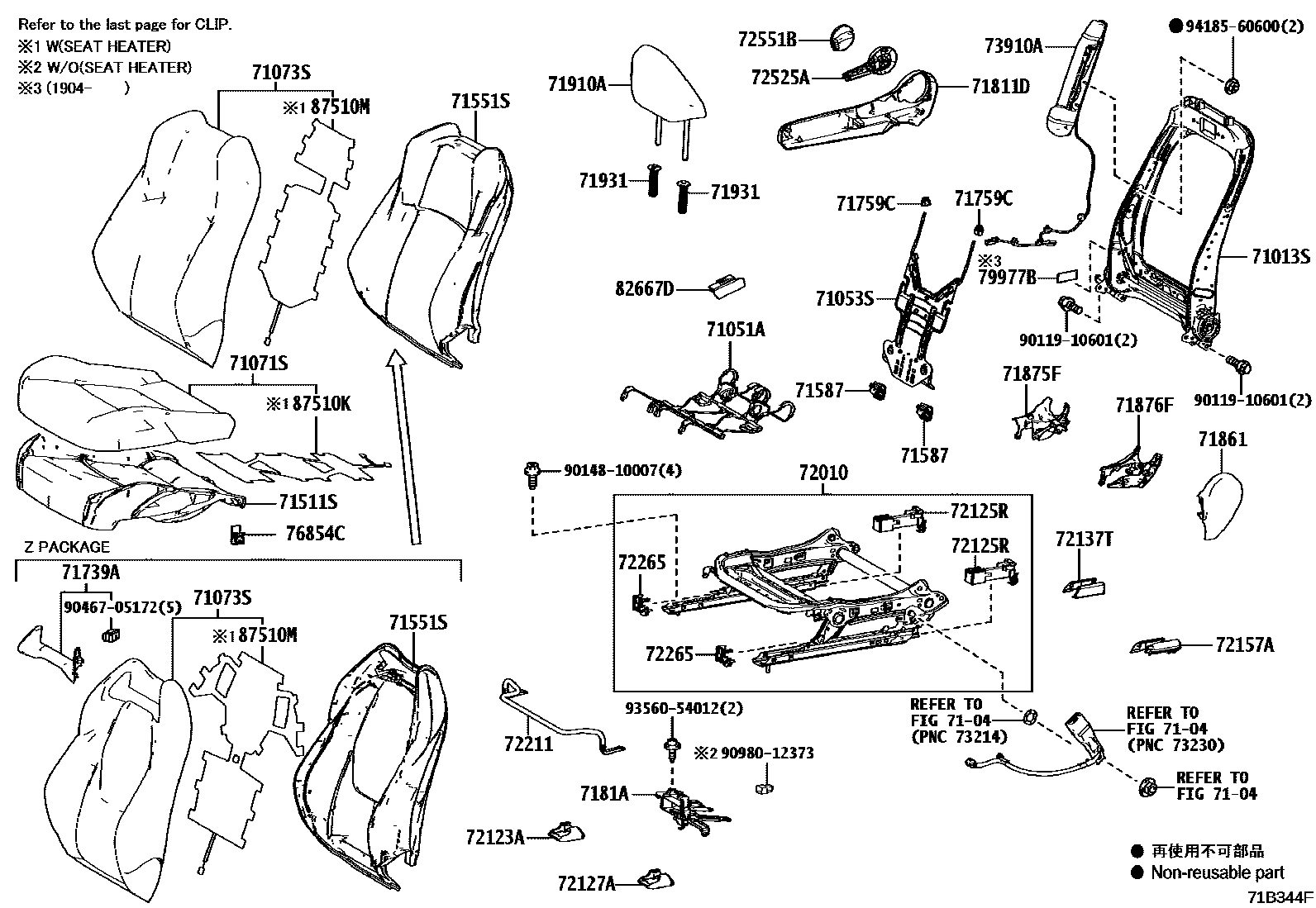

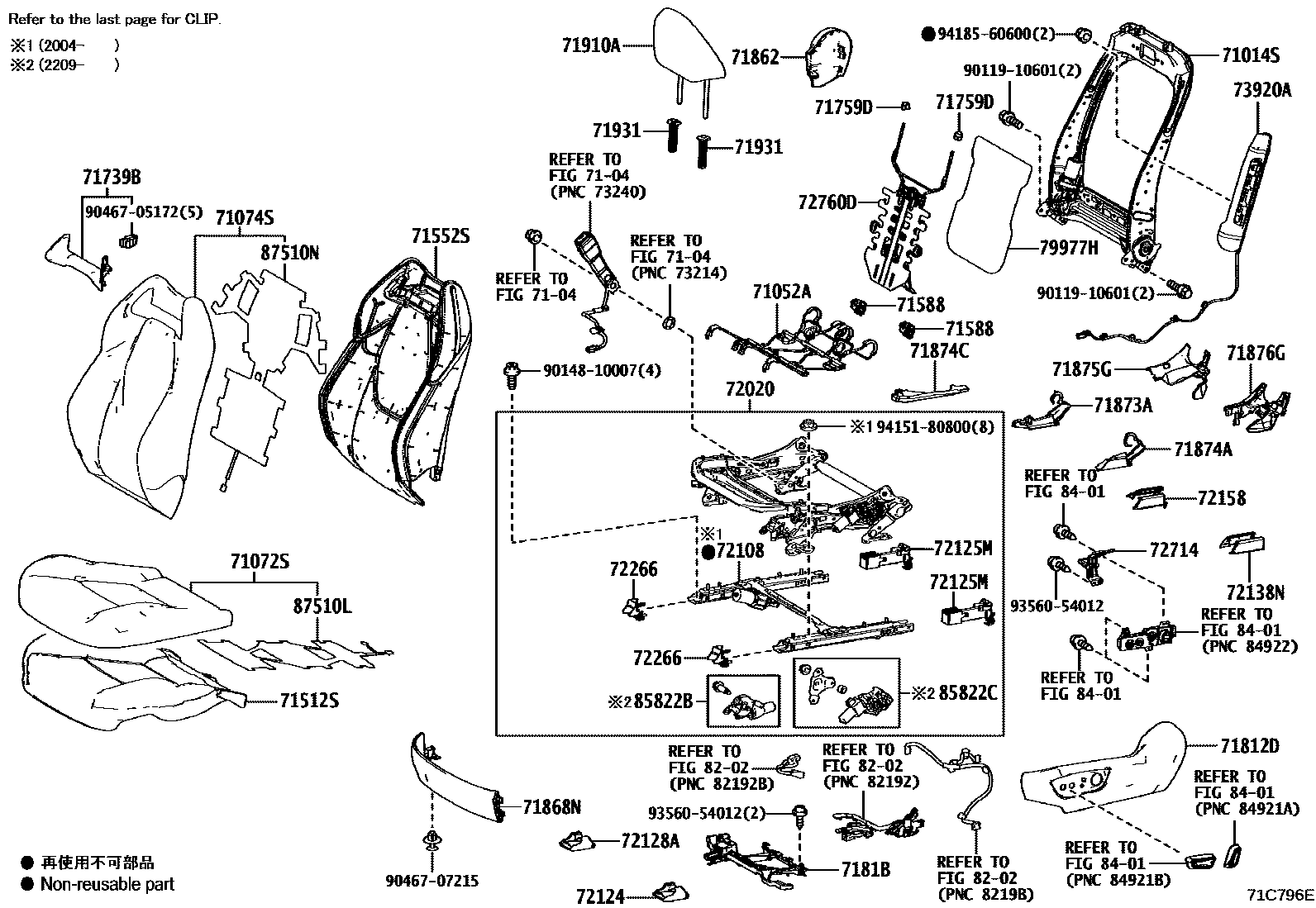

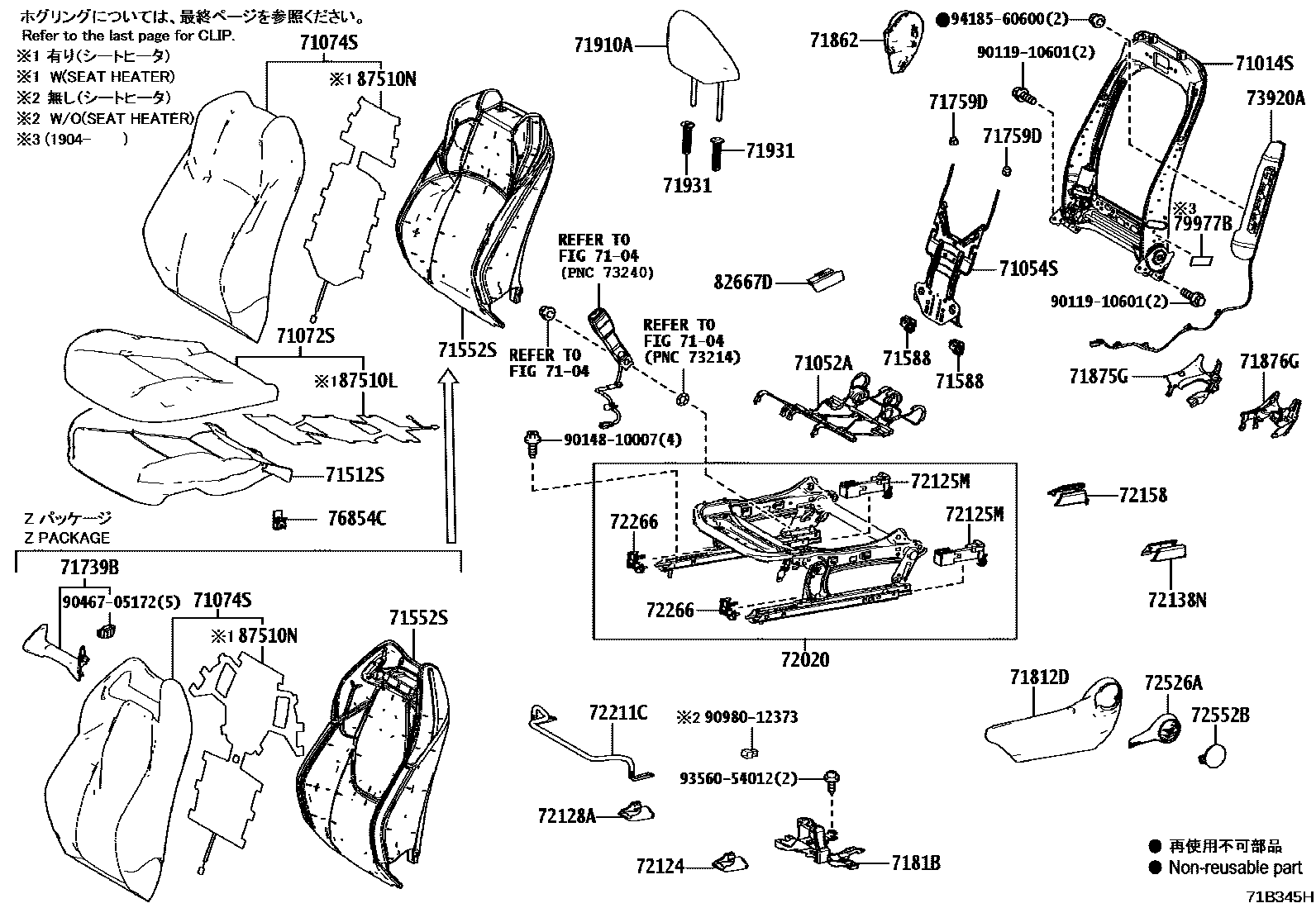

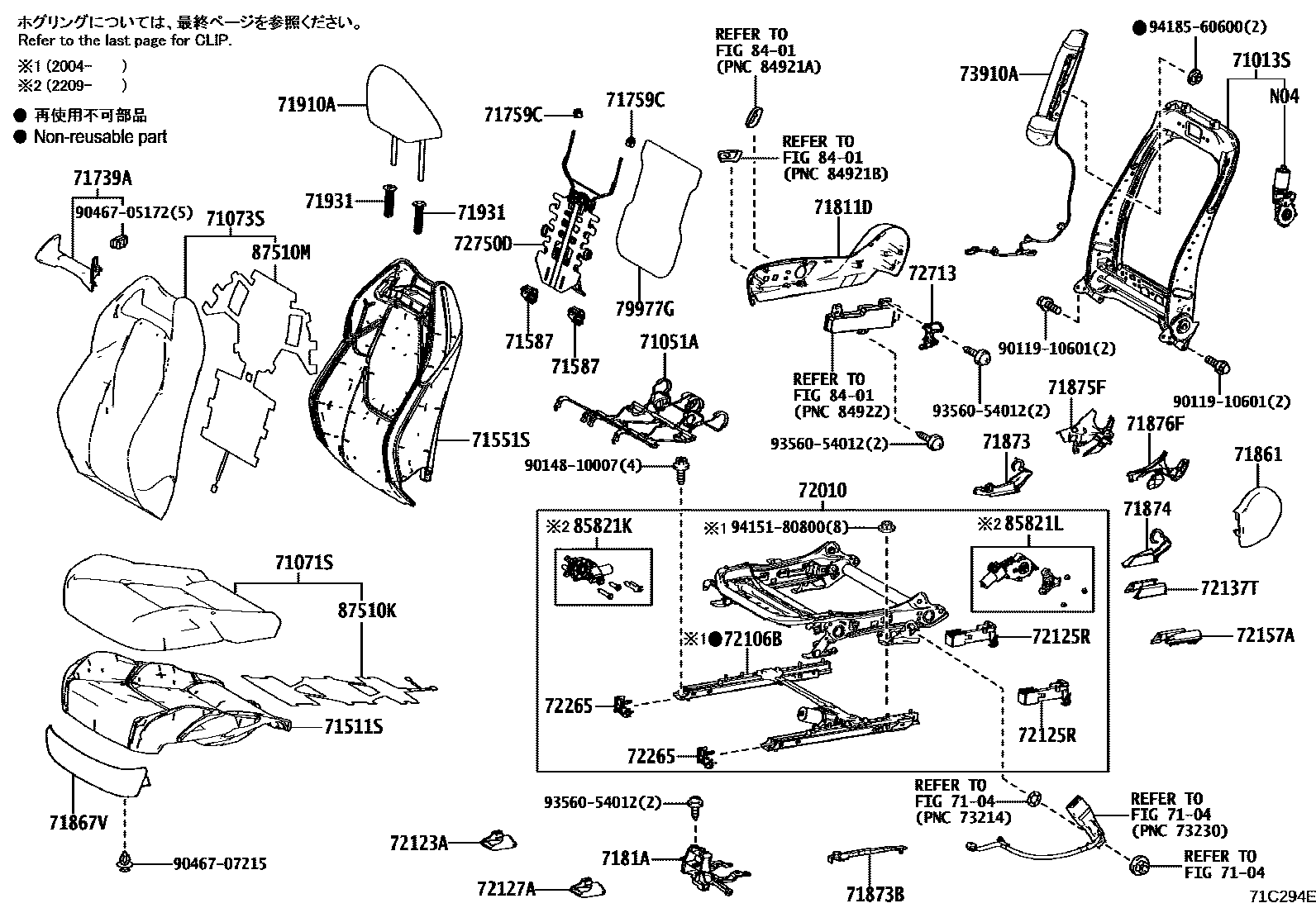

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-33381 · 71013-33390 · 71013-33530 · 71013-33531 · 71013-33550 |
| 71014S | Front left seat back frame sub-assembly | 71014-33200 · 71014-33210 · 71014-33370 · 71014-33390 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-12070 · 71501-12090 · 71511-12C70 · 71511-12C90 · 71511-12D30 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12170 · 71502-12190 · 71512-12470 · 71512-12540 · 71512-12590 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12E20 · 71551-12E30 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12710 · 71552-12740 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-47010 |
| 71739A | Front seat back frame | 71739-12040 |
| 71739B | Front seat back frame No. 2 | 71739-12040 |
| 71759C | Front seat back hook No. 1 | 71759-50040 · 71759-52050 |
| 71759D | Front seat back hook 2 | 71759-50040 · 71759-52050 |
| 7181A | Front right seat cushion harness holder | 7181A-33010 · 7181A-47010 |
| 7181B | Front left seat cushion harness holder | 7181B-33010 · 7181B-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873A | Front seat cushion lower guard | 71874-47080 |
| 71873B | Front right seat No. 1 seat cushion lower guard panel | 71873-47090 |
| 71874 | Front left seat cushion lower guard | 71873-47080 |
| 71874A | Front left seat cushion lower guard | 71874-47070 |
| 71874C | Front seat cushion lower guard | 71874-47090 |
| 72010 | Front right seat adjuster assembly | 72010-33640 · 72010-47360 · 72010-47361 · 72010-47380 · 72010-47381 |
| 72020 | Front left seat adjuster assembly | 72020-33570 · 72020-47360 · 72020-47361 · 72020-47380 · 72020-47381 |
| 72106B | Seat slide rail upper right rail sub-assembly | 72106-33070 |
| 72108 | Seat slide upper left guide rail sub-assembly | 72108-33040 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-47060 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-47060 |
| 72125M | No. 3 upper seat outer slide rail cover | 72125-47010 · 72125-47020 |
| 72125R | Slide rail cover on rear seat No. 1 | 72125-47010 · 72125-47020 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-47060 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-47060 |
| 72137T | Rear right seat outer slide rail bracket cover | 72137-47060 |
| 72138N | Rear left seat outer slide rail bracket cover | 72137-47060 |
| 72157A | Right seat inner slide rail bracket cover | 72157-47080 |
| 72158 | Left seat inner slide rail bracket cover | 72158-47080 |
| 72211 | Seat slide adjustment handle | 72211-47050 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-47010 · 72265-47020 |
| 72443A | Right height adjuster gear | 72443-47010 · 72443-47011 |
| 72443B | Left height adjuster gear | 72443-47020 · 72443-47021 |
| 72497B | Right height adjuster bracket cover | 72498-47010 |
| 72498B | Height adjuster bracket outer cover | 72498-47020 |
| 72713 | Right seat adjuster protective clip bracket | 72713-47010 |
| 72714 | Left seat adjuster protective clip bracket | 72714-47010 |
| 72750D | Right lumbar support adjuster assembly | 72750-33140 |
| 72760D | Left lumbar support adjuster assembly | 72750-33140 |
| 73910A | Front right seat airbag assembly | 73910-12100 |
| 73920A | Front left seat airbag assembly | 73920-12090 |
| 76854C | Front seat cushion cover wire fixings | 76854-44010 |
| 79977B | Seat back frame felt pad | 79977-12090 |
| 79977G | Front seat back right felt pad | 79977-33030 |
| 79977H | Felt pad, left side of front seat backrest | 79977-33030 |
| 82667D | Connector holder | 82666-47630 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-47020 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-47010 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-47040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-47030 |
| 87510K | Front right seat cushion heater assembly | 87510-12360 · 87510-12361 · 87510-12370 · 87510-12371 |
| 87510L | Front left seat cushion heater assembly | 87510-12370 · 87510-12371 · 87510-12380 · 87510-12381 |
| 87510M | Front right seat back heater assembly | 87530-12110 |
| 87510N | Front left seat back heater assembly | 87530-12110 |
