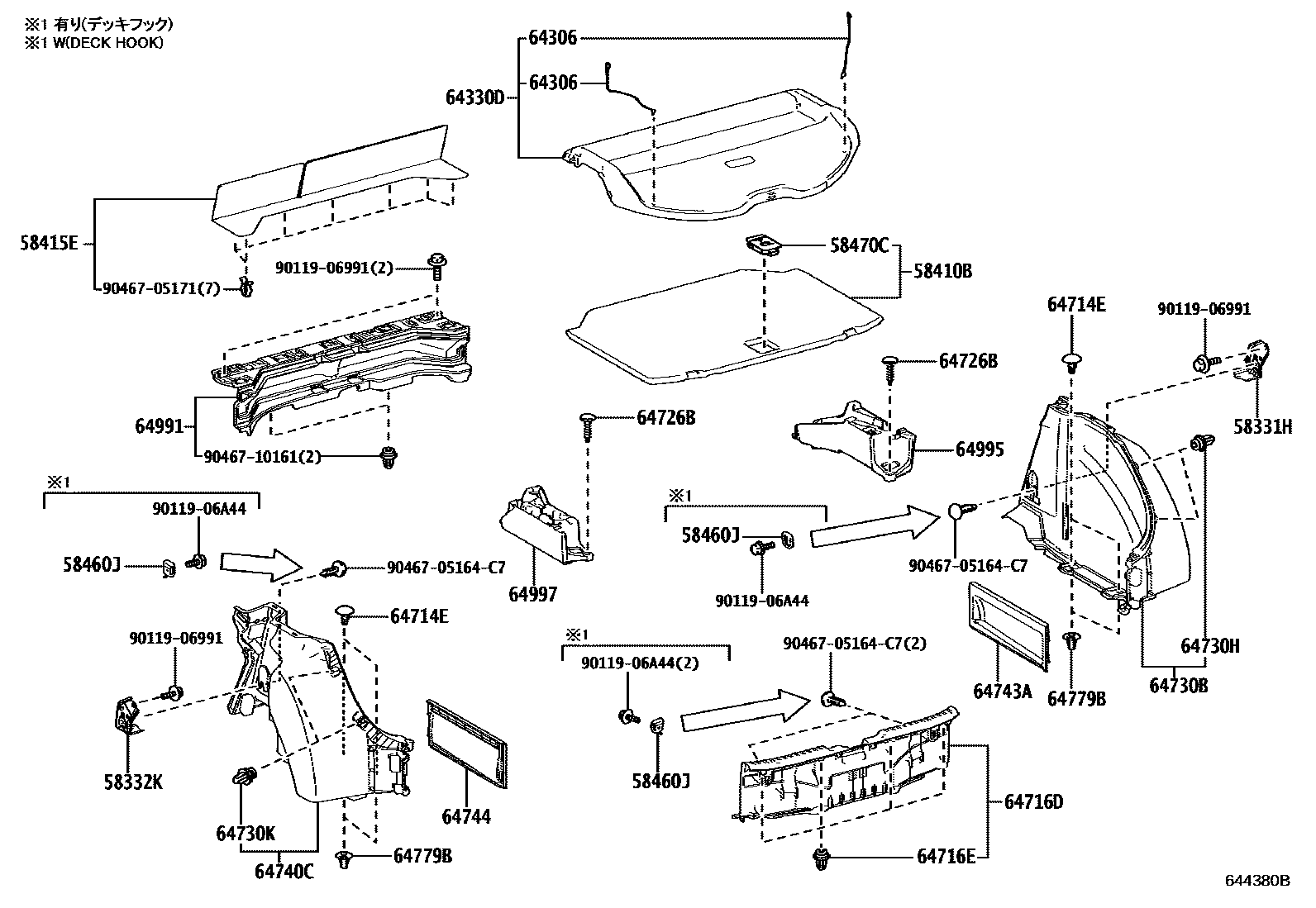

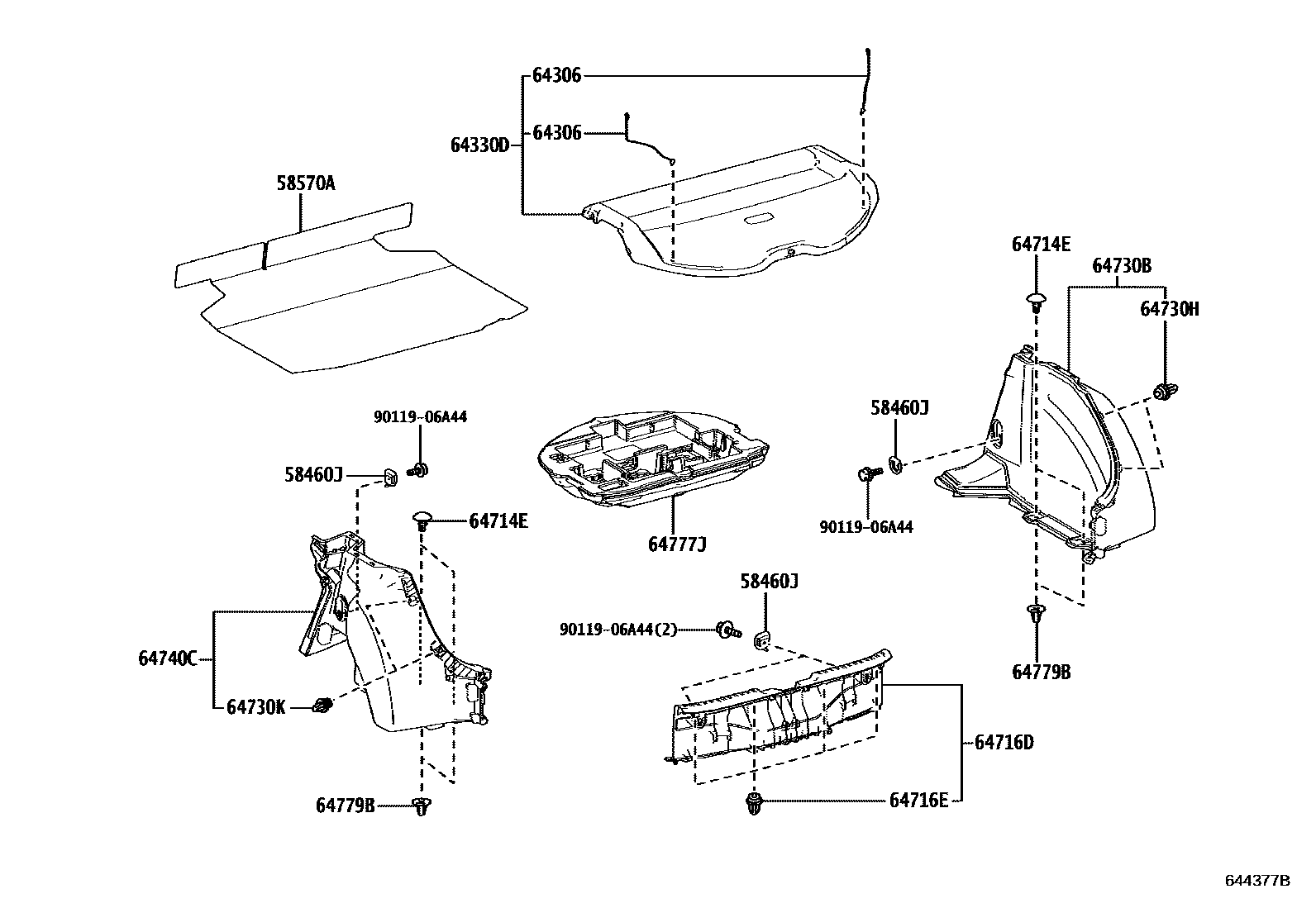

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331H | No. 1 suitcase decorative panel bracket | 58331-12110 |
| 58332K | No. 2 suitcase decorative panel bracket | 58332-12080 |
| 58460J | Luggage fixing belt lock assembly | 58460-33020 |
| 58470C | Base plate handle assembly | 58470-12010 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12130 · 64306-12131 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10167 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64730K | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64777J | Spare tire cushion | 64777-12200 |
| 64779B | Spare tire cover stop | 64779-26010 |
| 64995 | Bottom right floor box | 64995-12130 |
| 64997 | Bottom left floor box | 64997-12120 |
