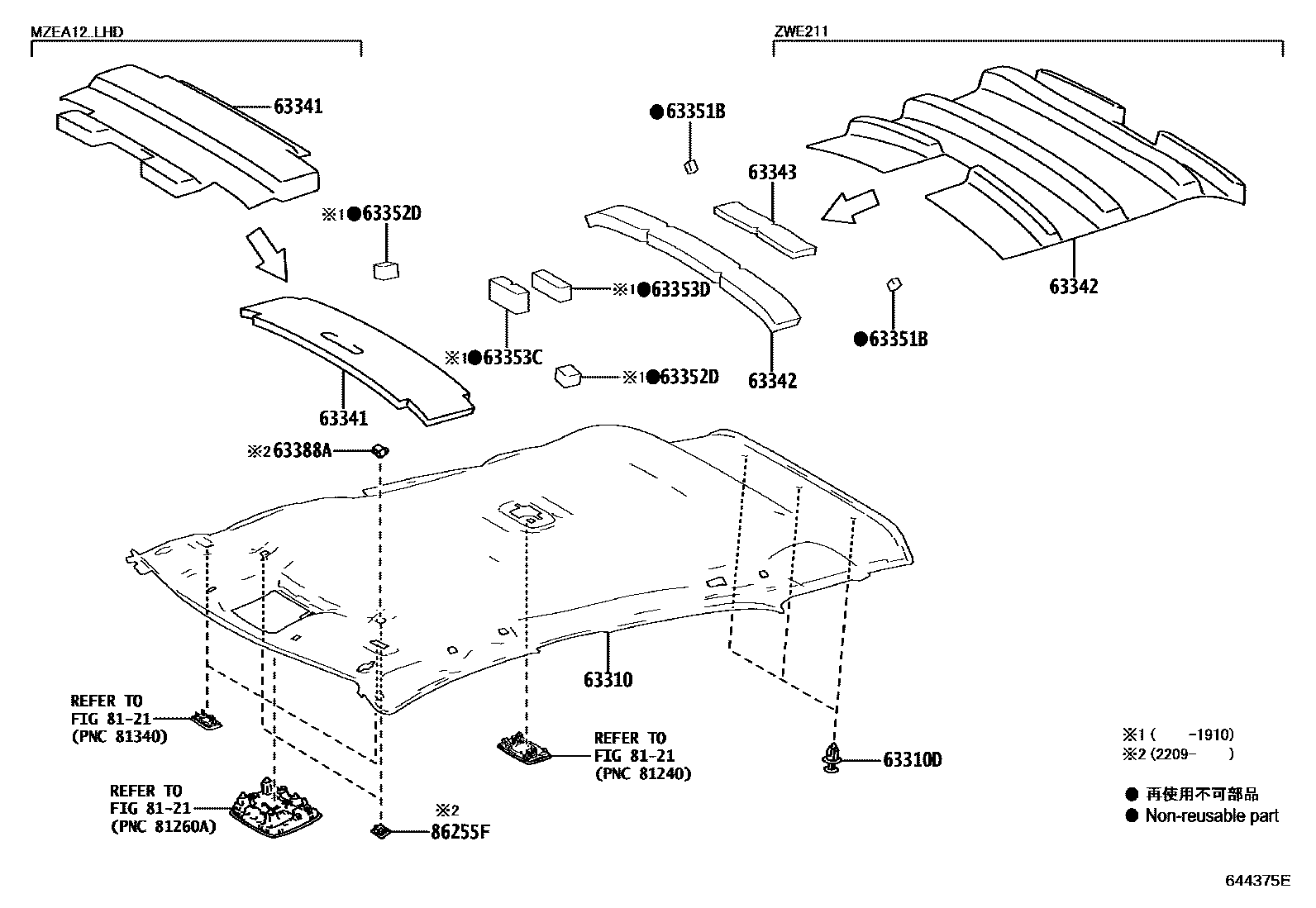

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-12370 · 63341-12380 · 63341-12381 |
| 63342 | No. 2 roof muffler pad | 63342-12400 · 63342-12410 |
| 63343 | No. 3 roof muffler pad | 63342-12420 |
| 63351B | roof lining pads | 63351-12110 |
| 63352D | No. 2 roof lining lining block | 63352-12120 |
| 63353C | Center roof lining lining | 63353-12030 |
| 63353D | Center roof lining lining | 63353-12050 |
| 63388A | headliner fixing cover | 63388-52030 |
