Toyota COROLLA 仪表板和手套箱 — Figure 5501

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 8 images and 24 PNC and OE references.

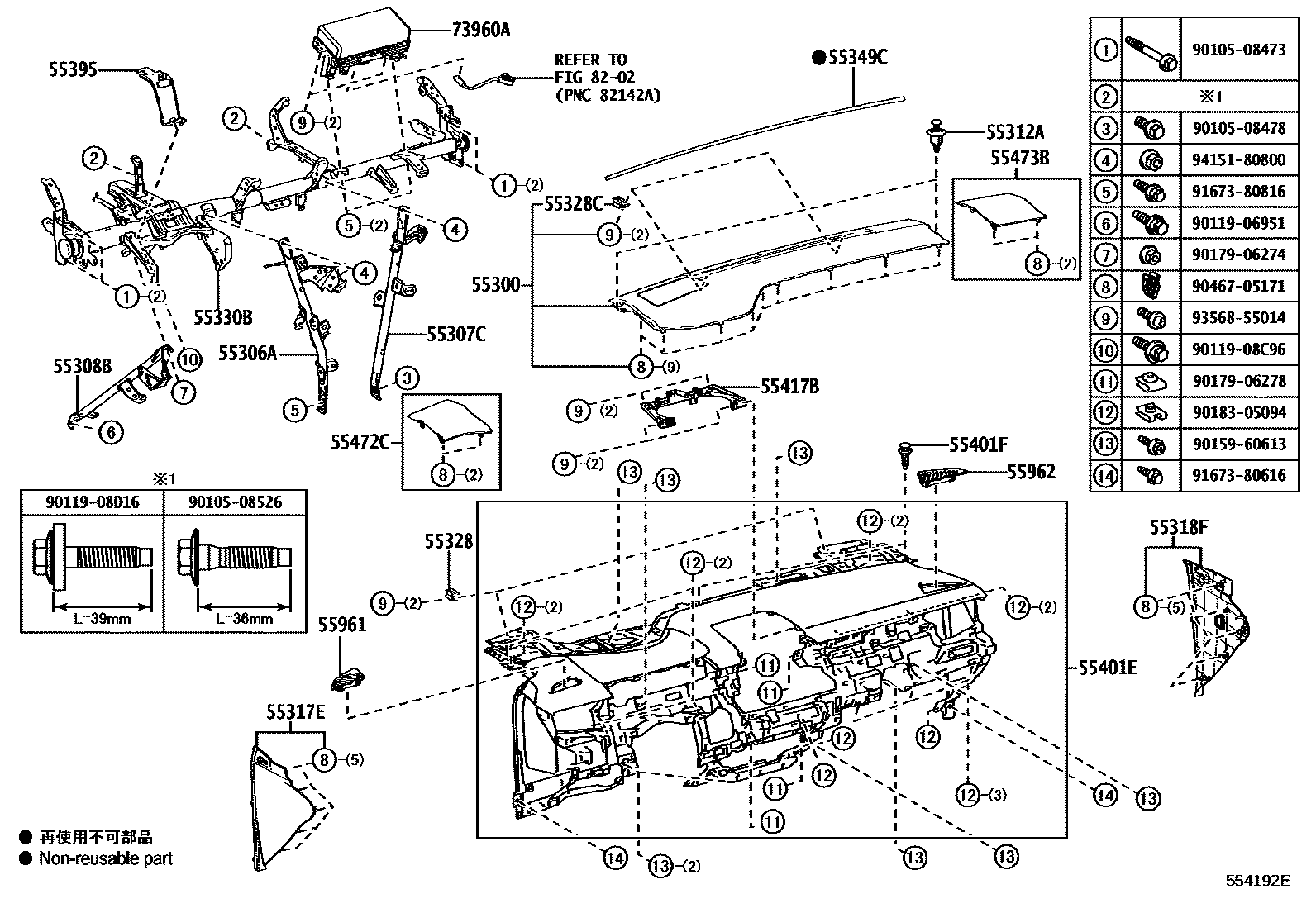

Toyota COROLLA 仪表板和手套箱 EPC diagram — 554192E
仪表板和手套箱 — 554192E (201806 – 999999)

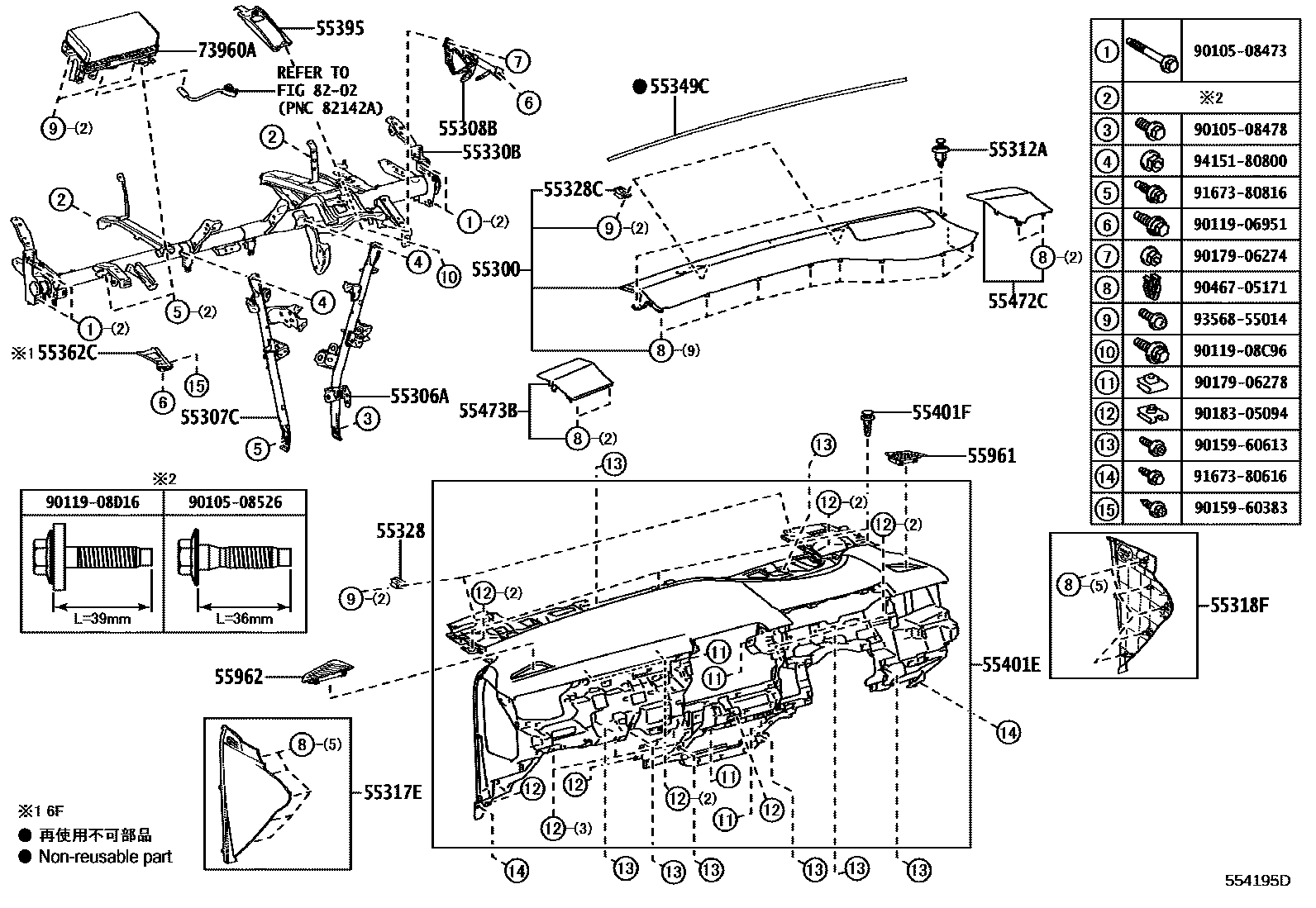

Toyota COROLLA 仪表板和手套箱 EPC diagram — 554195D
仪表板和手套箱 — 554195D (201806 – 999999)

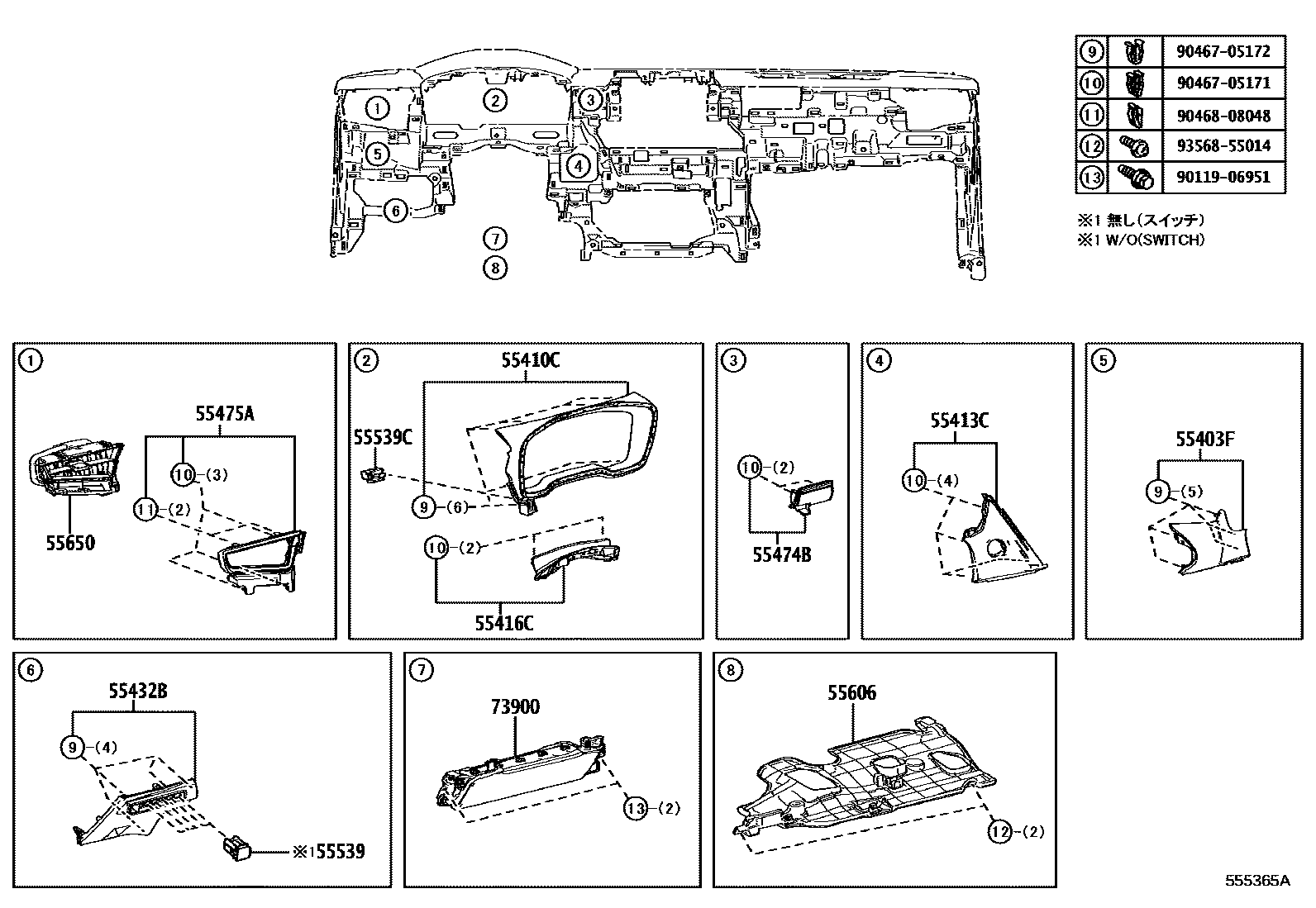

Toyota COROLLA 仪表板和手套箱 EPC diagram — 555365A
仪表板和手套箱 — 555365A (201806 – 999999)

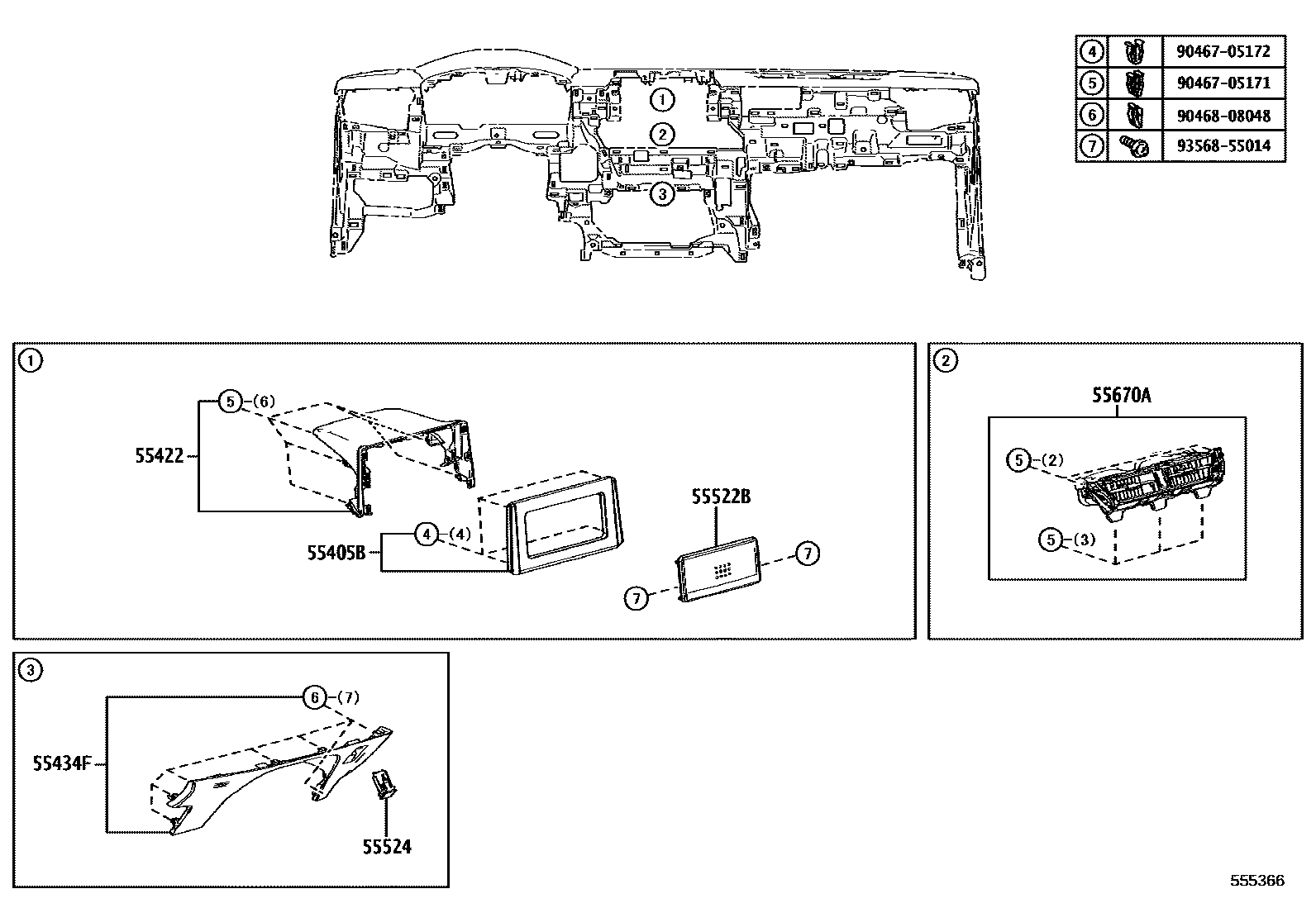

Toyota COROLLA 仪表板和手套箱 EPC diagram — 555366
仪表板和手套箱 — 555366 (201806 – 999999)

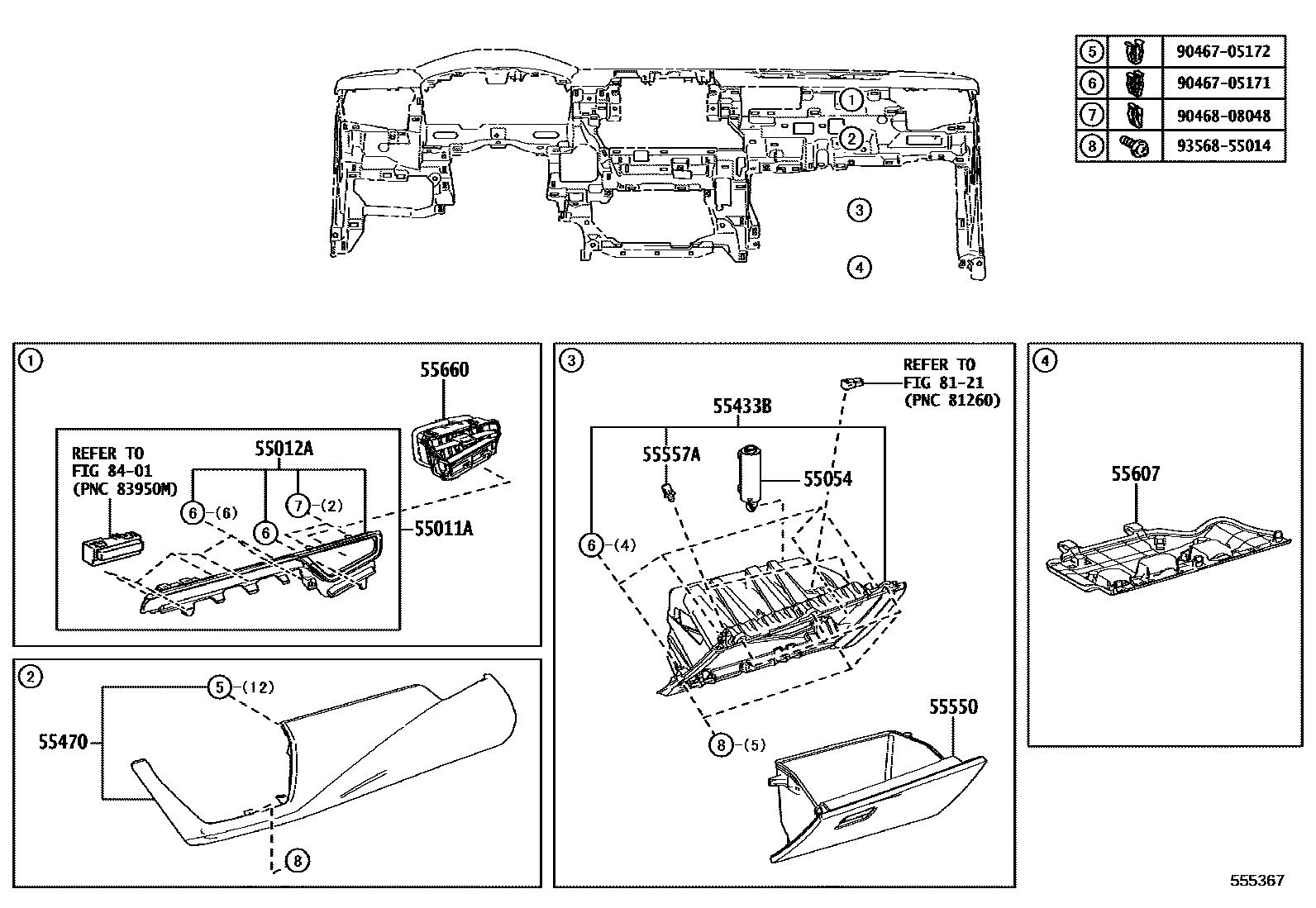

Toyota COROLLA 仪表板和手套箱 EPC diagram — 555367
仪表板和手套箱 — 555367 (201806 – 999999)

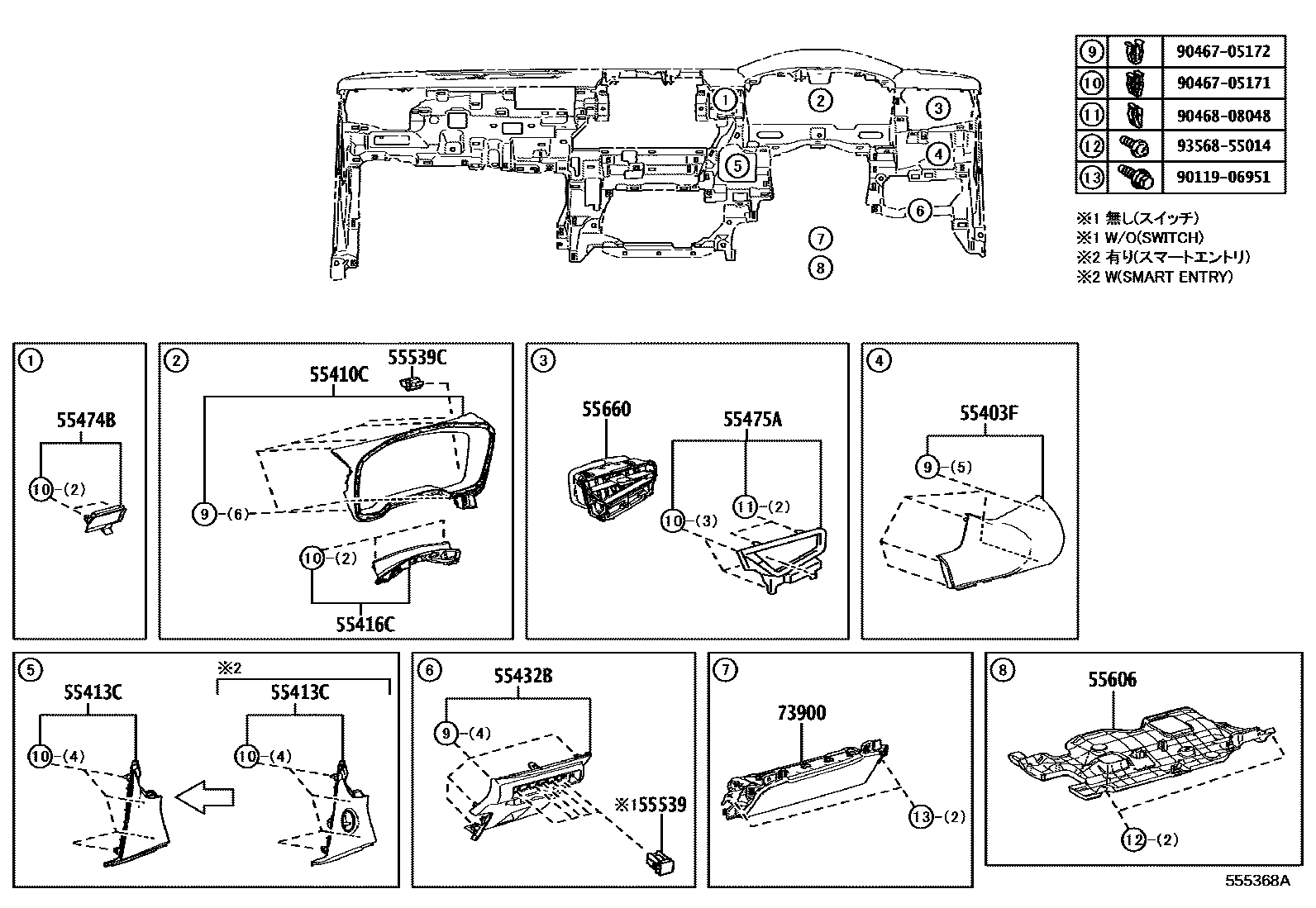

Toyota COROLLA 仪表板和手套箱 EPC diagram — 555368A
仪表板和手套箱 — 555368A (201806 – 999999)

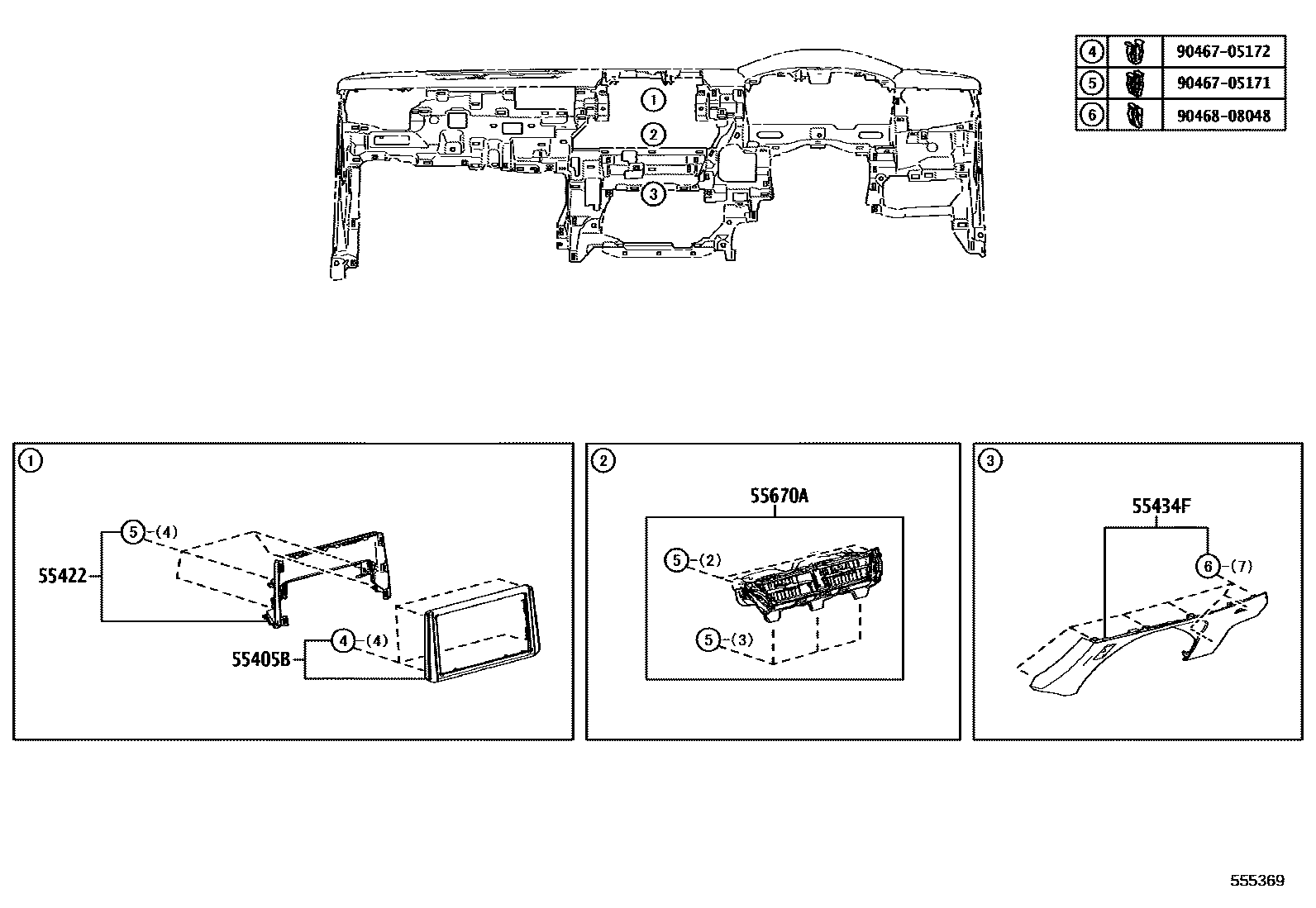

Toyota COROLLA 仪表板和手套箱 EPC diagram — 555369
仪表板和手套箱 — 555369 (201806 – 999999)

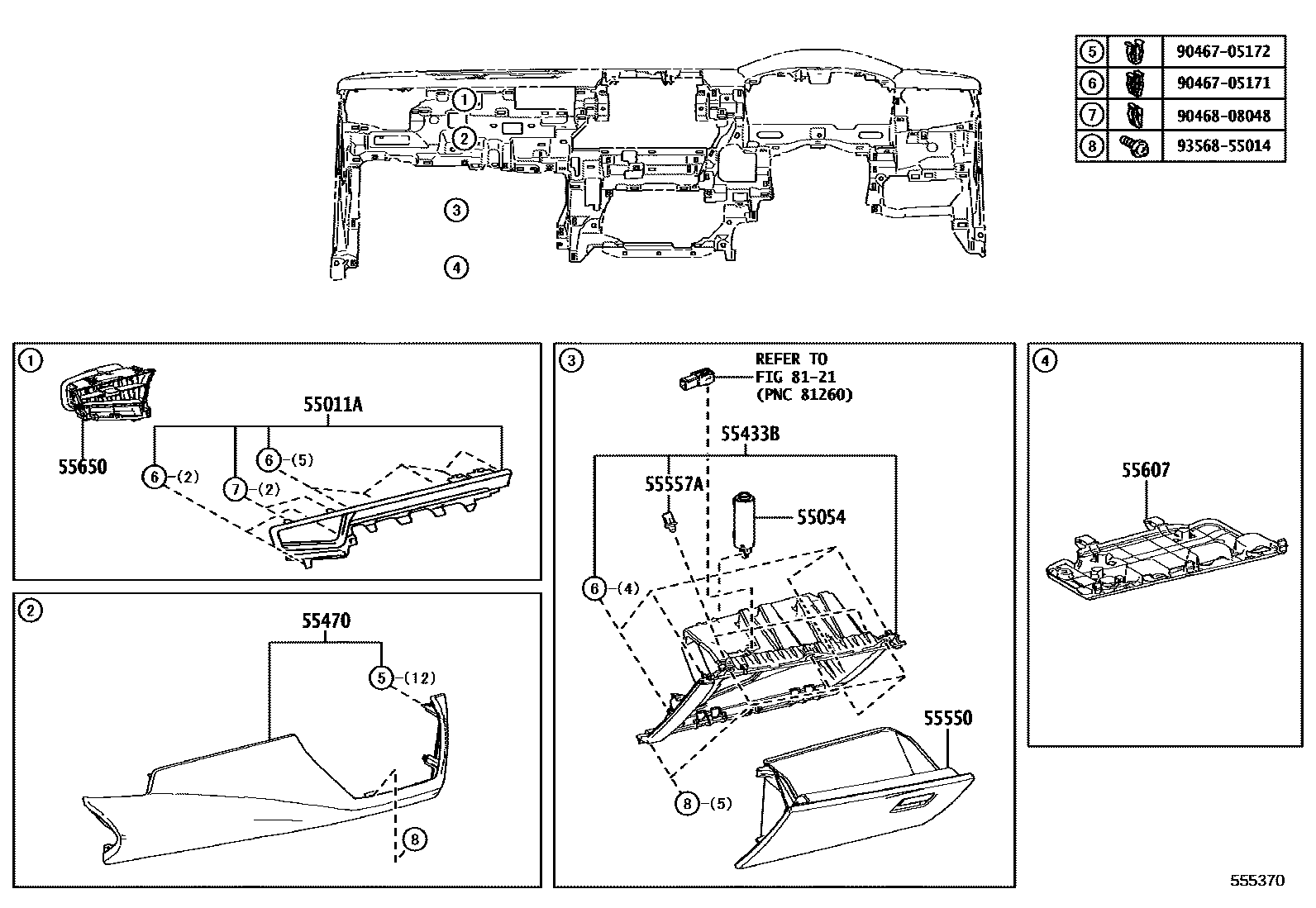

Toyota COROLLA 仪表板和手套箱 EPC diagram — 555370
仪表板和手套箱 — 555370 (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
55054Glove box cover stopper sub-assembly55054-47010
55306AInstrument panel No. 1 bracket sub-assembly55306-12510 · 55306-12530 · 55306-12550 · 55306-12570
55307CInstrument panel No. 2 bracket sub-assembly55307-12410 · 55307-12460
55308BDashboard to cowl No. 3 bracket sub-assembly55308-12320 · 55308-12340
55312ADashboard clip90467-07217
55328Instrument panel pin 155328-12430 · 55328-60090
55328CInstrument panel pin 255328-12420 · 55328-12440
55330BInstrument panel reinforcement assembly55330-12630 · 55330-12631 · 55330-12640 · 55330-12641 · 55330-12850 · 55330-12851 · 55330-12860 · 55330-12861
55349CDashboard cushion55349-12190 · 55349-12200
55362CParking brake mounting bracket55362-12100
55395Dashboard to pedal bracket55395-12020 · 55395-12040
55401FClip (for safety mat)52161-16010
55405BCenter instrument cluster decorative panel sub-assembly55405-12E40 · 55405-12F60 · 55405-12G30
55416CInstrument cluster decorative panel fixings55416-12210
55417BRadio tuner trim panel fixing55417-12060
55422Instrument decorative parts on dashboard55422-12340 · 55422-12350
55522BRadio tuner opening cover55522-47041 · 55522-52020
55557AGlove box cover limit pad55557-52030
55606Instrument panel No. 1 bottom cover sub-assembly55606-12130 · 55606-12160
55607Instrument panel No. 2 bottom cover sub-assembly55607-12110 · 55607-12120
55650No. 1 air regulator assembly on instrument panel55650-12450 · 55650-12460
55660No. 2 air regulator assembly on instrument panel55660-12520 · 55660-12530
55670AInstrument panel central air register assembly55670-12730 · 55670-12740
73960ADashboard passenger air bag assembly without cover73960-12320
