Toyota COROLLA 后保险杠及附件 — Figure 5202

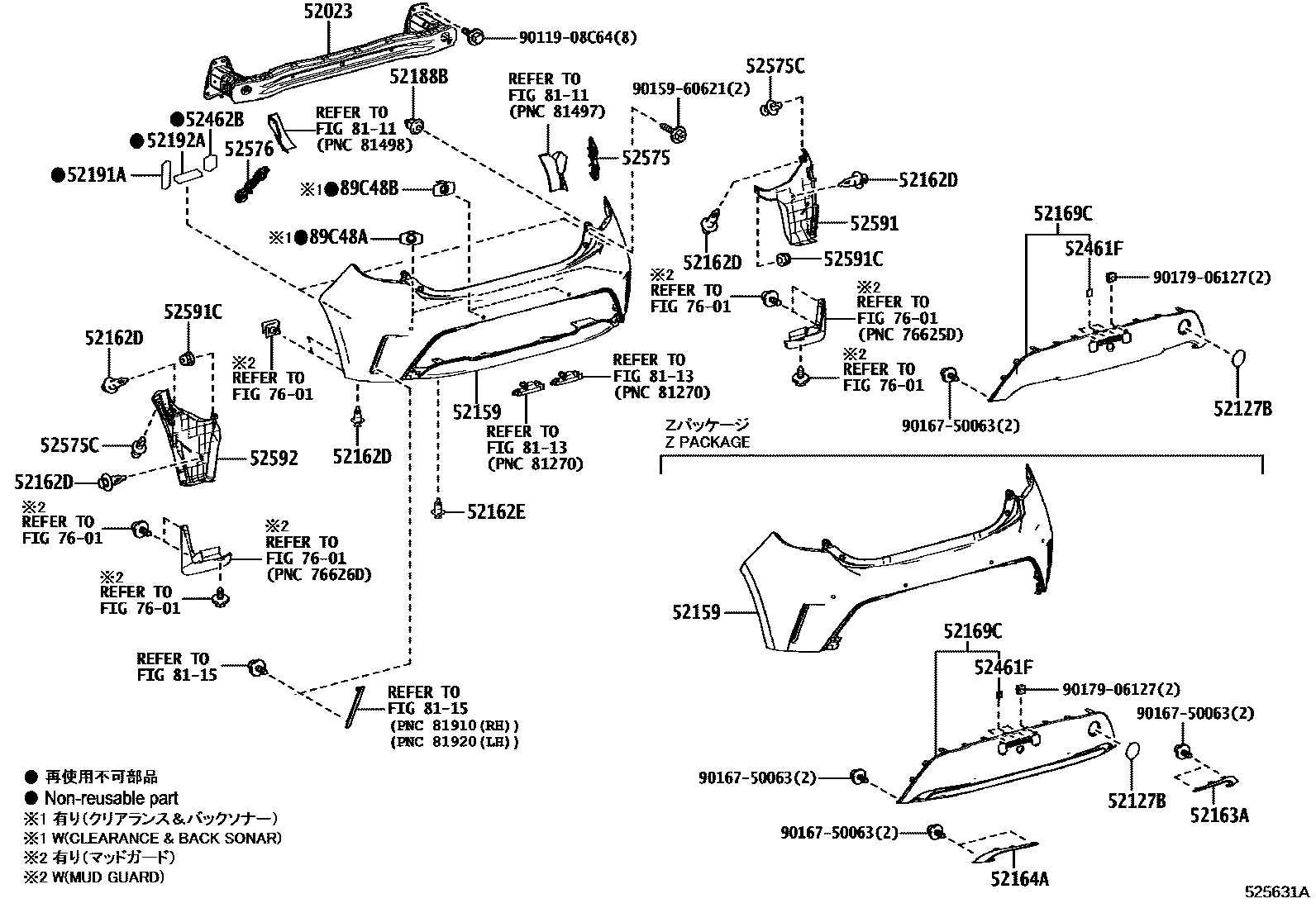

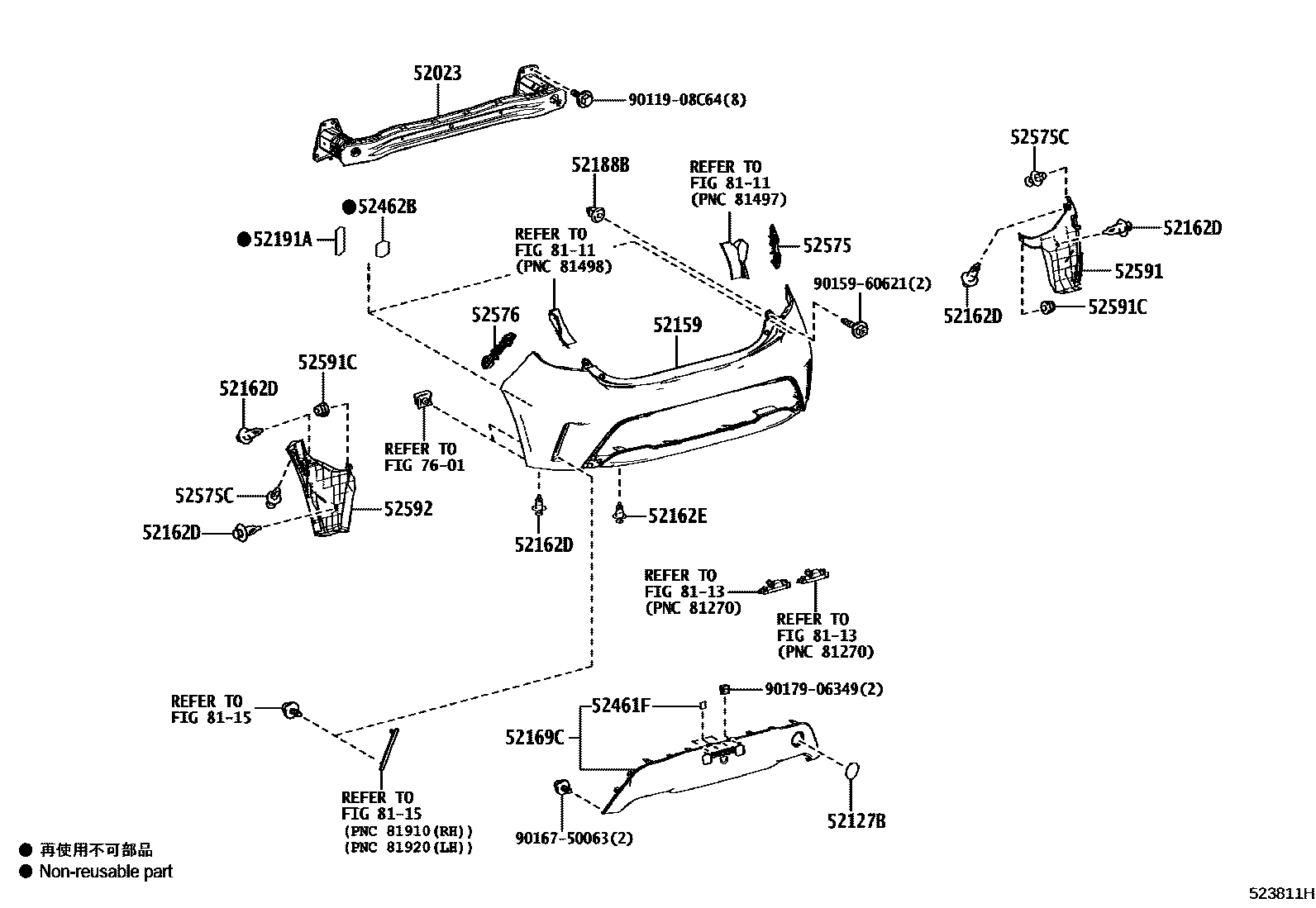

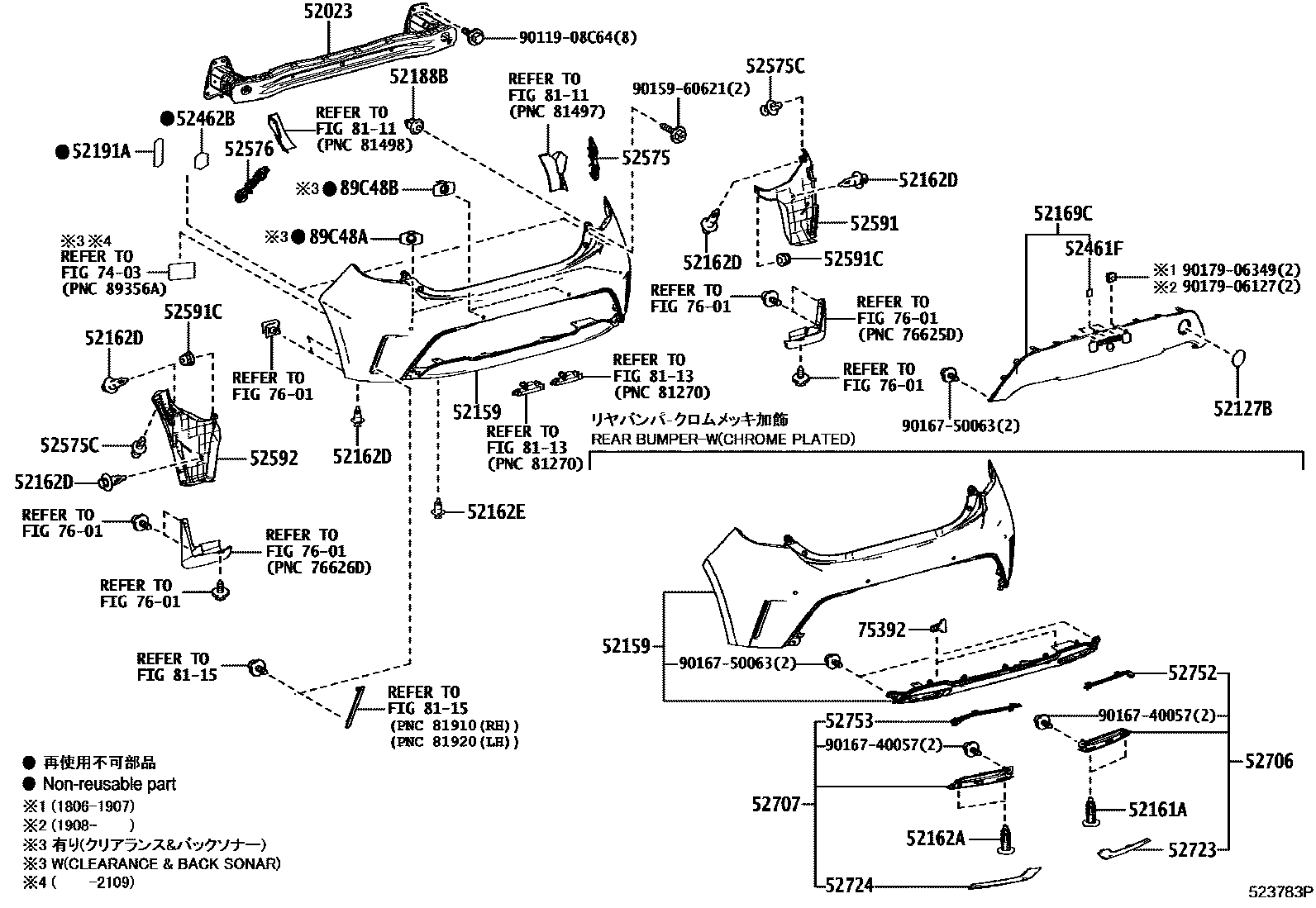

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12290 |
| 52127B | Rear bumper right hole cover | 52107-12170 |
| 52159 | rear bumper cover | 52159-12953 · 52159-12962 · 52159-12971 · 52159-12973 · 52159-12979 · 52159-12980 |
| 52161A | Rear bumper right side gap filler | 52161-16010 |
| 52162A | Rear bumper left insert | 52161-16010 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52162E | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-12140 |
| 52164A | Rear bumper left fender | 52164-12130 |
| 52169C | Rear bumper lower cover | 52169-12170 · 52169-12320 |
| 52188B | Rear bumper installation spacer | 52188-33040 |
| 52191A | Rear bumper arm seal | 52191-47030 |
| 52192A | Rear bumper arm seal | 52191-47030 |
| 52461F | rear bumper lining | 52461-12080 |
| 52462B | rear bumper lining | 52462-47010 |
| 52575 | Rear bumper right side fixing bracket | 52575-12230 |
| 52575C | Rear bumper side fixing clip | 90467-05170 |
| 52576 | Rear bumper left side fixing bracket | 52576-12230 |
| 52591 | Rear bumper right seal | 52591-12330 |
| 52591C | Rear bumper side seal clip | 90467-06121 |
| 52592 | Rear bumper left seal | 52592-12310 |
| 52706 | Rear bumper right side protective strip sub-assembly | 52706-12020 |
| 52707 | Rear bumper left protection strip sub-assembly | 52707-12020 |
| 52723 | Rear bumper right extension protection strip | 52723-12020 |
| 52724 | Rear bumper left extension protection strip | 52724-12020 |
| 52752 | Rear bumper right side protective strip | 52752-12060 |
| 52753 | Rear bumper left protective strip | 52753-12070 |
| 75392 | External protective strip fixings | 75392-35220 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-58110 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-58110 |
