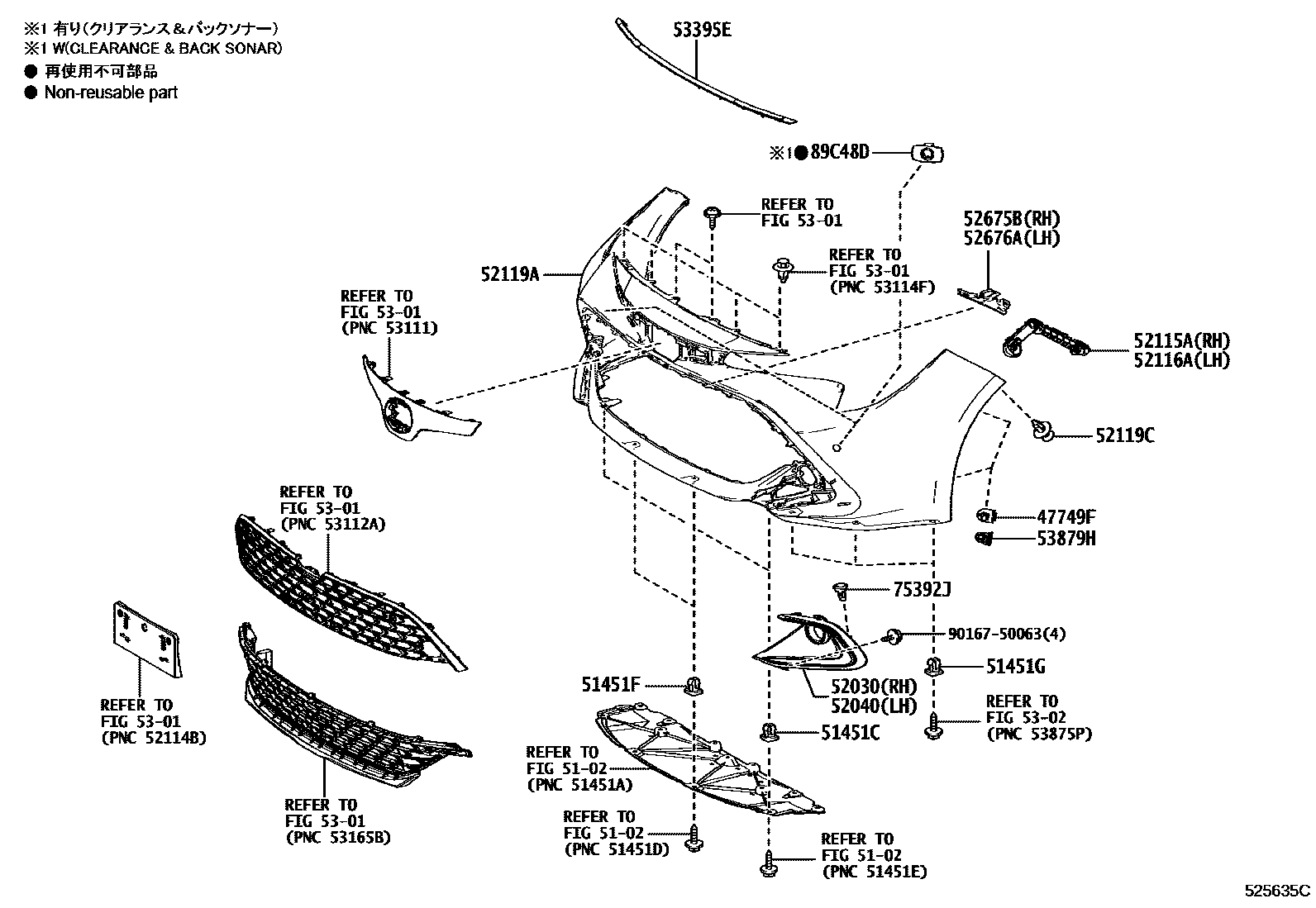

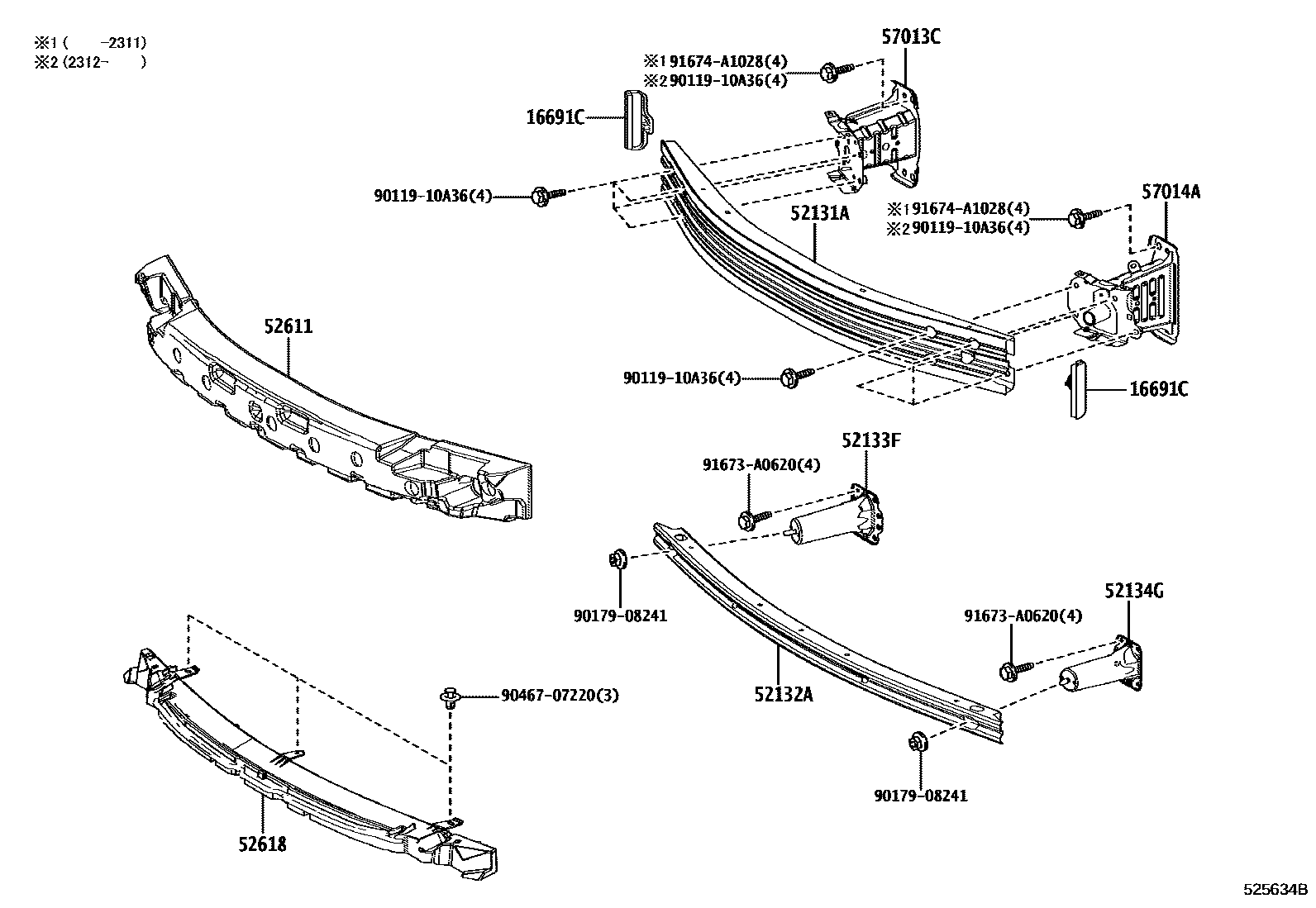

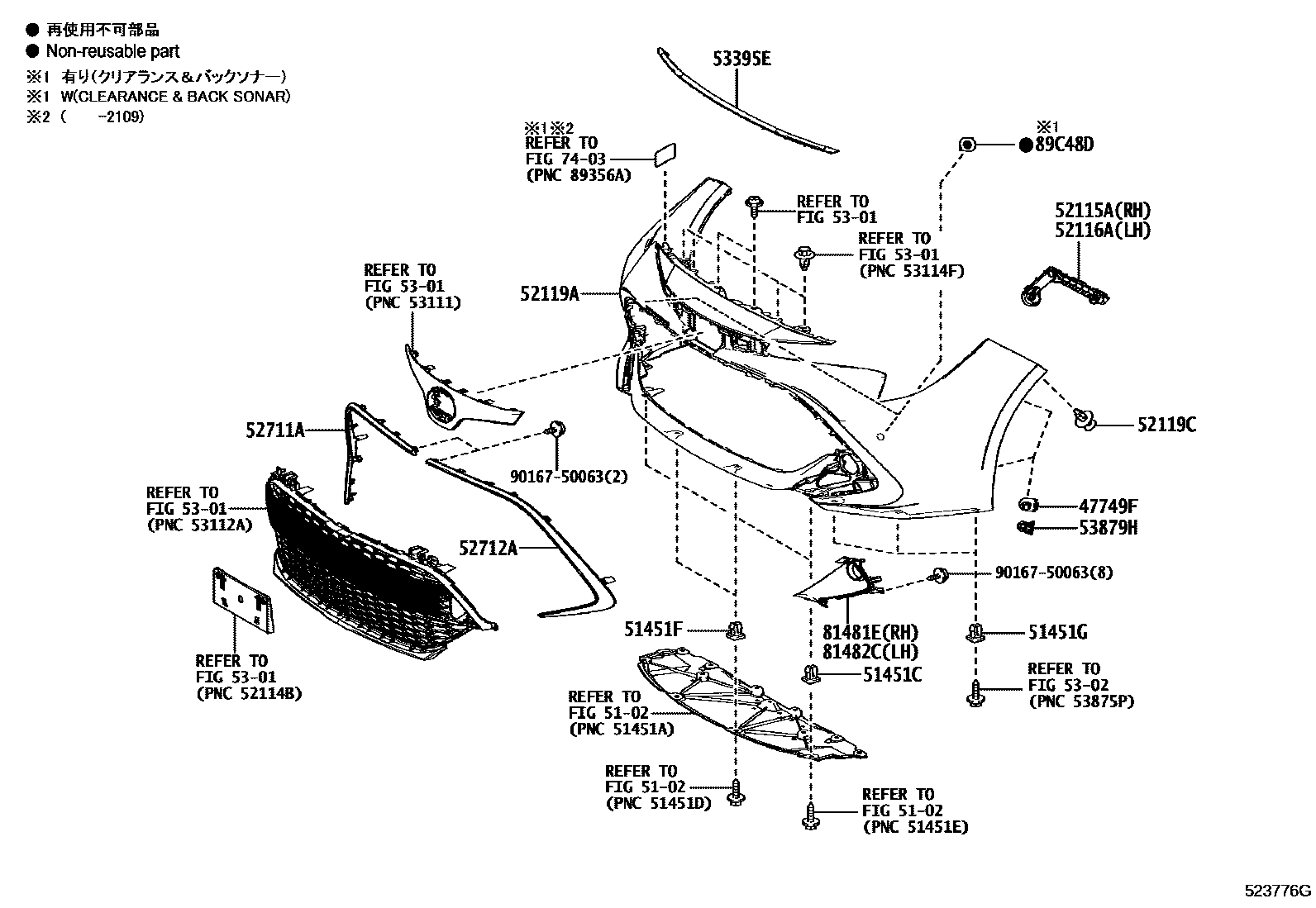

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16691C | Radiator front deflector | 16691-37020 |
| 47749F | pin fixing clip | 47749-33030 |
| 51451C | Gasket (for engine underhood) | 90189-06237 |
| 51451F | Gasket No. 1 | 90189-06237 |
| 51451G | Gasket No. 2 | 90189-06237 |
| 52030 | Front bumper right hole cover assembly | 52030-12140 · 52030-12160 · 52030-12170 · 52030-12180 · 52030-12190 |
| 52040 | Front bumper left hole cover assembly | 52040-12140 · 52040-12180 · 52040-12190 · 52040-12200 · 52040-12210 |
| 52115A | Front bumper right side bracket | 52115-12520 |
| 52116A | Front bumper left bracket | 52116-12470 |
| 52119A | front bumper cover | 52119-12994 · 52119-1A961 · 52119-1A964 · 52119-1A968 |
| 52119C | Front bumper cover clip | 90467-05170 |
| 52131A | Front bumper reinforcement | 52131-12320 |
| 52132A | No. 2 front bumper reinforcement | 52132-12160 · 52132-12161 |
| 52133F | Front bumper right side bracket | 52133-12190 |
| 52134G | Front bumper left bracket | 52133-12190 |
| 52611 | front bumper energy absorber | 52611-12420 · 52611-12470 |
| 52618 | Front bumper lower shock absorber | 52618-12100 |
| 52675B | Front bumper No. 1 right side support | 52675-12020 |
| 52676A | Front bumper No. 1 left side support | 52676-12020 |
| 52711A | front bumper decorative panel | 52711-12370 · 52711-12380 · 52711-12390 |
| 52712A | Front bumper left decorative panel | 52712-12050 · 52712-12060 · 52712-12070 |
| 53395E | Engine cover to front end plate seal | 53395-12140 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-12080 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-12080 |
| 75392J | External protective strip fixings | 75392-35220 |
| 81481E | Right fog light cover | 81481-12370 · 81481-12390 · 81481-12400 |
| 81482C | Left fog light cover | 81482-12280 · 81482-12300 · 81482-12310 |
