Toyota COROLLA Steering Column & Shaft — Figure 4501

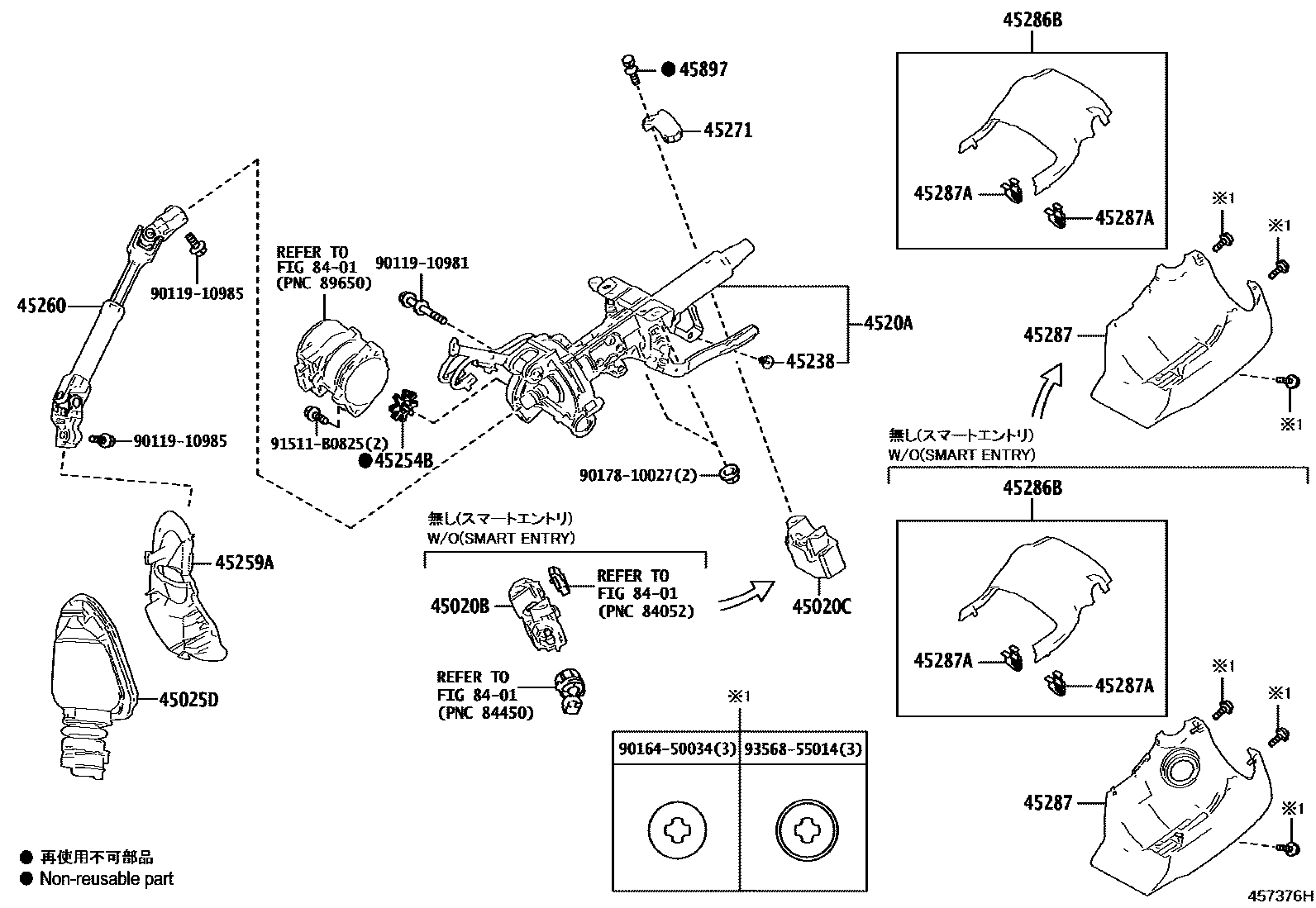

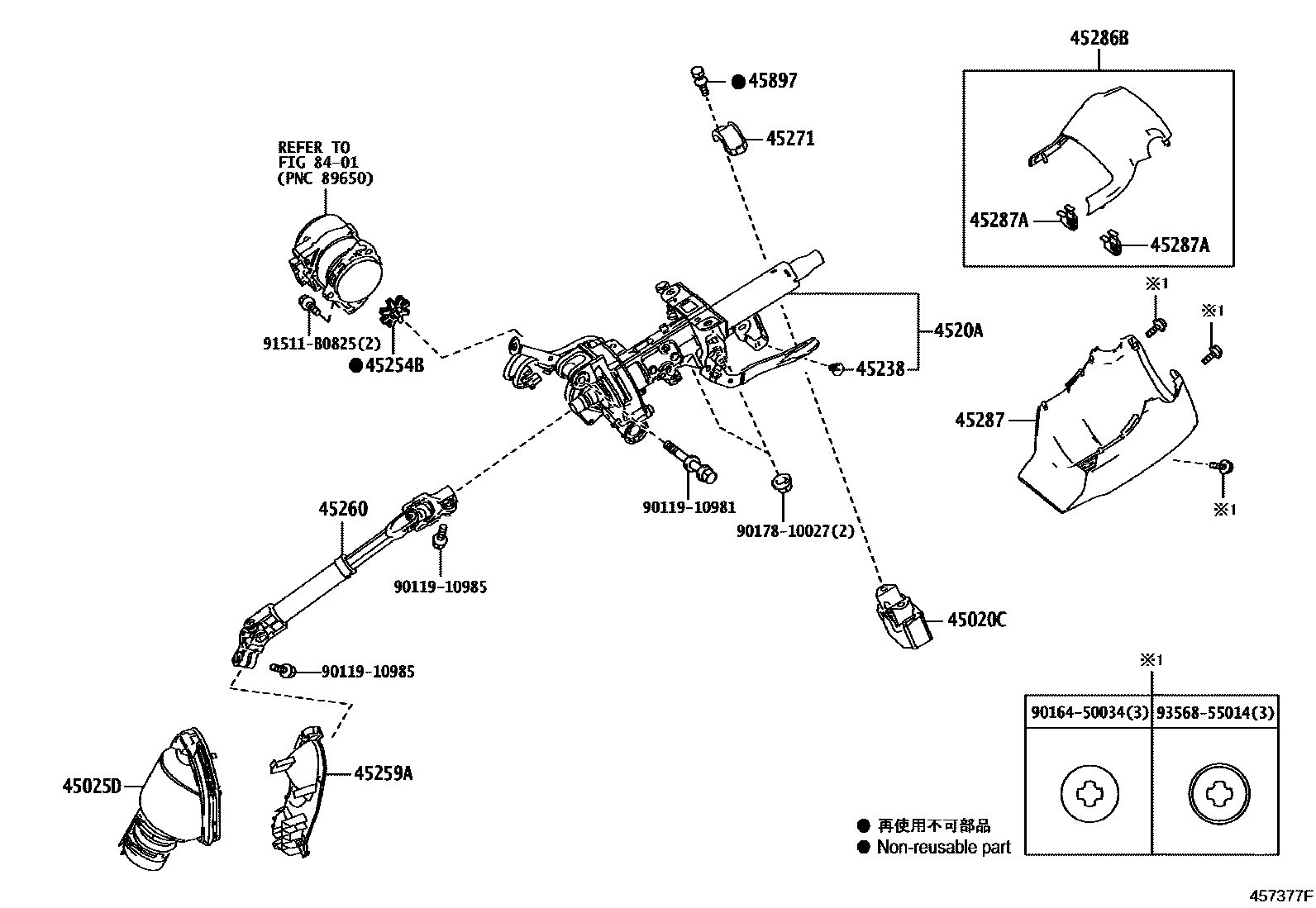

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-26270 · 45280-33180 |
| 45020C | Steering lock actuator assembly with ECU | 45020-12550 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-47050 · 45025-47060 |
| 4520A | Electric steering column sub-assembly | 4520A-12130 · 4520A-12131 · 4520A-12140 · 4520A-12141 · 4520A-12150 · 4520A-12160 · 4520A-12170 · 4520A-12190 · 4520A-12200 · 4520A-12210 · 4520A-12220 · 4520A-12221 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-47040 · 45259-47041 · 45259-47050 · 45259-47051 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12800 · 45260-12810 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45287A | Clip (for steering column cover) | 90467-05171 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
