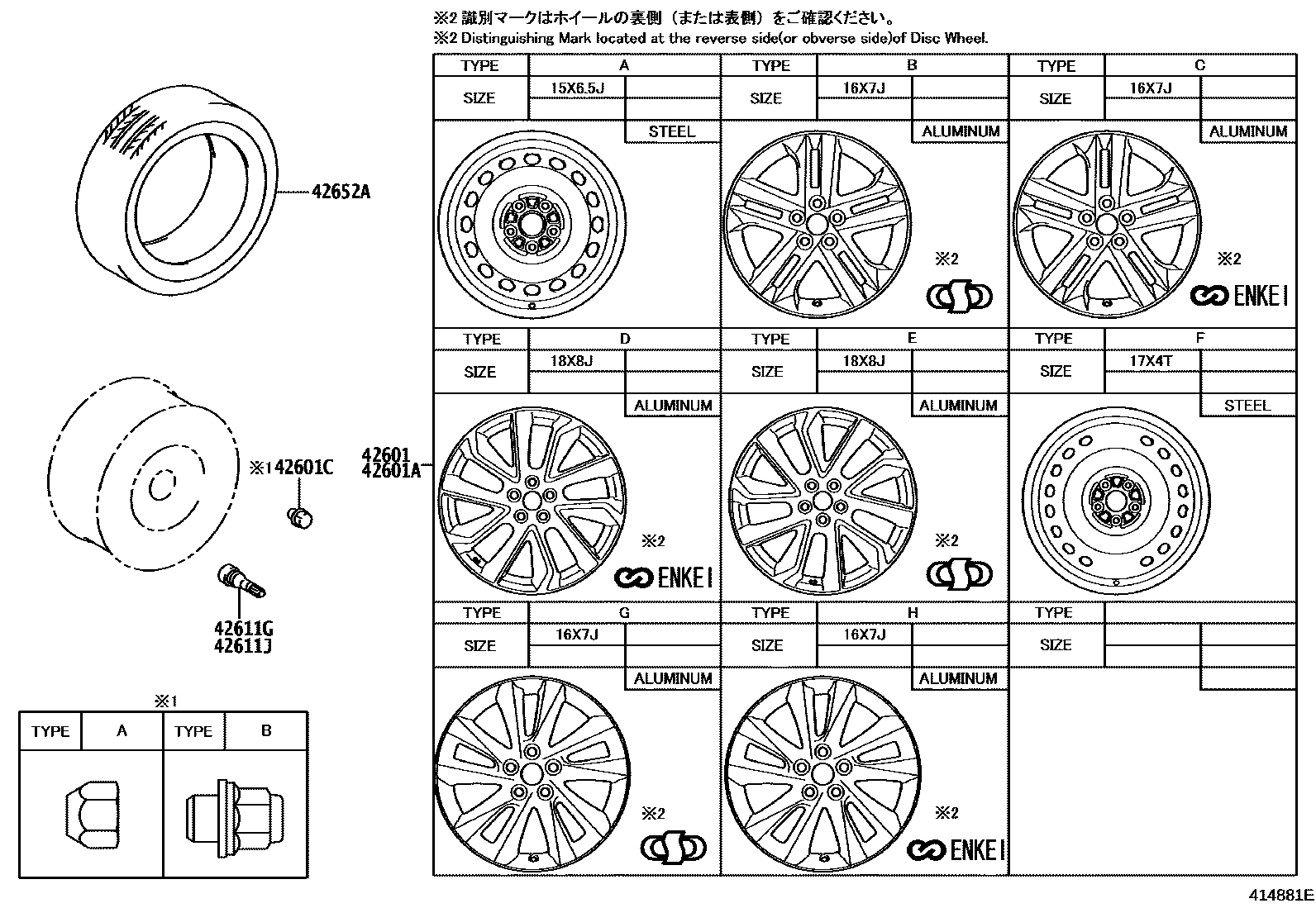

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12D30 · 42611-12D31 · 42611-12D60 · 42611-12D80 · 42611-12E00 · 42611-12E10 · 42611-12F90 · 42611-12G00 |
| 42601A | Spoke wheel (for spare tire) | 42611-12D30 · 42611-12D31 · 42611-12D80 · 42611-12E00 · 42611-12F90 · 42611-12G00 · 42611-47631 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-52170 |

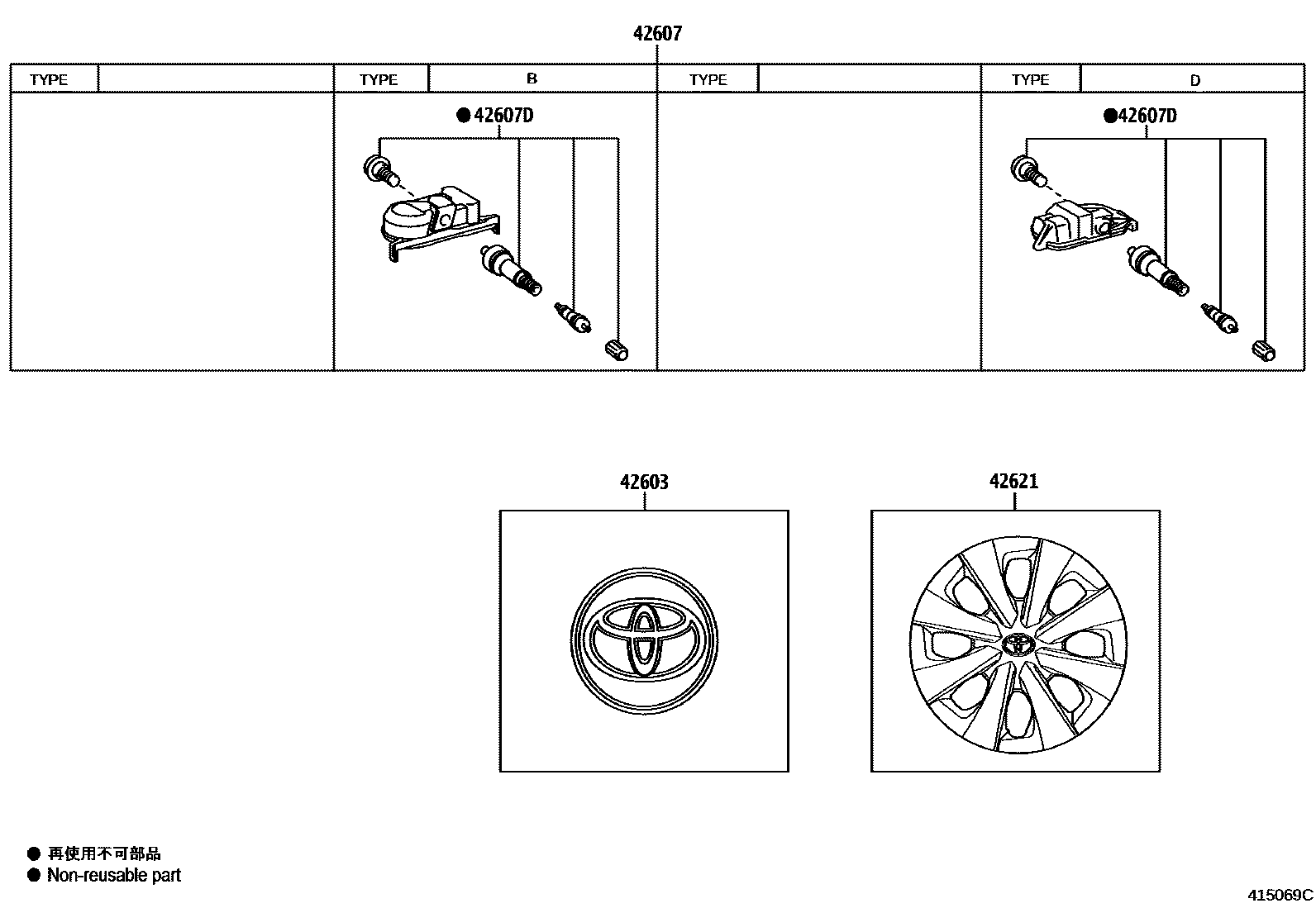

| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12010 · 42607-42050 · 42607-47020 |
| 42607D | tire pressure monitoring valve | 90942-05043 · 90942-05047 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12840 |
| 42652A | Tire (for Spare Wheel) | 4265A-76010 |
