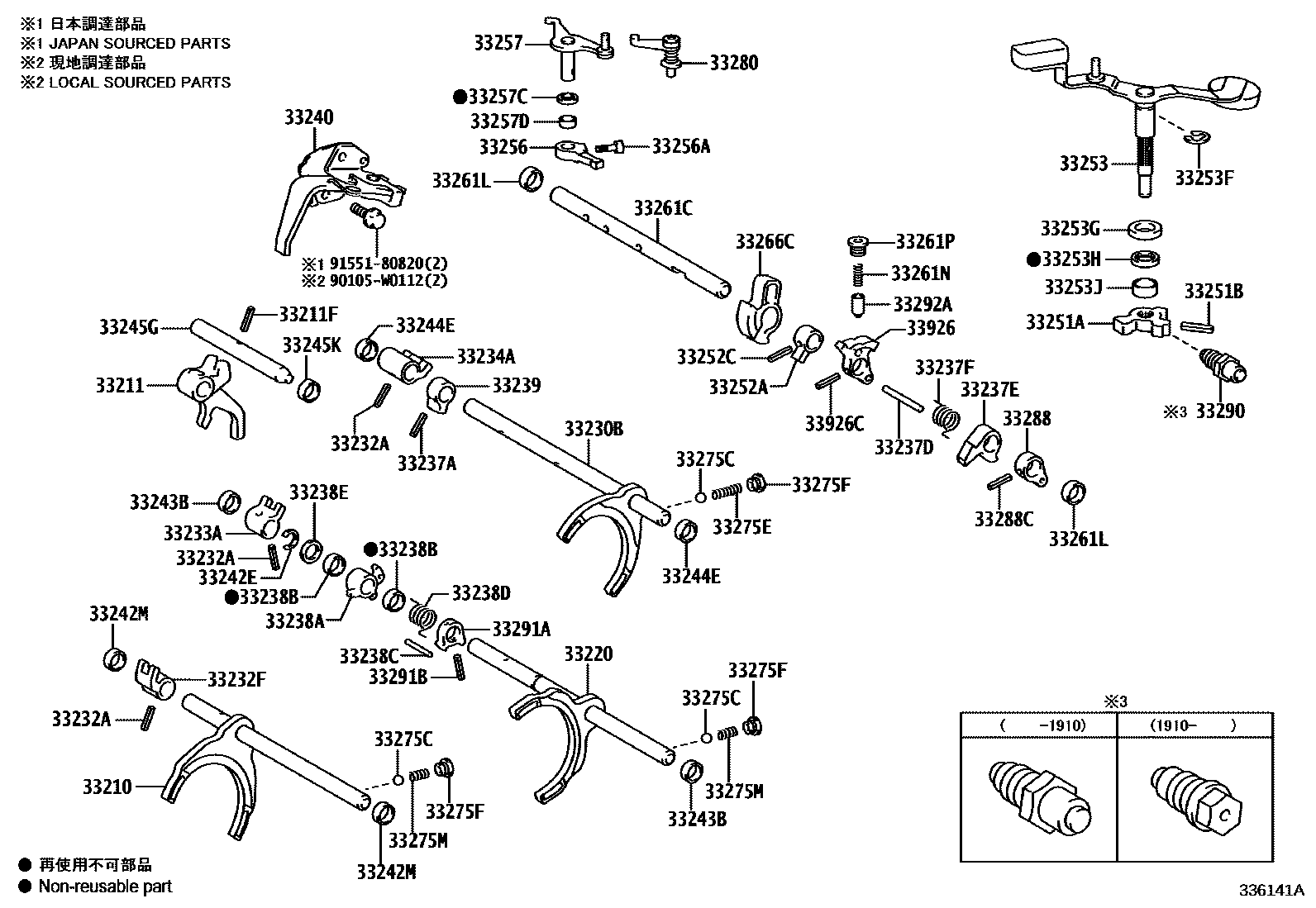

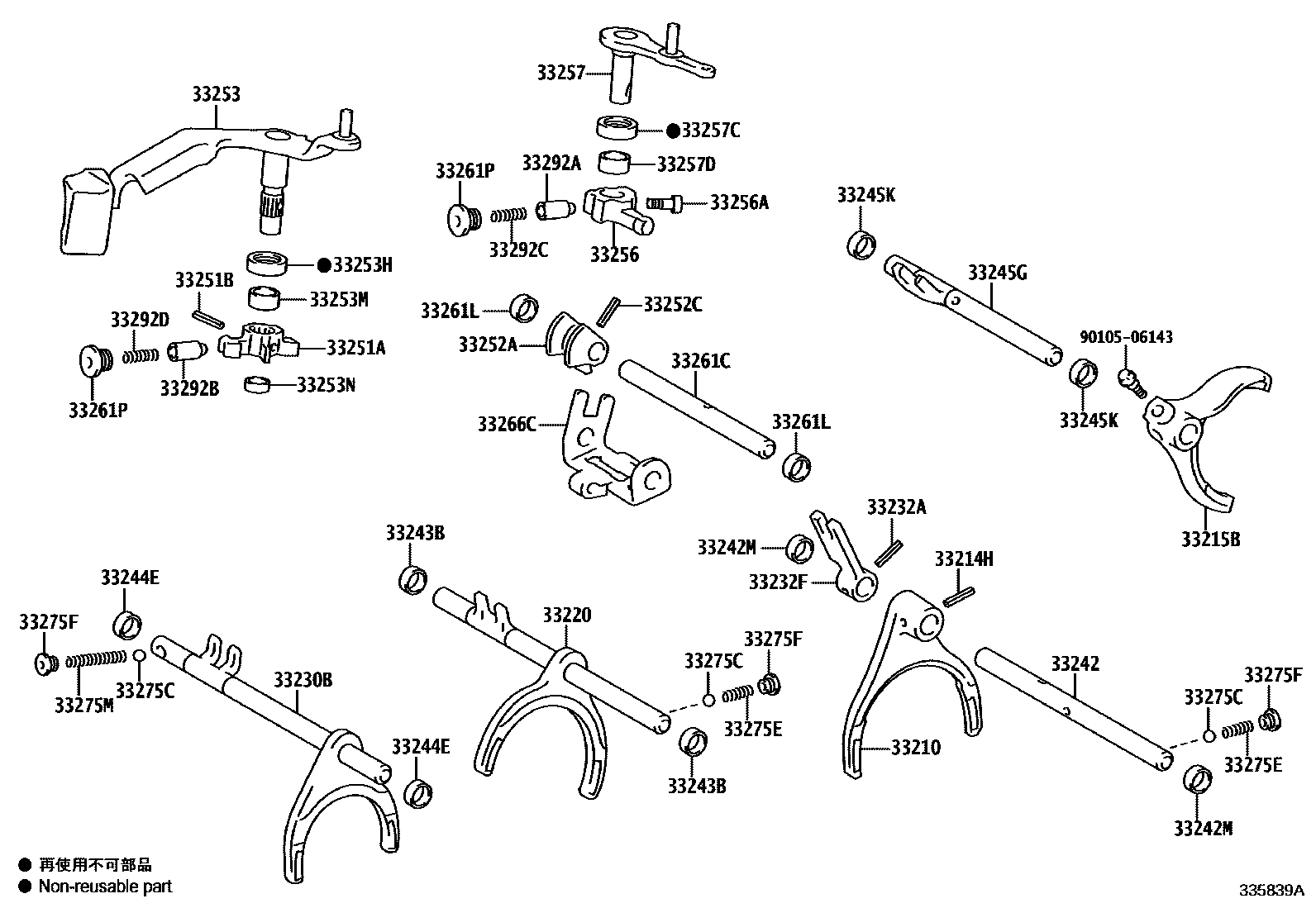

Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33210 | No. 1 shift fork assembly | 33210-02010 · 33210-12020 |
| 33211 | Reverse Shift Fork | 33211-05020 |
| 33211F | Slotted spring pin (for reverse shift fork) | 90254-05001 |
| 33214H | Slotted pin (for shift fork) | 90254-05016 |
| 33215B | No. 4 shift fork | 33215-12030 |
| 33220 | No. 2 shift fork assembly | 33220-02010 · 33220-12020 |
| 33230B | No. 3 shift fork assembly | 33230-02010 · 33230-12030 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 · 90254-05016 |
| 33232F | No. 1 transmission guide block | 33232-02020 · 33232-12060 |
| 33233A | No. 2 speed change guide block | 33233-02010 |
| 33234A | No. 3 speed change guide block | 33234-02010 |
| 33237A | Slotted spring pin (for detaching guide blocks) | 90254-05001 |
| 33237D | Direct sales (for detaching guide blocks) | 90250-06042 |
| 33237E | No. 1 reverse gear front cover | 33237-0D010 |
| 33237F | Torsion spring (for No. 1 reverse gear front gear cover) | 90508-27001 |
| 33238A | No. 2 reverse gear front door | 33238-0D010 |
| 33238B | Bimetal bushing (for No. 2 reverse gear front gear cover) | 90384-W0009 |
| 33238C | Direct sales (for No. 2 reverse gear front cover) | 90250-04123 |
| 33238D | Torsion spring (for No. 2 reverse gear front gear cover) | 90508-17006 · 90508-17007 |
| 33238E | Spacer (for No. 2 reverse gear front door) | 90560-14035 |
| 33239 | No. 3 reverse gear front door | 33239-0D010 |
| 33240 | Reverse shift arm bracket assembly | 33240-0D021 |
| 33242 | No. 1 shift fork shaft | 33242-12120 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33242M | Bimetallic bushing (for No. 1 shift fork shaft) | 90384-14008 · 90384-W0009 |
| 33243B | Bimetallic bushing (for No. 2 shift fork shaft) | 90384-14008 · 90384-W0009 |
| 33244E | Bimetallic bushing (for No. 3 shift fork shaft) | 90384-14008 · 90384-W0009 |
| 33245G | No. 4 shift fork shaft | 33245-10030 · 33245-12060 |
| 33245K | Bimetallic bushing (for No. 4 shift fork shaft) | 90384-14008 · 90384-W0009 |
| 33251A | Internal shift lever No. 1 | 33251-0D011 · 33251-12120 · 33251-12140 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 |
| 33252A | Internal shift lever No. 2 | 33252-0D020 · 33252-12060 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-02010 · 33253-12050 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253G | Spacer (for outer shift lever) | 90560-18017 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-W0012 |
| 33253M | Bimetallic bushing (for upper outer shift lever) | 90384-18018 |
| 33253N | Bimetallic bushing (for lower outer shift lever) | 90384-14008 |
| 33256 | Internal gear selector | 33256-0D030 · 33256-12040 |
| 33256A | Fixing bolt (for interior gear selector) | 90110-08041 |
| 33257 | External gear selector | 33257-02020 · 33257-12050 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 · 90310-18003 |
| 33257D | Bimetallic bushing (for external selector lever) | 90384-15002 · 90384-W0003 |
| 33261C | shift lever shaft | 33261-05010 · 33261-12200 |
| 33261L | Bimetallic bushing (for gear selector shaft) | 90384-14008 · 90384-W0010 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11108 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33266C | shift interlock plate | 33266-12070 · 33266-20062 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-13087 · 90501-13088 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33275M | No. 2 compression spring (for shift lock steel ball) | 90501-10262 · 90501-13089 |
| 33280 | Reverse gear positioning pin assembly | 33280-20050 |
| 33288 | Gear selector stop | 33288-0D010 |
| 33288C | Slotted spring pin (for gear selector stop) | 90254-05001 |
| 33290 | No. 1 locking steel ball assembly | 33290-02011 · 33290-02020 |
| 33291A | Shift fork shaft block | 33886-0D010 |
| 33291B | Slotted spring pin (for shift fork shaft stop) | 90254-05001 |
| 33292A | Locking steel ball pin | 33292-05020 · 33292-20010 |
| 33292B | No. 2 locking steel ball pin | 33292-20010 |
| 33292C | No. 1 spring (used to lock the steel ball return pin) | 90501-13108 |
| 33292D | No. 2 spring (used to lock the steel ball return pin) | 90501-12221 |
| 33926 | Front inner shift lever | 33926-0D011 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
