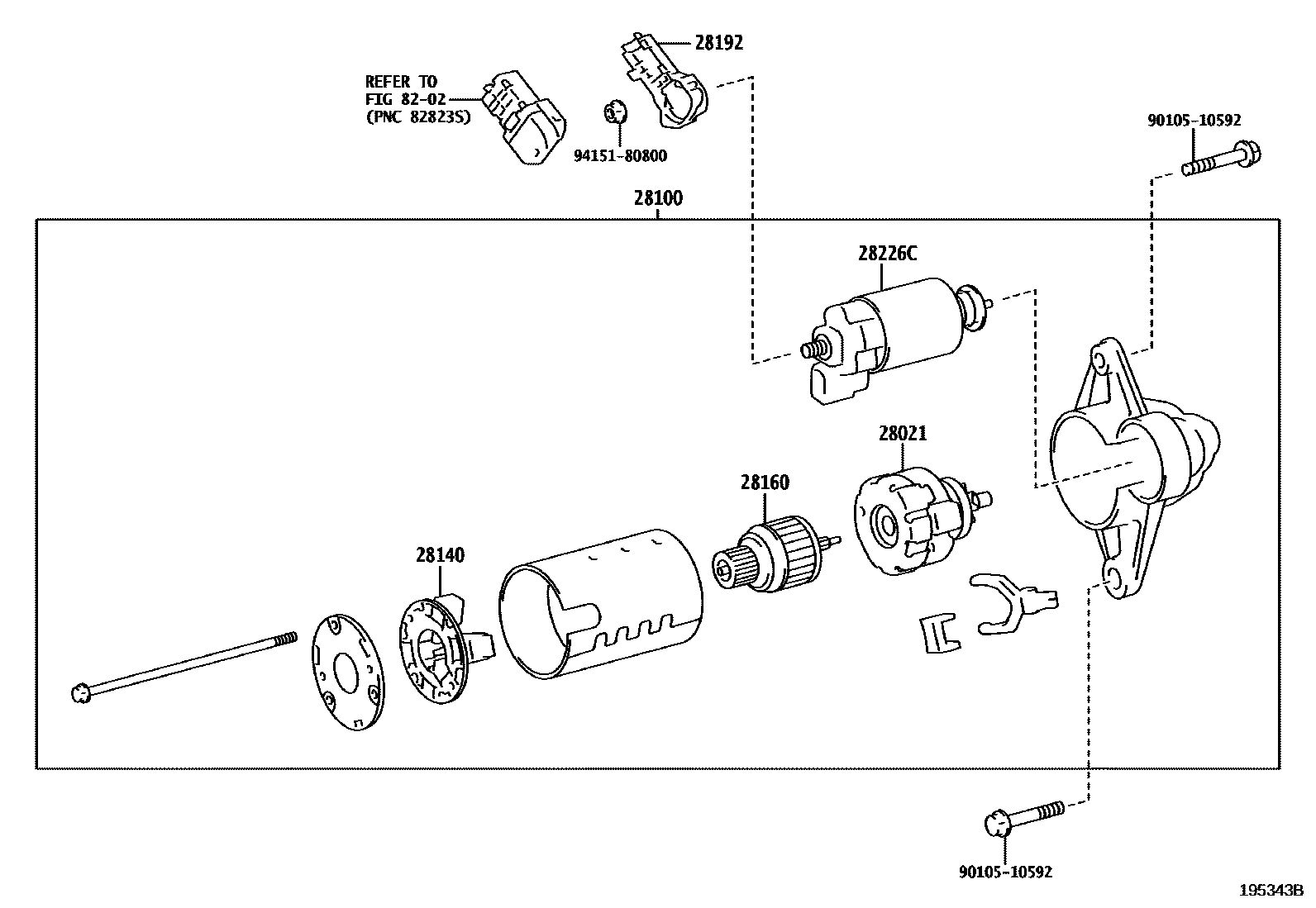

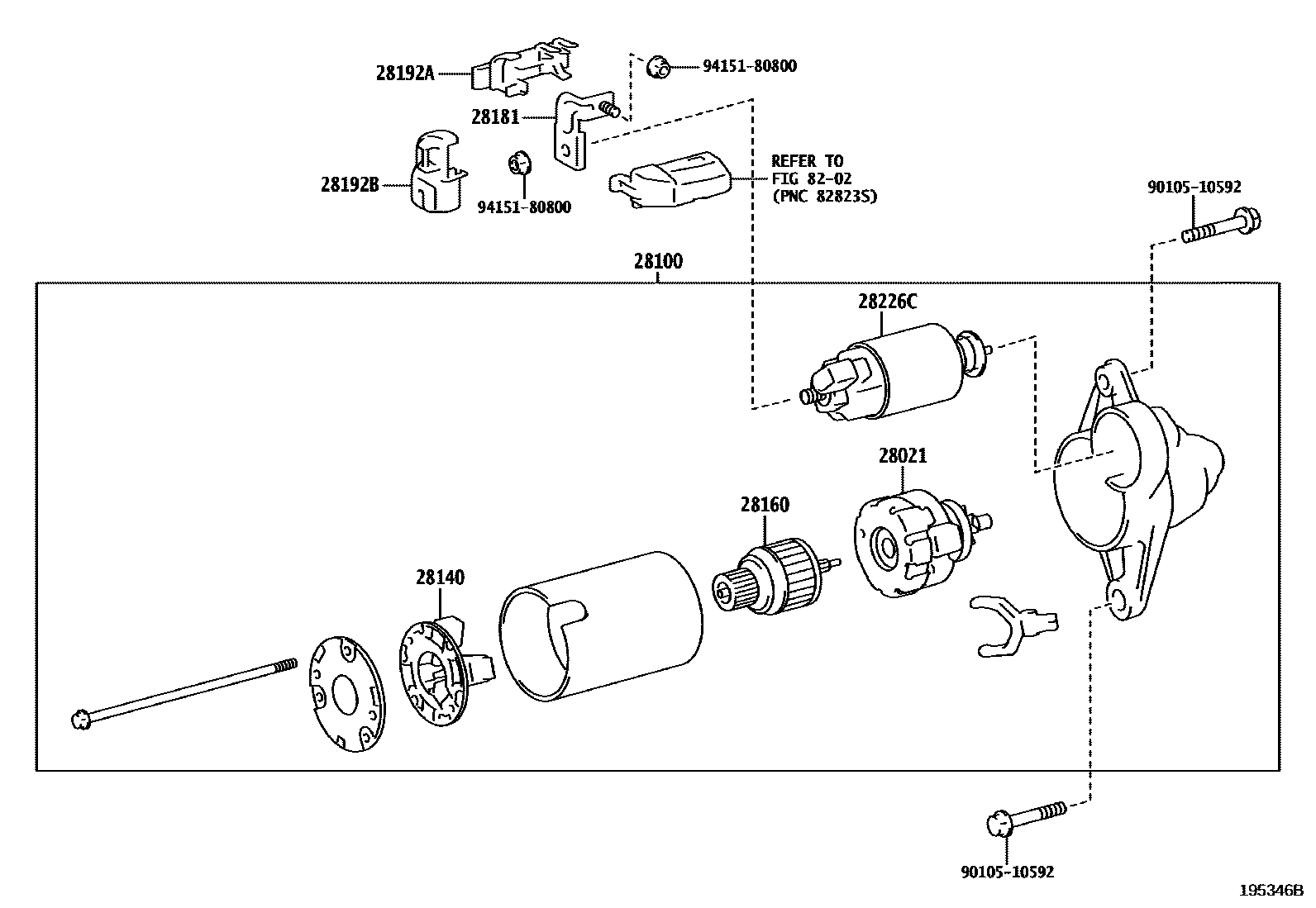

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-24120 · 28021-47170 |
| 28100 | Starter assembly | 28100-24160 · 28100-37150 |
| 28140 | Starter brush holder assembly | 28140-21070 |
| 28160 | Starter armature assembly | 28160-21070 |
| 28181 | starter terminal | 28181-24010 |
| 28192 | starter cover | 28192-47020 |
| 28192A | No. 1 starter cover | 28192-24010 |
| 28192B | No. 2 starter cover | 28192-24020 |
| 28226C | No. 2 starter magnetic switch | 28226-24120 · 28226-37130 |
