Toyota COROLLA Manifold — Figure 1701

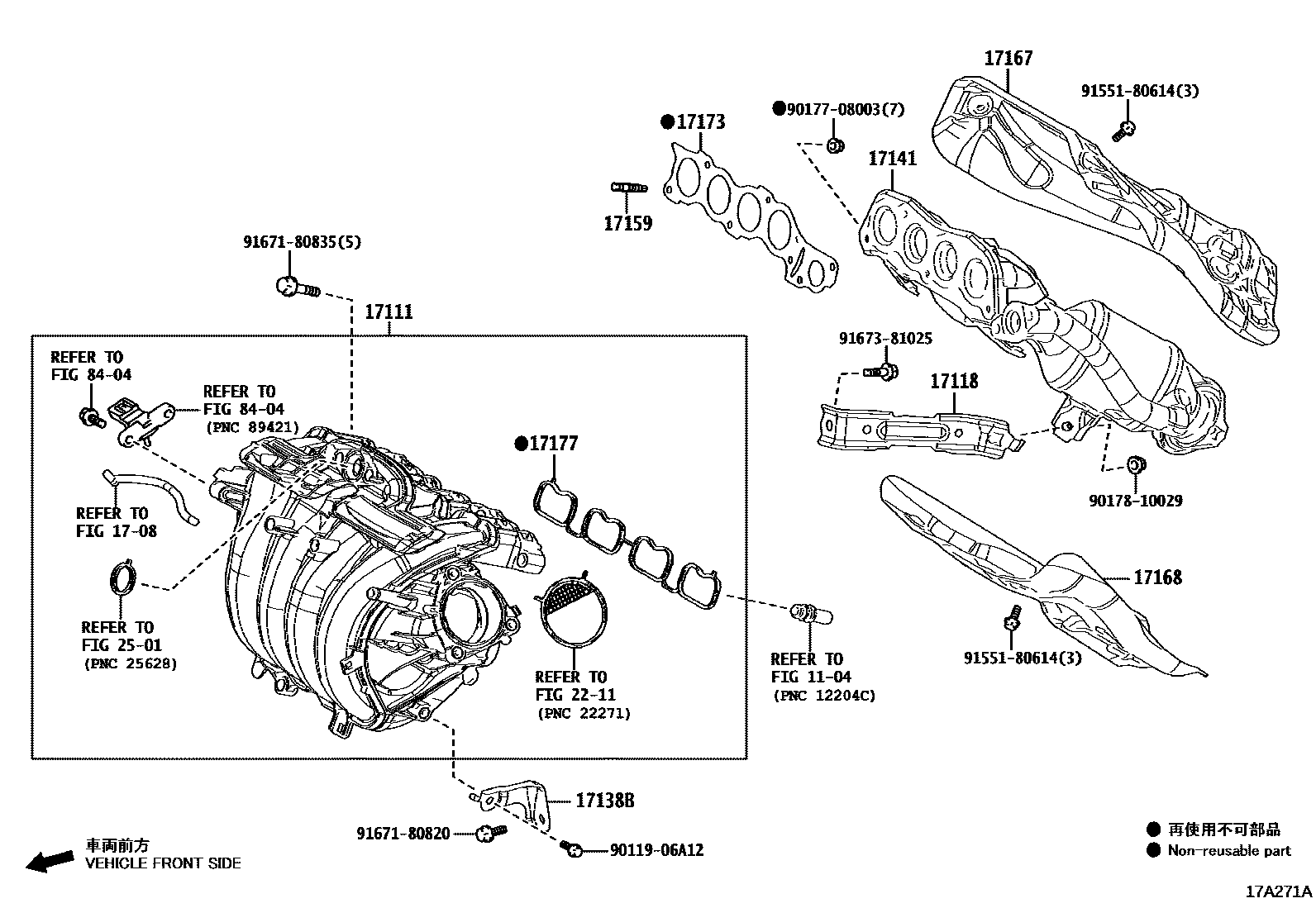

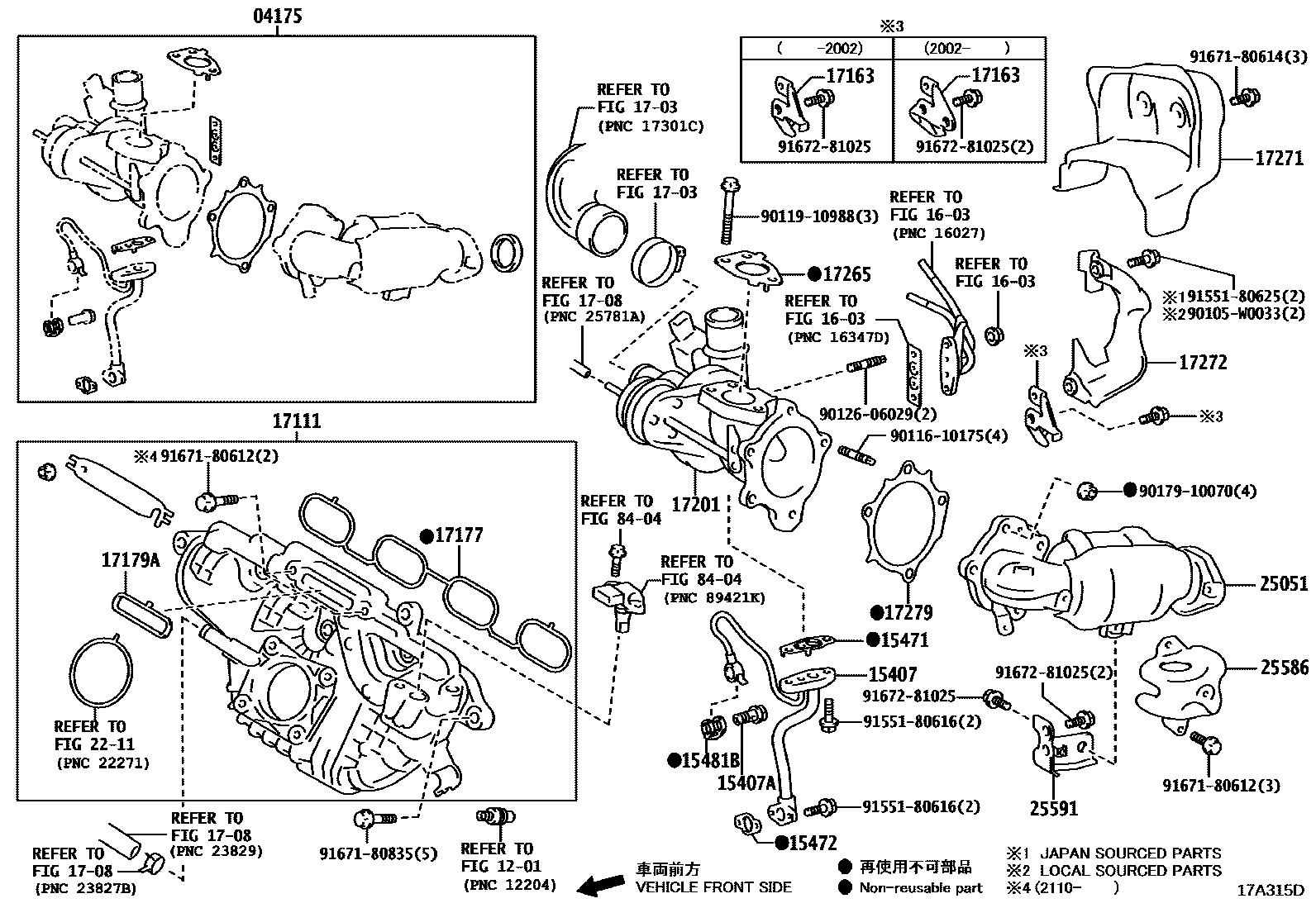

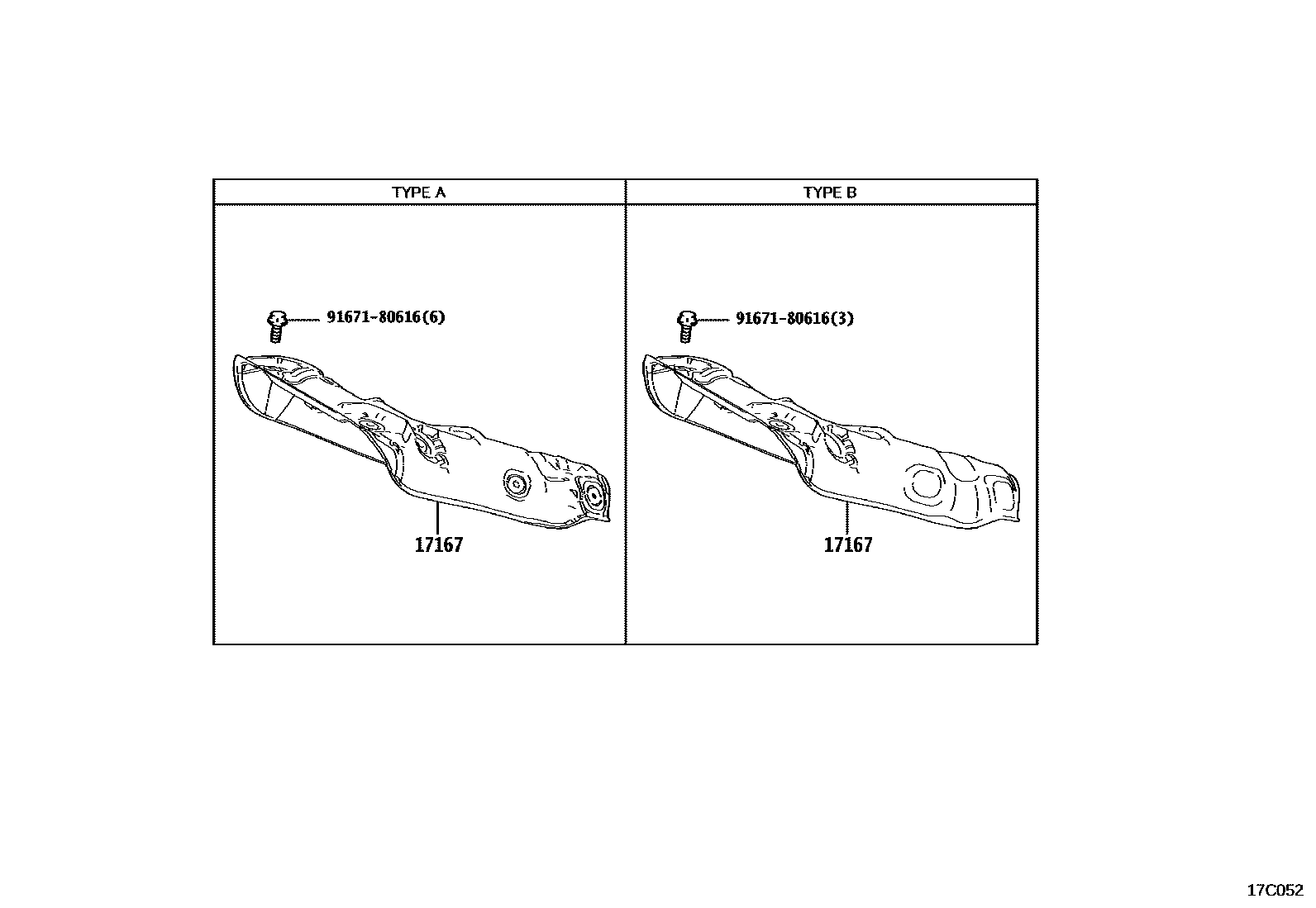

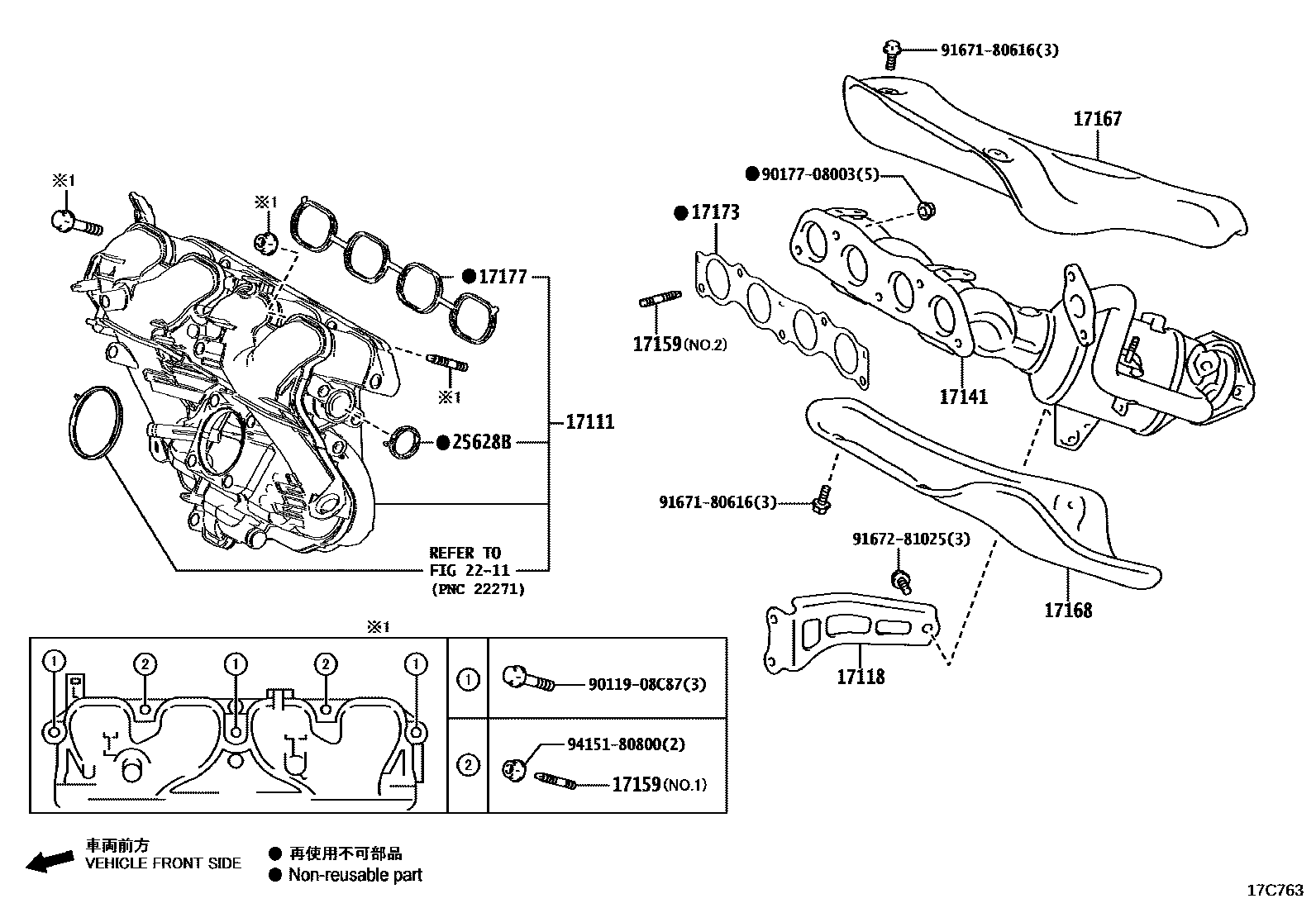

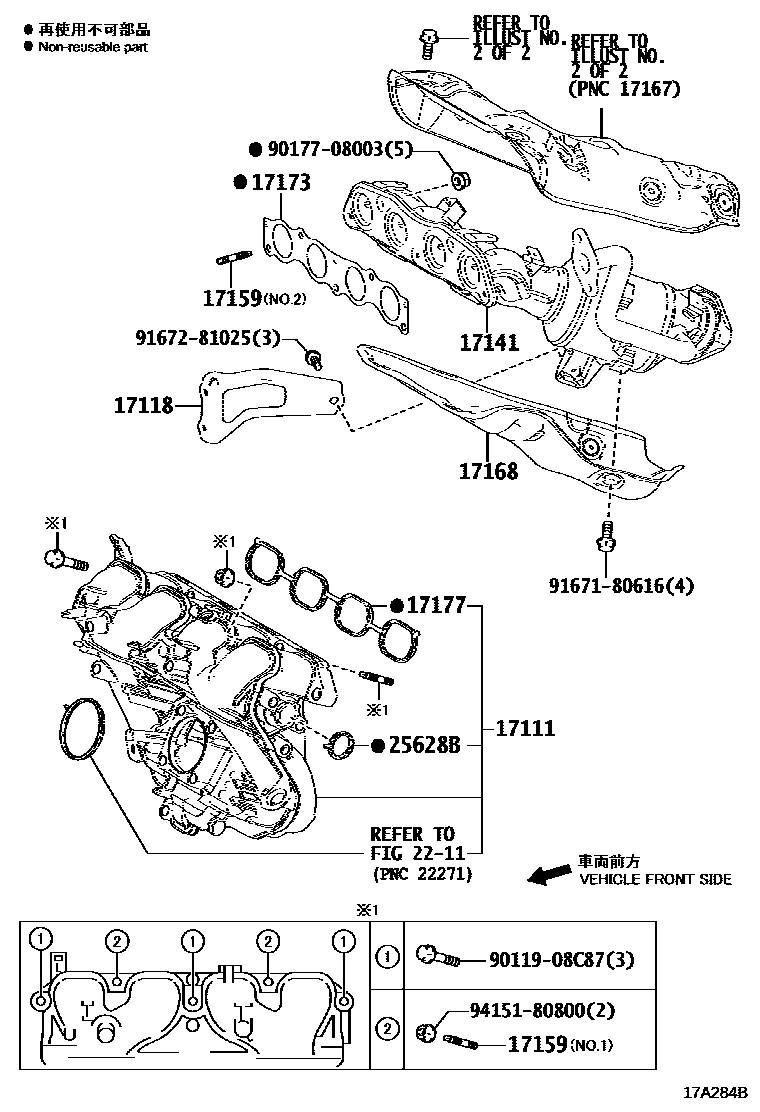

Toyota COROLLA EPC diagram 1701, Manifold, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-47010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-47011 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 96341-11200 |
| 15471 | Turbine oil inlet pipe gasket | 15471-47010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-47010 |
| 15481B | Gasket (for No. 1 joint bolt) | 90430-12037 |
| 17111 | Intake Manifold | 17120-24010 · 17120-37110 · 17120-47100 |
| 17118 | Manifold stays | 17118-24010 · 17118-37090 · 17118-37100 |
| 17138B | Intake manifold stay | 17138-24010 |
| 17141 | exhaust manifold | 17141-24120 · 17141-37210 · 17141-37211 · 17141-37290 · 17141-37360 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 |
| 17163 | No. 1 insulation pad bracket | 17586-47011 · 17586-47020 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-24030 · 17167-37040 · 17167-37120 · 17167-37140 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-24030 · 17168-37120 · 17168-37150 · 17168-F2050 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-24010 · 17173-37010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-24020 · 17177-37030 · 17177-47050 |
| 17179A | No. 2 intake manifold gasket | 17179-47010 |
| 17201 | Turbocharger sub-assembly | 17201-47011 |
| 17265 | Turbocharger gasket | 17265-47010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-47010 |
| 17272 | No. 2 turbine vibration isolation pad | 17272-47010 |
| 17279 | Turbine outlet elbow gasket | 17279-47010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-47210 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-47010 |
| 25591 | Manifold bracket | 25591-47010 |
| 25628B | EGR air intake gasket | 25628-36020 |
