Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

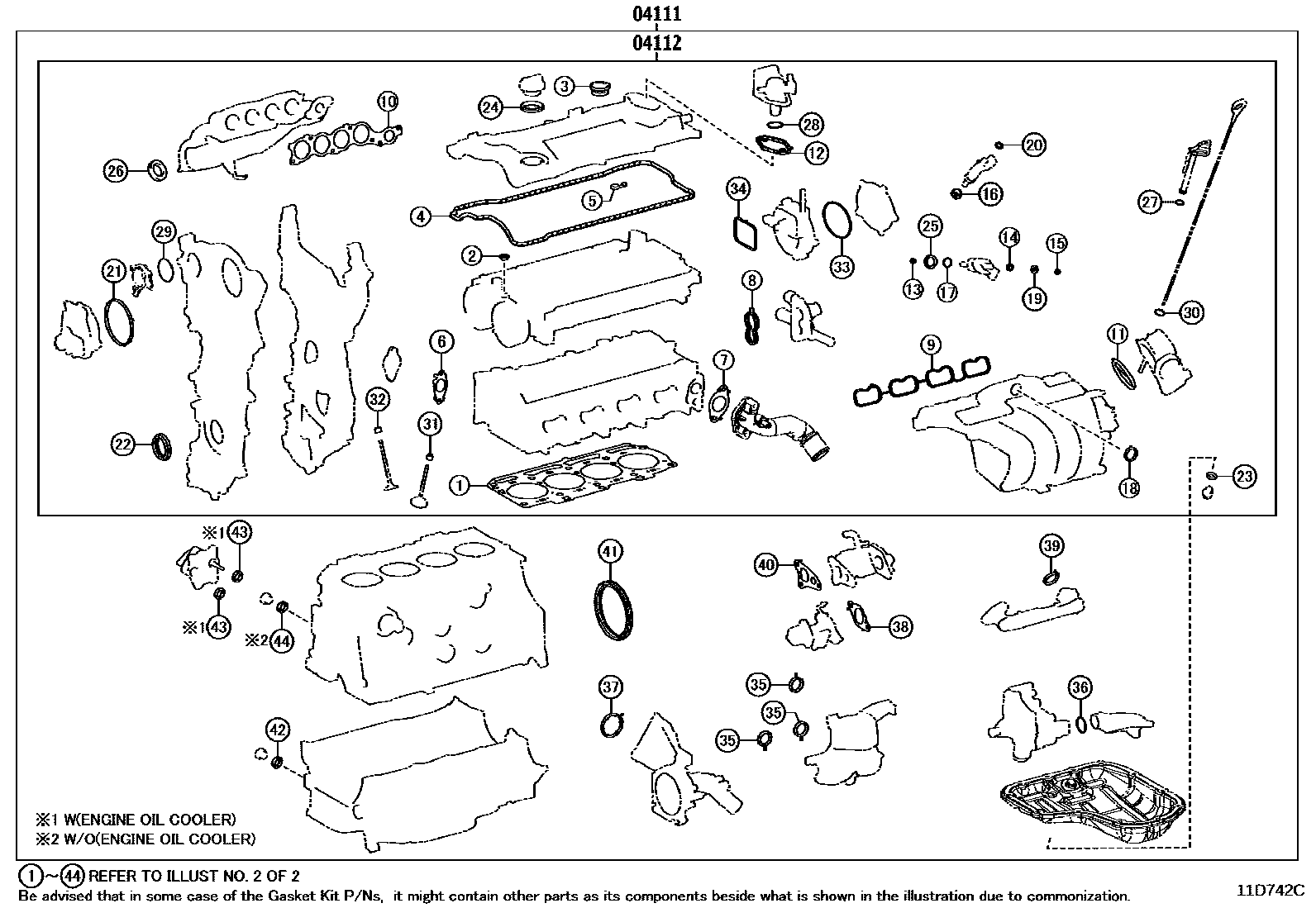

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D742C
Engine Overhaul Gasket Kit — 11D742C (201806 – 999999)

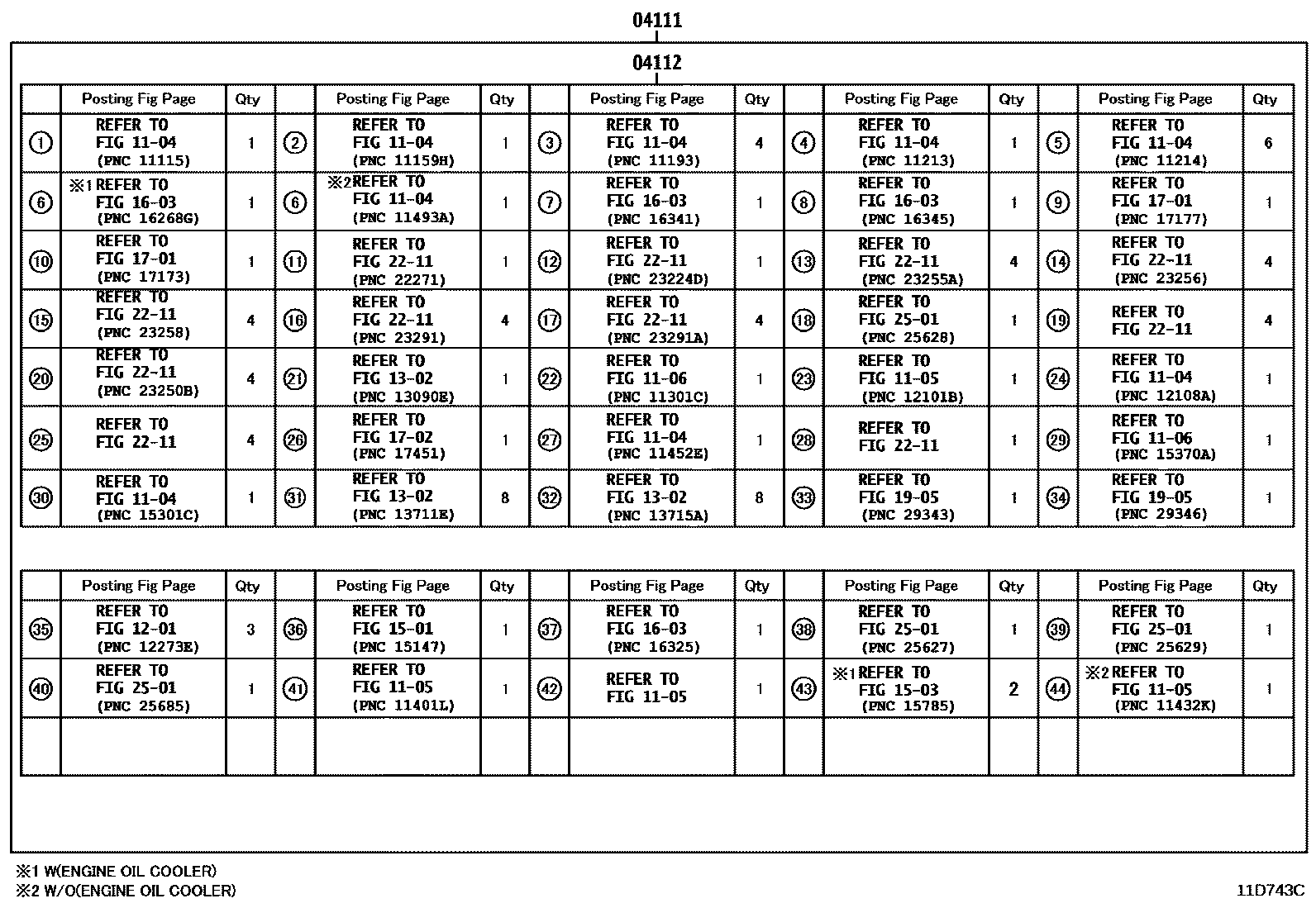

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D743C
Engine Overhaul Gasket Kit — 11D743C (201806 – 999999)

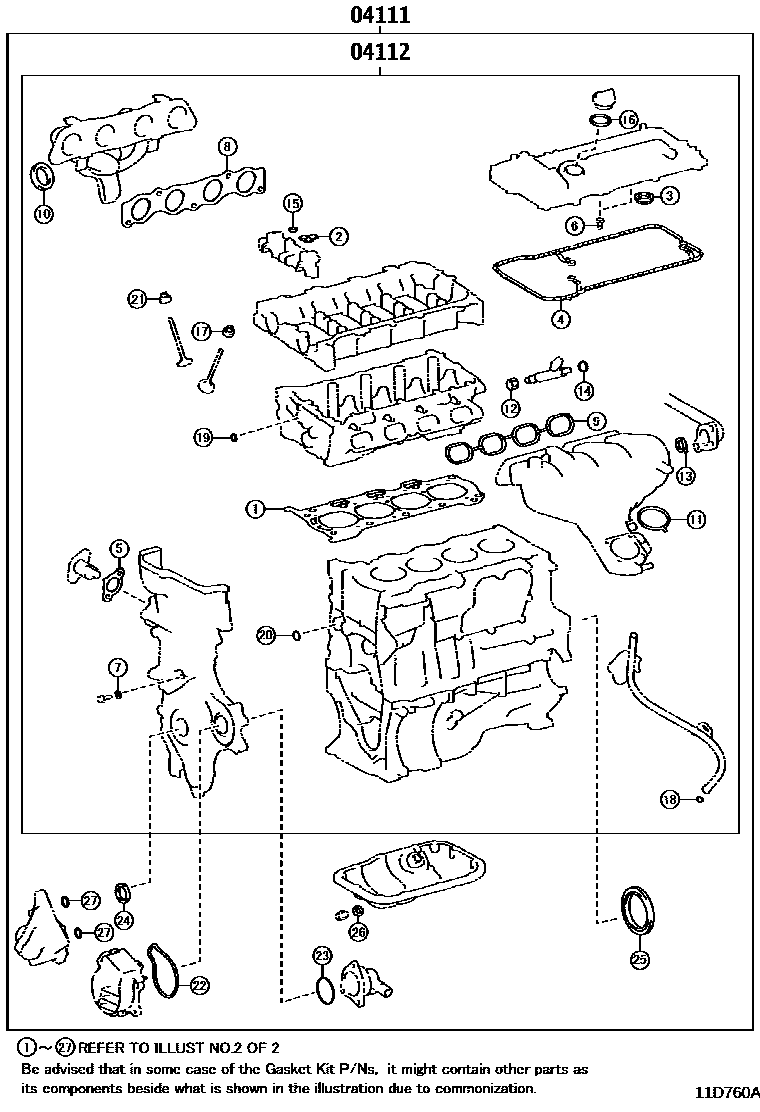

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D760A
Engine Overhaul Gasket Kit — 11D760A (201806 – 999999)

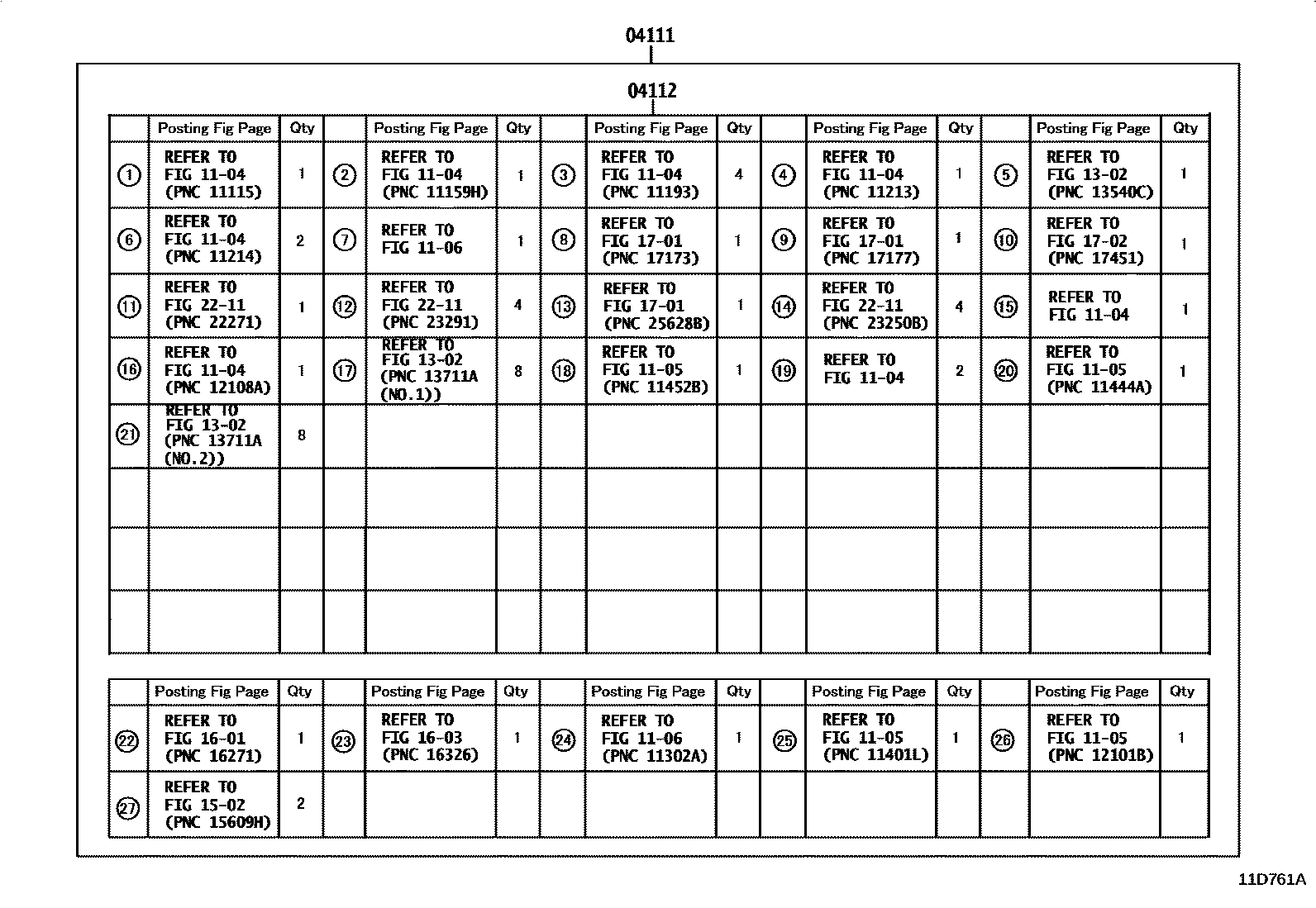

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D761A
Engine Overhaul Gasket Kit — 11D761A (201806 – 999999)

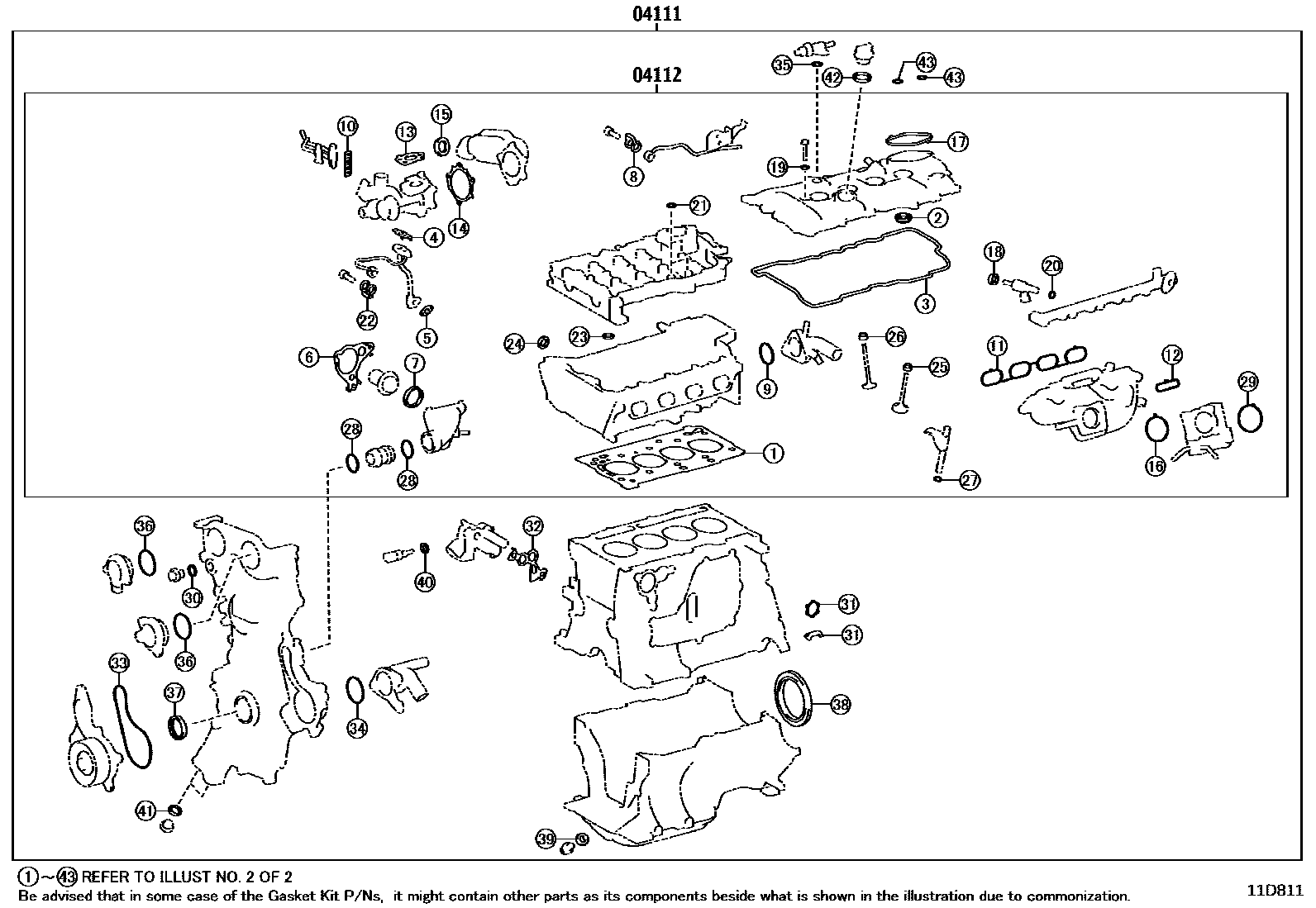

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D811
Engine Overhaul Gasket Kit — 11D811 (201806 – 999999)

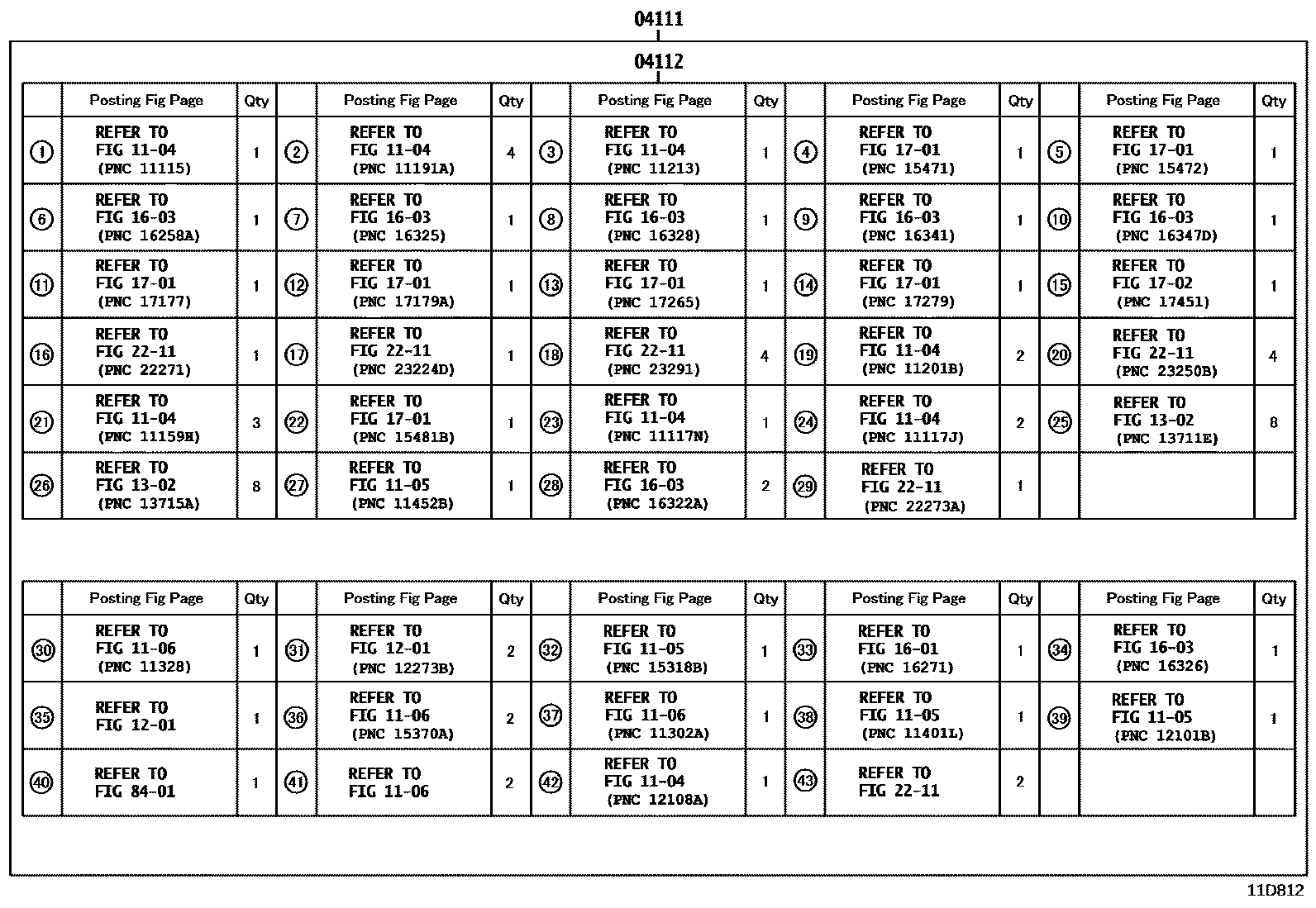

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D812
Engine Overhaul Gasket Kit — 11D812 (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-24110 · 04111-24111 · 04111-24120 · 04111-24121 · 04111-24200 · 04111-37501 · 04111-37560 · 04111-37561 · 04111-47272
04112Engine valve grinding pad assembly04112-24060 · 04112-24061 · 04112-24120 · 04112-37381 · 04112-37400 · 04112-37401 · 04112-47182
