Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

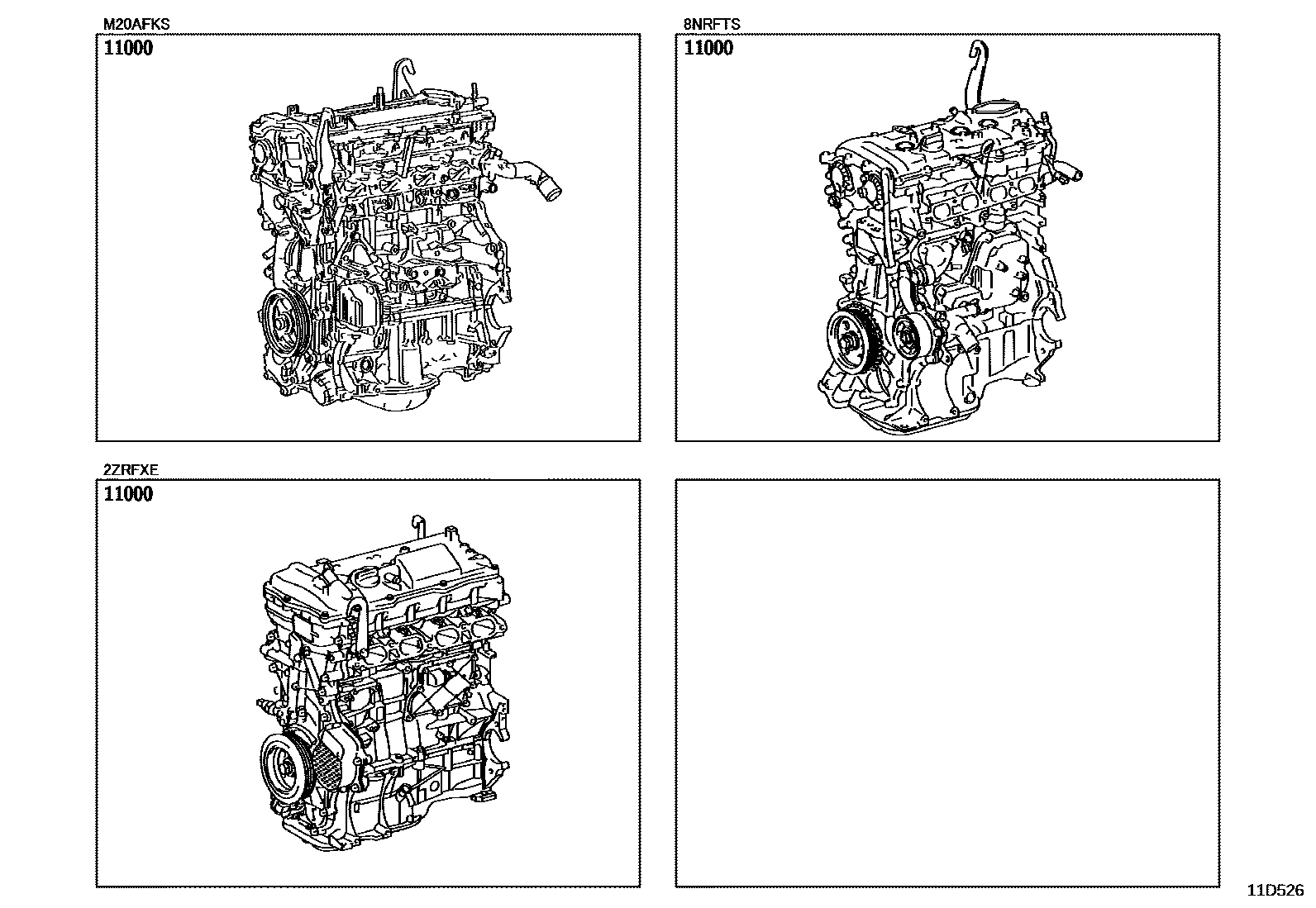

Toyota COROLLA Partial Engine Assembly EPC diagram — 11D526
Partial Engine Assembly — 11D526 (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-24300 · 19000-24310 · 19000-24380 · 19000-24410 · 19000-37800 · 19000-37A70 · 19000-37B00 · 19000-47470
