Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 1 PNC and OE references.

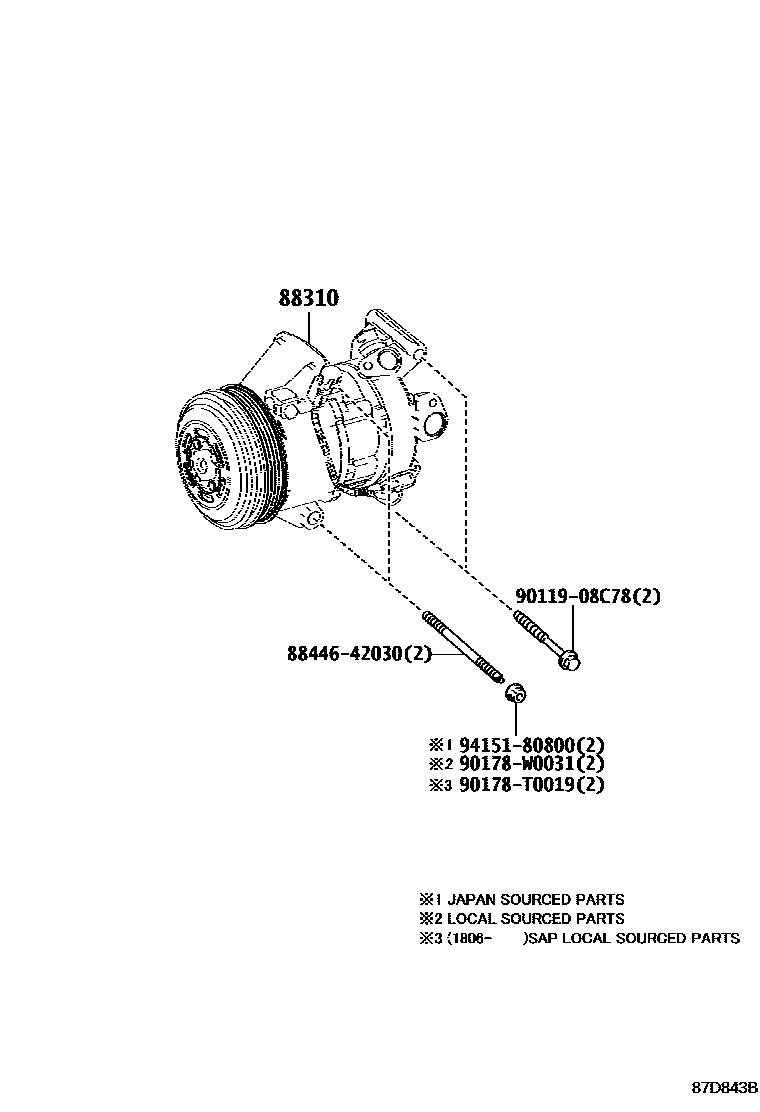

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87D843B — Heating & Air Conditioning - Compressor — 87D843B (201306 – 999999)

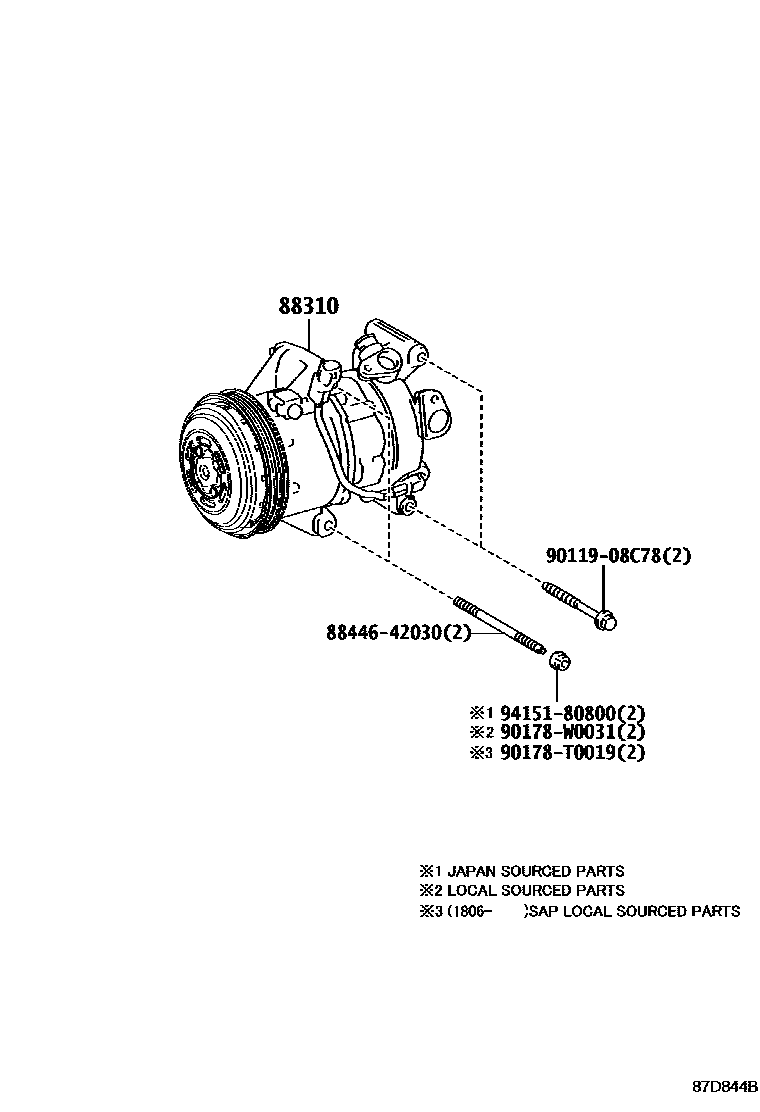

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87D844B — Heating & Air Conditioning - Compressor — 87D844B (201401 – 999999)

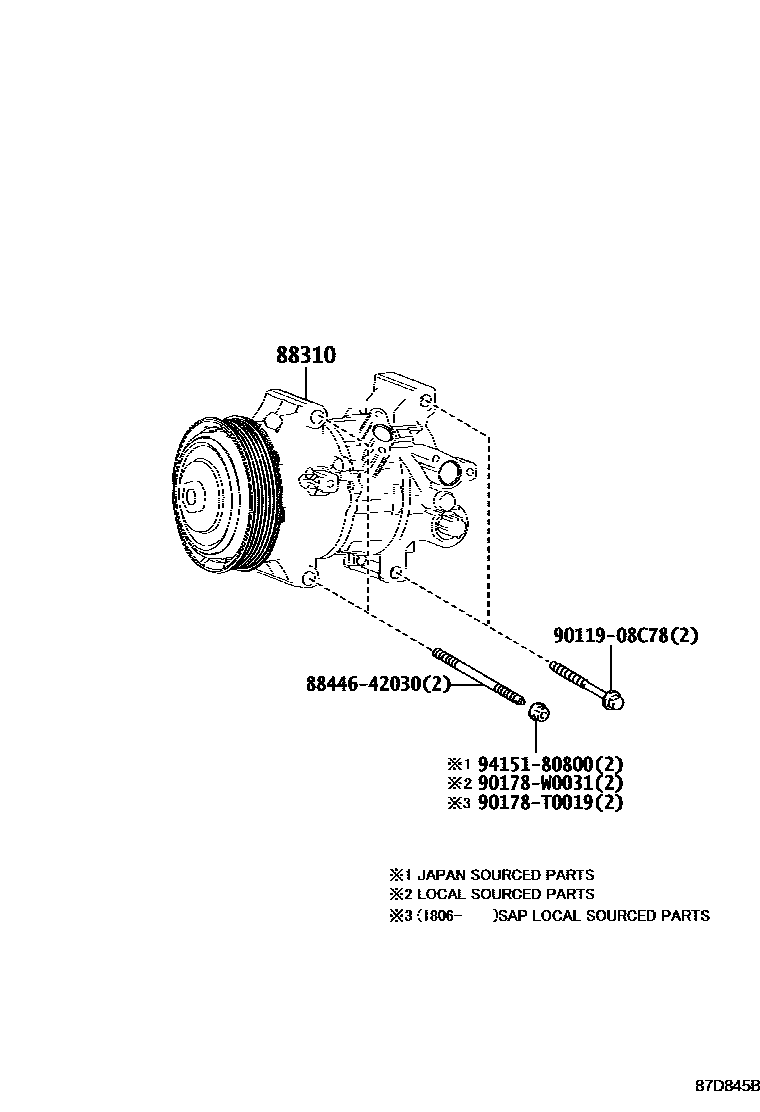

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87D845B — Heating & Air Conditioning - Compressor — 87D845B (201401 – 999999)

PNC and OE references

PNC	Part name	OE numbers
88310	Compressor assembly with pulley	88310-02790 · 88310-02830 · 88310-02840 · 88310-02860 · 88310-02870 · 88310-02880
