Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

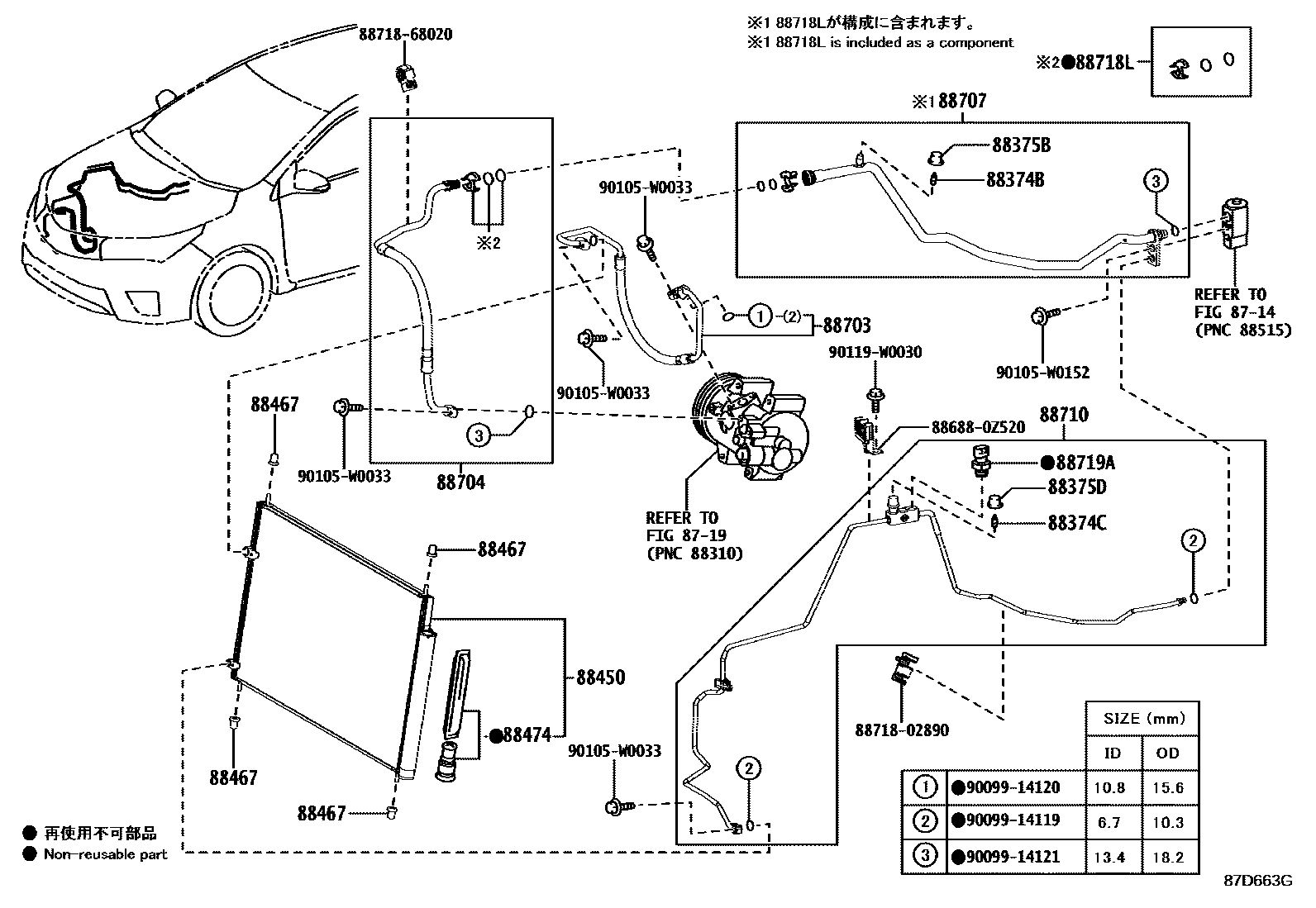

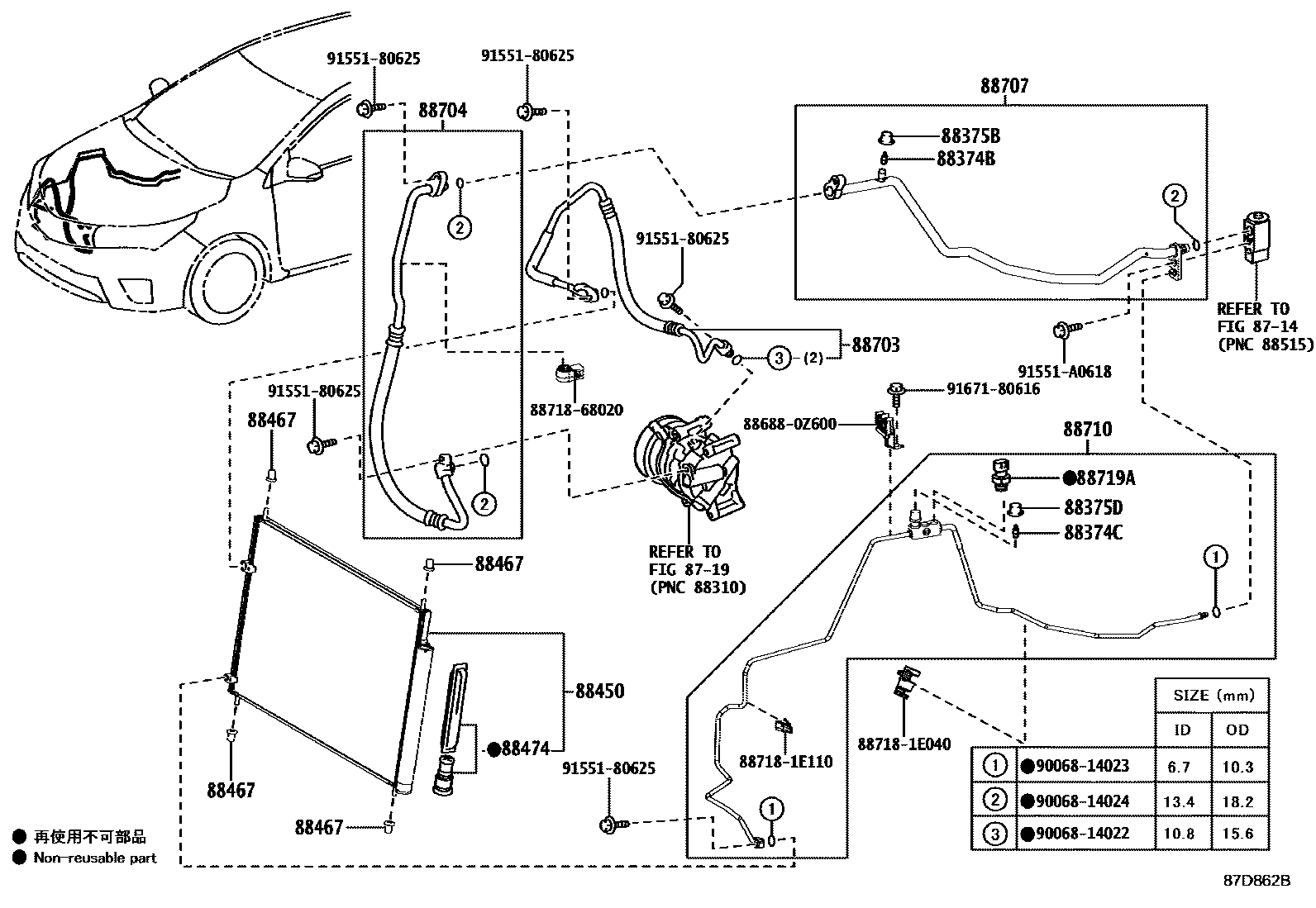

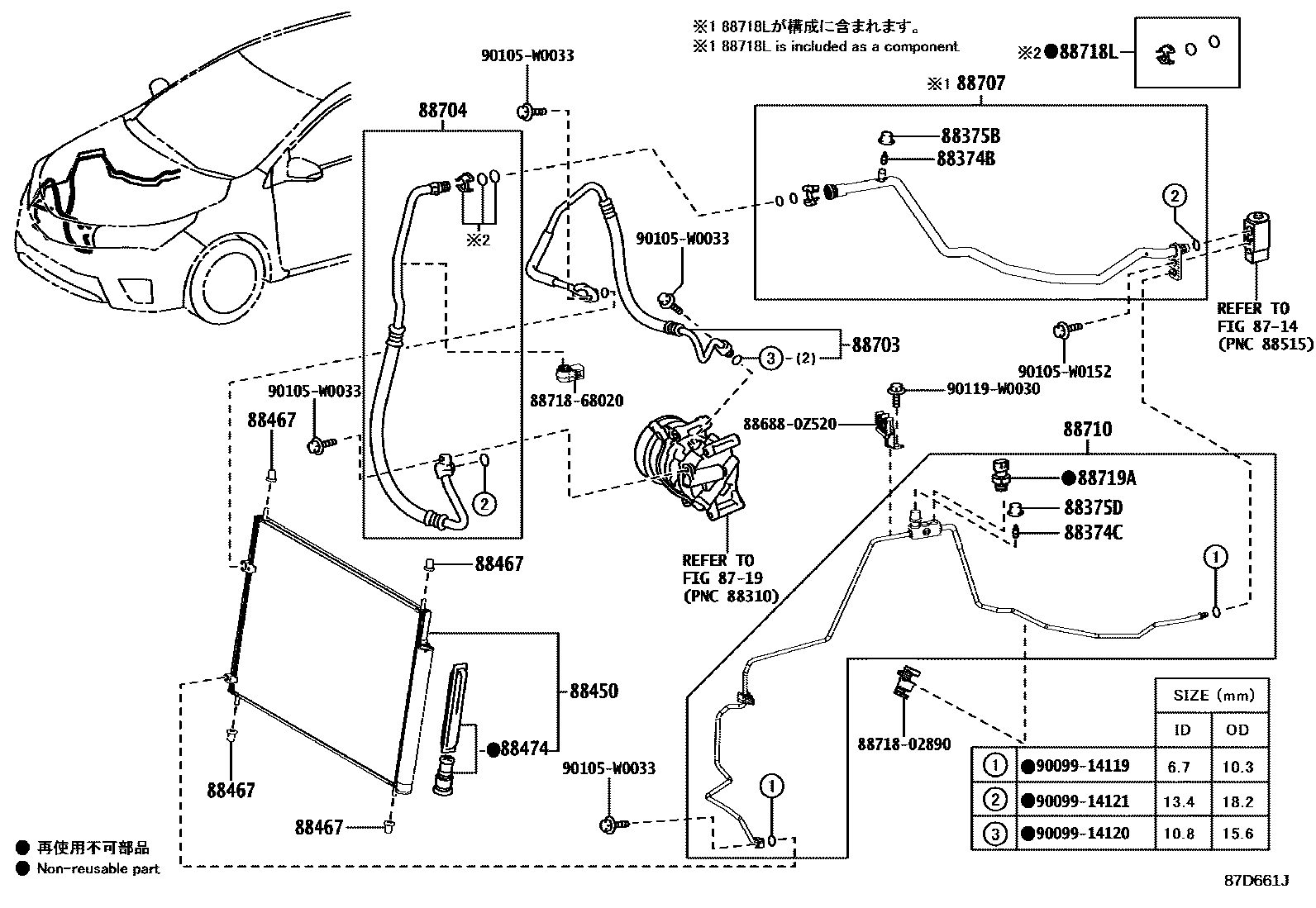

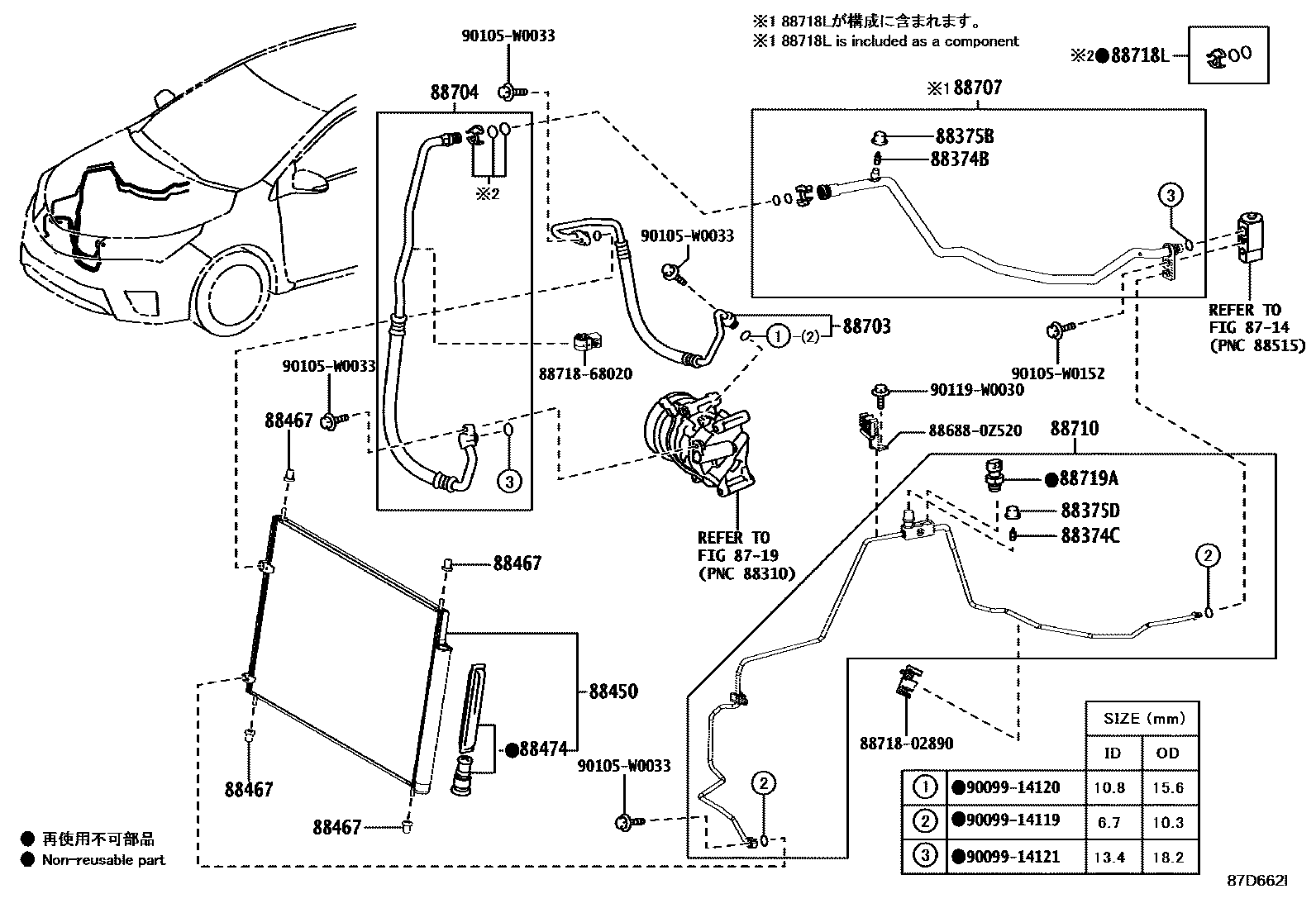

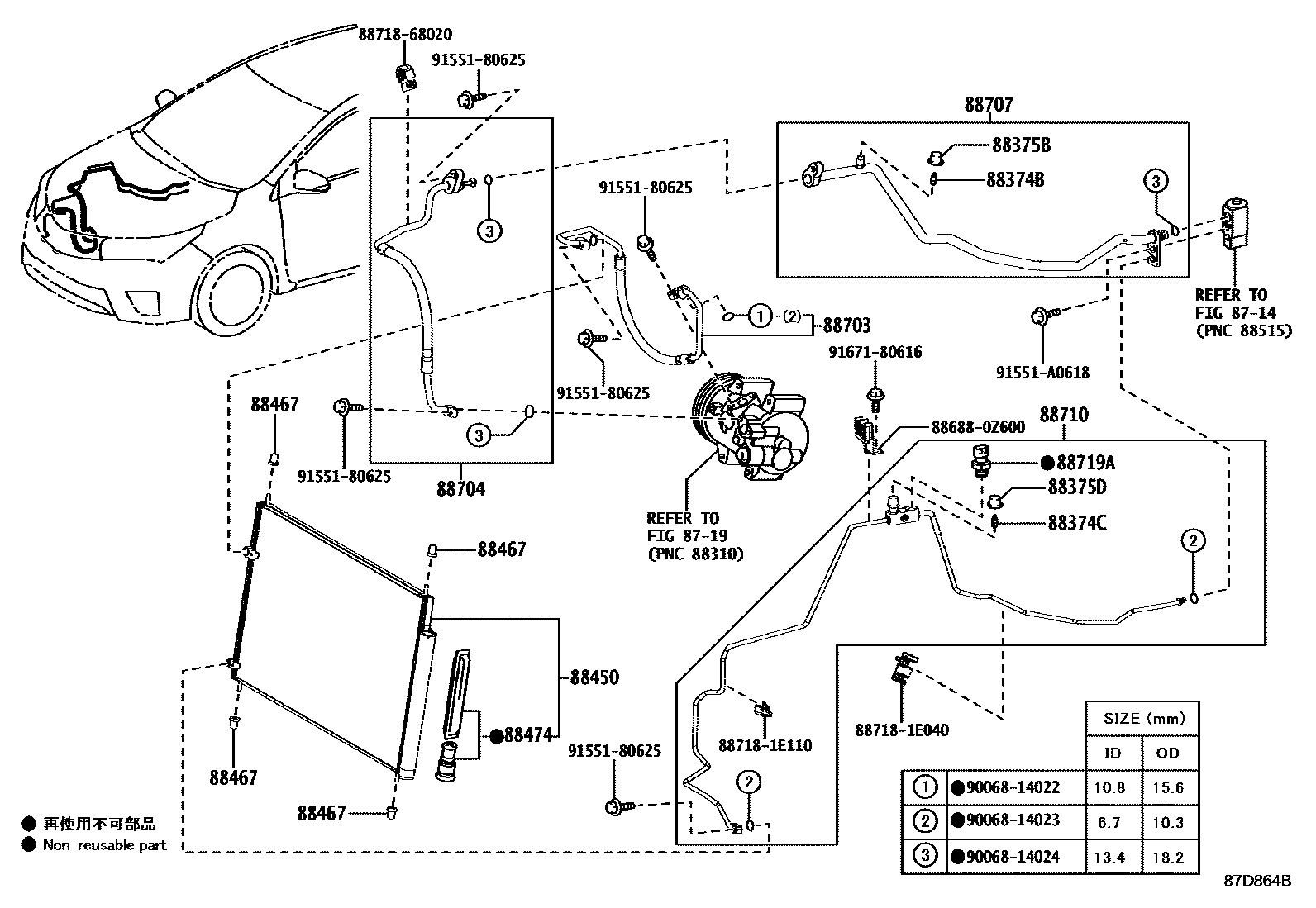

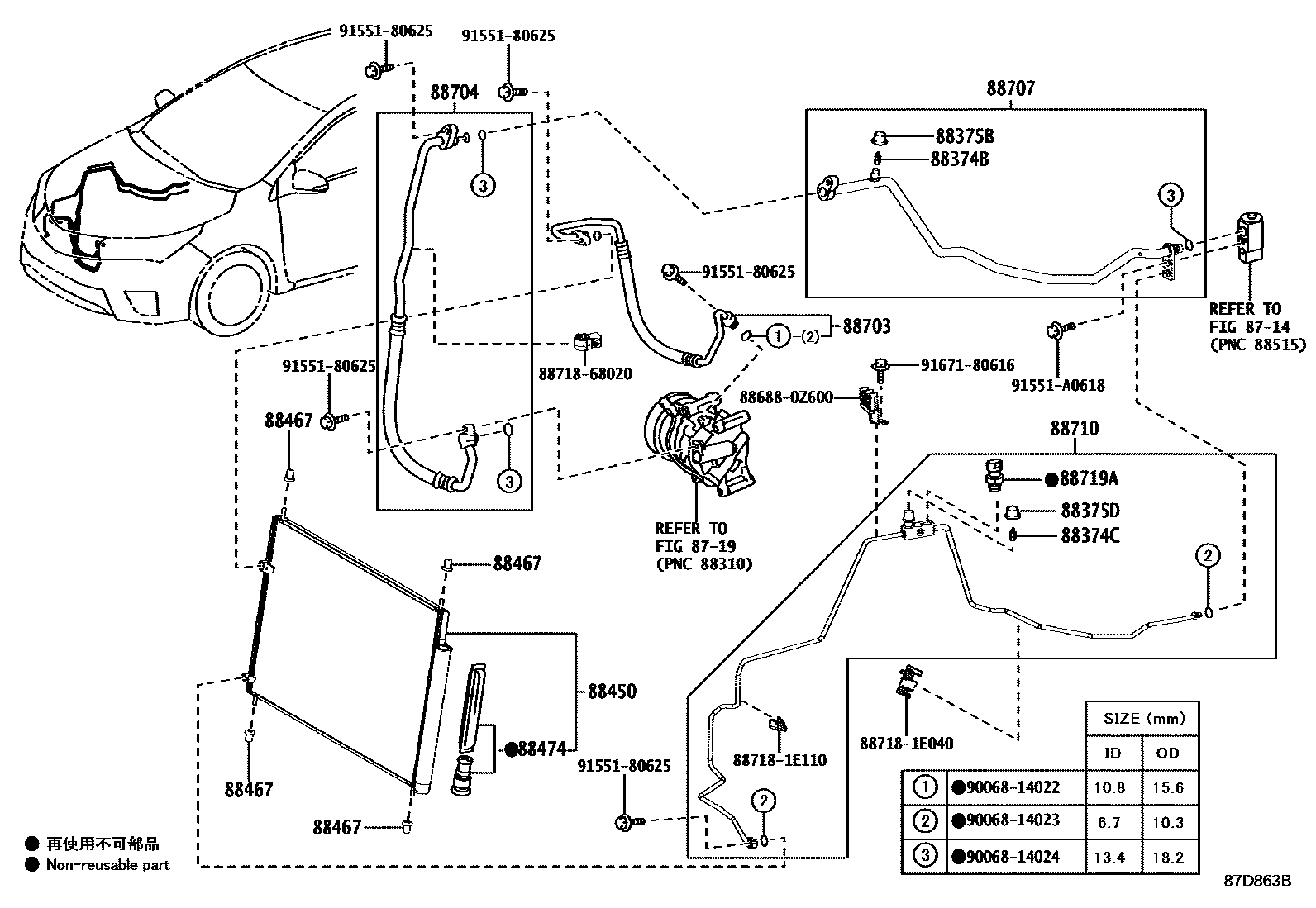

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02020 · 88374-30010 |
| 88374C | Service valve No. 2 | 88374-02020 · 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02140 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02150 · 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02280 · 88450-02300 · 88450-02520 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-02220 · 88474-12010 · 88474-17010 |
| 88703 | Discharge hose sub-assembly | 88703-02870 · 88703-02880 · 88703-02890 · 88703-02C40 · 88703-02C50 · 88703-0Z010 |
| 88704 | Oil suction hose sub-assembly | 88704-0Z130 · 88704-0Z140 · 88704-0Z150 · 88704-0Z190 · 88704-0Z200 · 88704-0Z210 |
| 88707 | Suction pipe sub-assembly | 88707-02200 · 88707-02250 |
| 88710 | Air conditioning pipe assembly | 88710-02A80 · 88710-02C00 · 88710-0Z440 · 88710-0Z480 · 88710-0Z500 |
| 88718L | Pipe clamp | 88718-52260 · 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
