Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

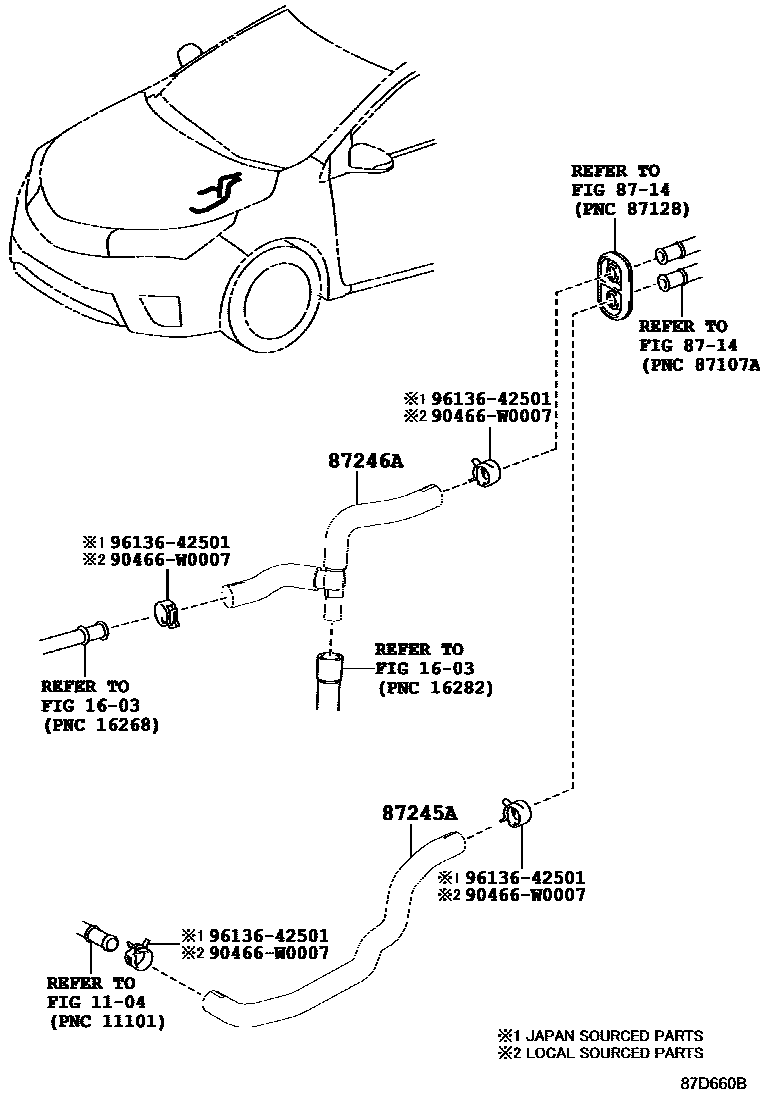

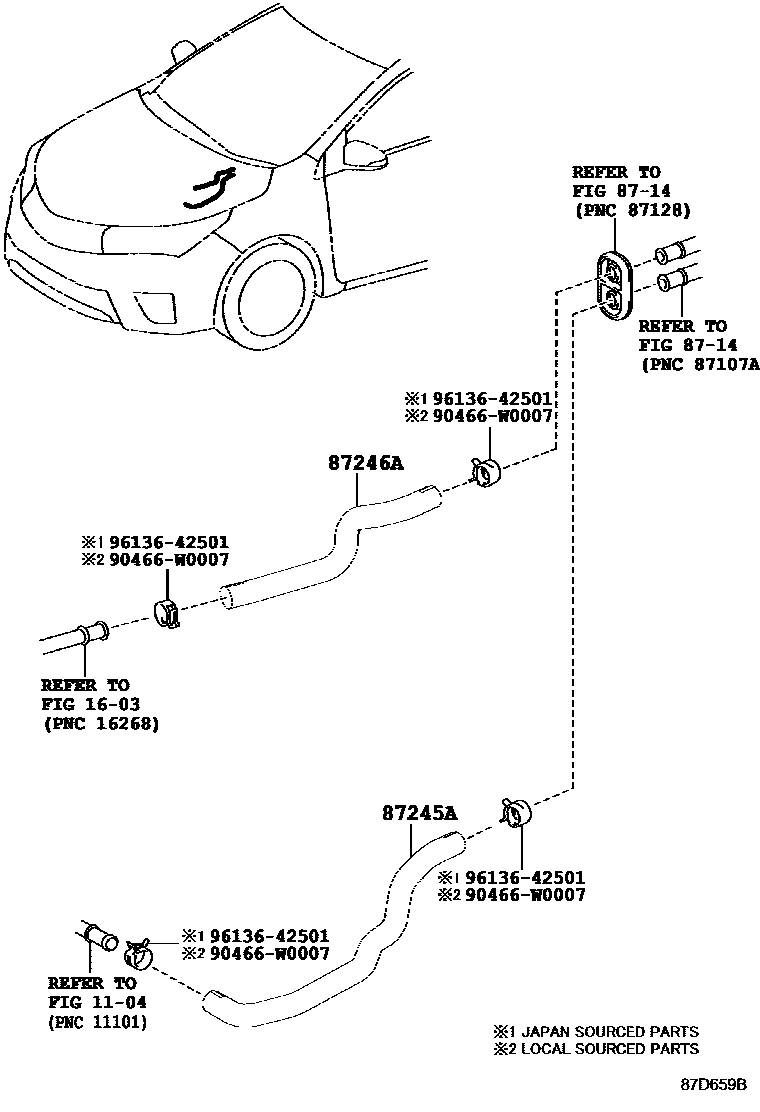

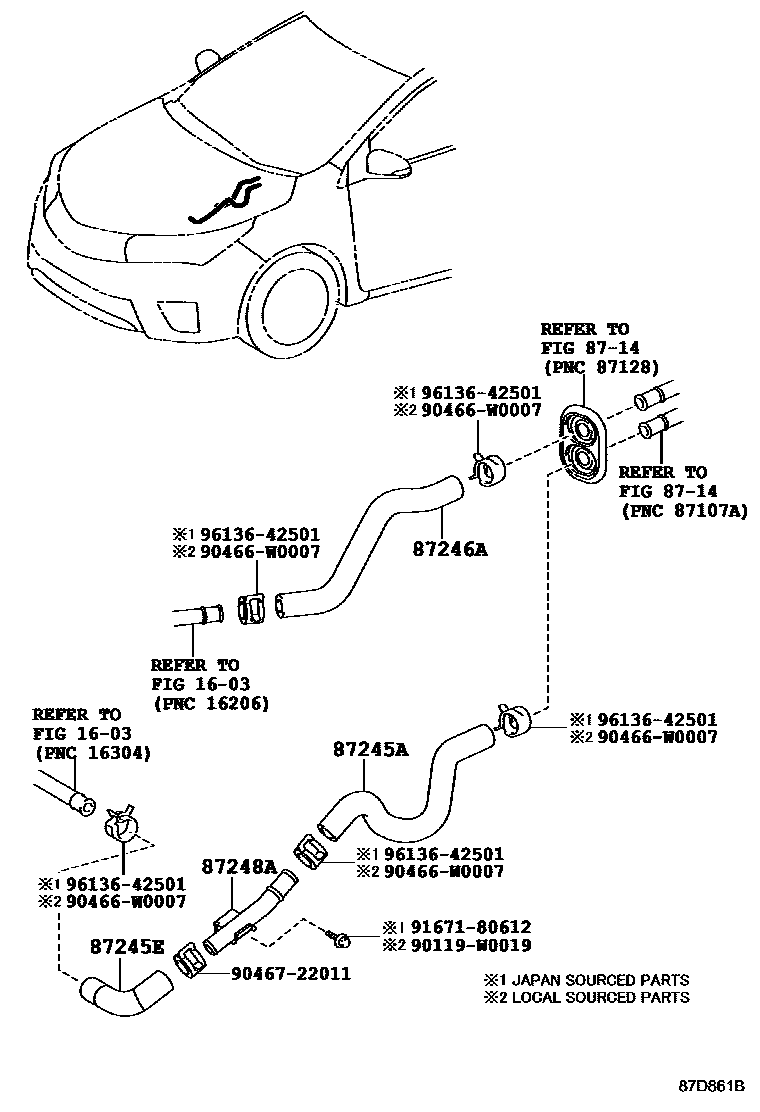

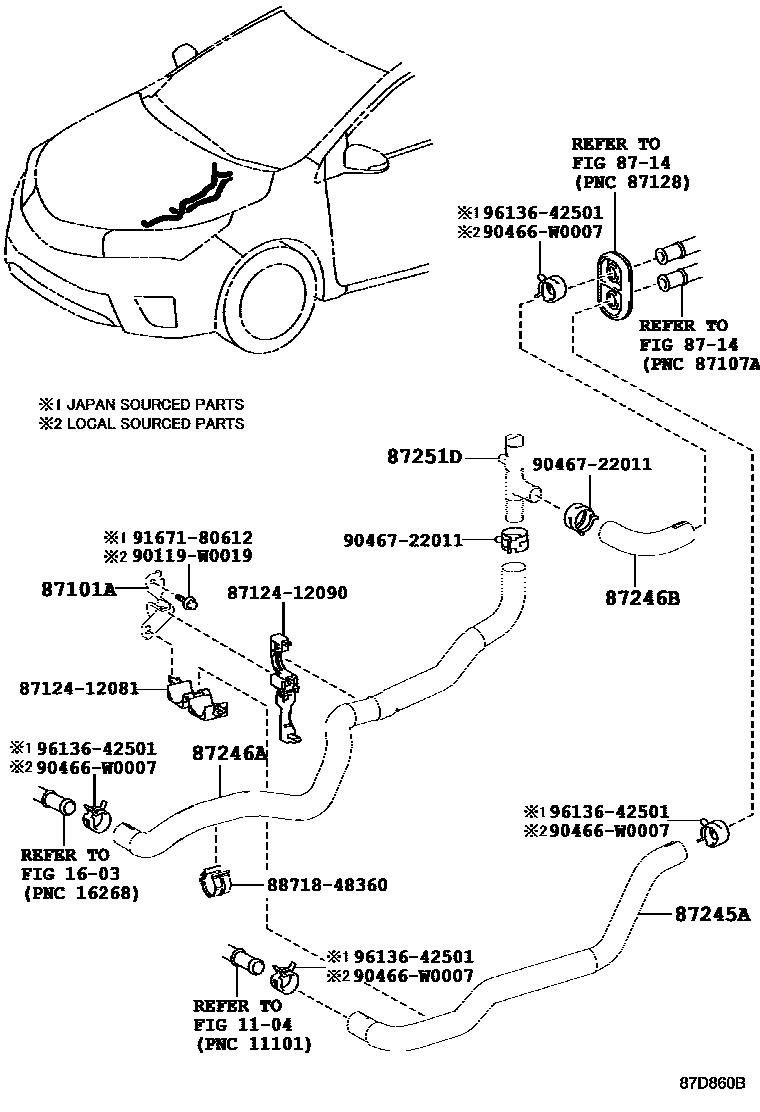

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-02110 |
| 87245A | Heater water inlet hose A | 87245-02640 · 87245-02F10 · 87245-02P00 · 87245-12F10 · 87245-12G10 |
| 87245E | Heater water inlet hose E | 87245-02F00 |
| 87246A | Heater outlet hose A | 87209-05041 · 87245-02870 · 87245-02A20 · 87245-02F90 · 87245-12A10 · 87245-12F70 |
| 87246B | Heater outlet hose B | 87245-02G00 |
| 87248A | Heater water inlet pipe A | 87248-02040 |
| 87251D | No. 1 water hose connector | 87251-12040 |
