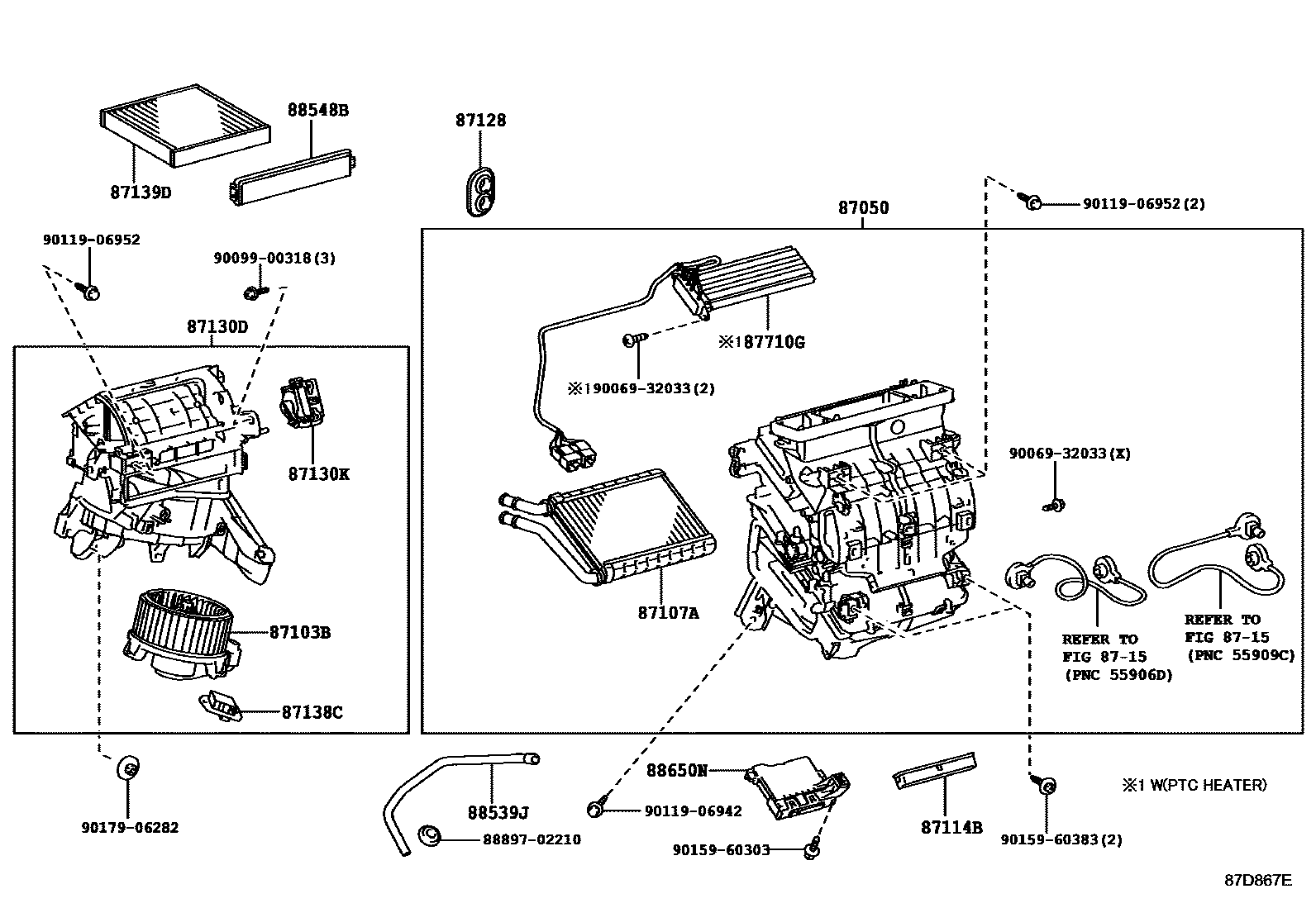

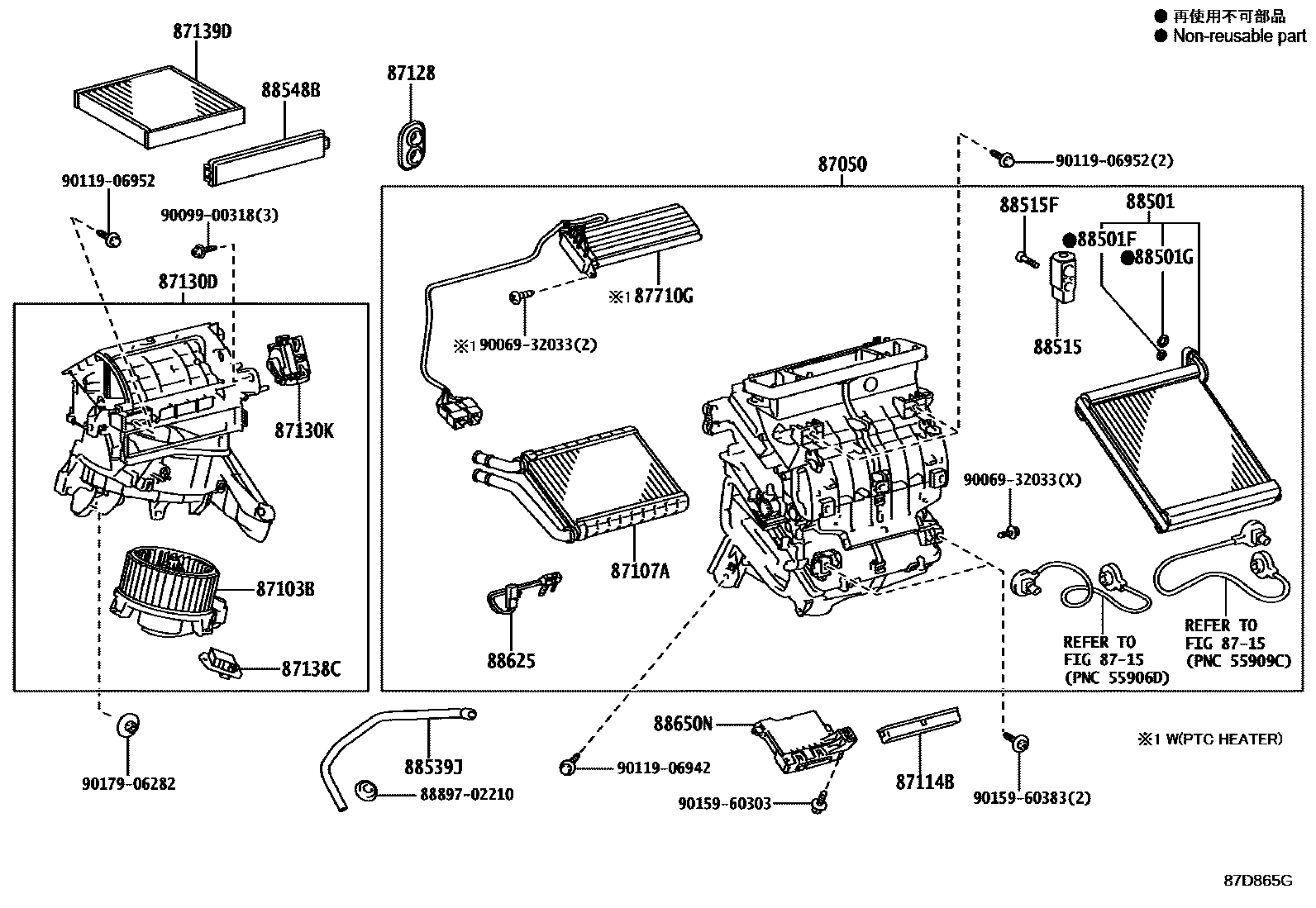

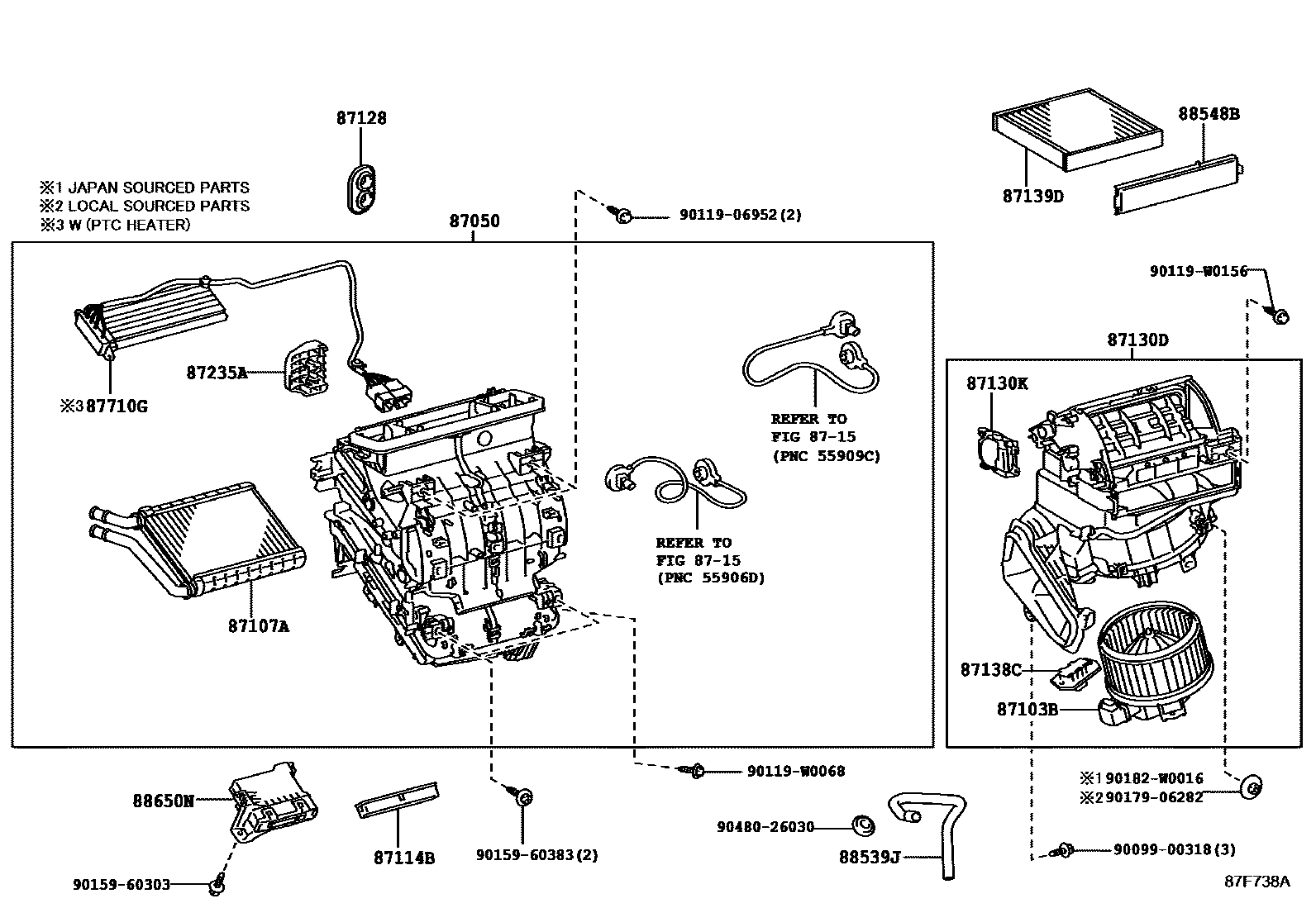

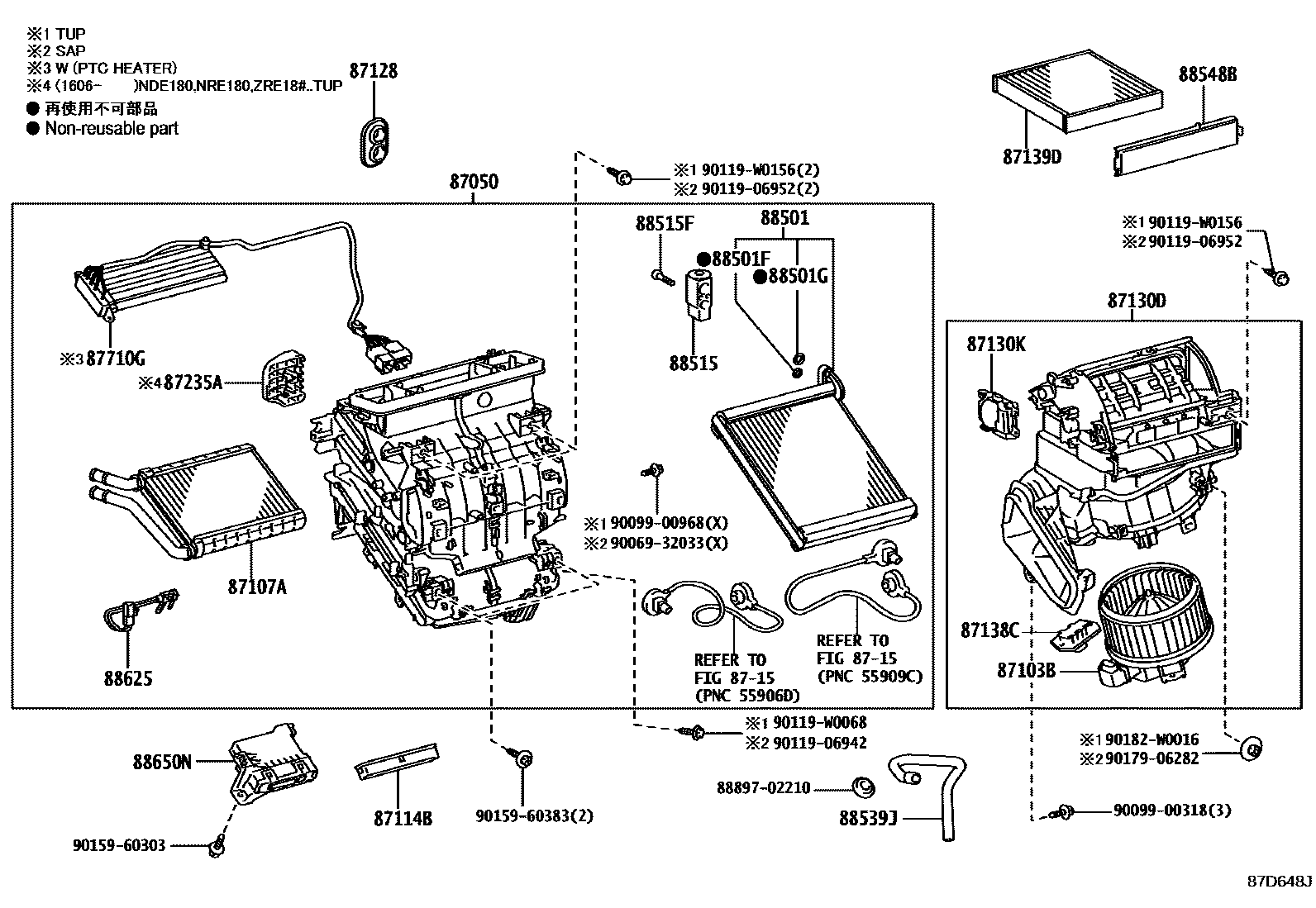

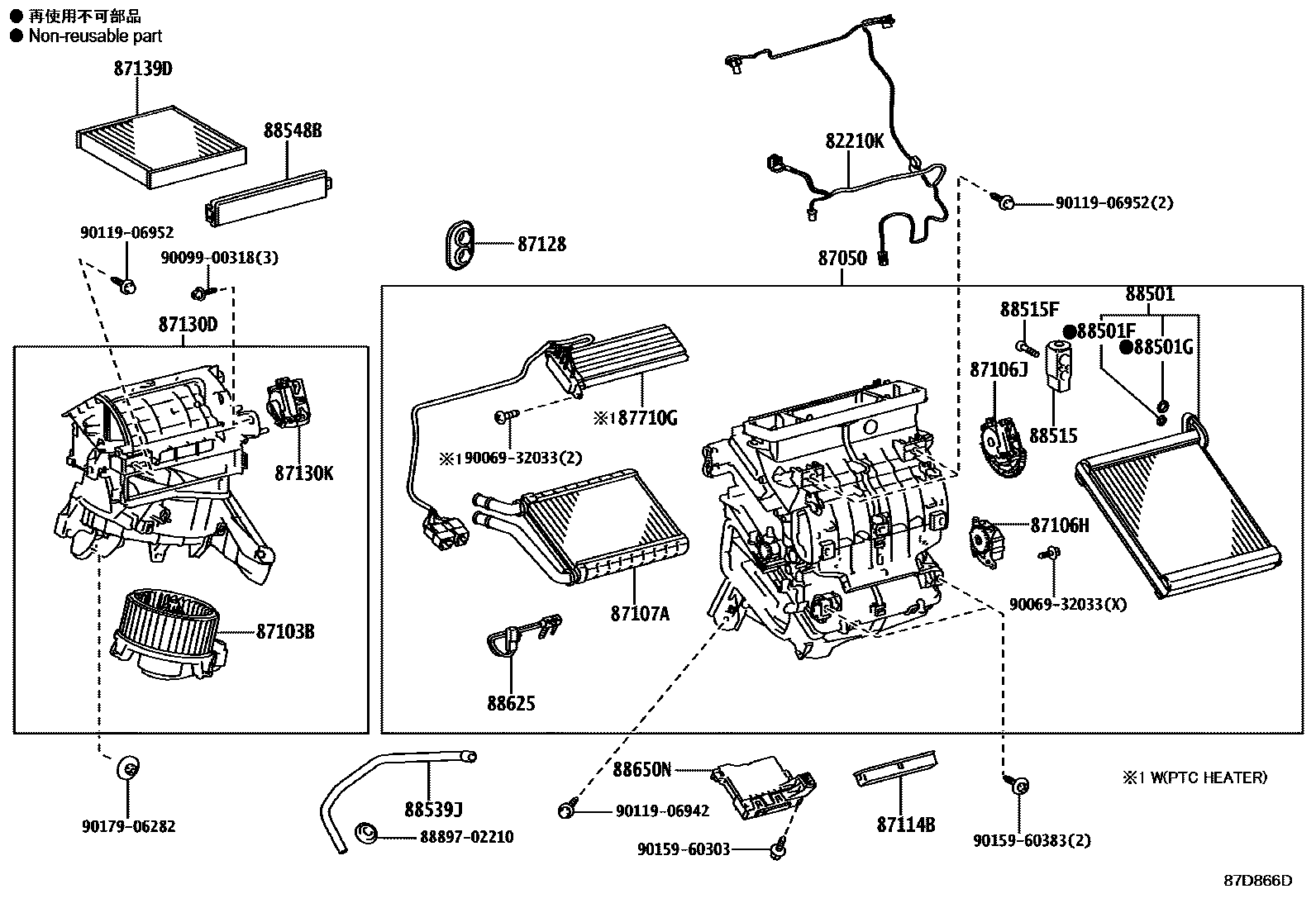

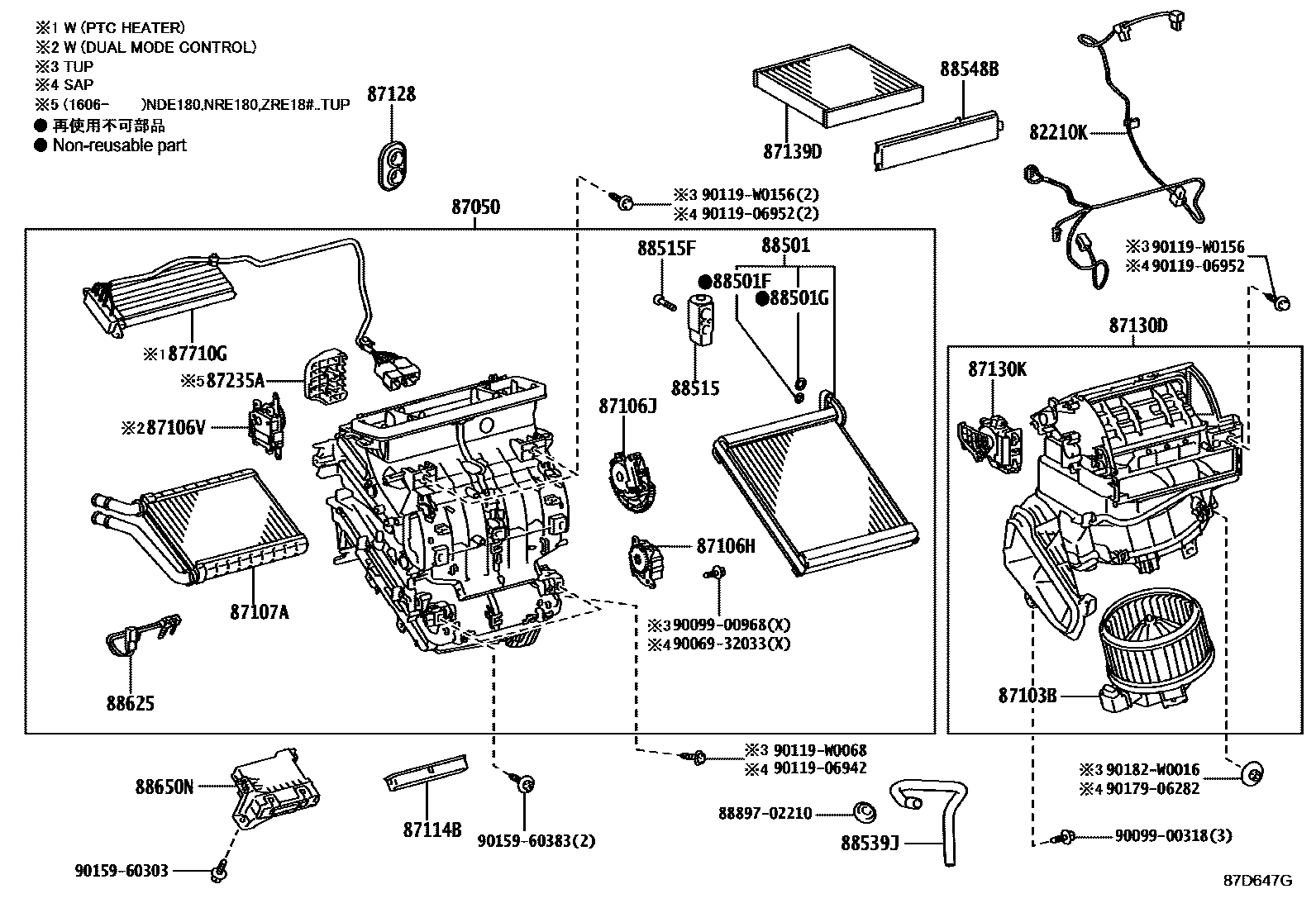

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02010 · 82212-02050 · 82212-02060 |
| 87050 | Air conditioning radiator assembly | 87050-02790 · 87050-02791 · 87050-02800 · 87050-02A11 · 87050-02A30 · 87050-02A50 · 87050-02A70 · 87050-02A90 · 87050-02B10 · 87050-02D91 · 87050-02E00 · 87050-02E10 · 87050-02G70 · 87050-05790 · 87050-05820 · 87050-0F330 |
| 87103B | Blower motor sub-assembly with fan | 87103-02140 · 87103-02150 · 87103-02300 · 87103-02310 · 87103-02460 · 87103-02470 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02270 · 87106-02360 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02140 · 87106-02370 |
| 87106V | Damper servo mechanism sub-assembly (for No. 2 air mixing) | 87106-02280 |
| 87107A | Heater radiator device sub-assembly | 87107-02150 · 87107-02210 |
| 87114B | heater cover | 87114-02010 · 87114-0K010 |
| 87128 | heater seal | 87128-02010 · 87128-02140 · 87128-42010 |
| 87130D | Blower assembly | 87130-02291 · 87130-02301 · 87130-02311 · 87130-02321 · 87130-02392 · 87130-02402 · 87130-02411 · 87130-02421 · 87130-02432 · 87130-02451 · 87130-02890 · 87130-02A00 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02180 · 87106-02260 · 87106-02350 · 87106-02380 · 87106-02390 · 87106-02400 |
| 87138C | Blower resistor | 87138-02100 · 87138-0K090 · 87138-0K110 |
| 87139D | Air fine filter element | 87139-0D070 · 87139-50100 · 87139-52040 |
| 87235A | Heater cover bracket | 87235-05010 |
| 87710G | Rapid heater assembly | 87710-02070 · 87710-0K040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02202 · 88501-12510 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90068-14022 · 90068-14037 · 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90068-14024 · 90068-14038 · 90099-14121 |
| 88515 | Cooler expansion valve | 88515-02520 · 88515-02600 · 88515-68010 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04542 · 90099-04597 |
| 88539J | Cooler drain hose | 88539-02260 · 88539-02280 · 88539-02290 |
| 88548B | air filter housing | 88548-02070 · 88548-02080 · 88548-02090 |
| 88625 | Cooler No. 1 Thermistor | 88625-02110 |
| 88650N | Air conditioning amplifier assembly | 88650-02B50 · 88650-02D70 · 88650-02D80 · 88650-02D81 · 88650-02E20 · 88650-02E30 · 88650-02F30 · 88650-02F31 · 88650-02F40 · 88650-02F41 · 88650-02F50 · 88650-02F51 · 88650-02F60 · 88650-02F61 · 88650-0D360 |
