Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 3 PNC and OE references.

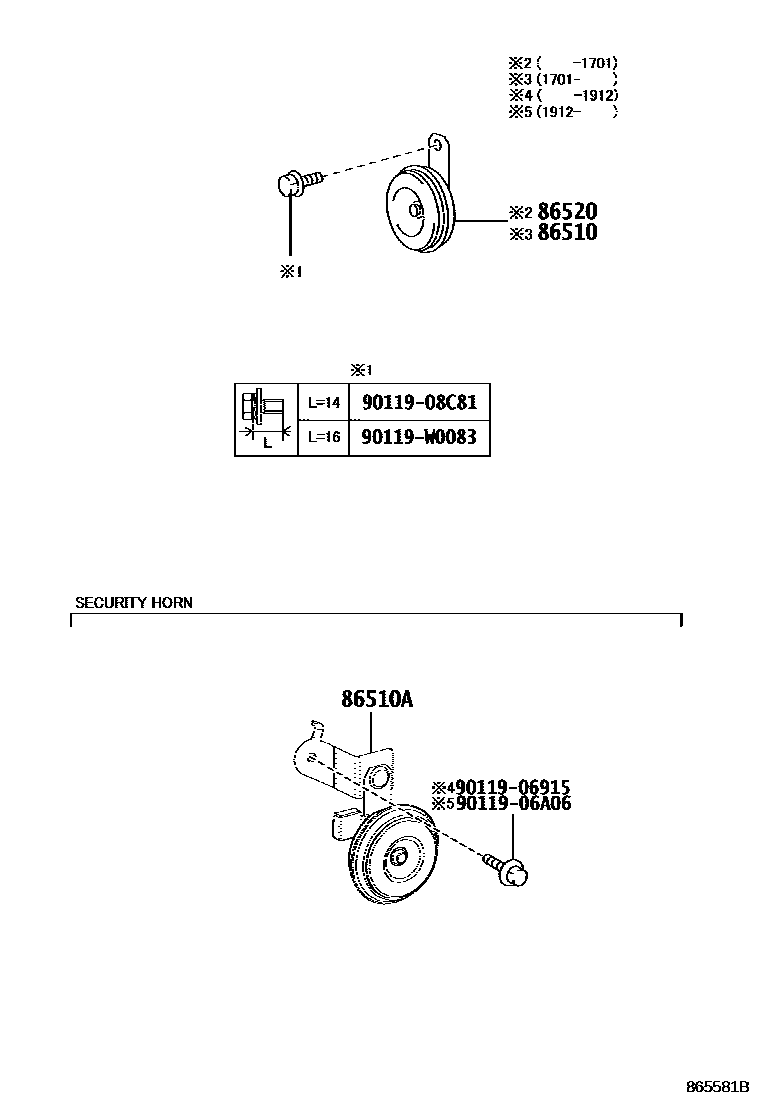

Toyota COROLLA 喇叭 EPC diagram — 865581B
喇叭 — 865581B (201306 – 999999)

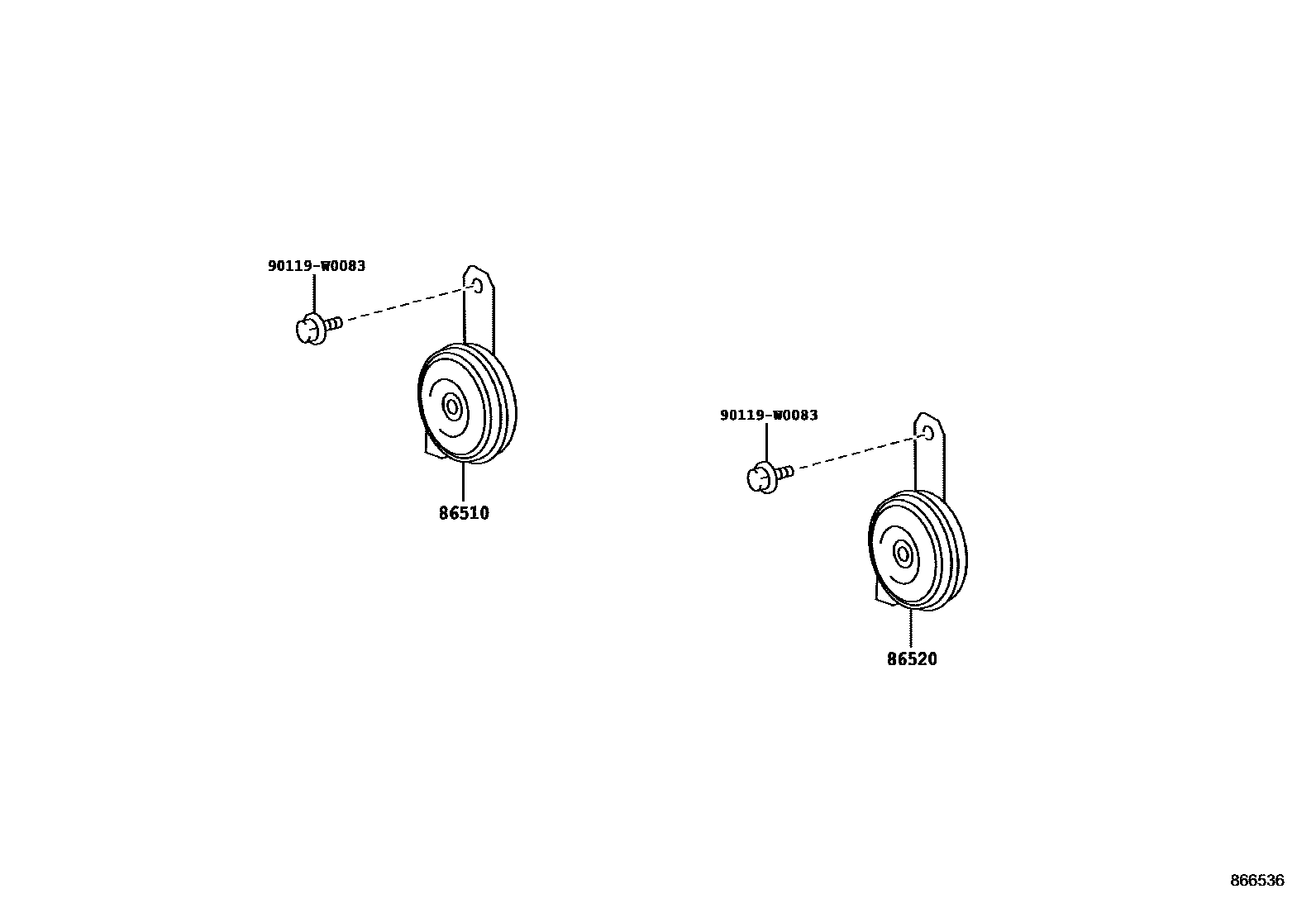

Toyota COROLLA 喇叭 EPC diagram — 866536
喇叭 — 866536 (201606 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-02130 · 86510-02150 · 86510-12610 · 86510-12670 · 86510-42090
86510AAlarm horn assembly86560-12060
86520Subwoofer assembly86520-02140 · 86520-06100 · 86520-33150
