Toyota COROLLA 导航和前监视器显示屏 — Figure 8603

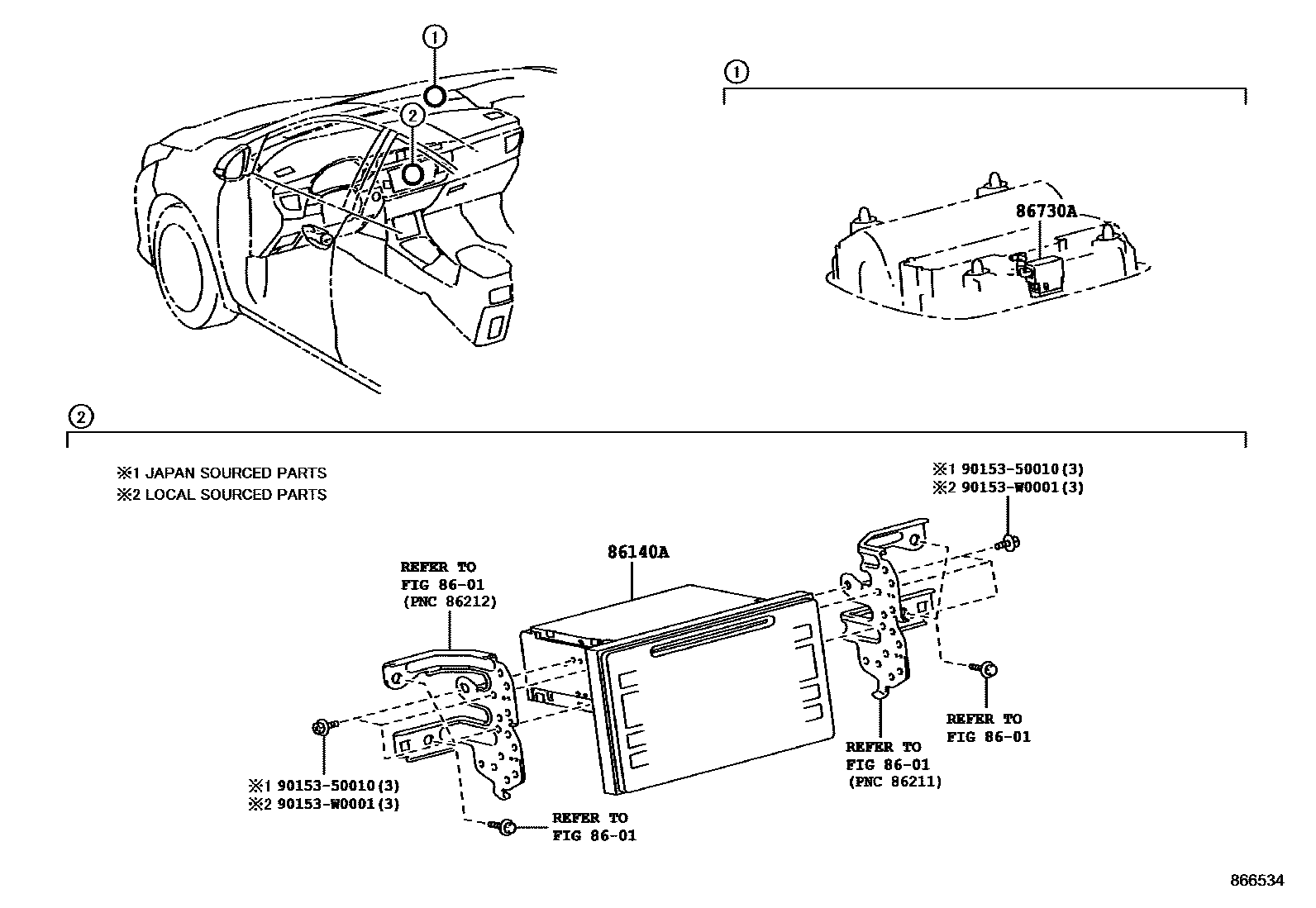

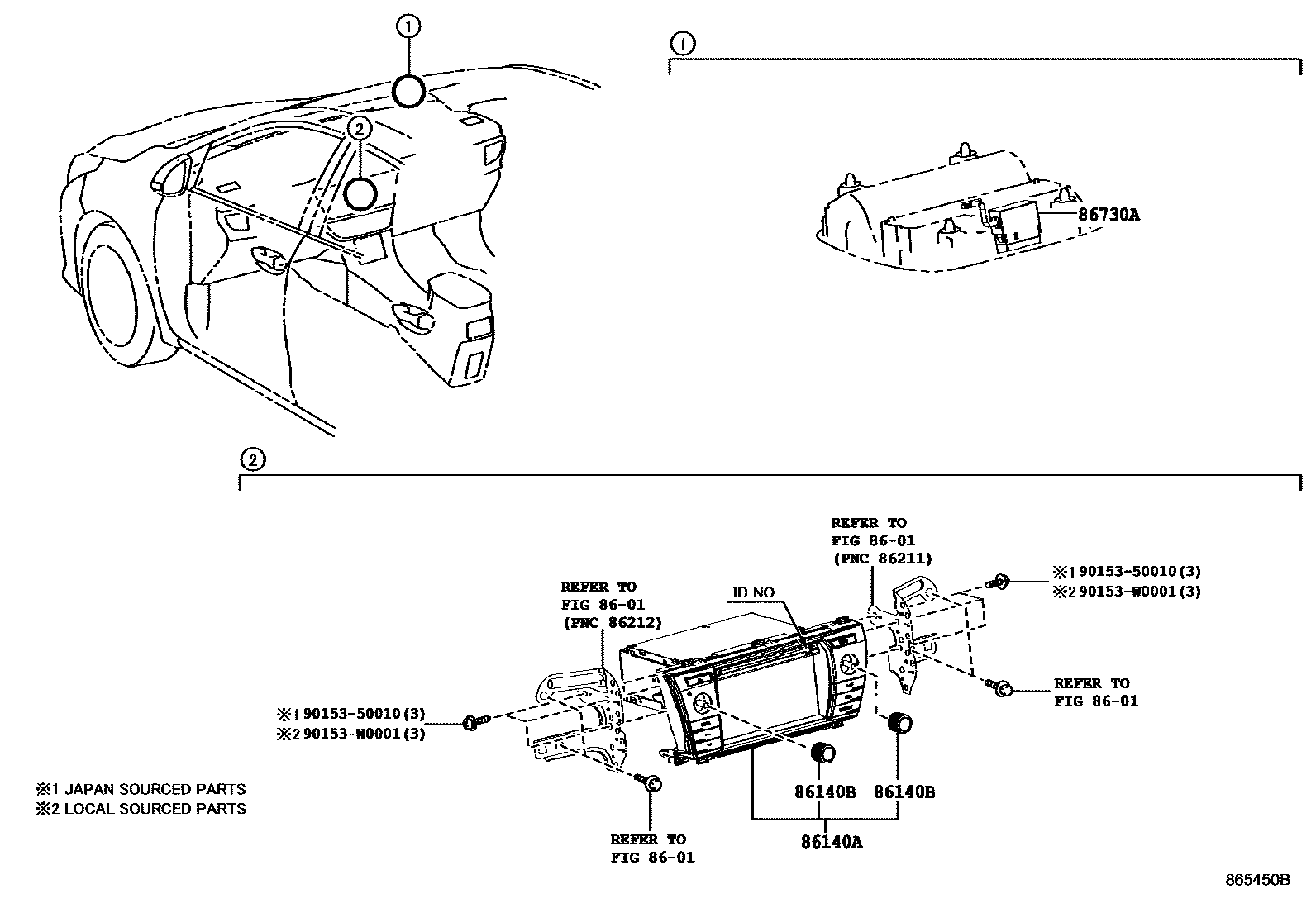

Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-02080 · 86140-02220 · 86140-02250 · 86140-02260 · 86140-02270 · 86140-02430 · 86140-02440 · 86140-02450 · 86140-02480 · 86140-02490 · 86140-02491 · 86140-02492 · 86140-02500 · 86140-12100 |
| 86140B | Radio and display receiver switch button | 90011-25215 · 90011-25256 · 90011-25257 |
| 86730A | Telephone amplifier assembly | 86730-02010 · 86730-02020 |
