Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601

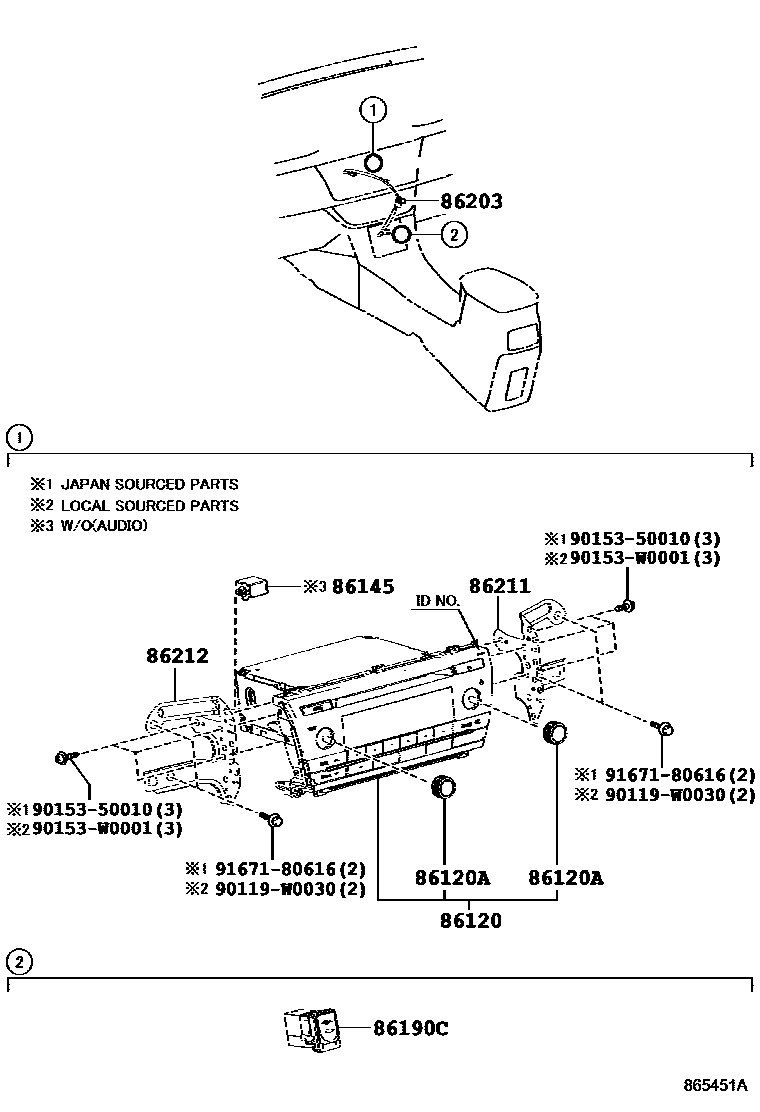

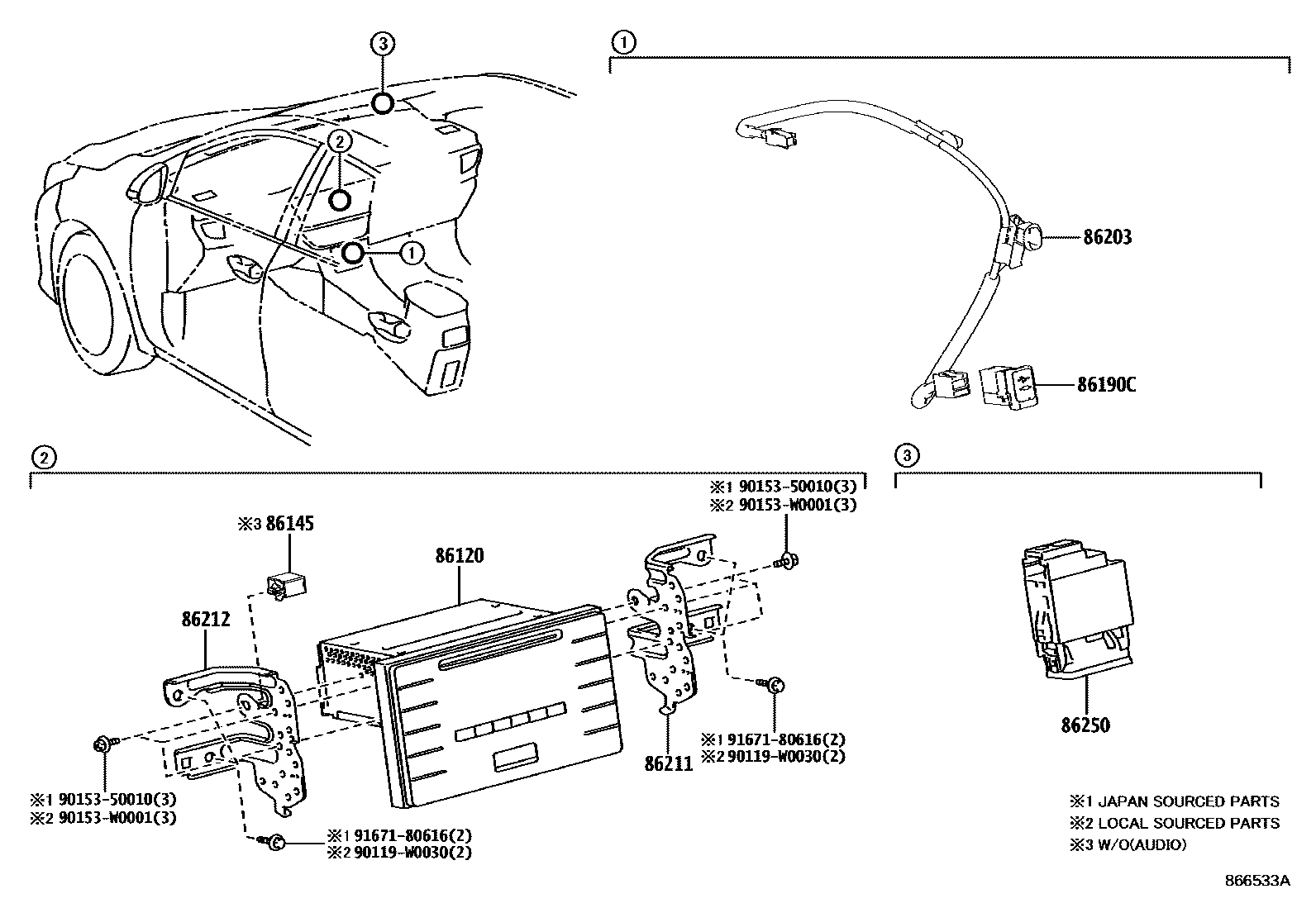

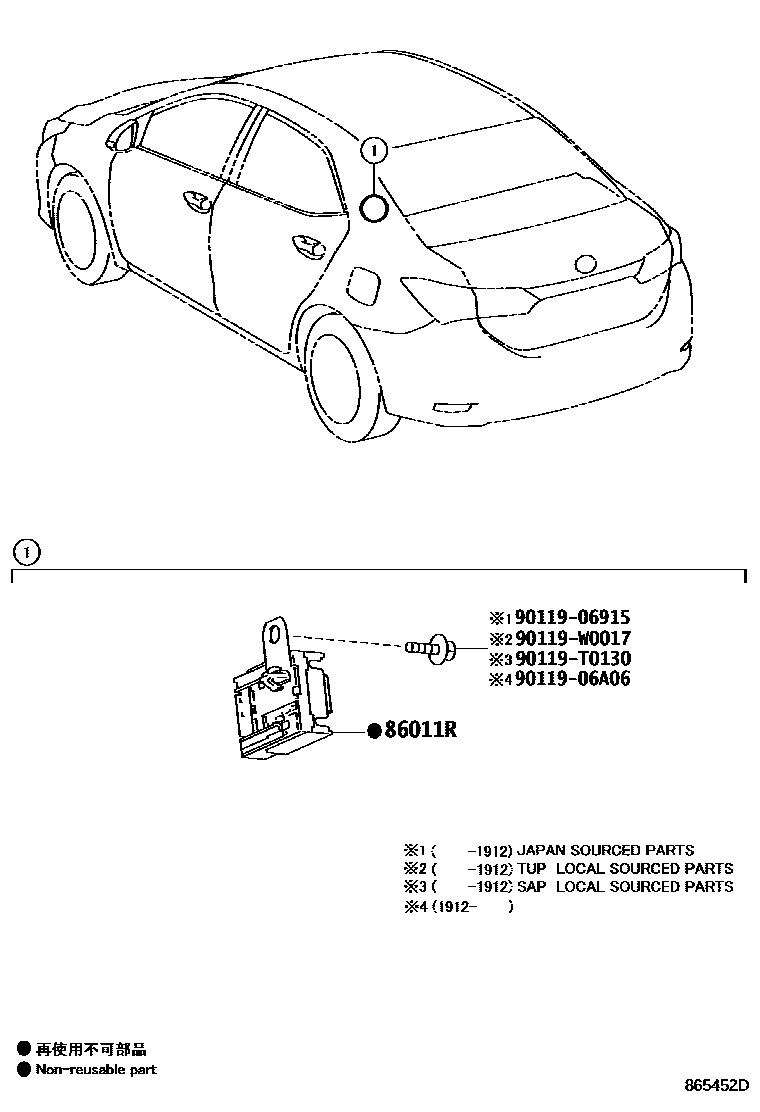

Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011R | radio settings phase modulator | 90980-04204 |
| 86120 | Radio assembly | 86120-02F20 · 86120-02F21 · 86120-02F70 · 86120-02F80 · 86120-02G00 · 86120-02G11 · 86120-02J30 · 86120-02J40 · 86120-02J80 · 86120-02J81 · 86120-02J90 · 86120-02J91 · 86120-02K00 · 86120-02K01 |
| 86120A | Radio switch knob | 90011-25214 |
| 86145 | Antenna connector | 86145-52010 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-0D030 |
| 86203 | radio wiring harness | 86203-12500 |
| 86211 | No. 1 radio bracket | 86211-02300 · 86211-02440 |
| 86212 | No. 2 radio bracket | 86212-02290 · 86212-02430 |
| 86250 | amplifier loudspeaker assembly | 86250-52040 · 86250-52050 |
