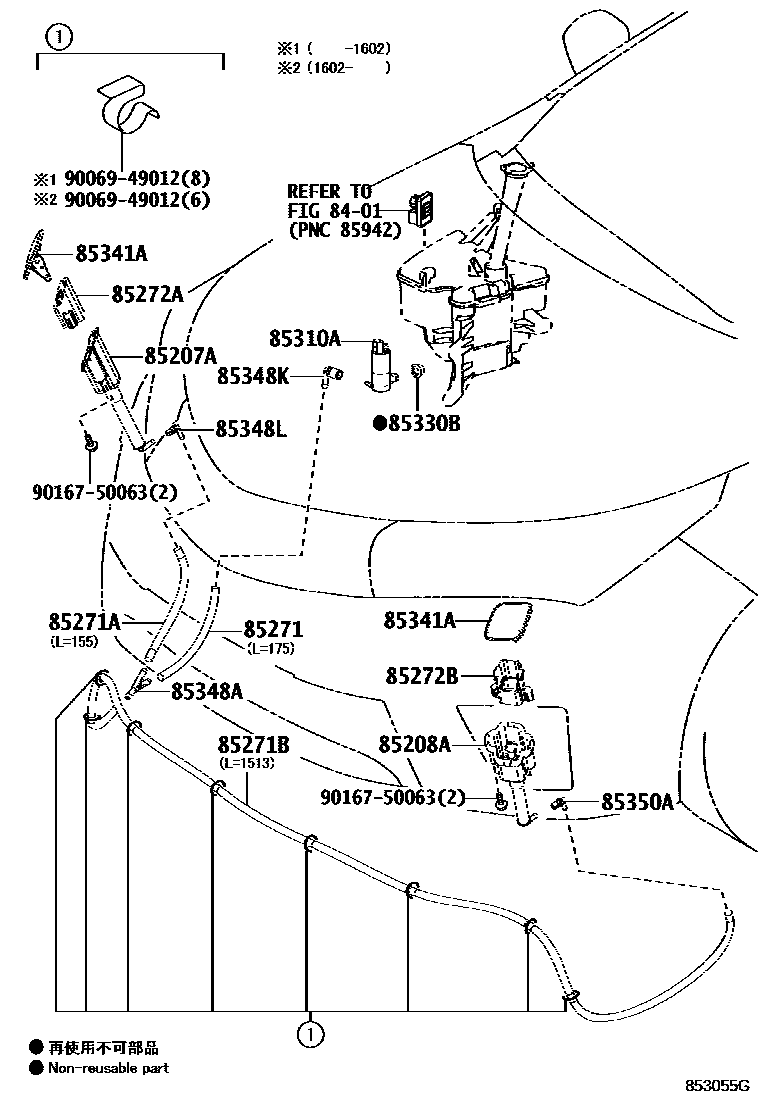

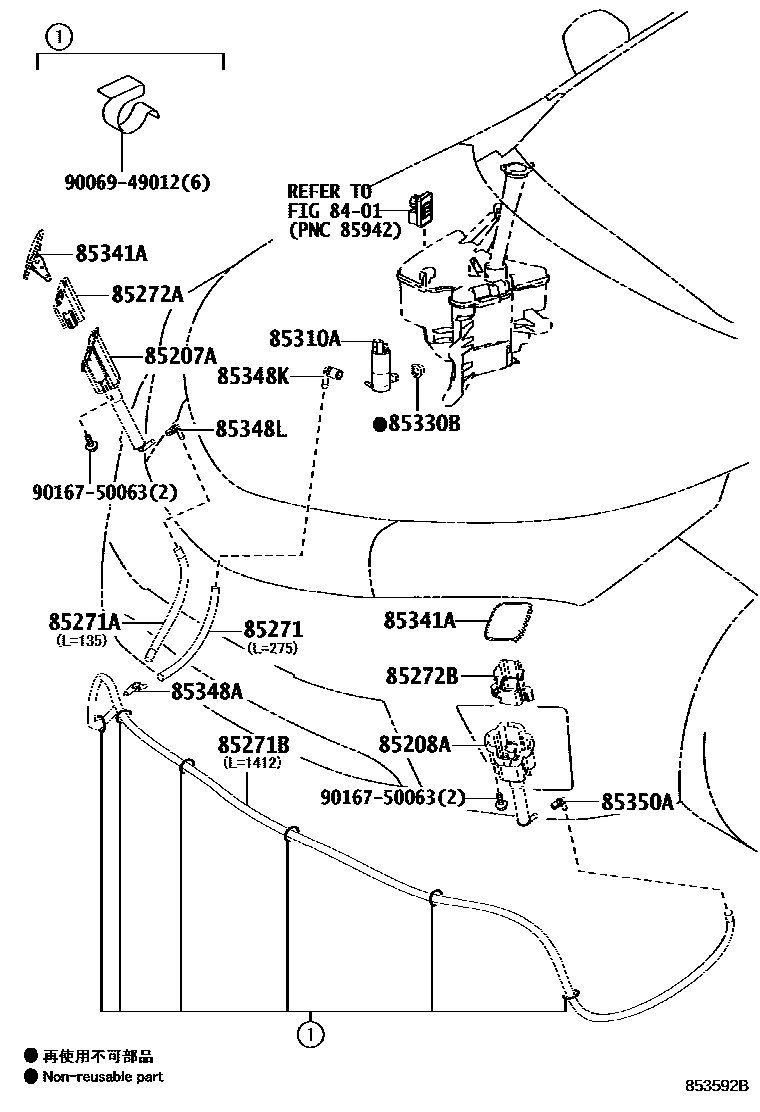

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-02140 · 85207-02180 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-02140 · 85208-02180 |
| 85271 | No. 1 headlight washer hose | 85271-0W050 |
| 85271A | No. 2 headlight washer hose | 85271-0W050 |
| 85271B | No. 3 headlight washer hose | 85271-0W060 |
| 85272A | Headlight washer No. 1 clip | 85272-02080 · 85272-02100 |
| 85272B | Headlight washer clip No. 2 | 85273-02080 · 85273-02100 |
| 85310A | Headlight washer motor and pump assembly | 85280-05050 |
| 85330B | Headlight washer washer fluid tank bushing | 90069-20005 |
| 85341A | Headlight washer nozzle cover | 85353-02904 · 85353-02905 · 85353-02906 · 85354-02904 · 85354-02905 · 85354-02906 |
| 85348A | Headlight washer hose connector No. 1 | 85287-05110 · 85378-0H110 |
| 85348K | No. 1 headlight washer elbow joint | 85278-05110 · 85279-05110 |
| 85348L | No. 2 headlight washer elbow joint | 85278-05110 |
| 85350A | No. 3 headlight washer elbow joint | 85278-05110 |
