Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

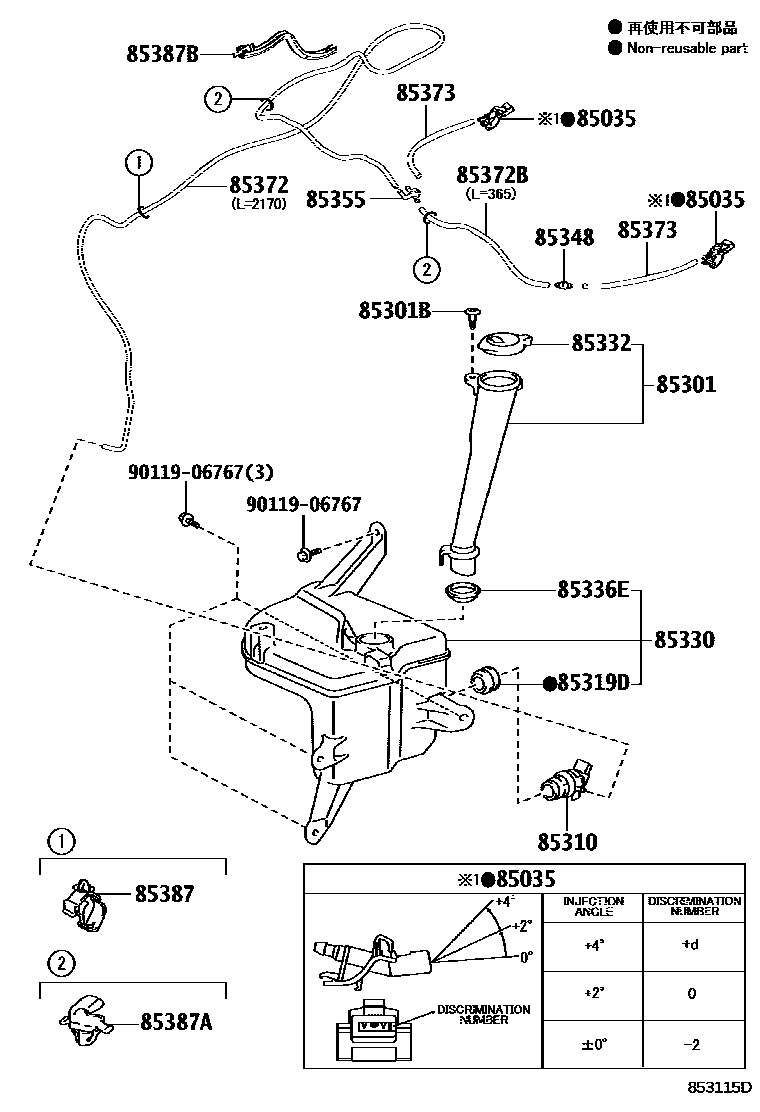

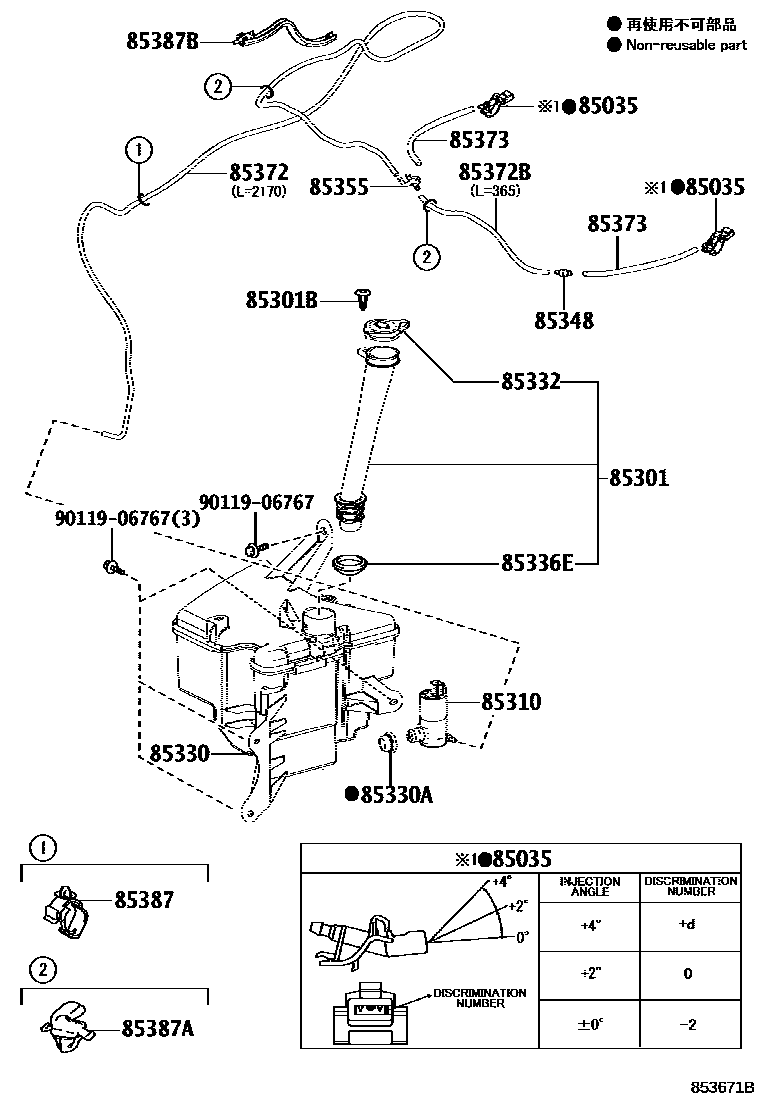

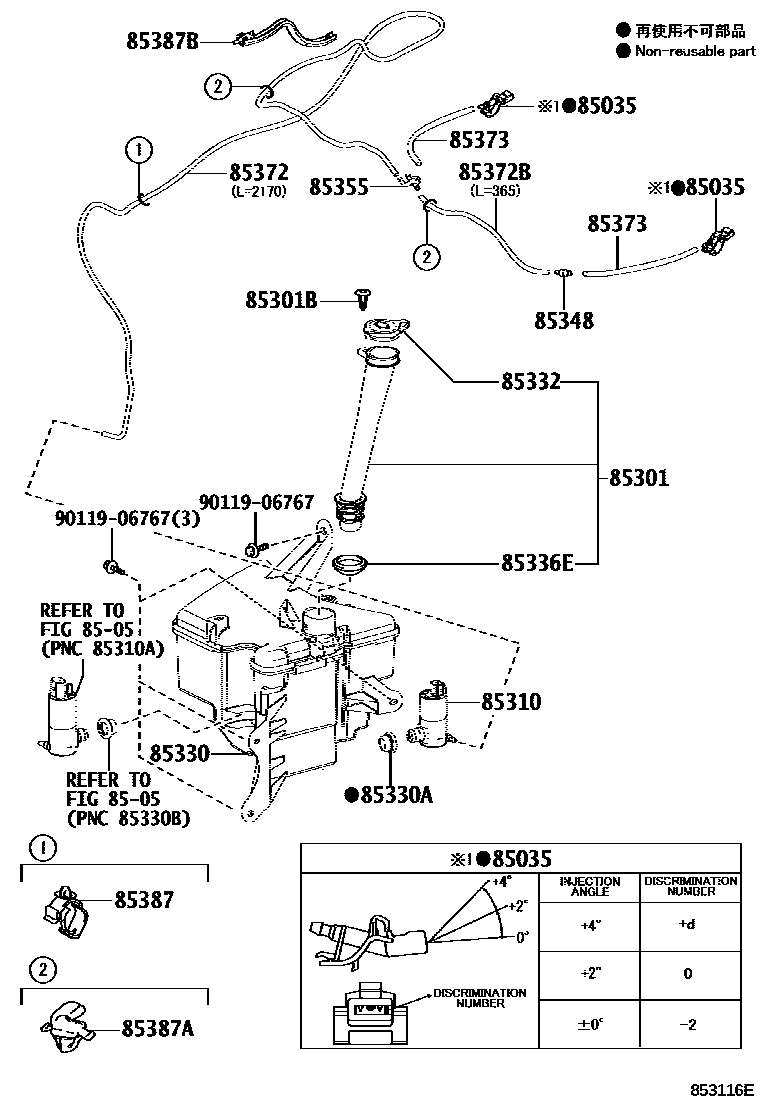

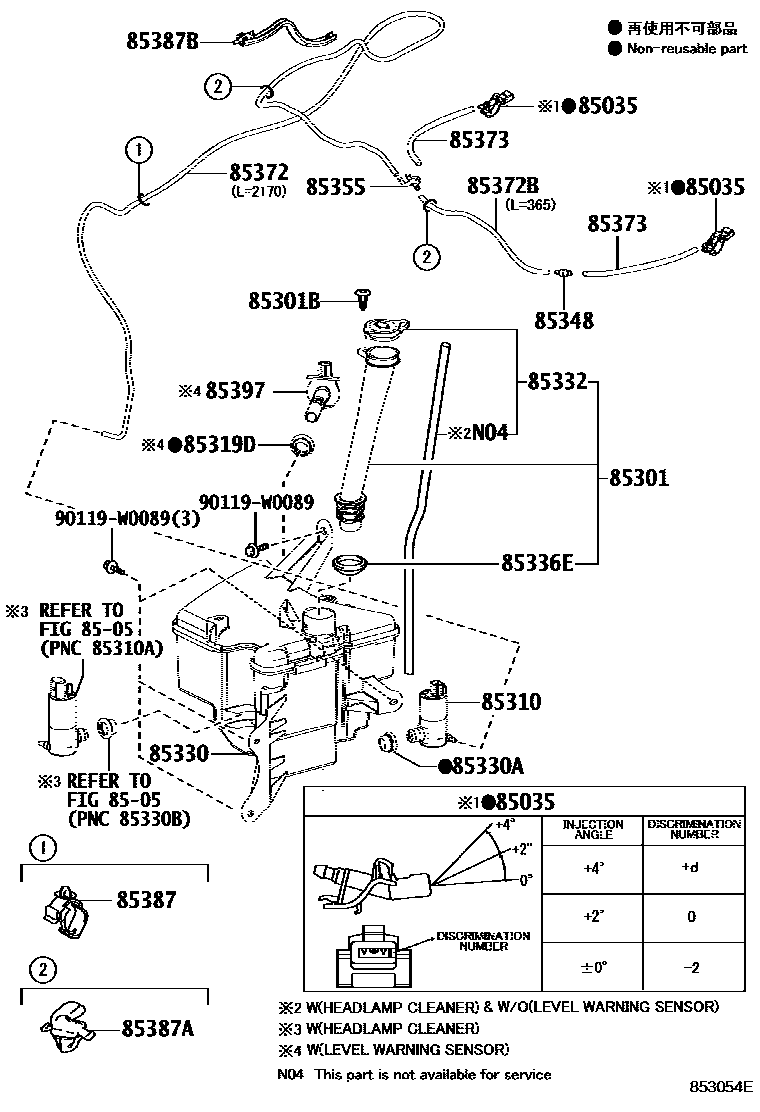

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-12420 · 85381-12430 |
| 85301 | Cleaner water inlet sub-assembly | 85301-02020 · 85301-02040 · 85301-02100 |
| 85310 | Windshield washer motor and pump assembly | 85330-02030 · 85330-21010 |
| 85319D | front washer seal | 85336-02250 · 85336-02550 · 85336-60300 |
| 85330 | Windshield washer fluid tank assembly | 85315-02540 · 85315-02550 · 85315-02570 · 85315-02590 · 85355-02230 · 85355-02250 |
| 85330A | Windshield washer fluid tank bushing | 90069-20005 |
| 85332 | Windshield washer fluid tank cap | 85316-0D010 · 85316-16070 · 85356-02230 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 · 90069-38005 |
| 85348 | Windshield washer hose connector No. 1 | 85375-05050 |
| 85355 | Windshield washer hose valve | 85376-02240 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-16010 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-16009 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-62080 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-1E350 |
| 85387A | Cleaner clip No. 2 | 85371-12040 |
| 85387B | No. 3 cleaner clip | 85387-02450 |
| 85397 | Liquid level warning switch assembly | 85397-02550 |
