Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 13 PNC and OE references.

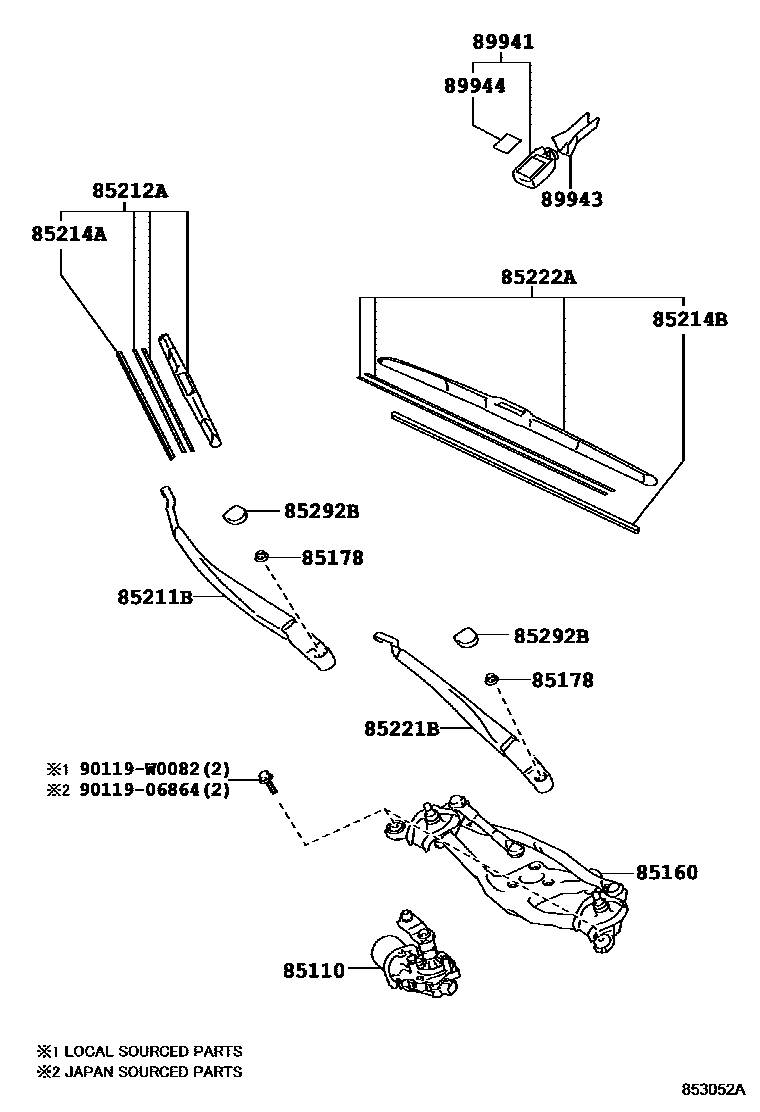

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 853052A
挡风玻璃刮水器 — 853052A (201306 – 999999)

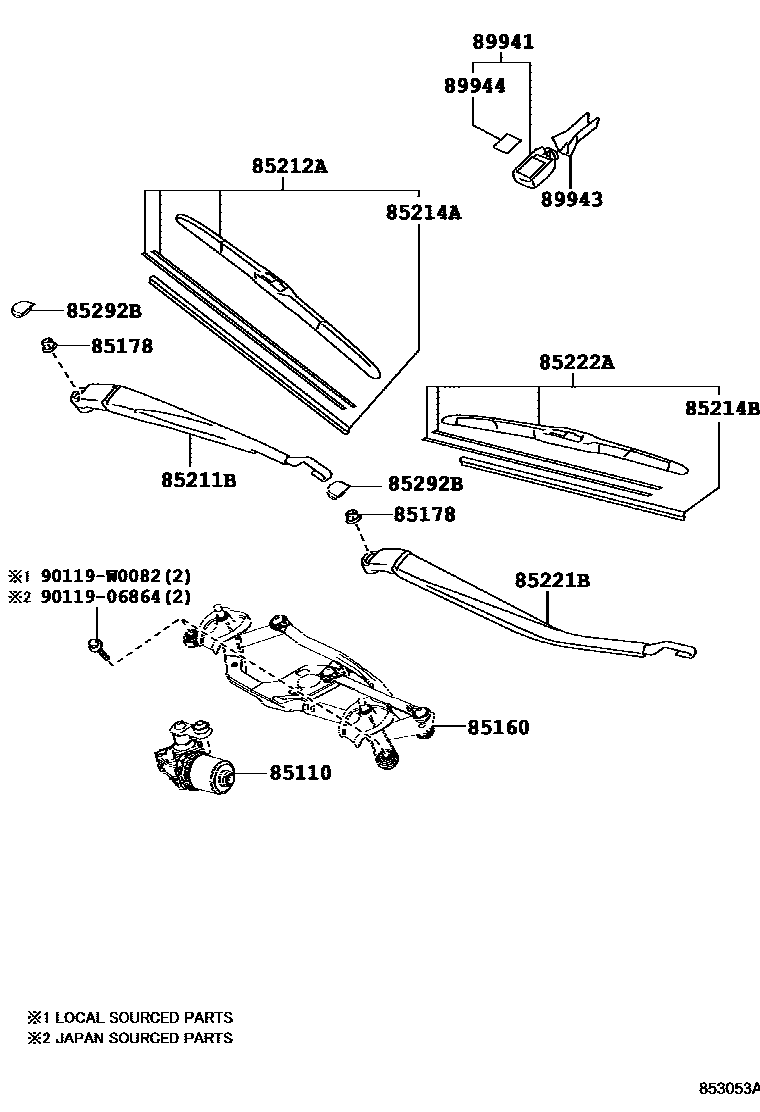

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 853053A
挡风玻璃刮水器 — 853053A (201401 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-02330 · 85110-02340
85160Windshield wiper connecting rod assembly85150-02320 · 85150-02330 · 85150-02350
85178Nut (for securing front wiper arm)90182-10006
85211BRight front wiper arm85211-02290 · 85211-02300
85212ARight front wiper blade85212-02250 · 85212-02290
85214ARight wiper rubber strip85214-02260 · 85214-02340
85214BLeft wiper rubber strip85214-02260 · 85214-02340 · 85214-68030
85221BLeft front wiper arm85221-02300 · 85221-02310
85222ALeft front wiper blade85222-02260 · 85222-02300
85292BFront wiper arm cap85292-0F010
89941rain sensor89941-0D010 · 89941-52010
89943Rain sensor cover89943-02020 · 89943-47010
89944Rain sensor tape89944-02010 · 89944-42010
