Toyota COROLLA 空气囊 — Figure 8421

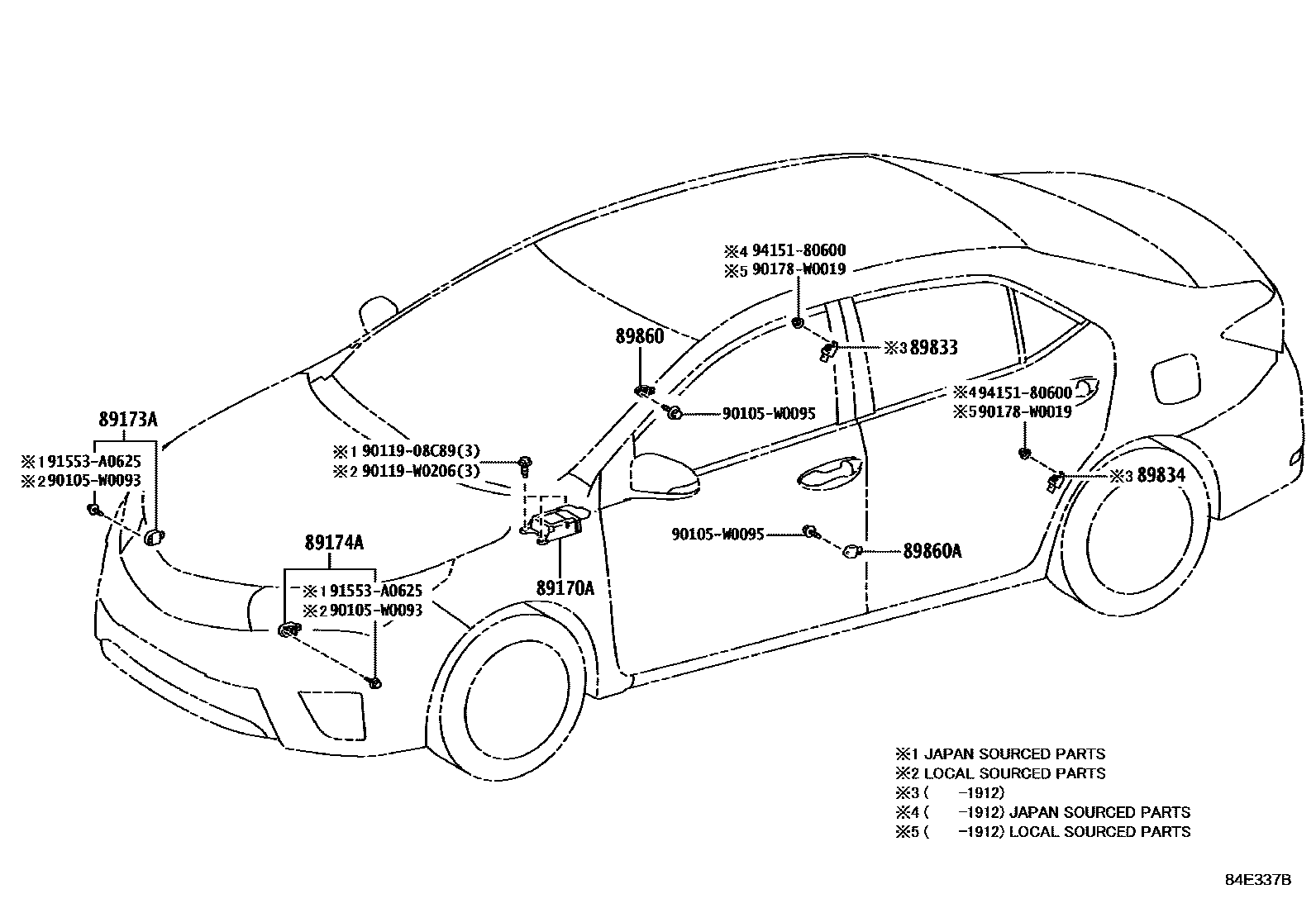

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-02C70 · 89170-02C80 · 89170-02C90 · 89170-02D00 · 89170-02D10 · 89170-02D20 · 89170-02E30 · 89170-02K10 · 89170-02K20 · 89170-02K30 · 89170-02K40 · 89170-02K50 · 89170-02K60 · 89170-02K70 · 89170-02K80 · 89170-02M30 · 89170-02M40 |
| 89173A | Right front air bag sensor | 89173-09A10 |
| 89174A | Left front air bag sensor | 89173-09A10 |
| 89833 | Right rear air bag sensor | 89831-02150 |
| 89834 | Left rear air bag sensor | 89831-02150 |
| 89860 | Right side airbag sensor assembly | 89831-02130 |
| 89860A | Left side air bag sensor assembly | 89831-02130 |
