Toyota COROLLA 遥控门锁 — Figure 8420

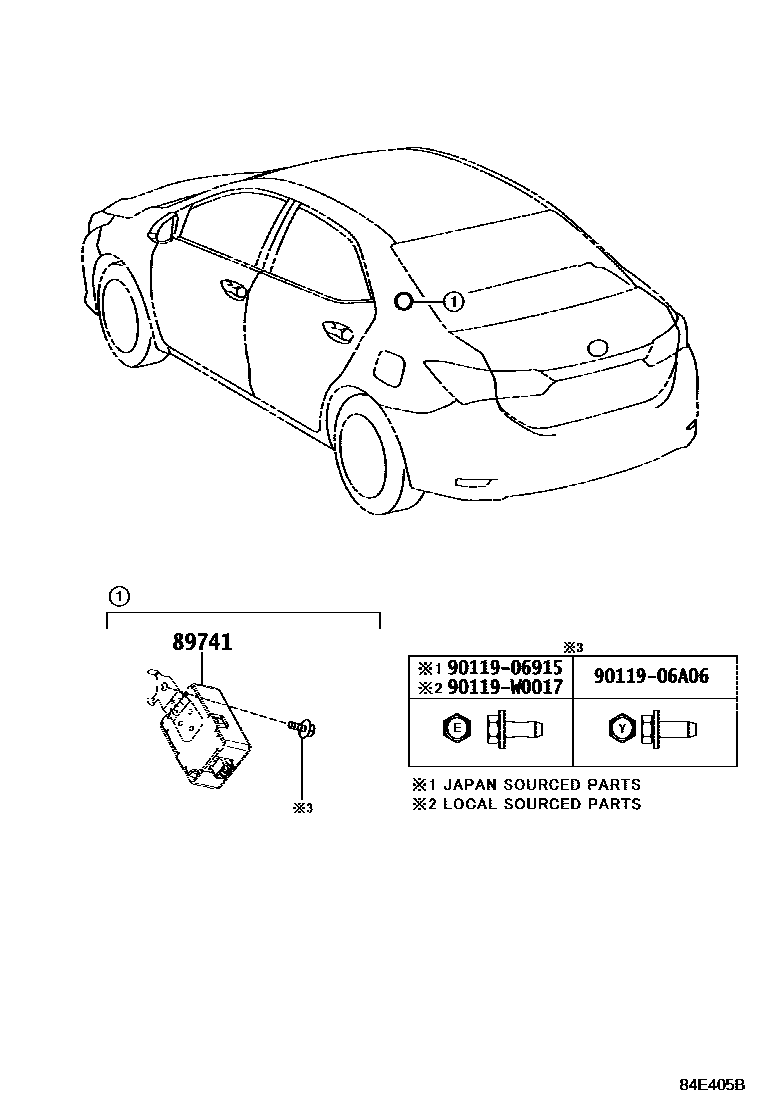

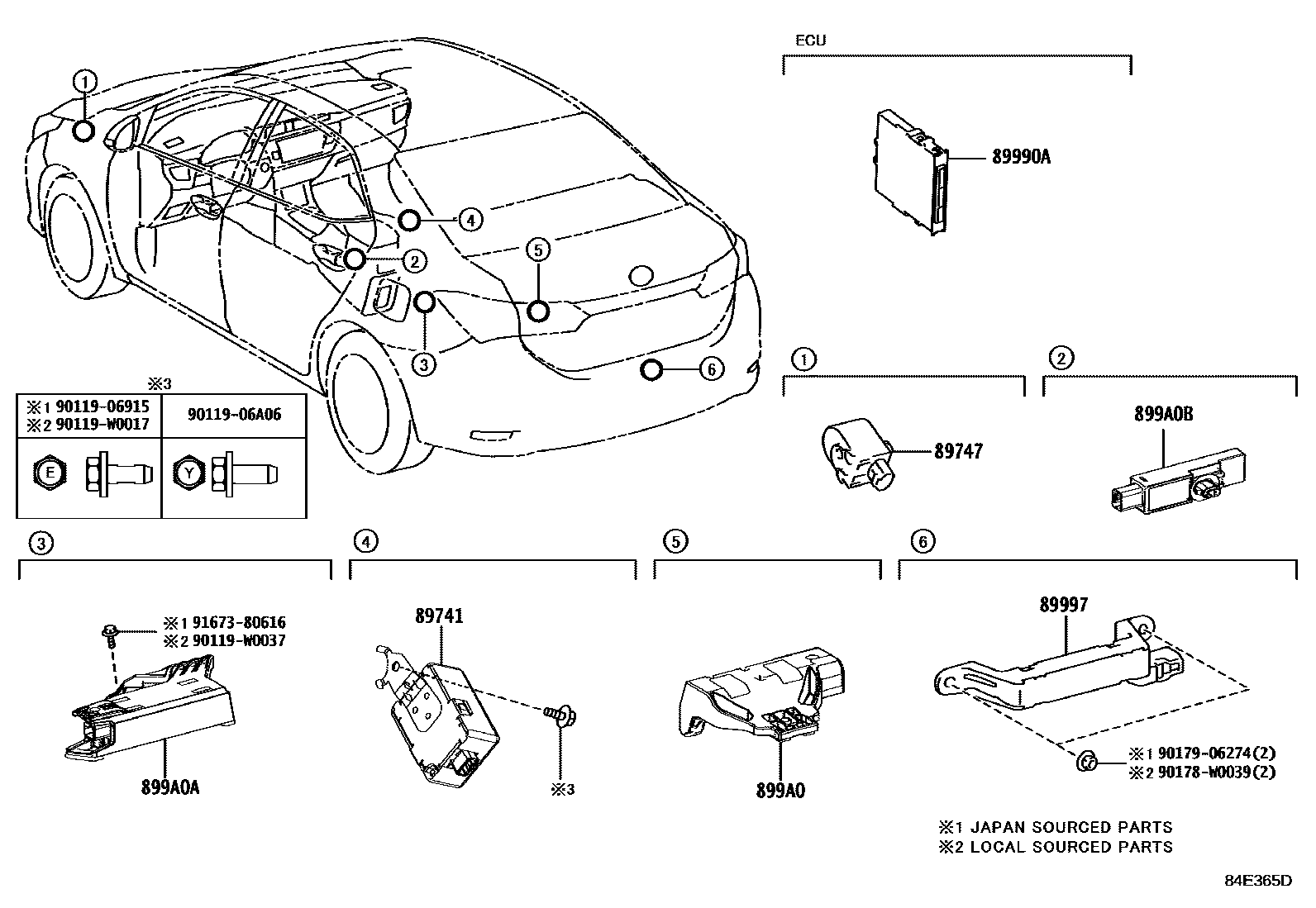

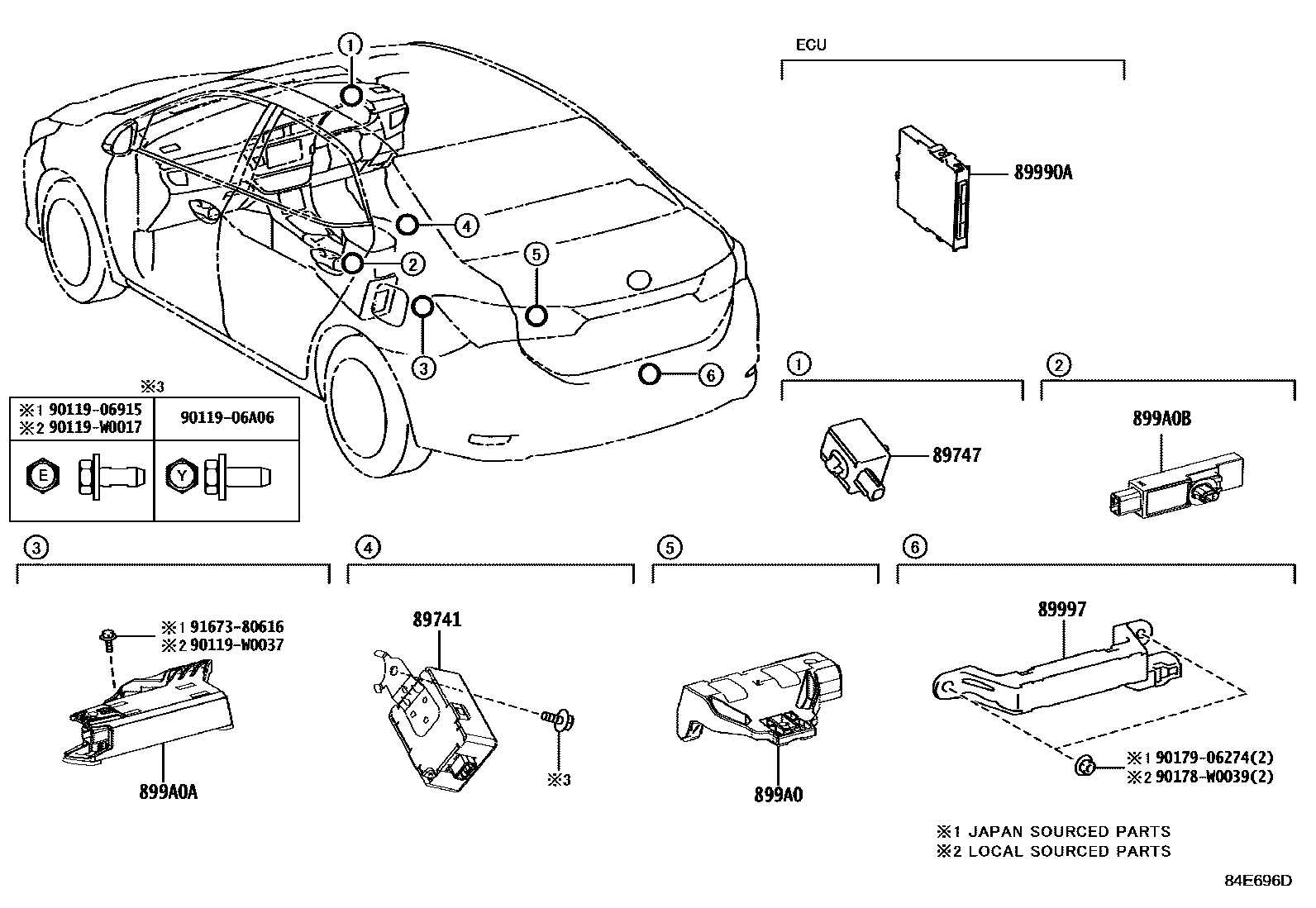

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89740-02130 · 89740-02131 · 89741-02260 · 89741-02270 |
| 89747 | Remote door lock buzzer | 89747-05010 · 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-02240 · 89990-02241 · 89990-02410 |
| 89997 | electronic key antenna | 89997-30070 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02030 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02020 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-0F040 |
