Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405

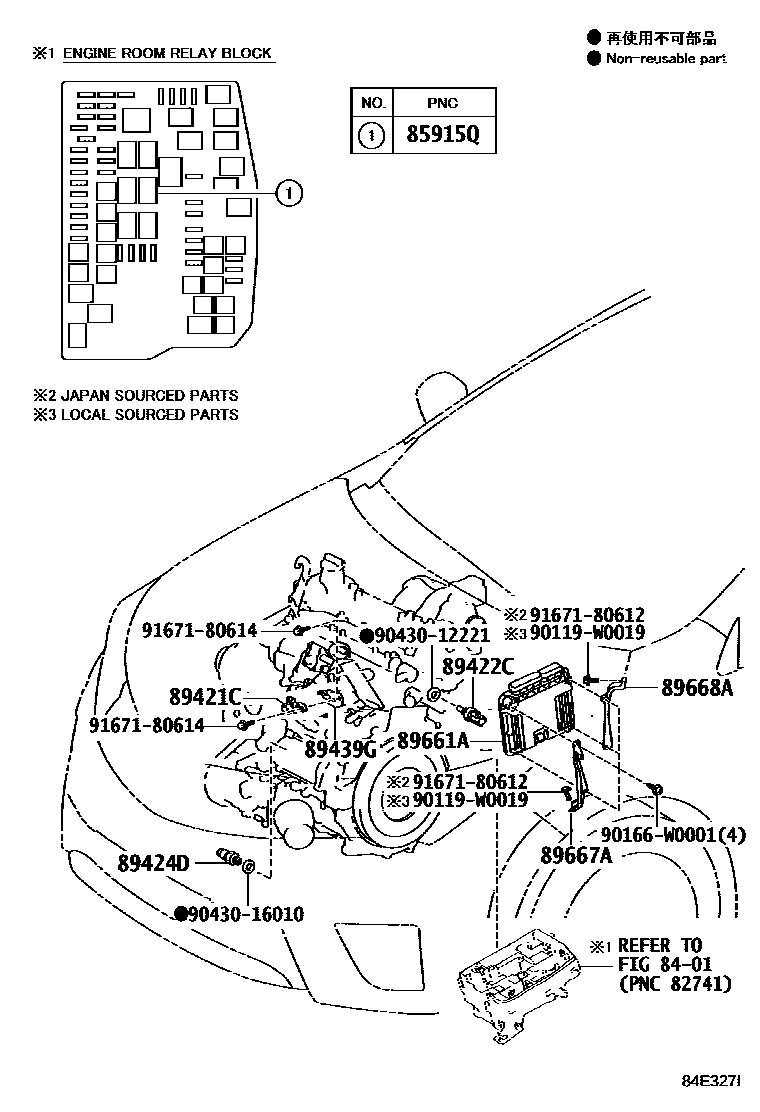

Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915Q | ECU relay (for diesel engine) | 90080-87021 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20200 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89439G | Sensor holder | 89431-12010 |
| 89661A | Engine control ECU | 89661-0ZD00 · 89661-0ZD50 |
| 89667A | No. 1 engine control ECU bracket | 89667-12320 |
| 89668A | No. 2 engine control ECU bracket | 89668-12250 |
