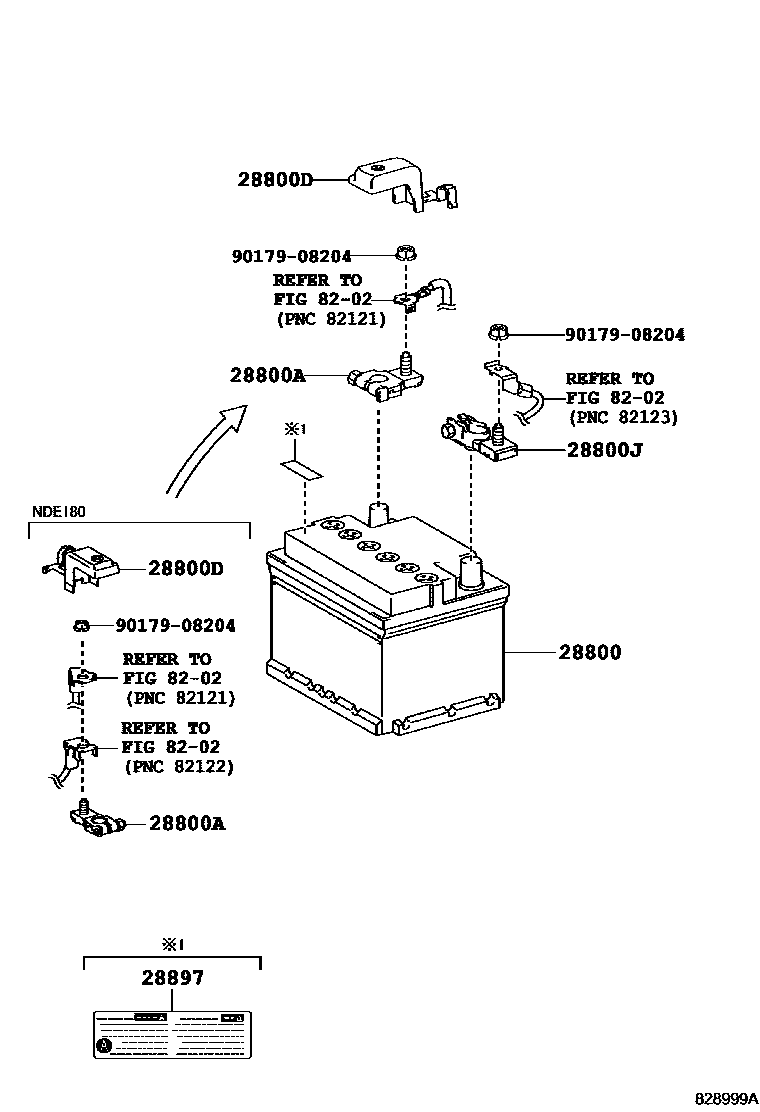

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0D140 · 28800-0D241 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05056 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 · 82821-52060 |
| 28800J | battery negative terminal | 90982-06070 |
| 28897 | Battery warning nameplate | 28897-36030 |
