Toyota COROLLA 车内灯 — Figure 8121

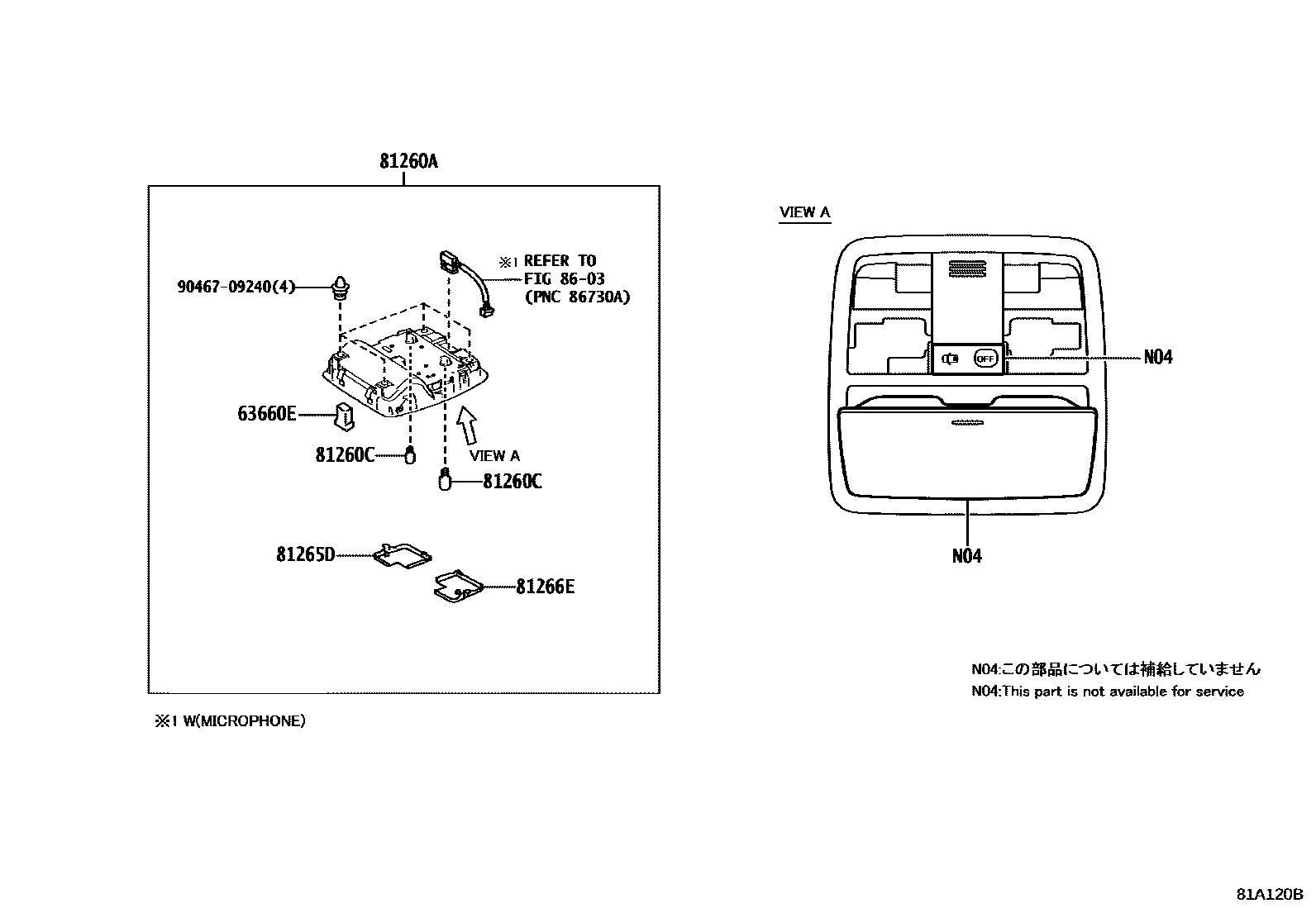

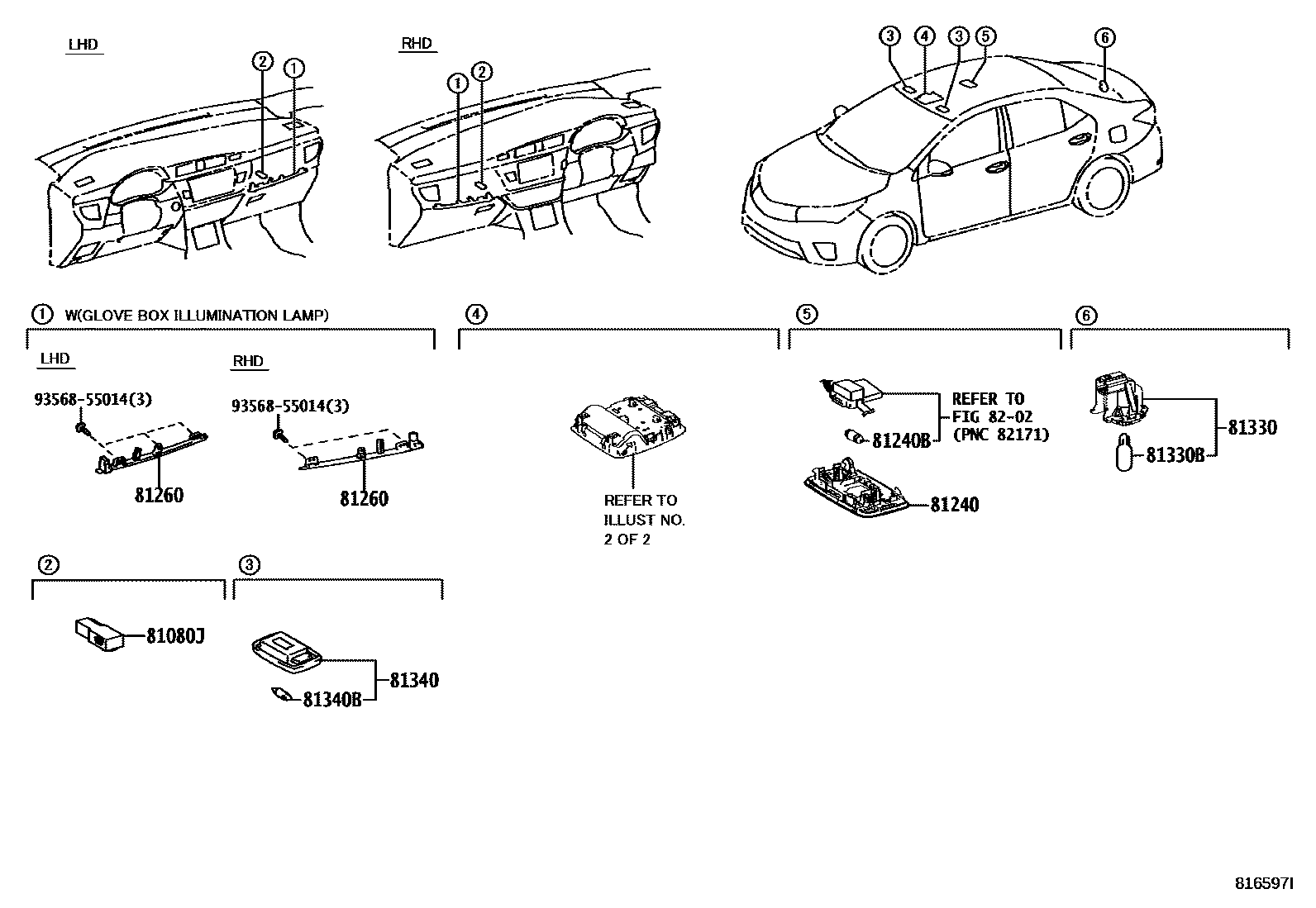

Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63660E | Roof console lock assembly | 63660-02010 |
| 81080J | No. 1 interior lighting assembly | 81080-0D010 · 81080-48010 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81260 | Glove box light assembly | 81260-12580 · 81260-12590 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 |
| 81265D | Right reading lamp shade | 81265-02460 · 81265-02480 · 81266-02480 |
| 81266E | Left reading lamp shade | 81265-02480 · 81266-02460 · 81266-02480 |
| 81330 | No. 1 trunk light assembly | 81330-02041 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340B | Bulb (for vanity lights) | 90981-WE003 |
