Toyota COROLLA 后组合灯 — Figure 8111

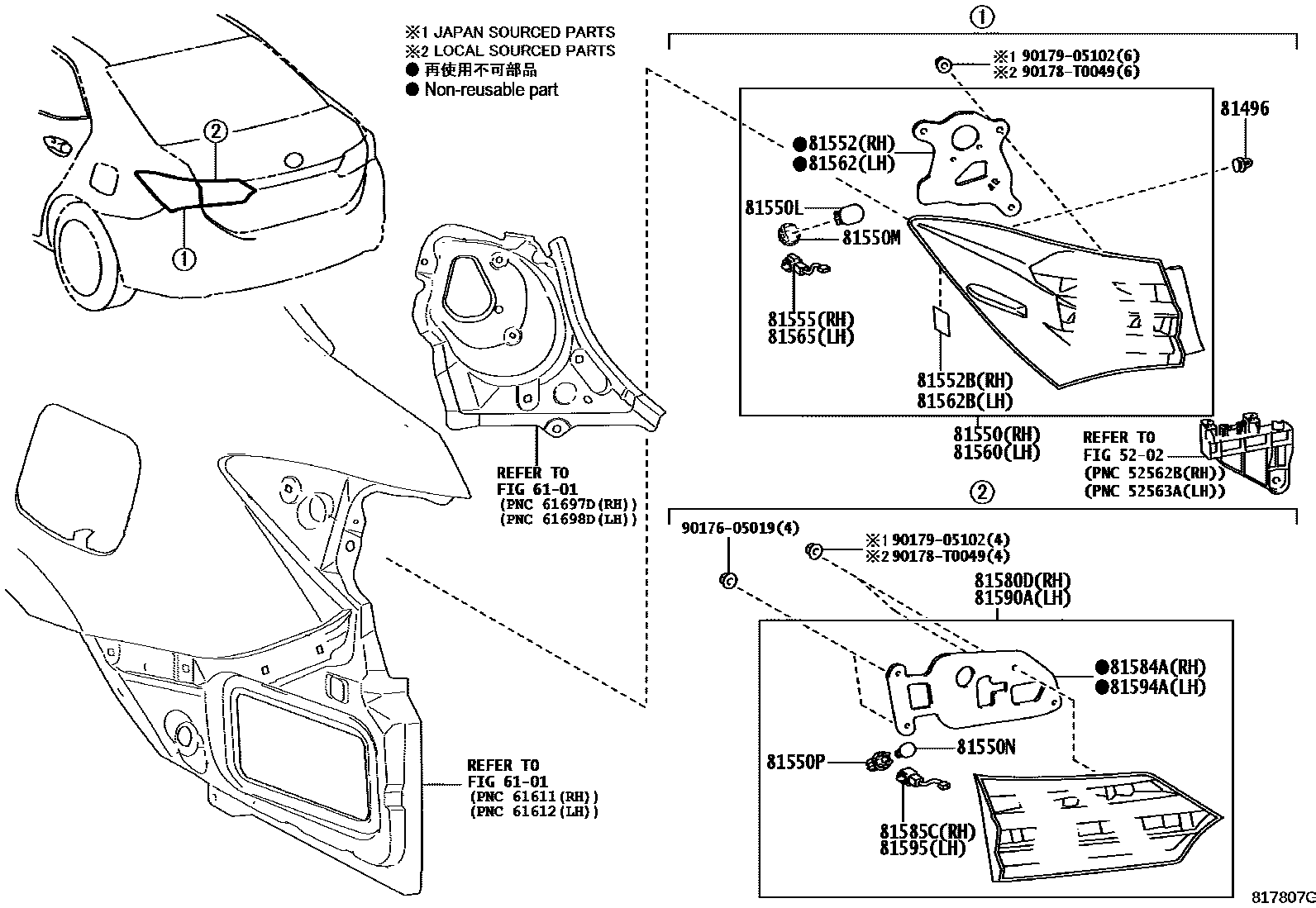

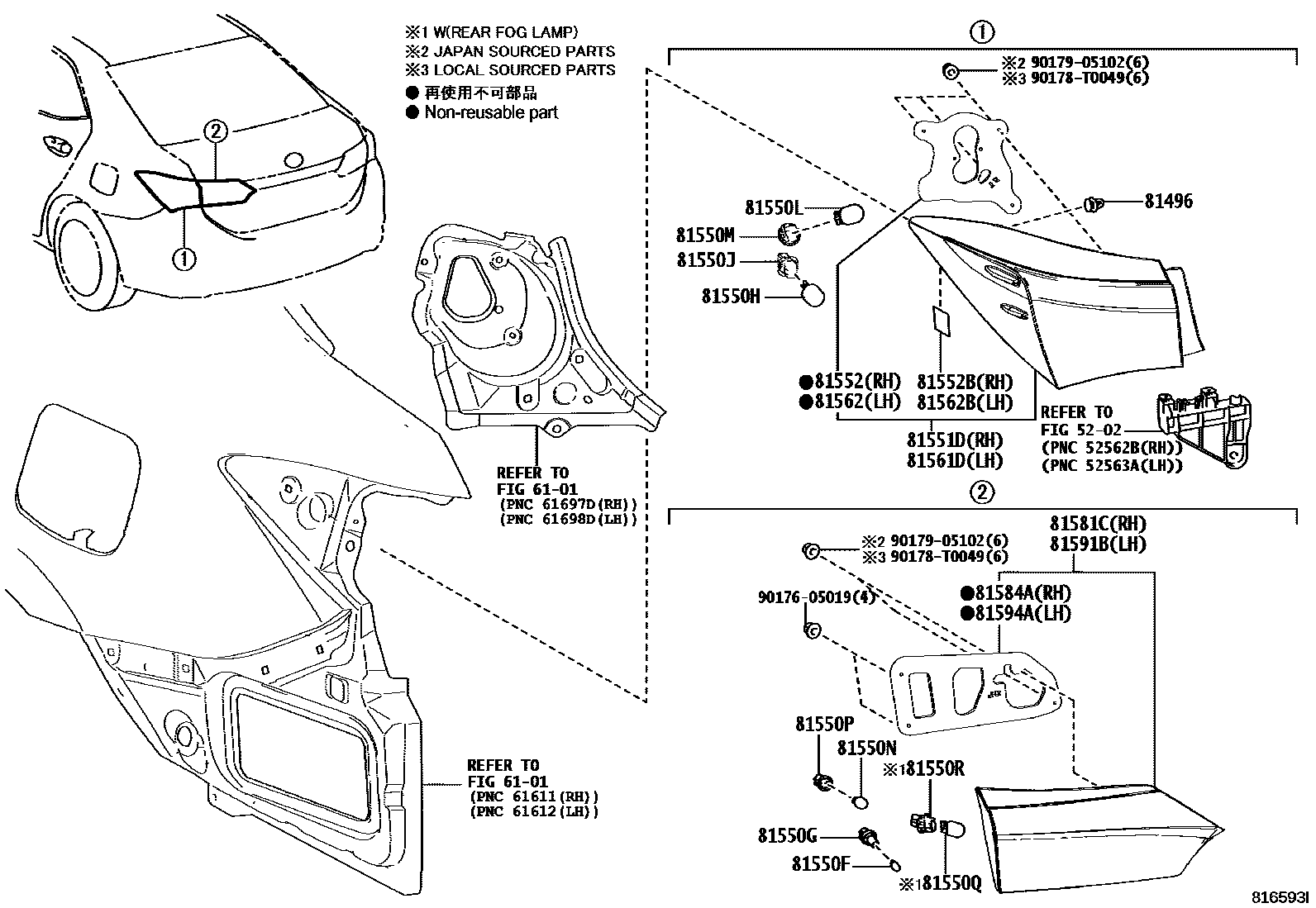

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81550 | Right rear combination light assembly | 81550-02A80 |
| 81550F | tail light bulb | 99132-12050 |
| 81550G | Tail light lamp holder | 90075-60077 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60079 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 |
| 81550N | reversing light bulb | 90981-11059 · 90981-WB019 |
| 81550P | Reversing light lamp holder | 90075-60001 |
| 81550Q | Rear fog light bulb No. 1 | 90981-13043 |
| 81550R | Rear fog light lamp holder | 90075-60003 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02760 |
| 81552 | Right rear combination lamp shade gasket | 81552-02760 · 81552-02A80 |
| 81552B | Right rear combination lamp lamp body seal | 81554-02760 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02A80 |
| 81560 | Left rear combination light assembly | 81560-02A80 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02760 |
| 81562 | Left rear combination lamp shade gasket | 81552-02A80 · 81562-02760 |
| 81562B | Left rear combination lamp body seal | 81554-02760 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-02A80 |
| 81580D | Right rear light assembly | 81580-02A20 · 81580-02A30 |
| 81581C | Right rear light lampshade and lamp body | 81581-02520 · 81581-02530 · 81581-02540 |
| 81584A | Right rear light gasket | 81584-02520 · 81584-02A20 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-02A20 · 81585-02A30 |
| 81590A | Left rear light assembly | 81590-02A20 · 81590-02A30 |
| 81591B | Left rear light shade and body | 81591-02520 · 81591-02530 · 81591-02540 |
| 81594A | Left rear light gasket | 81584-02A20 · 81594-02520 |
| 81595 | Left rear light lamp holder and wiring harness | 81595-02A20 · 81595-02A30 |
