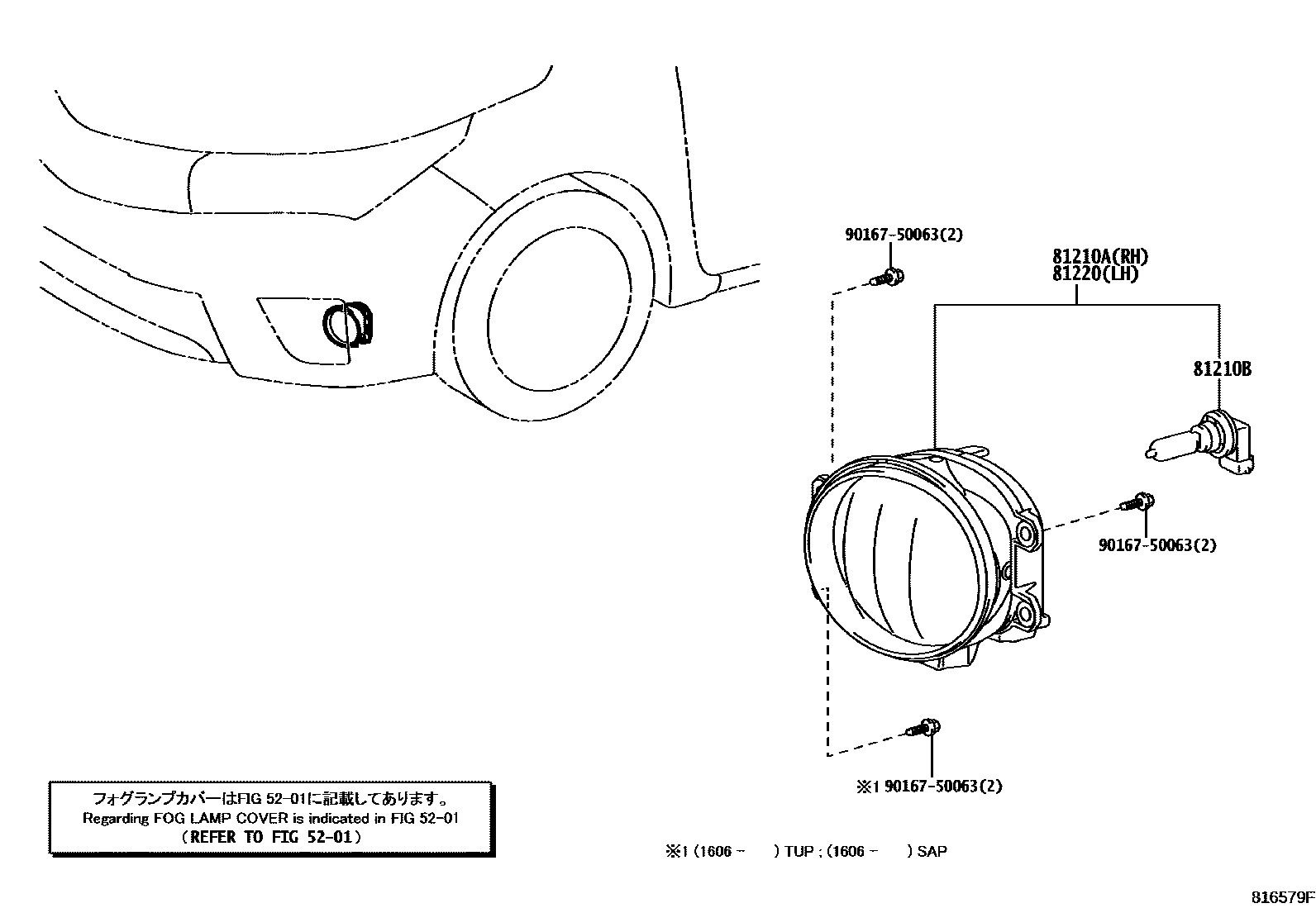

Toyota COROLLA Fog Lamp — Figure 8102
Toyota COROLLA EPC diagram 8102, Fog Lamp, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-02110 |
| 81210B | fog light bulb | 90981-WD016 |
| 81220 | Left fog light assembly | 81220-02110 |
