Toyota COROLLA Headlamp — Figure 8101

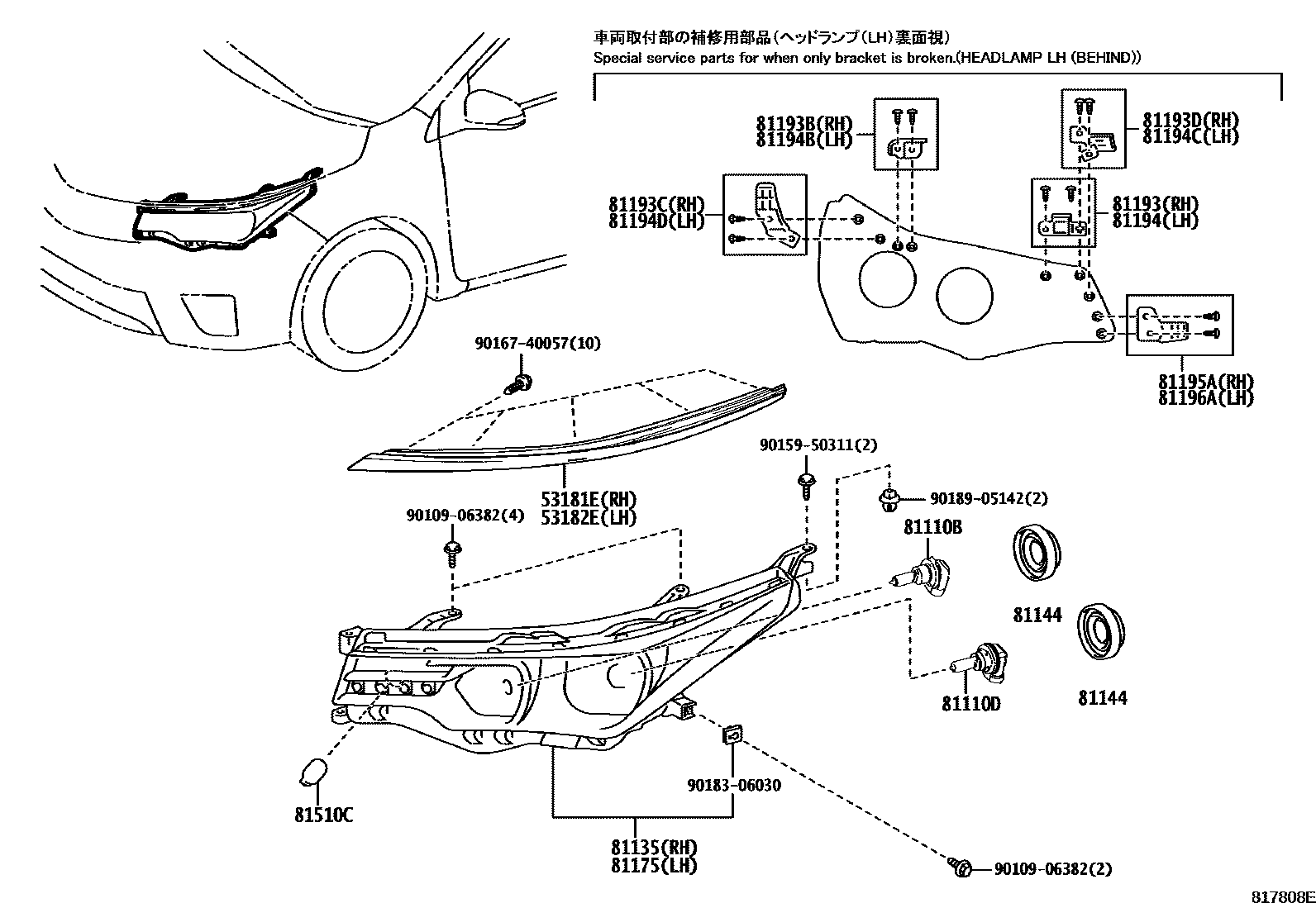

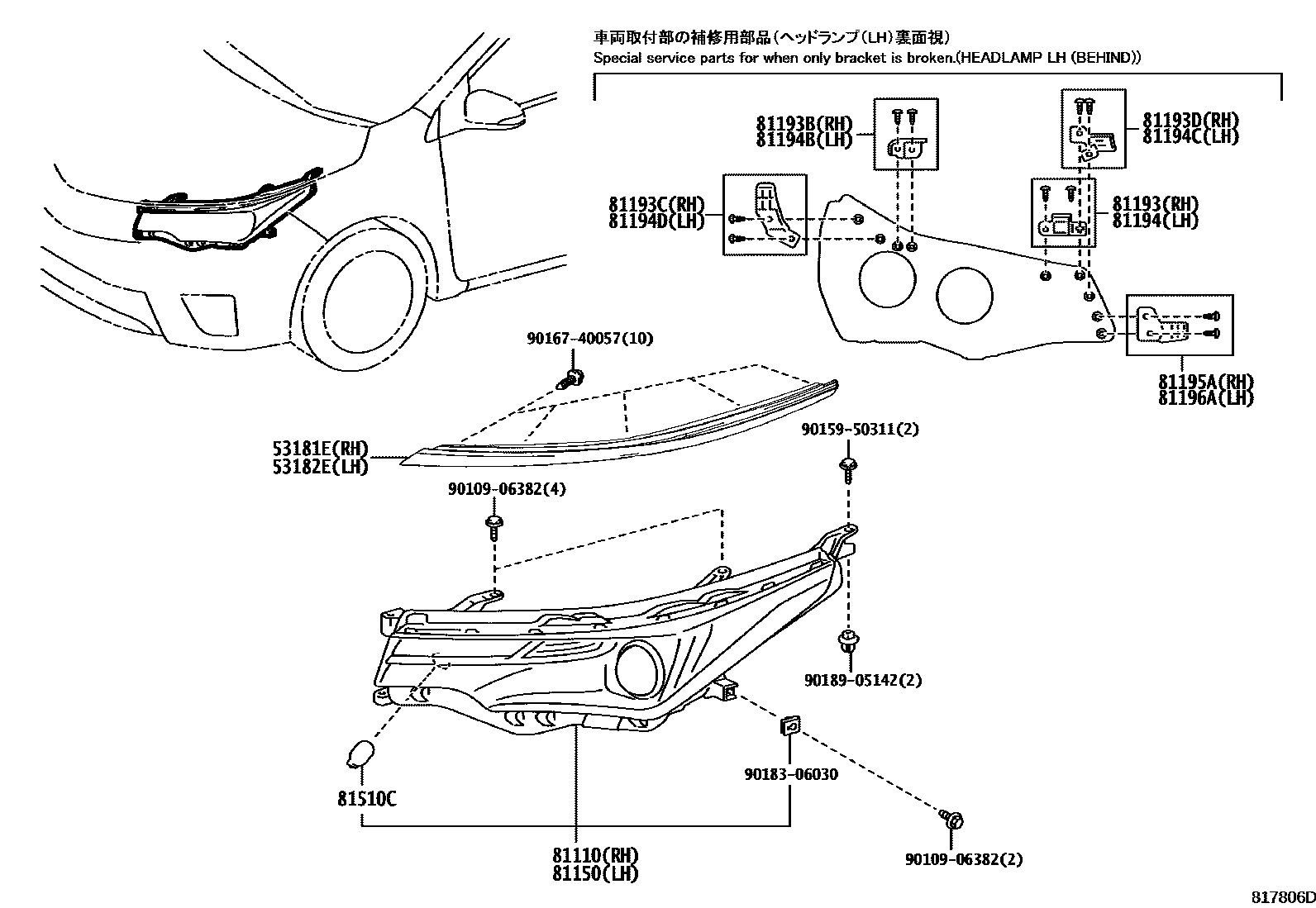

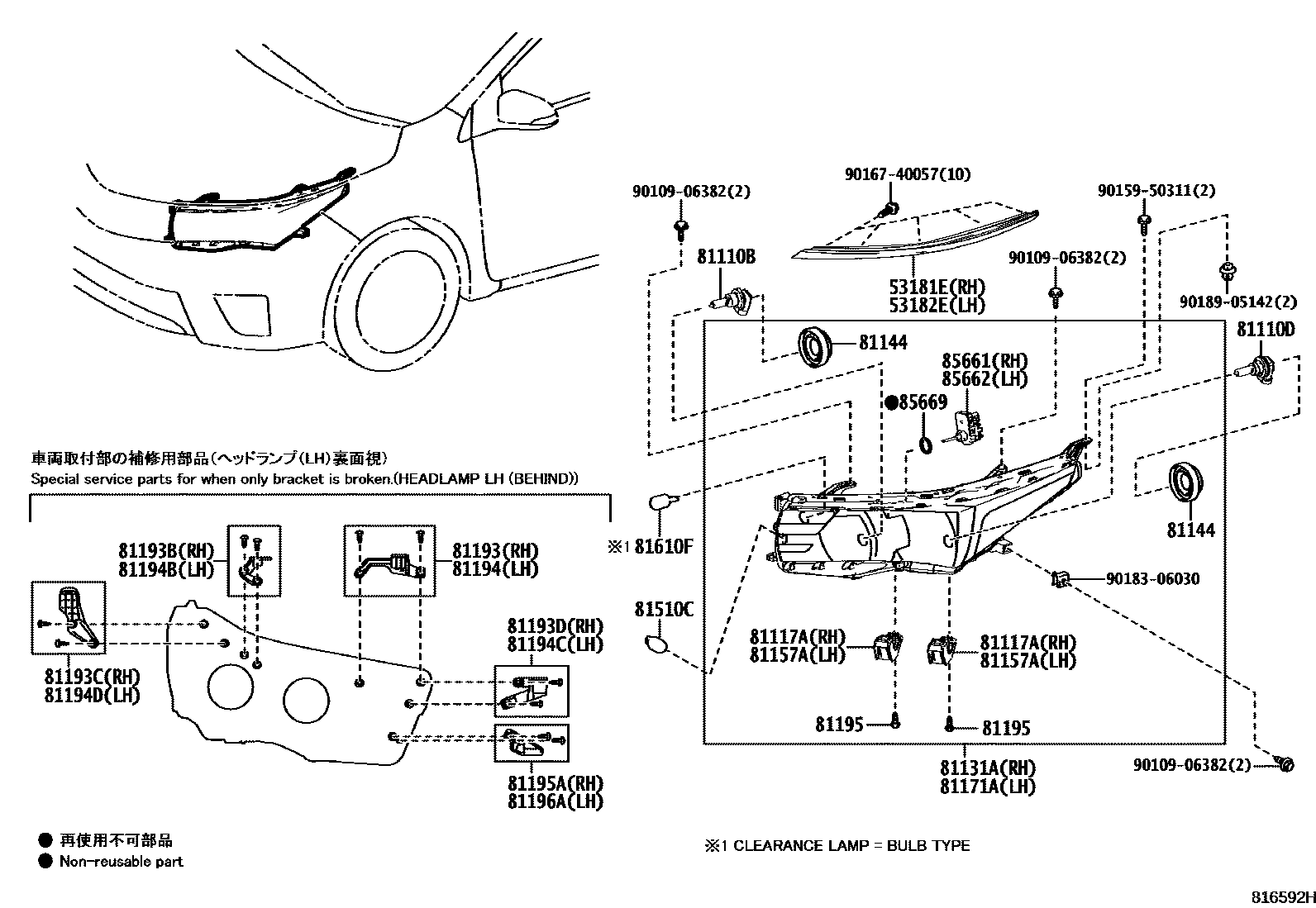

Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53181E | Right headlight cover | 53181-02010 · 53181-02150 |
| 53182E | Left headlight cover | 53182-02010 · 53182-02150 |
| 81110 | Right headlight assembly | 81110-02L60 · 81110-02L70 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81117A | Right headlight bracket | 81117-02E90 |
| 81131A | Right headlight assembly | 81130-02E70 · 81130-02E71 · 81130-02E81 · 81130-02E90 · 81130-02E91 · 81130-02F00 · 81130-02F01 |
| 81135 | Right headlight assembly assembly | 81130-02L40 · 81130-02L50 |
| 81144 | No. 1 headlight cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-02L60 · 81150-02L70 |
| 81157A | Left headlight bracket | 81117-02E90 |
| 81171A | Left headlight assembly | 81170-02E70 · 81170-02E71 · 81170-02E81 · 81170-02E90 · 81170-02E91 · 81170-02F00 · 81170-02F01 |
| 81175 | Left headlight assembly assembly | 81170-02L40 · 81170-02L50 |
| 81193 | Right headlight upper protective ring | 81193-02110 · 81193-02270 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-02100 · 81193-02260 |
| 81193C | Right headlight upper right protection ring | 81193-02090 · 81193-02250 |
| 81193D | Right headlight upper left protective ring | 81193-02120 · 81193-02280 |
| 81194 | Left headlight upper protective ring | 81194-02110 · 81194-02270 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-02100 · 81194-02260 |
| 81194C | Left headlight upper right protection ring | 81194-02120 · 81194-02280 |
| 81194D | Left headlight upper left protective ring | 81194-02090 · 81194-02250 |
| 81195 | headlight screw | 90075-02056 |
| 81195A | Right headlight lower protection ring | 81193-02130 · 81193-02290 |
| 81196A | Left headlight lower protection ring | 81194-02130 · 81194-02290 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81610F | Light bulb (for width indicator light) | 90981-WB015 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
