Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

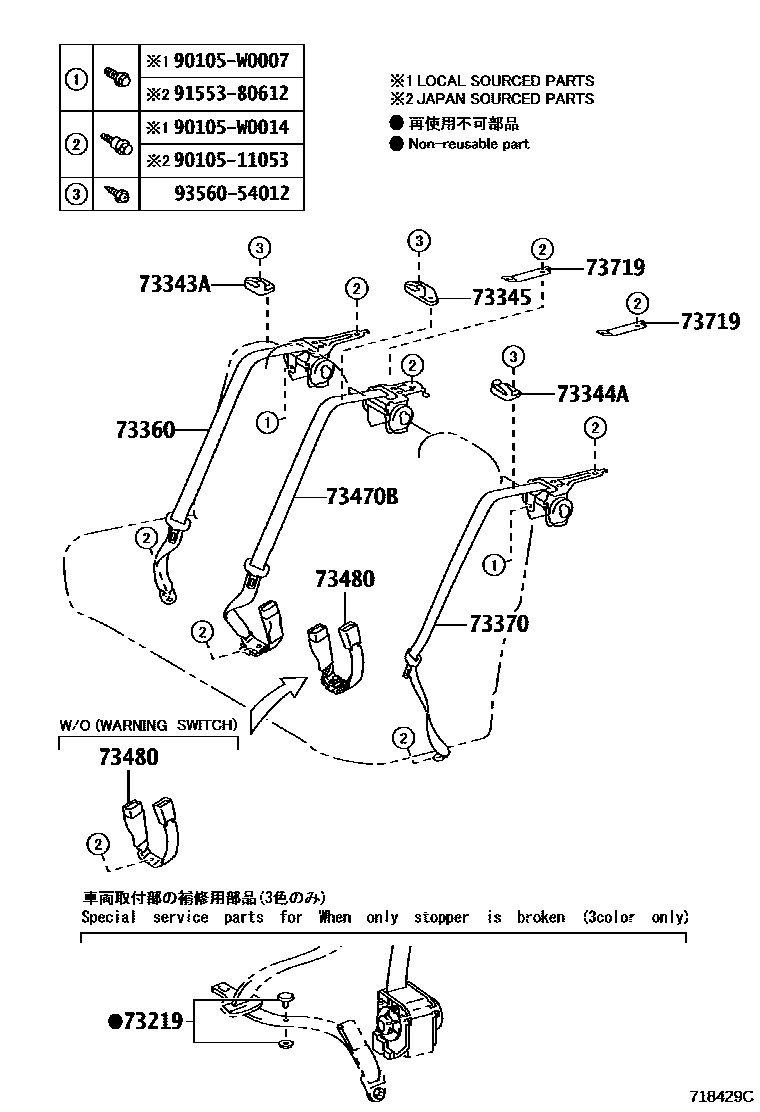

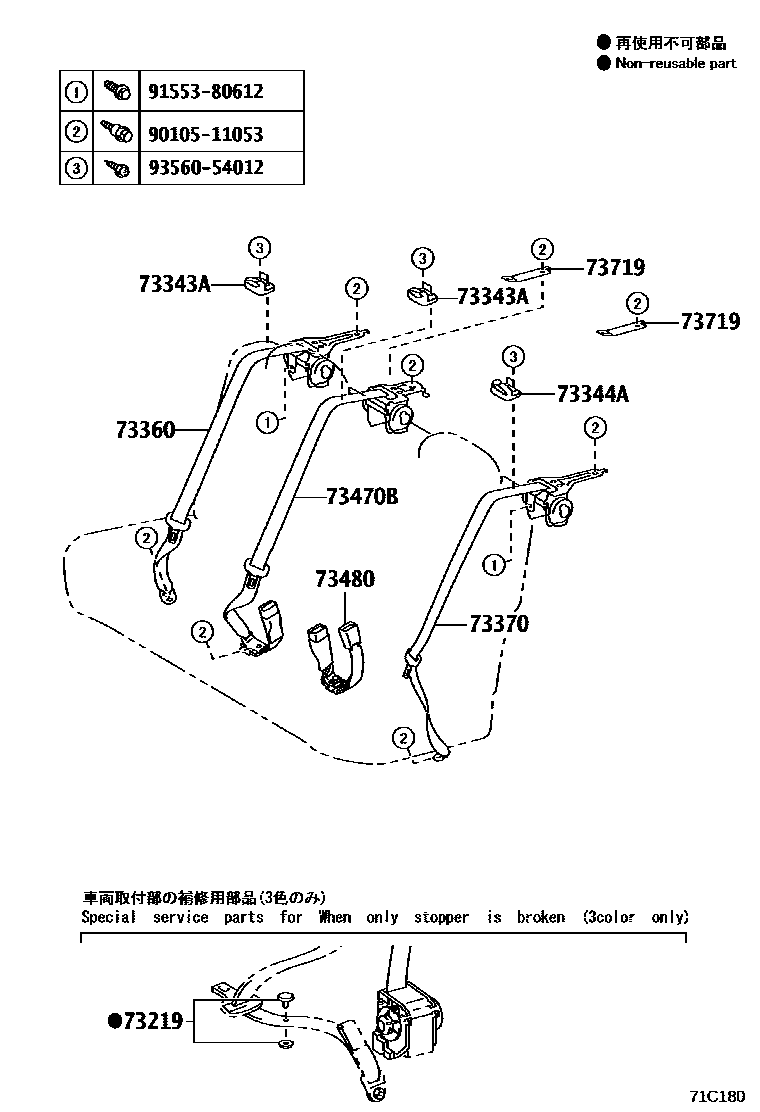

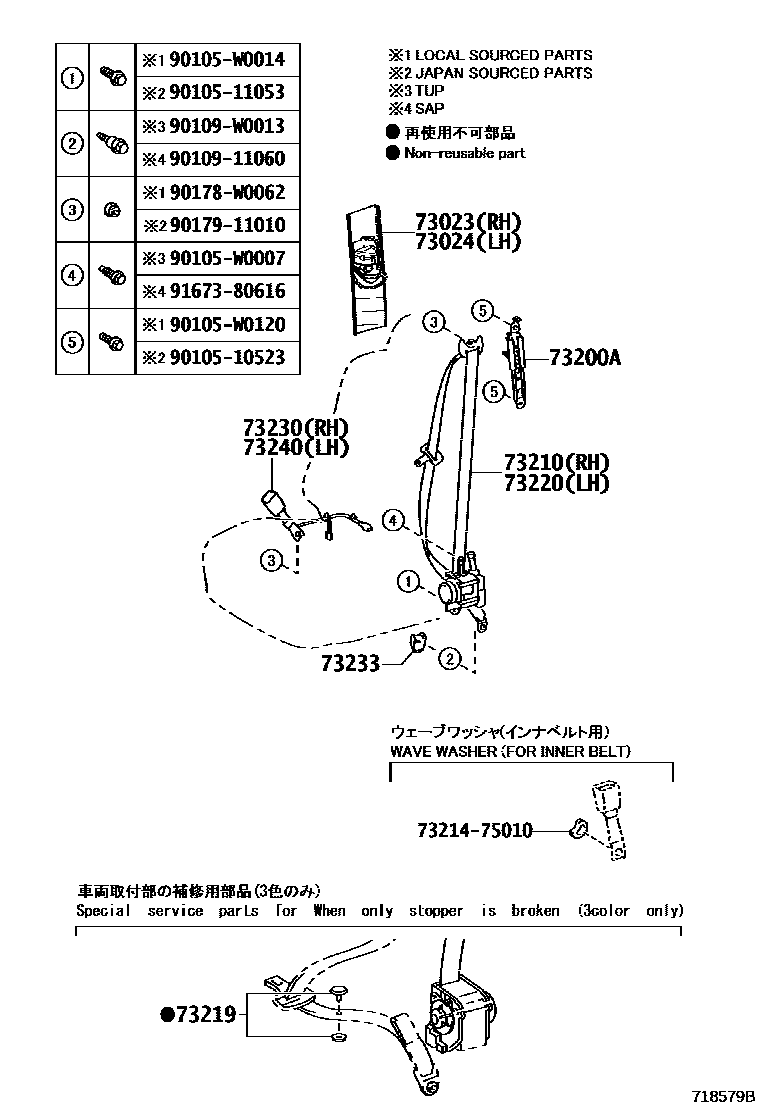

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-02100 · 73200-12070 · 73200-F4010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73719 | Child restraint seat tether anchor bracket | 73719-02050 · 73719-02060 |
