Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

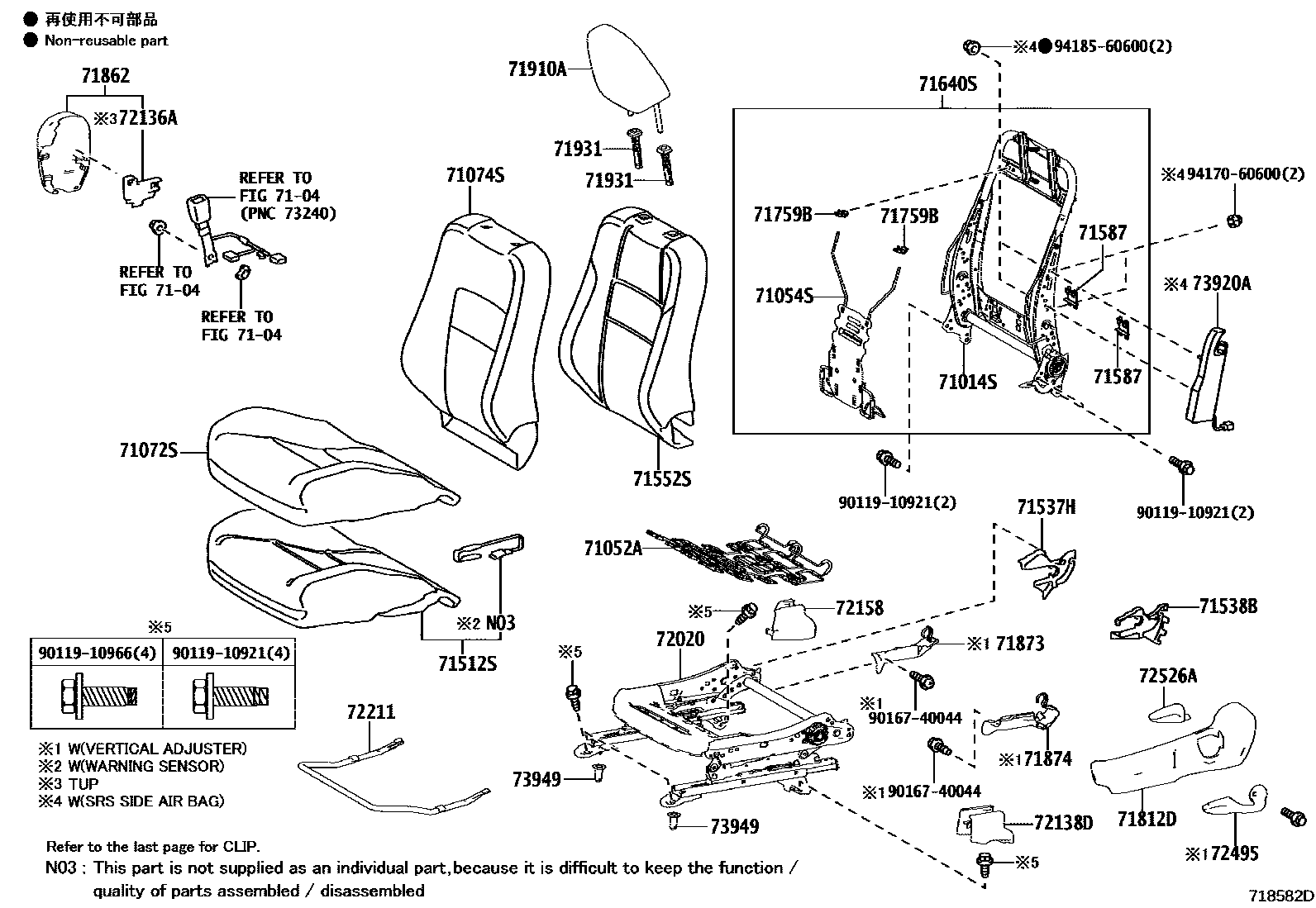

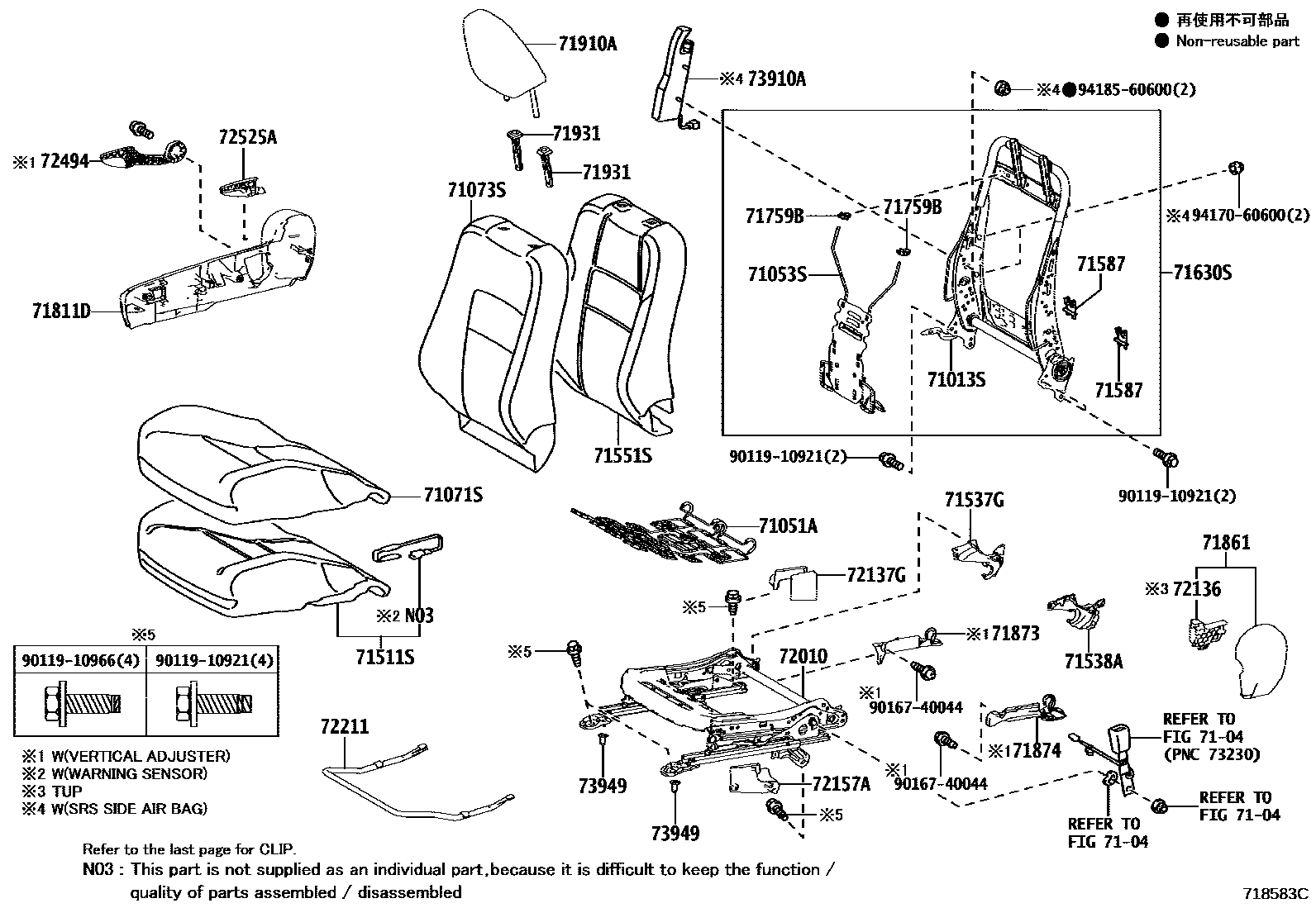

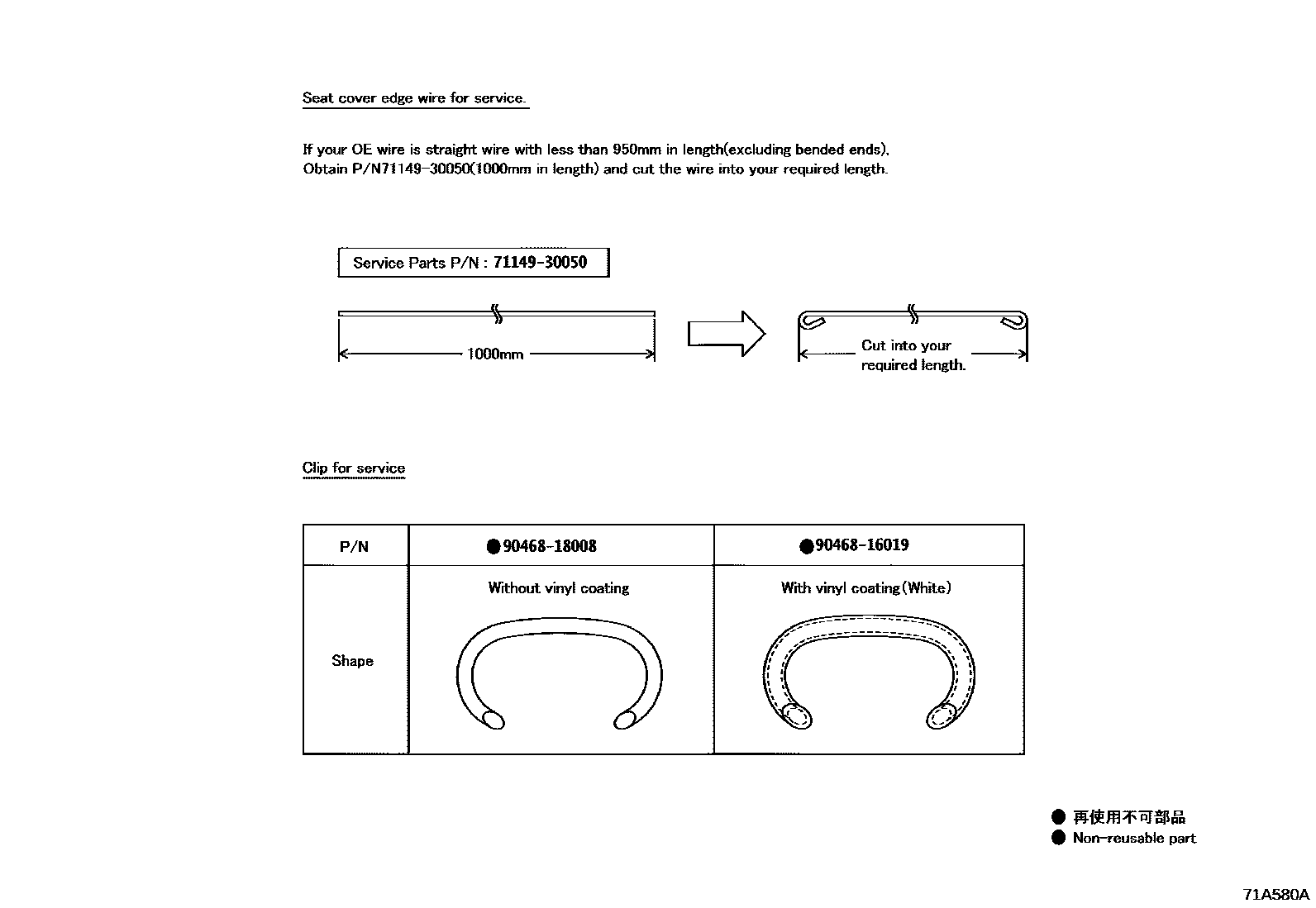

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02150 · 71013-02160 · 71013-02170 · 71013-02171 · 71013-02180 · 71013-02181 |
| 71014S | Front left seat back frame sub-assembly | 71014-02080 · 71014-02090 · 71014-02100 · 71014-02101 · 71014-02110 · 71014-02111 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02310 · 71051-0D060 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02310 · 71051-0D060 |
| 71053S | Front right seat back spring sub-assembly | 71053-02090 · 71053-02190 |
| 71054S | Front left seat back spring sub-assembly | 71053-02090 · 71053-02190 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02030 · 71501-02031 · 71501-02050 · 71501-02051 · 71511-02730 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02090 · 71502-02091 · 71512-02500 · 71512-02520 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02880 · 71551-02890 · 71551-02A00 · 71551-02A10 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02880 · 71551-02A00 · 71552-02710 · 71552-02730 |
| 71587 | Front seat back edge protective cover | 71587-02020 · 71587-02030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02640 · 71630-02650 · 71630-02660 · 71630-02661 · 71630-02670 · 71630-02671 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02600 · 71640-02610 · 71640-02620 · 71640-02621 · 71640-02630 · 71640-02631 |
| 71759B | Front seat back hook | 71759-02020 · 71759-02030 · 71759-47011 |
| 71873 | Front right seat cushion lower guard panel | 71873-02140 · 71873-02150 |
| 71874 | Front left seat cushion lower guard | 71874-02130 · 71874-02140 |
| 72010 | Front right seat adjuster assembly | 72010-02510 · 72010-02511 · 72010-02570 · 72010-02571 · 72010-02590 · 72010-02591 |
| 72020 | Front left seat adjuster assembly | 72020-02520 · 72020-02521 · 72020-02570 · 72020-02571 · 72020-02590 · 72020-02591 |
| 72136 | No. 1 seat slide rail lower rail | 72136-02170 |
| 72136A | No. 2 seat slide rail lower rail | 72136-02210 |
| 72211 | Seat slide adjustment handle | 72211-02130 · 72211-02270 |
| 73910A | Front right seat airbag assembly | 73910-02200 · 73910-02240 |
| 73920A | Front left seat airbag assembly | 73920-02090 · 73920-02200 |
| 73949 | cover | 71848-02040 |
